Buckling of a floating fluid layer

Published online by Cambridge University Press:  07 January 2026

Zofia Herbermann
Affiliation:
Department of Mathematics, University of British Columbia, Vancouver, BC V6T 1Z2, Canada
Neil J. Balmforth*
Affiliation:
Department of Mathematics, University of British Columbia, Vancouver, BC V6T 1Z2, Canada
Christian Schoof
Affiliation:
Department of Mathematics, University of British Columbia, Vancouver, BC V6T 1Z2, Canada Department of Earth, Atmosphere & Ocean Sciences, University of British Columbia, Vancouver, BC V6T 1Z2, Canada
*
Corresponding author: Neil J. Balmforth, njb@math.ubc.ca

Abstract

Roll patterns on floating ice shelves have been suggested to arise from viscous buckling under compressive stresses. A model of this process is explored, allowing for a power-law fluid rheology for ice. Linear stability theory of uniformly compressing base flows confirms that buckling modes can be unstable over a range of intermediate wavelengths when gravity does not play a dominant role. The rate of compression of the base flow, however, ensures that linear perturbations have wavelengths that continually shorten with time. As a consequence, linear instability only ever arises over a certain window of time $t$, and its strength can be characterised by finding the net amplification factor a buckling mode acquires for $t\to \infty$, beginning from a given initial wavenumber. Bi-axial compression, in which sideways straining flow is introduced to prevent the thickening of the base flow, is found to be more unstable than purely two-dimensional (or uni-axial) compression. Shear-thinning enhances the degree of instability in both uni-axial and bi-axial flow. The implications of the theoretical results for the glaciological problem are discussed.

Information

Type
JFM Papers
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2026. Published by Cambridge University Press

1. Introduction

In a series of papers in the 1950s, Biot demonstrated that layers of various materials could be buckled by compressive stresses in the same manner as the classical buckling of elastic beams (e.g. Biot Reference Biot1957, Reference Biot1959). Mining the same vein, Taylor (Reference Taylor1969) showed experimentally how the deformations of compressed threads and sheared films of viscous fluid qualitatively resembled elastic buckling patterns. A number of articles since then have explored the dynamics of viscous buckling from both an experimental and theoretical perspective (e.g. Buckmaster, Nachman & Ting Reference Buckmaster, Nachman and Ting1975; Cruickshank & Munson Reference Cruickshank and Munson1981; Benjamin & Mullin Reference Benjamin and Mullin1988; Ribe Reference Ribe2002; Slim et al. Reference Slim, Balmforth, Craster and Miller2008, Reference Slim, Teichman and Mahadevan2012; Pfingstag, Audoly & Boudaoud Reference Pfingstag, Audoly and Boudaoud2011; Le Merrer, Quéré & Clanet Reference Le Merrer, Quéré and Clanet2012; Ribe, Habibi & Bonn Reference Ribe, Habibi and Bonn2012), or considered various geological applications (e.g. Fletcher Reference Fletcher1977; Smith Reference Smith1977; Fink & Fletcher Reference Fink and Fletcher1978; Griffiths & Turner Reference Griffiths and Turner1988; Ribe et al. Reference Ribe, Stutzmann, Ren and Van Der Hilst2007; Schmalholz & Mancktelow Reference Schmalholz and Mancktelow2016).

In the present paper, we consider applications of viscous buckling theory to floating ice shelves. Part of the motivation stems from the observation of distinctive ‘roll’ patterns on the Petersen Ice Shelf and elsewhere (Copland & Mueller Reference Copland and Mueller2017; Coffey et al. Reference Coffey, MacAyeal, Copland, Mueller, Sergienko, Banwell and Lai2022). Though not uniformly agreed upon as an explanation of their origin, the roll patterns have been suggested to arise from the viscous-like buckling of an ice shelf under the compression imposed by adjacent sea ice, or the flow of the shelf towards a topographical obstruction (see Coffey et al. (Reference Coffey, MacAyeal, Copland, Mueller, Sergienko, Banwell and Lai2022) for more discussion). A photograph taken of the patterns at Ellesmere Island is shown in figure 1.

Figure 1. A photograph taken of the roll patterns on the Petersen Ice Shelf at Ellesmere Island, highlighted by meltponds (courtesy of Luke Copland; see White et al. Reference White, Copland, Mueller and Van Wychen2015). The rolls have wavelength approximately 200 m (16 or so rolls appear over the 3 km span of the ice sheet), and the mean ice thickness is approximately 25 m.

General models of floating ice shelves assume that ice behaves rheologically as either a viscoelastic medium or a power-law fluid, depending on the time scale over which deformations arise (Schoof & Hewitt Reference Schoof and Hewitt2013). Wave propagation and dynamical flexure due to tides are typically modelled viscoelastically (e.g. Reeh et al. Reference Reeh, Christensen, Mayer and Olesen2003; MacAyeal, Sergienko & Banwell Reference MacAyeal, Sergienko and Banwell2015). The slower deformations arising from compressive stresses and flow are more often dealt with using a power-law fluid model (Glen’s flow law; e.g. Glen Reference Glen1958; Morland & Shoemaker Reference Morland and Shoemaker1982; MacAyeal & Barcilon Reference MacAyeal and Barcilon1988). In view of the latter, we base our model on the buckling of a floating layer of power-law fluid. Similar buckling models have been proposed previously in the context of geological folding (Fletcher Reference Fletcher1974, Reference Fletcher1995; Smith Reference Smith1977). The use of extensional rheometers to study viscous buckling (Le Merrer et al. Reference Le Merrer, Quéré and Clanet2012) has also motivated the exploration of the buckling of non-Newtonian fluid threads (in particular, see Pereira et al. Reference Pereira, Larcher, Hachem and Valette2019).

The roll patterns at Ellesmere Island are observed to have amplitudes of the order of several metres, whereas the depth of the ice is of order 10 m. By contrast, the roll wavelength is a few hundred metres. These observations set the scene for a model description following conventional thin-plate analysis (Buckmaster et al. Reference Buckmaster, Nachman and Ting1975; Ribe Reference Ribe2002), as followed by Coffey et al. (Reference Coffey, MacAyeal, Copland, Mueller, Sergienko, Banwell and Lai2022). However, it is also observed that the lower surface of the ice does not follow the topography of the upper surface (Copland & Mueller Reference Copland and Mueller2017): sometimes the lower surface is relatively flat, and on other occasions there are similar roll patterns, but with shifted phase. The mismatch between the two surfaces suggests that the classical Euler–Bernoulli-type thin-plate model is not sufficient, as bending takes place at constant thickness in that description. Worse, compressive flow inevitably leads to the thickening of the layer and a shortening of perturbation wavelengths, which both invalidate long-wave analysis over longer times.

Such considerations lead us to conduct a study of the buckling of a two-dimensional layer of incompressible fluid without any thin-plate approximation. In § 2, we formulate the problem for both a viscous fluid and a power-law fluid, then outline the associated linear stability theory in § 3. Results for the buckling of a viscous fluid are described in § 4, and then for a power-law fluid in § 5. We sum up and discuss implications for the glaciological problem in § 6. A number of appendices contain technical details.

2. Formulation

Consider a two-dimensional layer of incompressible, inertialess fluid with density $\rho _i$ floating on an inviscid ocean of density $\rho _w$ . We use a Cartesian coordinate system $({\tilde x},{\tilde z})$ to describe the geometry (see figure 2), then define the velocity field as $({\tilde u},{\tilde w})$ . The stress tensor consists of an isotropic pressure $\tilde p$ and deviatoric components $\{{\tilde \tau _{xx}},{\tilde \tau _{xz}},{\tilde \tau _{{zz}}}=-{\tilde \tau _{xx}}\}$ . Conservation of mass and momentum takes the form

(2.1) \begin{align} \frac {\partial {\tilde u}}{\partial {\tilde x}} + \frac {\partial {\tilde w}}{\partial {\tilde z}} &= 0, \end{align}
(2.2) \begin{align} \frac {\partial {\tilde \tau _{xx}}}{\partial {\tilde x}} - \frac {\partial\! {\tilde p}}{\partial {\tilde x}} + \frac {\partial {\tilde \tau _{xz}}}{\partial {\tilde z}} &= 0, \end{align}
(2.3) \begin{align} \frac {\partial {\tilde \tau _{xz}}}{\partial {\tilde x}} - \frac {\partial {\tilde \tau _{xx}}}{\partial {\tilde z}} - \frac {\partial\! {\tilde p}}{\partial {\tilde z}} &= \rho _i g , \end{align}

where $g$ denotes gravitational acceleration. Adopting a power-law fluid model, the constitutive relations amount to

(2.4) \begin{equation} \begin{pmatrix} {\tilde \tau _{xx}}\\ {\tilde \tau _{xz}} \end{pmatrix} = K\! \left [4\left (\frac {\partial {\tilde u}}{\partial {\tilde x}}\right )^2 + \left (\frac {\partial {\tilde u}}{\partial {\tilde z}}+\frac {\partial {\tilde w}}{\partial {\tilde x}}\right )^2\right ]^{({m-1})/{2}} \begin{pmatrix} 2 \frac{\partial {\tilde u}}{\partial {\tilde x}} \\ \frac{\partial {\tilde u}}{\partial {\tilde z}} + \frac{\partial {\tilde w}}{\partial {\tilde x}} \end{pmatrix}\! , \end{equation}

where $K$ is the consistency, and $m$ is a power-law index. (The isothermal Glen–Nye flow law, as typically used in glaciology, inverts this relation so that strain rate is written in terms of stress; the Glen–Nye power-law index is then $n=m^{-1}$ , and $K^{-n}$ is the rate factor.)

Figure 2. A sketch of the model geometry.

The layer has a midline at ${\tilde z}={\tilde M}({\tilde x},{\tilde t})$ , and its local thickness is ${\tilde H}({\tilde x},{\tilde t})$ . At the upper and lower surfaces, the stress must satisfy

(2.5) \begin{equation} \left . \begin{aligned} &-\!({\tilde \tau _{xx}}-{\tilde p}) \frac {\partial }{\partial {\tilde x}}\! \left ({\tilde M} + {\frac 12} {\tilde H}\right ) + {\tilde \tau _{xz}} = 0,\\ &-\! {\tilde \tau _{xz}}\frac {\partial }{\partial {\tilde x}}\! \left ({\tilde M} + {\frac 12} {\tilde H}\right ) + {\tilde \tau _{{zz}}} - {\tilde p} = 0 \end{aligned}\right \} \quad \textrm {at} \quad {\tilde z}= {\tilde M} + {\frac 12} {\tilde H} \end{equation}

and

(2.6) \begin{equation} \left . \begin{aligned} &-\! ({\tilde \tau _{xx}}-{\tilde p}+{\tilde p}_w)\frac {\partial }{\partial {\tilde x}}\! \left ({\tilde M} - {\frac 12} {\tilde H}\right ) + {\tilde \tau _{xz}} = 0, \\ &-\! {\tilde \tau _{xz}}\frac {\partial }{\partial {\tilde x}}\!\left ({\tilde M} - {\frac 12} {\tilde H}\right ) + {\tilde \tau _{{zz}}} - {\tilde p} +{\tilde p}_w = 0 \end{aligned}\right \} \quad \textrm {at} \quad {\tilde z}= {\tilde M} - {\frac 12} {\tilde H}, \end{equation}

where we take the overlying atmospheric pressure to vanish, and ${\tilde p}_w \equiv -\rho _w g {\tilde z}$ denotes the underlying water pressure. The kinematic conditions are

(2.7) \begin{align} \left ( \frac {\partial }{\partial {\tilde t}} + {\tilde u} \frac {\partial }{\partial {\tilde x}} \right ) \left ({\tilde M}+{\frac 12} {\tilde H}\right ) &= {\tilde w} \quad \textrm {at} \quad {\tilde z}={\tilde M}+{\frac 12}{\tilde H}, \end{align}
(2.8) \begin{align} \left ( \frac {\partial }{\partial {\tilde t}} + {\tilde u} \frac {\partial }{\partial {\tilde x}} \right ) \left ({\tilde M}-{\frac 12} {\tilde H}\right ) &= {\tilde w} \quad \textrm {at} \quad {\tilde z}={\tilde M}-{\frac 12}{\tilde H}. \end{align}

2.1. Scaling and dimensionless model equations

We place the equations into a dimensionless form by introducing the scaled variables

(2.9) \begin{align} (x,z,M,H)=\frac {({\tilde x},{\tilde z},{\tilde M},{\tilde H})}{{\mathcal H}}, \quad t = \frac {{\mathcal V}{\tilde t}}{{\mathcal H}}, \quad (u,w) = \frac {({\tilde u},{\tilde w})}{{\mathcal V}}, \end{align}
(2.10) \begin{align} (\tau _{xx},\tau _{xz}) = \frac {({\tilde \tau _{xx}},{\tilde \tau _{xz}})}{{\mathcal S}}, \quad p = \frac {{\tilde p} - \rho _i g\! \left({\tilde M}+\dfrac{1}{2}{\tilde H}-{\tilde z}\right)}{{\mathcal S}}, \end{align}

where $\mathcal H$ denotes the initial layer thickness,

(2.11) \begin{equation} \delta = 1 - \frac {\rho _i}{\rho _w} \gt 0 \end{equation}

is the fractional density difference, and the stress scale $\mathcal S$ and velocity scale $\mathcal V$ are related through

(2.12) \begin{equation} {\mathcal S} = K\! \left (\frac {{\mathcal V}}{{\mathcal H}}\right )^m \!. \end{equation}

We further introduce a dimensionless position of neutral buoyancy,

(2.13) \begin{equation} Z = M+ \dfrac{1}{2} H - \delta H . \end{equation}

We then find the dimensionless governing equations,

(2.14) \begin{align} \frac {\partial u}{\partial x} + \frac {\partial w}{\partial z} &= 0, \end{align}
(2.15) \begin{align} \frac {\partial \tau _{xx}}{\partial x} - \frac {\partial\! p}{\partial x} + \frac {\partial \tau _{xz}}{\partial z} &= {\mathcal G} \frac {\partial }{\partial x}(\delta ^{-1} Z+H), \end{align}
(2.16) \begin{align} \frac {\partial \tau _{xz}}{\partial x} -\frac {\partial \tau _{xx}}{\partial z} - \frac {\partial\! p}{\partial z} &= 0 \end{align}

and

(2.17) \begin{equation} \begin{pmatrix} \tau _{xx} \\ \tau _{xz} \end{pmatrix} = \left [4\left (\frac {\partial u}{\partial x}\right )^2 + \left (\frac {\partial u}{\partial z}+\frac {\partial w}{\partial x}\right )^2\right ]^{({m-1})/{2}} \begin{pmatrix} 2 \frac{\partial u}{\partial x} \\ \frac{\partial u}{\partial z}+ \frac{\partial w}{\partial x} \end{pmatrix}\! , \end{equation}

where

(2.18) \begin{equation} {\mathcal G} = \frac {\delta \rho _ig{\mathcal H}}{{\mathcal S}} . \end{equation}

The corresponding boundary conditions on the stresses can be written as

(2.19) \begin{equation} \left . \begin{aligned} \tau _{xz} &= (\tau _{xx}-p) \frac {\partial }{\partial x}\! \left(M+\dfrac{1}{2} H\right) \\ \tau _{xx} + p &= - \tau _{xz} \frac {\partial }{\partial x}\! \left(M+\dfrac{1}{2} H\right) \end{aligned} \right \} \quad \textrm {on}\quad z = M + \dfrac{1}{2} H \equiv Z + \delta H \end{equation}

and

(2.20) \begin{equation} \left . \begin{aligned} \tau _{xz} &= \left [\tau _{xx}-p - \frac {{\mathcal G} Z}{\delta (1-\delta )} \right ] \frac {\partial }{\partial x}\! \left(M-\dfrac{1}{2} H\right) \\ \tau _{xx} &+ p + \frac {{\mathcal G} Z}{\delta (1-\delta )} = - \tau _{xz} \frac {\partial }{\partial x}\! \left(M-\dfrac{1}{2} H\right) \end{aligned} \right \} \quad \textrm {on}\quad z=M-\dfrac{1}{2} H \equiv Z - (1-\delta ) H . \end{equation}

The kinematic conditions are

(2.21) \begin{equation} \begin{aligned} \frac {\partial }{\partial t}\! \left(M+\dfrac{1}{2} H\right) + u \frac {\partial }{\partial x}\! \left(M+\dfrac{1}{2} H\right) = w \quad \textrm {on} \quad z=M+\dfrac{1}{2} H, \\ \frac {\partial }{\partial t}\! \left(M-\dfrac{1}{2} H\right) + u \frac {\partial }{\partial x}\! \left(M-\dfrac{1}{2} H\right) = w \quad \textrm {on} \quad z=M-\dfrac{1}{2} H . \end{aligned} \end{equation}

3. Linear theory

3.1. Base state

The equations have a uniformly compressing solution with

(3.1) \begin{align} (u,w) &= (U(x),W(z)) = (x,-z)\varDelta , \end{align}
(3.2) \begin{align} p &= - \varSigma , \quad \tau _{xx} = \varSigma , \quad Z = \tau _{xz} = 0, \quad M=M_0=\dfrac{1}{2}(2\delta -1)H_0, \end{align}
(3.3) \begin{align} H &= H_0(t) = {\rm e}^{-\varDelta t}, \end{align}
(3.4) \begin{align} \varSigma &= 2^m\, |\varDelta |^{m-1} \varDelta \equiv 2\mu \varDelta , \quad \mu = |2\varDelta |^{m-1}. \end{align}

Here, the strain rate is $\varDelta$ , implying a uniform extensional stress $\varSigma$ ; $(\varDelta ,\varSigma )\gt 0$ in extension, whereas under compression, $(\varDelta ,\varSigma )\lt 0$ . Hardwired into this base solution is the feature that when the ice thickens, it does not change its level of neutral buoyancy, so that water must leave the domain accordingly (giving $Z=0$ ). Otherwise, the addition of a constant uplift is required.

Note that our scaling of the problem does not specify the characteristic stress $\mathcal S$ . The freedom implied in this scale indicates that not all of the dimensionless parameters are independent, and we may select one of these as we wish. Practically, we exploit the freedom in the choice of $\mathcal S$ to set $\varDelta =\pm 1$ , taking $\mathcal G$ as a key dimensionless parameter. In view of the glaciological problem, we also mostly set $\delta =0.1$ (except for the limits of the linear stability problem discussed in Appendix A). The only remaining parameters are then the power-law index $m$ and a dimensionless parameter (denoted $\kappa$ below) that sets the initial horizontal wavelength of a disturbance to the base flow.

3.2. Linearised Stokes equations

Denoting infinitesimal perturbations about the base state by primes, we follow the usual reduction of linear theory to arrive at the equations

(3.5) \begin{align} \frac {\partial u'}{\partial x} + \frac {\partial w'}{\partial z} &= 0, \end{align}
(3.6) \begin{align} \frac {\partial \tau _{xx}'}{\partial x} - \frac {\partial\! p'}{\partial x} + \frac {\partial \tau '_{xz}}{\partial z} &= {\mathcal G} \frac {\partial }{\partial x}(\delta ^{-1} Z'+H'), \end{align}
(3.7) \begin{align} \frac {\partial \tau _{xz}'}{\partial x} -\frac {\partial \tau _{xx}'}{\partial z} - \frac {\partial\! p'}{\partial z} &= 0, \end{align}
(3.8) \begin{align} (\tau _{xx}',\tau _{xz}') = \mu\! \left (2m \frac {\partial u'}{\partial\! x},\frac {\partial u'}{\partial z}+\frac {\partial w'}{\partial x}\right ) &= \mu\! \left (2m \frac {\partial \psi }{\partial x \partial z}, \frac {\partial ^2 \psi }{\partial z^2}-\frac {\partial ^2 \psi }{\partial x^2}\right )\!, \end{align}

where we have introduced a streamfunction such that $(u',w')=(\psi _z,-\psi _x)$ . Eliminating the pressure, we find an equation for that streamfunction:

(3.9) \begin{equation} \frac {\partial ^4\psi }{\partial x^4} + 2(2m-1)\frac {\partial ^4\psi }{\partial x^2\partial z^2} + \frac {\partial ^4\psi }{\partial z^4} = 0. \end{equation}

For $m=1$ , (3.9) reduces to the familiar biharmonic equation. At a fixed point in time, we consider solutions with the form of single Fourier modes in $x$ , so that

(3.10) \begin{equation} \begin{aligned} \psi ={}& \big[ A_1 \cosh k(z-B_0) + A_2 \sinh k(z-B_0) \\ & {}+ A_3 (z-B_0) \cosh k(z-B_0) + A_4 (z-B_0)\sinh k(z-B_0) \big]\,{\rm e}^{{\rm i}kx} \end{aligned} \end{equation}

(e.g. Smith Reference Smith1975; Fletcher Reference Fletcher1977; Benjamin & Mullin Reference Benjamin and Mullin1988), where $k$ denotes the wavenumber, and $B_0=-(1-\delta ) H_0$ is the undisturbed lower surface. For $m\lt 1$ (as is relevant to Glen’s law, where typically $m \approx 1/3$ ), we find instead

(3.11) \begin{equation} \begin{aligned} \psi ={} &[ A_1 \cosh k\alpha (z-B_0) + A_2 \cosh k\alpha (z-B_0)\\ & {}+ A_3 \cosh k\beta (z-B_0) + A_4 \sinh k\beta (z-B_0)]\, {\rm e}^{{\rm i}kx} \end{aligned} \end{equation}

(e.g. Fletcher Reference Fletcher1974; Smith Reference Smith1977), where

(3.12) \begin{equation} \alpha = c + {\rm i}s , \quad \beta = c-{\rm i}s, \quad c = \sqrt {m}, \quad s = \sqrt {1-m} . \end{equation}

The constants $A_{\!j}$ are determined in terms of $Z'$ and $H'$ on substituting $\psi$ into the stress boundary conditions, which become, after a further linearisation about the position of the surfaces of the base flow,

(3.13) \begin{equation} \tau _{xz}' - 2 \frac {\partial }{\partial x}\varSigma (Z'+\delta H') = \tau _{xx}'+p'=0 \end{equation}

on the undisturbed top surface $z=\delta H_0$ , and

(3.14) \begin{equation} \tau _{xz}' - 2\varSigma \frac {\partial }{\partial x}[Z'- (1-\delta )H'] = \tau _{xx}'+p'+\frac {{\mathcal G} Z'}{\delta (1-\delta )}=0 \end{equation}

on the unperturbed lower one $z=B_0=-(1-\delta ) H_0$ . In view of the constitutive relations, these conditions simplify to

(3.15) \begin{equation} \left . \begin{aligned} \mu\! \left (\frac {\partial ^2 \psi }{\partial z^2} + k^2\psi \right ) - 2 {\rm i}k \varSigma (Z'+ \delta H') &= 0,\\ \mu\! \left [\frac {\partial ^3\psi }{\partial z^3} + (1-4m)k^2 \frac {\partial \psi }{\partial z}\right ] - {\rm i}k {\mathcal G} (\delta ^{-1} Z'+H') &= 0 \end{aligned} \right \} \quad \textrm {on} \quad z=\delta\! H_0 \end{equation}

and

(3.16) \begin{equation} \left . \begin{aligned} \mu\! \left (\frac {\partial ^2 \psi }{\partial z^2} + k^2\psi \right ) - 2{\rm i}k \varSigma [Z'- (1-\delta ) H'] &= 0, \\ \mu\! \left [\frac {\partial ^3\psi }{\partial z^3} + (1-4m)k^2 \frac {\partial \psi }{\partial z}\right ] - \text{i}k {\mathcal G} (\delta ^{-1} Z'+H') + \frac {\text{i}k{\mathcal G} Z'}{\delta (1-\delta )} &= 0 \end{aligned}\right \} \quad \textrm {on} \quad z=B_0 . \end{equation}

3.3. The initial-value problem

Finally, we grapple with the kinematic conditions, which may be combined into the two evolution equations

(3.17) \begin{align} \frac {\partial\! Z'}{\partial t} + x \varDelta \frac {\partial\! Z'}{\partial x} + \Delta Z' &= (1-\delta )\, w'(z,\delta H_0,t) + \delta w'(x,B_0,t) , \end{align}
(3.18) \begin{align} \frac {\partial\! H'}{\partial t} + x \varDelta \frac {\partial\! H'}{\partial x} + \Delta H' &= w'(z,\delta H_0,t) - w'(x,B_0,t) . \end{align}

The last terms $\varDelta (Z',H')$ on the left stem from the expansion of $W(z)+w'(x,z,t)$ about the unperturbed top and bottom surfaces.

Equations (3.17)–(3.18) do not admit separable solutions in $t$ and $x$ . Nevertheless, if we define the time-dependent wavenumber (cf. Fletcher Reference Fletcher1977; Benjamin & Mullin Reference Benjamin and Mullin1988)

(3.19) \begin{equation} k=\kappa f(t), \quad \text{where} \ f = {\rm e}^{-\varDelta t}, \end{equation}

then we can search for non-separable Fourier-mode-type solutions with $(Z',H')\propto \text{e}^{\text{i}kx}=\text{e}^{\text{i}\kappa\! x\! f(t)}$ , allowing us to exploit the solutions to (3.9) quoted above. It also proves convenient to consider perturbations relative to the expanding base state $H_0(t)$ , by defining

(3.20) \begin{equation} \begin{pmatrix} H' \\ Z' \end{pmatrix} = \text{e}^{\text{i}kx}\, H_0(t)\! \begin{pmatrix} {\check H}(t) \\ {\check Z}(t) \end{pmatrix}\! . \end{equation}

We then find

(3.21) \begin{equation} \left (\frac {\partial }{\partial t} + x \varDelta \frac {\partial }{\partial x} + \varDelta \right ) \left [ \begin{pmatrix} {\check H}\\ {\check Z}\end{pmatrix} \text{e} ^{\text{i}kx} \right ] = \text{e} ^{\text{i}kx}\, H_0 \frac {\textrm {d}}{\textrm {d} t}\! \begin{pmatrix} {\check H} \\ {\check Z}\end{pmatrix}\!. \end{equation}

3.4. A Newtonian layer

For $m=1$ , after some algebra, we now arrive at

(3.22) \begin{equation} \dfrac {\textrm {d}}{\textrm {d} t}\! \begin{pmatrix} {\check H}\\ {\check Z}\end{pmatrix} = \boldsymbol {M}\! \begin{pmatrix} {\check H}\\ {\check Z} \end{pmatrix} = (\varSigma\! \boldsymbol {M}_{\! \varSigma} + {\mathcal G}\! \boldsymbol {M}_{\mathcal G} )\! \begin{pmatrix} {\check H}\\ {\check Z} \end{pmatrix} \end{equation}

(cf. Benjamin & Mullin Reference Benjamin and Mullin1988), where the matrices

(3.23) \begin{align} \boldsymbol {M}_{\! \varSigma} &= \dfrac {Q}{{S}^2-Q^2} \begin{pmatrix} {S}-Q & 0 \\ (1-2\delta )S & -{S}-Q \end{pmatrix}\! , \end{align}
(3.24) \begin{align} \boldsymbol {M}_{\mathcal G} &= \dfrac {H_0({C}-1)}{2Q({S}+Q)} \begin{pmatrix} -2 & {(2\delta -1)}/{[\delta (1-\delta )]} \\ 2\delta -1 & 2 - {(\textit{CS} + Q)}/[{\delta (1-\delta )({C}-1)({S}-Q)}] \end{pmatrix} \\[9pt] \nonumber \end{align}

are time-dependent through the relations

(3.25) \begin{equation} Q(t) = k(t) H_0(t) = \kappa f(t) H_0(t) , \quad {C}(t) = \cosh Q, \quad {S}(t) = \sinh Q. \end{equation}

3.5. A power-law fluid layer

A similar reduction of the linear initial-value problem can be performed for shear-thinning power-law fluids ( $m\lt 1$ ). After more algebra, we find

(3.26) \begin{equation} \frac {{\rm d}}{\textrm {d} t}\! \begin{pmatrix} {\check H} \\ {\check Z}\end{pmatrix} = \frac {\varSigma\! \boldsymbol {M}_{\! \varSigma} + {\mathcal G} \boldsymbol {M}_{\mathcal G}} {\mu } \begin{pmatrix} {\check H}\\ {\check Z} \end{pmatrix}\! . \end{equation}

The matrices are

(3.27) \begin{equation} \boldsymbol {M}_{\! \varSigma} = \dfrac {s_s}{c(s^2 S_c^2 - c^2 s_s^2)}\! \begin{pmatrix} \textit{sS}_c - cs_s & 0 \\ \textit{sS}_c(1-2\delta ) & - (\textit{sS}_c + cs_s) \end{pmatrix} \end{equation}

and

(3.28) \begin{align} \boldsymbol {M}_{\mathcal G} ={}& \frac {\textit{sH}_0 (C_c-c_s)}{2cQ(\textit{sS}_c + cs_s)} \nonumber\\ & {}\times \begin{pmatrix} -2 & (2\delta -1)/[\delta (1-\delta )] \\ 2\delta -1 & 2 - (sC_cS_c + cs_sc_s)/[\delta (1-\delta )(C_c - c_s)(\textit{sS}_c - cs_s)] \end{pmatrix}\! , \end{align}

where

(3.29) \begin{equation} C_c = \cosh \textit{cQ}, \quad S_c = \sinh \textit{cQ}, \quad c_s = \cos \textit{sQ}, \quad s_s = \sin \textit{sQ} \end{equation}

(cf. Fletcher Reference Fletcher1974, Reference Fletcher1995; Smith Reference Smith1977).

4. Linear viscous buckling

The pair of evolution equations (3.22) describes the linear viscous buckling problem. Incorporated are two qualitatively distinct modes of deformation: if the solution vector is dominated by the second component ${\check Z}(t)$ , then deformation most takes place by bending (sinusoidal vertical deflections) without significant thickness variations, implying a sinuous mode. Alternatively, when the thickness variation ${\check H}(t)$ dominates the solution, we encounter a second varicose mode of deformation. In the full linear initial-value problem (3.22), two modes are coupled via the off-diagonal components of $\boldsymbol{M}$ , because bending or thickening unavoidably shifts the level of neutral buoyancy unless $\delta = 1/2$ . In general, this coupling demands a numerical solution of (3.22), except in some analytical limits discussed in Appendix A.

We write the general result of integrating (3.22) formally as

(4.1) \begin{equation} {\boldsymbol{v}}(t) = \begin{pmatrix} {\check H}(t) \\ {\check Z}(t) \end{pmatrix} = \boldsymbol {R}(t)\! \begin{pmatrix} {\check H}(0) \\ {\check Z}(0) \end{pmatrix} = \boldsymbol {R}(t) {\boldsymbol{v}}(0) . \end{equation}

From the eigenvalues of the evolution matrix $\boldsymbol {R}(t)$ , we may define amplification factors at time $t$ : an eigenvalue with modulus larger than unity implies amplification. Our chief interest is in long-term amplification, i.e. in the eigenvalues of $\boldsymbol {R}(\infty )$ . To find these eigenvalues, we compute solutions to (3.22) beginning from two pairs of initial conditions: $({\check H}(0),{\check Z}(0))=(1,0)$ and $(0,1)$ . From these pairs, we then compute the evolution matrix ${\boldsymbol{R}}(t)$ , and find its eigenvalues at the final (typically large) time of the computation. We then build specific solutions to the initial-value problem using the eigenvector corresponding to the eigenvalue with largest modulus (referred to as $\nu$ below).

Note that it is possible to establish the limits of the eigenvalues of $\boldsymbol{M}$ for $t\gg 1$ ( $Q\gg 1$ ); see § A.4. In particular, those limiting eigenvalues are integrable for $t \rightarrow \infty$ . Therefore, using Grönwall’s inequality, we can establish that

(4.2) \begin{equation} \dfrac {|{\boldsymbol{v}}(t)|^2}{|{\boldsymbol{v}}(0)|^2} \leqslant \exp\! \left ( \int _0^t \| \boldsymbol {M}(t') \|\, \textrm {d} t'\right ) \end{equation}

is finite for $t\to \infty$ . Here, $\| \boldsymbol {A} \|$ denotes the usual operator norm of $\boldsymbol{A}$ , equal to the spectral radius of $\boldsymbol{A}$ (the maximum absolute value of the eigenvalues of the matrix). But $\|{\boldsymbol{R}}(t)\|$ is also the maximum of the left-hand side of (4.2), taken over all $\boldsymbol {v}(0) \neq \boldsymbol {0}$ . Hence the maximum amplification of ${\boldsymbol{v}}(t)$ (defined in terms of the eigenvalues of ${\boldsymbol{R}}(t)$ ) is bounded by the right-hand side of (4.2), and is finite for $t\to \infty$ .

4.1. Pure compression or tension

In the absence of buoyancy ( ${\mathcal G} = 0$ ), $\boldsymbol{M}$ is triangular, and the eigenvalues $M_{11} = {} Q \varSigma / (S+Q)$ and $M_{22} = -Q \varSigma / (S-Q)$ correspond to the varicose ( ${\check M} = 0$ ) and sinuous ( ${\check H} = 0$ ) modes, respectively. These eigenvalues are plotted as functions of  $Q$ in figure 3. Both eigenvalues exponentially decay as $\pm 2\varSigma\! Q\exp (-Q)$ for $Q\gg 1$ , implying that amplification must have a long-wave character, and that short waves become time-independent. For compression (with $\varSigma \lt 0$ , $\varDelta \lt 0$ ), the varicose mode is expected to decay, and the bending mode to amplify, in the usual manner of viscous buckling.

Figure 3. Eigenvalues with ${\mathcal G}=0$ : (a,b) the scaled eigenvalues $\mu M_{\varSigma 11}$ and $\mu Q^2 M_{\varSigma 22}$ plotted as functions of $Q$ ; (c,d) the amplification factors $\ln D_{11}(\infty ;\kappa )$ and $\kappa ^2 \ln D_{22}(\infty ;\kappa )$ defined as in (4.5), plotted against $\kappa =Q(0)$ . Results for $m=1$ are shown in blue, and for $m= 1/3$ in red. The dot-dashed lines show the limits for $\kappa \to 0$ given in (4.6) or (5.2). The dashed lines in (a,b) show the limits for $Q\gg 1$ implied by (5.3).

To see these features more explicitly, we first diagonalise the triangular matrix $\boldsymbol{M}=\boldsymbol{M}_{\!\varSigma}\! \varSigma$ by reverting to the midline deflection ${\check M} = (\delta - ( 1/2)){\check H} + {\check Z}$ rather than $\check Z$ . Then

(4.3) \begin{equation} \frac { {\rm d}}{\textrm {d} t}\! \begin{pmatrix} {\check H} \\ {\check M} \end{pmatrix} = \begin{pmatrix} M_{11} & 0 \\ 0 & M_{22} \end{pmatrix} \begin{pmatrix} {\check H} \\ {\check M} \end{pmatrix}\! , \end{equation}

where

(4.4) \begin{equation} \begin{pmatrix} {\check H} \\ {\check M} \end{pmatrix} = \boldsymbol {E}\! \begin{pmatrix} {\check H} \\ {\check Z} \end{pmatrix} , \quad \boldsymbol {R}(t) = \boldsymbol {E}^{-1}\,\boldsymbol {D}(t)\, \boldsymbol {E}, \quad \boldsymbol {E} = \begin{pmatrix} 1 & 0 \\ \delta -\frac{1}{2} & 1 \end{pmatrix}\!, \end{equation}

and $\boldsymbol{D}(t)$ is the diagonal matrix with

(4.5) \begin{equation} \begin{aligned} D_{11}(t;\kappa ) &= \exp\! \left[ \int _0^t M_{11}(t')\, \textrm {d} t'\right] = \exp\! \left [ - \int _{\kappa }^{Q(t)} \frac { \textrm {d} Q'}{\sinh Q' + Q'}\right ]\!, \\ D_{22}(t;\kappa ) &= \exp\! \left[ \int _0^t M_{22}(t')\, \textrm {d} t'\right] = \exp\! \left [ \int _{\kappa }^{Q(t)} \frac {\textrm {d} Q'}{\sinh Q'-Q'} \right ] \end{aligned} \end{equation}

(given $\varSigma =2\varDelta$ for $m=1$ ).

For compression ( $\varDelta \lt 0$ ), the wavenumber increases with time and $Q\geqslant \kappa$ , implying that $D_{11}\leqslant 1$ and $D_{22}\geqslant 1$ . That is, as expected, the sinuous mode (associated with $D_{22}$ ) is amplified, whereas the varicose mode (corresponding to $D_{11}$ ) is damped. Both eigenvalues, $D_{11}$ and $D_{22}$ , approach finite limits as $t \rightarrow \infty$ . In figures 3(c,d), we therefore plot the net amplification factors $D_{11}(\infty ;\kappa )$ and $D_{22}(\infty ;\kappa )$ as functions of $\kappa$ for $\varDelta =-1$ . Note that $- \varSigma\! Q/ (S-Q) \sim -6\varSigma\! Q^{-3}$ for $Q\ll 1$ , implying $D_{22}(\infty ;\kappa ) \sim \exp (3\kappa ^{-2})$ for $\kappa \ll 1$ , leading us to scale $\ln D_{22}(\infty ;\kappa )$ by $\kappa ^2$ in figure 3(d). Consequently, in the absence of buoyancy forces, the longest waves with $\kappa \to 0$ can grow to arbitrarily large amplitude.

In tension ( $\varSigma \gt 0$ , $\varDelta \gt 0$ ), the wavenumber decreases with time and $Q\leqslant \kappa$ , implying that $D_{11}\geqslant 1$ , $D_{22}\leqslant 1$ and the opposite behaviour; the varicose mode is unstable, and the bending mode is stable. Unstable varicose modes arise because our perturbations are taken with respect to the base state $H_0(t)$ in (3.20), which is continually thinning for $\varSigma \gt 0$ . Indeed, factoring the base state back into the perturbation amplitudes via (3.20) leads to perturbations in thickness that decay overall, but not as quickly as the base state thins. The apparent instability for $\varSigma \gt 0$ is therefore analogous to the necking dynamics explored by Smith (Reference Smith1975, Reference Smith1977) and Fletcher & Hallet (Reference Fletcher and Hallet1983), which also may have glaciological application to iceberg calving (Bassis & Ma Reference Bassis and Ma2015).

4.2. Stabilisation of long and short waves by buoyancy

To appreciate the impact of buoyancy, we first examine the eigenvalues of $\boldsymbol{M}$ for ${\mathcal G}\gt 0$ ; the largest of these is shown as a function of $Q$ and $-{\mathcal G} H_0/\varSigma$ in figure 4(a), for a compressed viscous film. Also shown is the ratio ${\check Z}/{\check H}$ , which identifies the character of the deformation (as sinuous for ${\check Z}/{\check H}\gt 1$ , and varicose when ${\check Z}/{\check H}\lt 1$ ). Instantaneous instability, in the sense of a positive eigenvalue of $\boldsymbol{M}$ , now arises over a band of finite wavenumbers, with long as well as short waves damped. Over the unstable band, modes have a sinuous character. Outside the band, modes are more weakly damped and mostly have a varicose character. Of practical importance is that instability also occurs only provided that the compressive stress exceeds a threshold dictated by buoyancy. This threshold is determined in Appendix C for general $\delta$ ; in figure 4, with $\delta =0.1$ , $\varSigma \lesssim -2.112{\mathcal G} H_0$ .

Figure 4. (a) Scaled maximum eigenvalue $\lambda /|\varSigma |$ of $\boldsymbol{M}$ , and (b) the ratio $|{\check Z}/{\check H}|$ for the corresponding eigenvector, as densities over the $(Q,H_0{\mathcal G}/|\varSigma |)$ -plane, for $\delta =0.1$ and $m=1$ . The dashed contour identifies the stability boundary. In (a), the colour map actually shows $\lambda ^{1/3}$ , and the dot-dashed line shows the most unstable wavenumber. The red star shows the critical threshold for $|\varSigma |/(H_0{\mathcal G})$ for instantaneous instability (see Appendix C). In (b), the dotted line shows where $|{\check Z}|=|{\check H}|$ . The arrows indicate the trajectories of the initial-value problems of figure 5(a,b) for uni-axial compression.

In the long-wave limit, figure 4 indicates that modes are therefore damped, except when buoyancy effects are relatively small. In fact, for $Q\ll 1$ and ${\mathcal G}\ll 1$ , we may show that the buckling and thickness modes have associated eigenvalues

(4.6) \begin{equation} \lambda _1 \sim - \frac {3}{ Q^2} \left [2\varSigma + \frac {{\mathcal G} H_0}{\delta (1-\delta )Q^2}\right ] \quad \textrm {and} \quad \lambda _2 \sim \frac 12\varSigma, \end{equation}

respectively; see § A.3. The buckling mode is unstable under compression ( $\varSigma \lt 0$ ) at sufficiently large wavelengths:

(4.7) \begin{equation} k^2 = \frac {Q^2}{H_0^2} \gt \frac {{\mathcal G}}{2\delta (1-\delta )H_0\, |\varSigma |} \end{equation}

(cf. Coffey et al. Reference Coffey, MacAyeal, Copland, Mueller, Sergienko, Banwell and Lai2022).

Conversely, short wavelengths are always stable, with negative eigenvalues that tend to zero as $Q \rightarrow \infty$ , regardless of the value of $\mathcal G$ A.4). For $O(1)$ wavenumbers $Q$ and buoyancy parameters $\mathcal G$ , one can show that both eigenvalues of $\boldsymbol{M}$ are real, and that at most one can be positive (see Appendix C). Consequently, the sinuous and varicose modes can never both be instantaneously unstable.

More generally, because the eigenvectors of $\boldsymbol{M}$ are neither orthogonal nor constant in time, one cannot conclude that instantaneous instability associated with the eigenvalues of the matrix implies long-term amplification of an initial perturbation. Instead, we resort to numerical construction of the evolution matrix in (4.1), and determine the eigenvalues of $\boldsymbol{R}(t)$ for $t\to \infty$ to furnish a more quantitative measure of amplification. Sample computations are shown in figure 5(a,b) for a particular choice of the parameters $(\varDelta ,{\mathcal G},\delta )=(-1,0.1,0.1)$ and two values of initial wavenumber $\kappa$ . The trajectory of these initial-value problems over the $(Q,H_0{\mathcal G}/|\varSigma |)$ -plane is also indicated in figure 4.

Figure 5. Numerical solutions of the Newtonian evolution equation (3.22) for varying wavenumber with $\varDelta =-1$ , ${\mathcal G}=\delta =0.1$ . Plotted are time series of ${\check Z}(t)$ and ${\check H}(t)$ for (a) $\kappa =0.766$ and (b) $\kappa =1/2$ . The solid lines show solutions in uni-axial compression; the dashed lines are for bi-axial compression. (c–f) Solutions over a wider range of $\kappa$ , displayed as density plots on the $(t,\kappa )$ -plane (with (c,d) for uni-axial compression, and (e, f) for the bi-axial case). The horizontal dashed line indicates the stability boundary for instantaneous instability at $t=0$ ; the dotted lines indicate the solutions in (a,b). (g) Maximum eigenvalues $\nu$ of ${\boldsymbol{R}}(\infty )$ as functions of $\kappa$ , estimated from the final numerical solutions at $t=200$ . (h) The breakdown into components of the corresponding eigenvector.

The case with $\kappa =0.766$ in figure 5(a) corresponds to the initial wavenumber $\kappa =Q(0)$ with the largest eigenvalue of ${\boldsymbol{M}}(0)$ , i.e. the most unstable mode at $t=0$ . This mode grows initially, but the inexorable increase in the instantaneous wavenumber $Q(t)$ eventually shifts this mode out of the unstable band (see figure 4). The amplitudes of ${\check Z}(t)$ and ${\check H}(t)$ then decrease somewhat, before converging to their final (finite) values.

The second solution, with $\kappa =1/2$ , in figure 5(b) initially lies outside the unstable band, and damps slightly at the outset accordingly. But the instantaneous wavenumber $Q(t)$ then shifts into the unstable band, leading to stronger amplification. Eventually, $Q(t)$ again leaves the unstable band, and the mode damps again. However, the longer traversal of the unstable window by this solution (figure 4) leads to a larger net amplification than is displayed by the solution in figure 5(a). Note that in both cases, the thickness variation (i.e. ${\check H}(t)$ ) is amplified significantly, though to a somewhat lesser degree than the bending characterised by ${\check Z}(t)$ . Moreover, the thickness perturbation ${\check H}(t)$ is opposite in sign to ${\check Z}\approx {\check M}+( 1/2) {\check H}$ (for small $\delta$ ), indicating that the top surface is less strongly distorted than the lower one ( ${\check M} - ( 1/2){\check H} \approx {\check Z} - {\check H}$ ).

Figure 5(c,d) show solutions for a wider set of initial wavenumbers, plotting ${\check Z}(t)$ and ${\check H}(t)$ as densities over the $(t,\kappa )$ -plane. The net amplification reflects the competition between the growth during the traversal of the unstable window and the decay at early and late times, moderated by the choice of initial wavenumber. In the density plots, this leads to the notable peak in ${\check Z}(t)$ and trough in ${\check H}(t)$ for initial wavenumbers approximately one-half; the final amplification factor plotted in figure 5(g) exposes a similar signature. The breakdown of the initial condition into its vector components $({\check H}(0),{\check Z}(0))$ is shown in figure 5(h). For the higher wavenumbers, the bending contribution ${\check Z}(0)$ exceeds the initial thickness variation ${\check H}(0)$ . At the lower wavenumbers, however, this does not remain true.

4.3. General amplification factors

A broader view of the degree of possible amplification is shown in figures 6(a) which displays the larger eigenvalue $\nu$ of ${\boldsymbol{R}}(\infty )$ as a function of $Q(0) = \kappa$ and ${\mathcal G} /|\varSigma |$ . The boundary for instantaneous instability (defined by the eigenvalues of $\boldsymbol {M}(0)$ ) is overlaid in red. Figure 6(b) shows the vertical deflection ${\check Z}(0)$ associated with the corresponding (unit) eigenvector of $\boldsymbol {R}(\infty )$ .

Figure 6. (a) Largest eigenvalue $\nu$ and (b) the ${\check Z}(0)$ -component of the corresponding (unit) eigenvector of $\boldsymbol {R}(\infty )$ as densities over the $(\kappa ,{\mathcal G}/|\varSigma |)$ -plane, for $\delta =0.1$ and $\varDelta =-1$ . The data are computed numerically (using the MATLAB ode15s solver) when $\kappa \gt 0.8$ or ${\mathcal G} \gt 0.0063\kappa ^{1/2}$ , and using the asymptotic results in § A.3 otherwise (to avoid overflow errors). The locus of neutral amplification ( $\nu = 1$ ) is shown by the solid line; the instantaneous stability boundary for $t=0$ (i.e. the locus for $\lambda = 0$ ) is shown by the dashed line. In (a), the dotted contours show the levels $\log \nu = 8^{\pm j}$ for $j=0,1,\ldots ,5$ .

Several features are evident in figure 6. First, the largest amplification factors arise for longer waves and weak buoyancy ( $\kappa$ and $\mathcal G$ both small; lighter region in figure 6 a). In fact, the amplifications reached in the long-wave limit are extreme, with the larger eigenvalue of $\boldsymbol {R}(\infty )$ becoming exponentially large in $\kappa ^{-2}$ (see Appendix B). The largest eigenvalue shown in figure 6(a) has $\log \nu = O(10^5)$ (underscoring our use of $(\log \nu )^{1/3}$ for plotting purposes).

Second, amplification is associated with buckling, as already discussed above: the region in which $\nu \gt 1$ corresponds to relatively large initial vertical deflection ${\check Z}(0)$ (see figure 6 b). Third, as can be seen by comparing the solid and dashed lines in figure 6(a), the net amplification is shifted to longer initial wavelengths compared with the region of instantaneous instability identified by the eigenvalues of $\boldsymbol {M}(0)$ . In fact, for given $\mathcal G$ , the largest amplification factor is achieved for an initial wavenumber $\kappa$ that lies close to the left-hand edge of the instantaneous stability boundary, a choice that guarantees a relatively long residence in the unstable window. Net amplification also requires the buoyancy parameter ${\mathcal G} /|\varSigma |$ to be even smaller than the critical value demanded by the eigenvalues of $\boldsymbol {M}(0)$ .

4.4. Long waves

Figure 6(a) illustrates how amplification becomes arbitrarily large for $\kappa \ll 1$ and ${\mathcal G}\ll 1$ , with amplification occuring even for initial conditions that lie far to the left of the (red dashed) instantaneous stability boundary. Such initial conditions should be subject to rapid initial decay of the sinuous mode, but still become amplified in the long run. This motivates further exploration of a distinguished long-wave, small-buoyancy limit in which $\kappa \to 0$ with ${\mathcal G}=O(\kappa ^2)$ . In fact, results in this asymptotic limit can be extracted analytically, an exercise accomplished in Appendix B. The construction is somewhat long-winded, however, with the long-wave modes passing through a convoluted sequence of different evolutionary phases, as illustrated in figure 7.

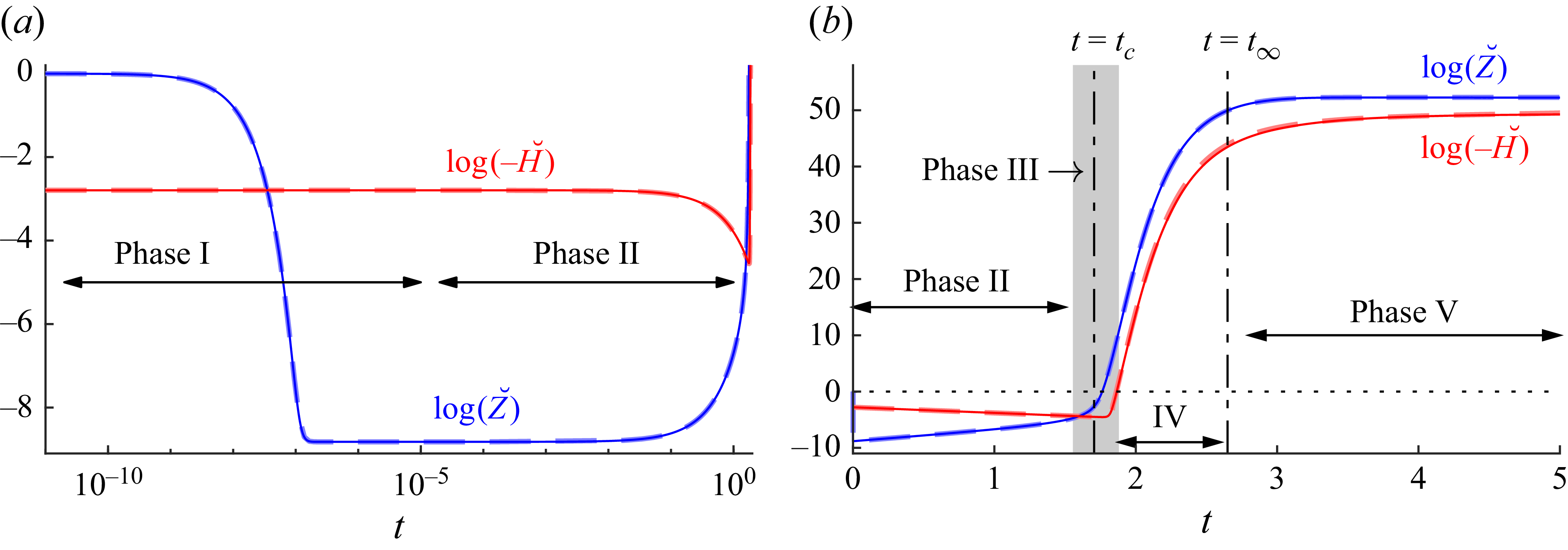

Figure 7. Time series of $\log ({\check Z}(t))$ (solid blue) and $\log (-{\check H}(t))$ (solid red) for a long-wave initial condition corresponding to the eigenvector $\boldsymbol {e}$ of $\boldsymbol{R}(\infty )$ with largest eigenvalue, for $\kappa =0.005$ , ${\mathcal G}=0.001$ and $\varDelta = -1$ . The dashed lines show composite asymptotic solutions based on the results in Appendix B. The time $t_c$ corresponds to the instant when the largest eigenvalue of $\boldsymbol{M}(t_c)$ crosses zero; the instantaneous wavenumber $Q(t)$ reaches unity for $t=t_\infty$ .

In the computation shown in this figure, the initial wavenumber indeed lies to the left of the region of instantaneous instability, and the evolutionary sequence kicks off with a relatively short window (labelled ‘Phase I’ in figure 7) in which the vertical deflection of the mode decays exponentially over times of $O(\kappa ^2)$ . However, an important feature of $\boldsymbol{M}(t)$ in the long-wave, weak buoyancy limit is that the entries become unbalanced (§ A.3): vertical deflections due to lateral motions evolve on a much faster time scale than thickness perturbations, which require extension or compression of the sheet. After the fast initial transient, the vertical deflection therefore does not disappear completely but becomes sustained in Phase II at a relatively low level by the remaining thickness perturbation, as long as $\delta \neq 1/2$ . Even though the thickness perturbations decay over the slower, $O(1)$ time scale of Phase II, the induced vertical deflections actually grow slowly as the wavelength shortens and the critical wavelength for buckling is approached. The residual vertical deflection driven by slowly decaying thickness variations is key to the eventual amplification seen in figure 6.

At time $t=t_c$ , defined from (4.7) by $Q(t_c) = [{\mathcal G}/[2\delta (1-\delta )\,|\varSigma |]^{2/3}$ , the wavenumber reaches the unstable window. This triggers Phase III for $t=t_c+O(\kappa )$ , during which the sinuous mode starts to grow rapidly. Growth is sustained over Phase IV, in which growth of thickness perturbations is driven by unstable vertical deflections. Eventually, $t$ becomes large, and the instantaneous wavelength reaches the scale of the layer thickness ( $t=O(t_\infty )$ , where $Q(t_\infty )=1$ ). Thereafter, in a final Phase V, the vertical deflection subsides slightly before reaching its ultimate value. The outcome of this somewhat tortuous evolution is that the relevant eigenvector of $\boldsymbol {R}(\infty )$ for the example in figure 7 is $\boldsymbol {e} = ( -0.0611, 0.9981)^{\mathrm{T}}$ . This eigenvector corresponds to a largely sinuous deflection, with a small but crucial admixture of varicose thickness variation, which is necessary to maintain sufficient vertical deflection to initiate buckling at $t \sim t_c$ . The extremely large amount of amplification (the corresponding eigenvalue being $\nu = 4.8 \times 10^{22}$ ) is ultimately the result of the difference in buckling and compressive time scales, which allows for a long period of growth before wavelengths are reduced sufficiently to suppress further buckling.

Note that the long-wave dynamics illustrated in figure 7 arises for all choices of $0\lt \delta \lt 1$ , except in the special case $\delta =1/2$ . For that case, the level of neutral buoyancy coincides with the midline of the viscous layer, and the thickness and bending modes become decoupled; see § A.1. The net amplifications can then be computed more directly, as in § 4.1. An immediate consequence of the decoupling is that growth cannot be catalysed by an initial thickness variation, unlike for general $\delta$ . As illustrated in § A.1, this also implies that the threshold for finite amplification ( $\nu =1$ ) always lies close to the instantaneous stability boundary at $t=0$ (where $\lambda$ , the maximum eigenvalue of $\boldsymbol{M}$ , vanishes).

4.5. Bi-axial compression

In the formulation above, we considered purely two-dimensional flow in which compression leads to buckling. Simultaneously, the base state thickens with time: $H_0(t)={\rm e}^{-\varDelta t}$ . In the geophysical application to ice shelves, however, ice shelves can reach steady states with constant thickness (at least, when viewed at large length scales, at which buoyancy effects suppress buckling) because regions of compression are localised and embedded within three-dimensional flow. For example, where an ice shelf butts up against an island, the ice is ultimately forced to flow around that obstruction. The continual thickening associated with uni-axial compression, as considered earlier, is therefore not particularly glaciologically relevant, leading us to consider a simple extension of the model to allow for three-dimensional, bi-axial flow in the base state.

Leaving aside the question of physical realisability, we consider the simplest mathematical description of this flow by envisioning the velocity of the base state to take the form of a simple straining motion. More specifically, we include the mean transverse velocity $V(y) = -y\varDelta$ , which adds an additional straining component $-\varDelta$ to the left-hand side of the continuity equation (2.3a ). We may then set the vertical velocity in the base state to $W = 0$ , so that

(4.8) \begin{equation} (U,V,W) = (x,-y,0) \varDelta . \end{equation}

Lateral straining motions now counter one another to leave the base state of uniform thickness: $H_0=1$ .

In this setting, we may still search for linear perturbations that do not depend on $y$ , which again leads to (3.9) with either (3.10) or (3.11) as solutions, implying that the model equations can be easily extended to include the bi-axial case. Aside from the redefinition of $H_0$ to unity, the key change to the remaining derivation is that there is no longer any contribution of $W$ to the kinematic conditions in (2.21). Consequently, the $\varDelta [H',Z']$ terms become eliminated from (3.17)–(3.18), and there is no need to rescale the perturbations in (3.20) by $H_0$ in order to account for growth relative to the base state. However, because $H_0=1$ for the bi-axial problem, that rescaling is inconsequential. Moreover, having eliminated the $\varDelta [H',Z']$ terms from (3.17)–(3.18), we once more recover the linear evolution equations in (3.22). The only difference is that $Q=\kappa f^2$ in uni-axial compression, whereas $Q=\kappa f$ for the bi-axial case.

Figure 8. A pair of plots similar to figure 6, but for the bi-axial case. The dot-dashed line in (a) shows the locus of neutral amplification ( $\nu = 1$ ) in the uni-axial case.

The computation of eigenvalues and eigenvectors of $\boldsymbol{M}$ proceeds exactly as in §§ 3.43.5, with the main details of figures 34 remaining unaltered. As the base state does not thicken in bi-axial compression, however, the wavenumber increases less quickly with time in comparison to uni-axial compression, and the modes progress along horizontal cuts across the $(Q,H_0{\mathcal G}/|\varSigma |)$ -plane in figure 4, rather than following the slanted arrows. Modes then spend longer over the unstable window, and the degree of amplification becomes stronger. Figure 5 illustrates this feature, including results for the bi-axial case to complement those shown for uni-axial compression. The implications for long-term amplification are shown further in figure 8, for comparison with figure 6. Most prominent from the comparison of the results in these figures is how much larger the amplification factors are under bi-axial compression, and that the region of the $(\kappa ,{\mathcal G})$ parameter plane over which long-term amplification arises extends to smaller wavenumbers at fixed $\mathcal G$ . (The detailed manner in which the extended residence time over the unstable window translates to enhanced long-wave amplification can be extracted from further interrogation of the analysis of Appendix B.)

5. Buckling with shear-thinning

When $m\lt 1$ , $\boldsymbol {M}(t)$ again becomes triangular for ${\mathcal G}=0$ . The corresponding eigenvalues

(5.1) \begin{equation} \lambda _{1,2} = \dfrac {s_s\varSigma (\pm \textit{sS}_c - cs_s)} {\sqrt {m}\,\mu (s^2 S_c^2 - c^2 s_s^2)} \end{equation}

are also plotted in figure 3 for $m=1/3$ . For $Q\to 0$ , the eigenvalues have the limits

(5.2) \begin{equation} \lambda _1\sim \dfrac {\varSigma }{2m\mu } \quad \textrm {and} \quad \lambda _2\sim -\dfrac {6\varSigma }{m\mu Q^2}. \end{equation}

For $Q\gg 1$ , we have instead,

(5.3) \begin{equation} \lambda _{1,2} \sim \pm \dfrac {2\varSigma\, {\rm e}^{-Q\sqrt {m}}\sin (\sqrt {1-m}Q)} {\mu \sqrt {m(1-m)}}, \end{equation}

which are oscillating, decaying functions of $Q$ , as seen in figure 3. The stability characteristics are therefore more complicated for the power-law fluid, with the potential for thickness modes to become unstable in compression, and bending modes to destabilise in extension (cf. Fletcher Reference Fletcher1974, Reference Fletcher1995; Fletcher & Hallet Reference Fletcher and Hallet1983). Although the physical interpretation of this feature is not particularly transparent, it results from the anisotropy of the effective viscous stress (see (3.8) and (3.11)), and is illustrated further in figure 9(a,c), which plot the most unstable eigenvalue at $t=0$ as a density over the $(k,{\mathcal G})$ -plane, taking $m=1/3$ . Extensional stresses for both tension and compression are shown (for which $\varDelta =\pm 1$ ). All but a small number of the wavenumber windows of instability are visible in this plot, with gravity suppressing instability entirely at sufficiently large $\mathcal G$ . The complementary plots of the amplitude ratio $|{\check Z}/{\check H}|$ in figure 9(b,d) identify the mode character within the unstable windows.

Figure 9. (a,c) Scaled maximum eigenvalue of $\boldsymbol{M}/|\varSigma |$ , and (b,d) the ratio $|{\check Z}/{\check H}|$ for the corresponding eigenvector, as densities over the $(Q,H_0{\mathcal G}/|\varSigma |)$ -plane for (a,b) $\varDelta =-1$ (compression) and (c,d) $\varDelta =1$ (tension), with $\delta =0.1$ and $m= 1/3$ . The arrows in (a,b) indicate the trajectories of the initial-value problems of figure 10(a,b) for uni-axial compression. The dashed contour identifies the stability boundary. In (a,c), the colour map actually shows $\lambda ^{1/3}$ , and the dot-dashed line shows the most unstable wavenumber (which is at the lowest wavenumbers in (c)). In (b,d), the dotted line shows where $|{\check Z}|=|{\check H}|$ .

Figure 10. A set of plots analogous to those in figure 5, but for $m=1/3$ and wavenumbers $\kappa =0.922$ and $0.66$ in (a,b).

To gauge how transient instability translates to net amplification, figure 10 presents plots similar to those in figure 5, but with $m=1/3$ . For uni-axial compression, a preferred wavenumber emerges once again due to the competition between growth and decay as  $Q(t)$ tracks through the unstable windows on the stability diagram in figure 9(a). For $m=1/3$ , the maximum net amplification of $\check{Z}(t_f)$ is somewhat larger than in the viscous case (compare figure 10 c with figure 5 c) and the thickness variation $\check{H}(t_f)$ is typically more enhanced (figure 10 d versus figure 5 d). Otherwise, the character of the instability for shear-thinning fluid is similar to that seen earlier in the viscous case.

With bi-axial compression, amplifications are again significantly enhanced. In addition, because there are multiple windows of instability for $m\lt 1$ , it is also possible for modes to experience more than one interval of amplification. However, as illustrated in figure 9, instability within the windows at higher wavenumber is much weaker, and the exponential rise of the wavenumber implies that traversals occur increasingly rapidly. The first window therefore contributes most to amplification, even for bi-axial compression (in which modes progress along horizontal cuts through the $(Q,{\mathcal G} H_0/|\varSigma |)$ -plane, rather than the inclined paths of the uni-axial problem).

Figure 11. Pair of plots similar to figure 8, but for shear-thinning fluid under bi-axial compression, $m=1/3$ . The dot-dashed line in (a) shows the locus of neutral amplification ( $\nu = 1$ ) in the uni-axial case, and the dotted contours indicate the levels $\log \nu = 4^{j}$ for $j=-8,-4,\ldots ,4$ ; the star shows the point $(1.573,1.447)$ , which is the highest point on the neutral curve.

The multiple windows of instability do appear in the overall pattern of net amplification, as illustrated in figure 11, which complements figure 8 for the corresponding viscous problem. Notably, the locus of neutral amplification ( $\nu =1$ ) is shifted to greater values of ${\mathcal G}/|\varSigma |$ in figure 11. Consequently, the minimum stress required for amplification, $|\varSigma |\gtrsim 0.69{\mathcal G}$ (associated with the furthest upward extension of the neutral curve $\nu =1$ , as marked by a star), is rather smaller than the corresponding threshold for uni-axial compression ( $0.99{\mathcal G}$ ; cf. the dot-dashed neutral curve added to figure 11 a). Both are smaller than the corresponding viscous thresholds $1.62{\mathcal G}$ and $1.19{\mathcal G}$ , for the uni-axial and bi-axial cases, respectively, in figures 6 and 8.

6. Discussion

In this paper, we have explored the stability towards buckling of a layer of viscous or shear-thinning power-law fluid floating above an inviscid and denser ocean. In general, both the thickening of the base state (a layer of uniform thickness) as well as the shortening of modal wavelengths by compressional flow must be taken into account. This leads to a stability problem that defies a standard normal-mode analysis, but must be solved as a non-autonomous initial-value problem. The density difference between the floating layer and the underlying ocean generates buoyancy forces that penalise the growth of a buckling mode with relatively long instantaneous wavelengths. On the other hand, bending stresses counter compressive buckling at relatively short instantaneous wavelengths. It thus becomes possible for intermediate wavelengths to grow with time if compression rates are sufficiently strong. However, the inexorable shortening of the wavelength implies that instability can only ever be ephemeral, and that initially stable long-wave modes can become unstable as they shorten. Accordingly, we have characterised instability in terms of the amplification factor that a mode can achieve.

The model identifies the compressive stress that is required for modes to receive any net amplification. Shear-thinning layers are more unstable than viscous ones, and amplification is stronger when purely two-dimensional, or uni-axial, compression (with its associated thickening of the base state) is replaced by bi-axial compression in which sideways straining motion maintains a base state with constant thickness. For a Glen–Nye power-law fluid in bi-axial compression (with the glaciologically relevant value $\delta = 0.1$ ), we find a threshold for buckling

(6.1) \begin{align} \dfrac {{\mathcal S}}{\delta \rho _i g {\mathcal H}} \equiv {\mathcal G}^{-1} \gtrsim 0.69 \times 2^{-m} \approx 0.55 \end{align}

for the dimensional compressive stress $\mathcal S$ . In glaciological settings, shallow ice-shelf models (Weertman Reference Weertman1957; Morland & Shoemaker Reference Morland and Shoemaker1982; Morland & Zainuddin Reference Morland and Zainuddin1987) suggest that extensional stresses $\mathcal S$ of $O( \delta \rho _i g {\mathcal H}/2)$ are built up through buoyancy. Assuming that bi-axial compressive stresses of this magnitude can be achieved when an ice shelf flows around an obstruction such as an island (e.g. Goldberg, Holland & Schoof Reference Goldberg, Holland and Schoof2009), it therefore seems plausible that it is possible to breach the threshold for buckling in the foreground.

Above the threshold, although the model predicts finite amplification factors for buckling modes, it is important to emphasise that the associated deflections do not reach steady state: the background compressional flow implies that their wavelength always continues to shorten with time. In fact, the linearisation of the stability theory must inevitably fail at large times once surface slopes reach order unity; at that stage, the model is unable to predict whether the amplitude of the modes remains constant or ultimately decays. It is even possible that stresses become sufficiently large to fracture the ice here, as often seen in other glaciological contexts.

For the ice rolls at Ellesmere Island, the implications of the model predictions are not particularly clear: there is no evidence to suggest that the ice rolls are continuing to narrow with time, or even that the ice shelf is under a steady compressive forcing (Coffey et al. Reference Coffey, MacAyeal, Copland, Mueller, Sergienko, Banwell and Lai2022). A steady roll wavelength might be sustained if the ice cover does not steadily evolve from some earlier state, but is instead continuously forced at larger spatial scales by natural variability such as spatially uneven seasonal snow accumulation and surface melting. Complicating matters further is the observation that the surface signature of ice rolls can be phase shifted relative to undulations on the lower surface (Copland & Mueller Reference Copland and Mueller2017), but in the model, those perturbations always have the same phase (the eigenvectors of the matrices $\boldsymbol M$ and $\boldsymbol R$ are both real). All these features obscure any conclusion that the ice rolls can be generated by compressive buckling.

More generally, it is worth stressing that buckling in ice shelves is unlikely to proceed in the long-wave limit of § 4.4, wherein instability can become pronounced. Indeed, for glaciologically relevant compressive stresses of ${\mathcal S}=O( \delta \rho _i g {\mathcal H}/2)$ (i.e. ${\mathcal G}/|\varSigma | = O(1)$ ), the only modes to be amplified have wavelengths that are comparable to the ice thickness ( $\kappa =O(1)$ ), and their amplification factors are relatively mild. Any long-wave theory, such as that employed by MacAyeal et al. (Reference MacAyeal, Sergienko, Banwell, Macdonald, Willis and Stevens2021), is therefore likely to overpredict instability. Given the separation between the buckling scale and the scale of an extended ice shelf, a multiple-scale approach would seem more appropriate to describe the feedback of roll patterns on shelf dynamics. However, it is not clear to what extent the ‘inner’, small-scale dynamics of roll formation feed back into the ‘outer’, large-scale dynamics of extension and compression of the ice shelf: when amplification of rolls remains moderate (as is plausible when ${\mathcal G}/|\varSigma | = O(1)$ ) and the linearised model developed in this paper does not break down, the relationship between stress $\varSigma$ and compression rate $\varDelta$ is unaffected by roll formation.

Matters are very different if compressive stresses become sufficiently large that the dynamics does enter the long-wave limit. The extreme amplifications predicted by the model in this limit (§ 4.4) imply that linear theory will quickly break down. The appropriate nonlinear model in that case explicitly uses the long-wave mechanics of buckling, and exploits the corresponding separation between compressive and buckling time scales. We will explore such a model in a separate companion paper.

Acknowledgements

We thank the referees for helpful comments.

Declaration of interests

The authors report no conflict of interest.

Appendix A. Limits of the linear initial-value problems

In addition to the case ${\mathcal G}=0$ , the matrix $\boldsymbol {M}$ simplifies in some other limits to furnish more transparent evolution equations.

A.1. Case $\delta = 1/2$

When $\delta = 1/2$ , $\boldsymbol {M}$ becomes diagonal, and the thickness and bending modes decouple. We then find, for the Newtonian problem,

(A1) \begin{align} \dfrac {\textrm {d}{\check H}}{\textrm {d} t} &= M_{11} {\check H} = \dfrac {Q^2\varSigma - {\mathcal G} H_0(C-1)}{Q(Q + S)} {\check H}, \end{align}
(A2) \begin{align} \dfrac {\textrm {d}{\check Z}}{\textrm {d} t} &= M_{22} {\check Z} = -\dfrac {Q^2\varSigma + {\mathcal G} H_0(C+1)}{Q(S-Q)} {\check Z}. \end{align}

The thickness mode is always stable when $\varSigma \lt 0$ ; the bending mode becomes unstable under sufficient compression. Because the system is decoupled as in § 4.1, we may immediately construct the long-term amplification rates:

(A3) \begin{equation} \begin{aligned} \dfrac {{\check H}(\infty )}{{\check H}(0)} = D_{11}(\infty ;\kappa ) &= \exp\! \left [ -\frac {1}{2\varDelta }\int _\kappa ^{\infty } M_{11}\frac {\textrm {d} Q}{Q} \right ] \!, \\ \dfrac {{\check Z}(\infty )}{{\check Z}(0)} = D_{22}(\infty ;\kappa ) &= \exp\! \left [ -\frac {1}{2\varDelta }\int _\kappa ^{\infty } M_{22}\frac {\textrm {d} Q}{Q} \right ]\! . \end{aligned} \end{equation}

For compression ( $\varDelta =-1$ ), the second of these factors corresponds to the largest eigenvalue $\nu$ of $\boldsymbol {R}(\infty )$ , as illustrated in figure 12.

Figure 12. Net amplification factor $D_{22}(\infty ;\kappa )\equiv \nu$ for $\delta = 1/2$ , with $\varDelta =-1$ . The locus of neutral amplification ( $\nu = 1$ ) is shown by the solid line; the instantaneous stability boundary for $t=0$ is shown by the dashed line. The dotted contours show the levels $\log \nu = 8^{\pm j}$ for $j=0,1,\ldots ,5$ .

Similar results apply for the power-law fluid: with $m\lt 1$ ,

(A4) \begin{align} \frac {\textrm {d}{\check H}}{\textrm {d} t} = \dfrac {s_sQ\! \varSigma - (C_c-c_s)s{\mathcal G}\! H_0}{c\mu Q(\textit{sS}_c+cs_s)} {\check H}, \end{align}
(A5) \begin{align} \frac {\textrm {d}{\check Z}}{\textrm {d} t} = - \dfrac {s_sQ\! \varSigma + (C_c+c_s)s{\mathcal G}\! H_0}{c\mu Q(\textit{sS}_c-cs_s)} {\check Z} . \end{align}

A.2. Case $\delta \to 1$ or $\delta \to 0$

When $\delta =1$ , the inviscid ocean has infinite density in comparison to the ice layer. Deformation must then take place by ice sliding over the resulting motionless lower surface, connecting $H$ and $Z$ . Mathematically, for $\delta \to 1$ , we observe that certain of the entries in $\boldsymbol {M}$ diverge. To account for this divergence, we set ${\check Z}=(1-\delta )W$ before taking the limit. For $m=1$ , the ${\check Z}$ -equation dictates that

(A6) \begin{equation} W = \dfrac {{\mathcal G}\! H_0(S-Q)(C-1) - 2Q^2S \varSigma }{{\mathcal G}\! H_0 (Q+CS)} {\check H} . \end{equation}

The ${\check H}$ -equation then becomes

(A7) \begin{equation} \dfrac {\textrm {d}{\check H}}{\textrm {d} t} = \frac {2Q^2\! \varSigma - {\mathcal G}\! H_0(C^2-1)}{2Q(Q + SC)} {\check H} , \end{equation}

which implies stability for compression ( $\varSigma \lt 0$ ). Similarly, when $\delta \to 0$ , the density difference between the ice and ocean disappears, and the second column of $\boldsymbol{M}$ again diverges. This time we set ${\check Z}=\delta W$ , and find a result similar to (A6), save for a switch of sign. Regardless, we again arrive at (A7).

The other, bending mode follows after a rescaling of time: we set either $t = (1-\delta )\tilde {t}$ or $t = \delta \tilde {t}$ , then multiply both evolution equations by the limiting small parameter. In both cases, this leaves

(A8) \begin{equation} \dfrac {\textrm {d}{\check Z}}{\textrm {d} \tilde {t}} = -\frac {(SC + Q){\mathcal G} H_0}{2Q(S^2-Q^2)} \tilde {Z} , \end{equation}

as well as a relation that determines $\check H$ from $\check Z$ . Equation (A8) implies a stable bending mode.

The corresponding results for $m\lt 1$ are

(A9) \begin{equation} W = - \dfrac {2s_sQS_c\varSigma - {\mathcal G} H_0(C_c-c_s)(\textit{sS}_c - cs_s)} {{\mathcal G} H_0(sC_cS_c+cs_sc_s)} {\check H} \end{equation}

and

(A10) \begin{equation} \dfrac {\textrm {d}{\check H}}{\textrm {d} t} = \frac {2s_sc_sk\varSigma - (C_c^2-c_s^2)s{\mathcal G} H_0}{2\mu c Q(sC_cS_c+cs_sc_s)} {\check H} \end{equation}

for the thickness mode, and

(A11) \begin{equation} \dfrac {\textrm {d}{\check Z}}{\textrm {d} \tilde {t}} = -\frac {(\textit{sS}_cC_c + cs_sc_s)s{\mathcal G} H_0 {\check Z}} {2c\mu Q(s^2S_c^2-c^2s_s^2} \end{equation}

for the bending mode.

A.3. Case $Q = k H_0 \ll 1$

In the long-wave limit, we assume $Q = kH_0 \ll 1$ . Expanding each entry of the matrix $\boldsymbol{M}$ up to terms of $O(1)$ , we then find

(A12) \begin{align} \boldsymbol{M} = \dfrac {1}{m \mu Q^2}\! \begin{pmatrix} \frac {1}{4}(2 \varSigma - {\mathcal G} H_0) Q^2 & -(1-2\delta ) {\mathcal G} H_0 Q^2 / [8\delta (1-\delta )] \\ 3(1-2\delta )\varSigma & -6 \varSigma - 3 {\mathcal G} H_0 [Q^{-2} + (2m-1)/20]/[\delta (1-\delta )] \end{pmatrix}\! . \end{align}

When the compression or extension from the initial state is still moderate, both $f$ and $H_0$ are $O(1)$ , whereas $k$ and $Q$ are $O(\kappa )$ . Vertical displacements $\check Z$ must then decay rapidly due to buoyancy forces unless ${\mathcal G} = O(\kappa ^2)$ . In that limit, the lateral deflection $\check Z$ evolves on a fast $O(Q^2)$ time scale, and satisfies

(A13) \begin{equation} \frac {\textrm {d} {\check H}}{\textrm {d} t} = 0, \quad \frac {\textrm {d} {\check Z}}{\textrm {d} t} = \frac {3(1-2\delta )\varSigma }{m\mu\! Q^2}{\check H} - \frac {3}{m\mu\! Q^2}\! \left [2\varSigma + \frac {{\mathcal G} H_0}{\delta (1-\delta )Q^2}\right ] {\check Z} . \end{equation}

The coefficient of $\check Z$ on the right-hand side is the eigenvalue corresponding to the bending mode and is unstable under compression ( $\varSigma \lt 0$ ) if

(A14) \begin{equation} Q^2 \gt -\dfrac {{\mathcal G}\! H_0}{2 \delta (1-\delta )\varSigma }. \end{equation}

Still assuming that ${\mathcal G} = O(\kappa ^2)$ , the varicose mode evolves on the slower $O(1)$ time scale: the diverging lower row of $\boldsymbol{M}$ implies that $\check Z$ becomes slaved to $\check H$ for this mode, and we find

(A15) \begin{equation} \dfrac {\textrm {d} {\check H}}{\textrm {d} t} = \dfrac {\varSigma\! {\check H} }{2m\mu } \quad \text{and} \quad {\check Z} = \dfrac {3(1-2\delta ) \varSigma\! {\check H}} {6 \varSigma + 3 {\mathcal G} H_0/[\delta (1-\delta ) Q^2]}. \end{equation}

A.4. Case $Q\gg 1$

For large times, $Q\gg 1$ and

(A16) \begin{equation} \boldsymbol {M} \to \frac {{\mathcal G} H_0}{c\mu Q}\! \begin{pmatrix} -1 & - (1-2\delta )/(2\delta (1-\delta )] \\ -\big[\frac{1}{2} - \delta \big] & -(1-2\delta +2\delta ^2) / [2\delta (1-\delta )] \end{pmatrix}\! . \end{equation}

The eigenvalues of this matrix are $-{( 1/2)}{\mathcal G} H_0/(c\mu \delta Q)$ and $-{ (1/2)}{\mathcal G} H_0/ [c\mu (1-\delta )Q]$ , implying stability, the compression of the ice having dropped out of the problem. Note that $H_0/Q = \kappa / f = \kappa {\rm e}^{\varDelta t}$ for both uni-axial compression and bi-axial flow. Therefore, both of the large-time eigenvalues are integrable over all time (still assuming compression, $\varDelta \lt 0$ ), implying that so is the spectral radius of $\boldsymbol{M}$ .

Appendix B. Long-term amplification of linear long waves at small $\mathcal G$

Here, we use the properties of $\boldsymbol{M}$ derived in § A.3 to construct an asymptotic approximation to the evolution operator ${\boldsymbol{R}}(t)$ for $\kappa \ll 1$ and ${\mathcal G} = O(\kappa ^2)$ . We consider the viscous case ( $m=1$ ) and compression with $\varDelta \lt 0$ , although the extension to the shear-thinning appears straightforward. We also explicitly avoid the decoupled case with $\delta = 1/2$ (see § A.1). The matrix $\boldsymbol{M}$ can then be written as the series

(B1) \begin{equation} {{\boldsymbol{M}}} = \kappa ^{-2} {\boldsymbol{M}}^{(-1)} + {\boldsymbol{M}}^{(0)} + \kappa ^{2} {\boldsymbol{M}}^{(1)} + \cdots, \end{equation}

where the various (non-zero) leading coefficients can be read off from (A12):

(B2) \begin{align} &M_{11}^{(0)} = \dfrac {\varSigma }{2}, \quad M_{12}^{(1)} = -\dfrac {(1-2\delta ) {\mathcal G}_2 \tilde {Q}^{(a-1)/a}}{8\delta (1-\delta )}, M_{21}^{(-1)} = -\dfrac {3(1-2\delta )\,|\varSigma |}{\tilde {Q}^2}, \nonumber \\ &M_{22}^{(-1)} = \dfrac {6\,|\varSigma |}{\tilde {Q}^2} -\dfrac {3 {\mathcal G}_2}{\delta (1-\delta ) \tilde {Q}^{(3a+1)/a}} . \end{align}

Here, ${\mathcal G}_2=\kappa ^{-2}{\mathcal G}$ and $\tilde {Q} = \kappa ^{-1} Q = f(t)^a = \exp (-a\varDelta t)$ , with $a = 1$ and $2$ denoting the bi-axial and uni-axial cases, respectively. The only additional higher-order term for which we will have use later is

(B3) \begin{equation} M_{22}^{(0)} = -\dfrac {3\,|\varSigma |}{10} - \dfrac {3 {\mathcal G}_2} {5\delta (1-\delta )\tilde {Q}^{(a+1)/a}}. \end{equation}

The entry $M_{11}^{(0)}$ is a negative constant, while $M_{12}^{(1)}$ and ${\tilde M}_{21}^{(-1)}$ remain opposite in sign to $(1-2\delta )$ for all $t$ . Only $M_{22}^{(-1)}(t)$ can change sign. Two possible cases arise: if ${\mathcal G}_2 - 2\delta (1-\delta )\,|\varSigma |$ is positive, then $M_{22}^{(-1)}(t)$ does indeed switch sign (from negative to positive) at a critical time $t = t_c$ , given by $\tilde {Q}(t_c)^{(a+1)/a} = {\mathcal G}_2 /[2\delta (1-\delta )\,|\varSigma |]$ . Solutions are then damped initially. In the second case, with ${\mathcal G}_2 - 2\delta (1-\delta )\,|\varSigma |\lt 0$ , there is no switch of sign, and solutions are unstable immediately. We consider these two cases separately (ignoring the borderline case in which $|t_c| \ll 1$ ), proceeding first with ${\mathcal G}_2 \gt 2\delta (1-\delta )|\varSigma |$ .

B.1. Phase I: early times $t=O(\kappa ^2)$ with ${\mathcal G}_2 \gt 2\delta (1-\delta )\,|\varSigma |$

For initial conditions $({\check H}(0),{\check Z}(0))$ , in which both components are $O(1)$ , there is an initial transient in which vertical deflection decays over a fast time $\grave {t} = \kappa ^{-2}t$ . At leading order, and defining ${\grave {H}}({\grave {t}}) = {\check H}(t)$ and ${\grave {Z}}({\grave {t}}) = {\check Z}(t)$ , we then obtain the analogue of (A13):

(B4) \begin{equation} \frac {\textrm {d} {\grave {H}} }{\textrm {d} \grave {t}} = 0, \quad \frac {\textrm {d} {\grave {Z}} }{\textrm {d} \grave {t}} = M_{21}^{(-1)}(0) {\check H} + M_{22}^{(-1)}(0) {\check Z} . \end{equation}

Hence

(B5) \begin{equation} \begin{pmatrix} {\grave {H}}\\ {\grave {Z}} \end{pmatrix} = \begin{pmatrix} 1 \\ - \varUpsilon \end{pmatrix} {\check H}(0) + \begin{pmatrix} 0 \\ {\check Z}(0) + \varUpsilon\! {\check H}(0) \end{pmatrix} \exp (M_{22}^{(-1)}\grave {t}), \quad \varUpsilon = \frac {M_{21}^{(-1)}(0)}{M_{22}^{(-1)}(0)} . \end{equation}

For $t \gg \kappa ^2$ , the initial condition for ${\check Z}(0)$ therefore becomes irrelevant to the subsequent evolution.

B.2. Phase II: $O(\kappa ^2) \ll t \lt t_c$

Over the much longer $O(1)$ original time scale, the thickness mode decays exponentially, with $\check Z$ slaved to $\check H$ , as in (A15):

(B6) \begin{equation} {\check H}(t) = {\check H}(0)\exp (M_{11}^{(0)}t), \quad {\check Z}(t) = - \dfrac {M_{21}^{(-1)}(t){\check H}(t)}{M_{22}^{(-1)}(t)}. \end{equation}

This solution holds until $t\to t_c$ , when $M_{22}^{(-1)} \rightarrow 0$ , causing $\check Z$ to grow rapidly.

B.3. Phase III: $t = t_c + O(\kappa )$

To resolve the sudden growth around $t=t_c$ , we set $\acute {t} = \kappa ^{-1}(t-t_c)$ , ${\acute {H}}({\acute {t}})={\check H}$ and ${\acute {Z}}({\acute {t}})={\check Z}$ , and expand $M_{22}^{(-1)}(t) \sim \kappa {\dot {M}_{22}^{(-1)}}(t_c)\, \acute {t} + O(\kappa ^2)$ , where the dot denotes differentiation with respect to the original time variable $t$ . Then, to leading order,

(B7) \begin{equation} \frac {\textrm {d} {\acute {H}} }{\textrm {d} \acute {t}} = 0, \quad \frac {\textrm {d} {\acute {Z}} }{\textrm {d} \acute {t}} = M_{21}^{(-1)}(t_c)\, {\acute {H}} + {\dot {M}_{22}^{(-1)}}(t_c)\, \acute {t} {\acute {Z}}. \end{equation}

The solution that matches (B6) for $\acute {t} \rightarrow -\infty$ takes the form

(B8) \begin{equation} \begin{aligned} {\acute {H}}(\acute {t}) &= {\check H}(t_c^-) = {\check H}(0)\exp (M_{11}^{(0)}t_c), \\[5pt] {\acute {Z}}(\acute {t}) &= \dfrac {\sqrt {\pi }\, M_{21}^{(-1)}(t_c)\, {\check H}(t_c^-) } {\sqrt {2\dot {M}_{22}^{(-1)}(t_c)}} \left [ \textrm {erf}\! \left ( \sqrt {{\frac 12}\dot {M}_{22}^{(-1)}(t_c)} \acute {t} \right ) + 1\right ] \exp\! \left ({\frac 12} \dot {M}_{22}^{(-1)}(t_c) \acute {t}^{2}\right )\!. \end{aligned} \end{equation}

Here, ${\check H}(t_c^-)$ indicates the limit of ${\check H}(t)$ in (B6) as $t_c$ is approached from below.

B.4. Phase IV: $t_c \lesssim t \ll O(\log \kappa ^{-1})$

Vertical deflection becomes dominant once $t$ exceeds $t_c$ , and drives changes in thickness rather than responding to them. To find the growth at later times, we define

(B9) \begin{equation} \begin{pmatrix} {\check H} \\ {\check Z} \end{pmatrix} = \begin{pmatrix} \kappa ^{3}\,\eta (t) \\ \kappa ^{-1}\, \zeta (t) \end{pmatrix} \exp\! \left (\int _{t_c}^t {M}_{22}(t')\, \textrm {d} t' \right )\!. \end{equation}

Substitution into (3.22) leads to

(B10) \begin{equation} \frac {\textrm {d} \eta }{\textrm {d} t} + \left [ {M}_{22}(t) - {M}_{11}(t)\right ]\eta = \kappa ^{-4}\, {M}_{12}(t)\, \zeta , \quad \frac {\textrm {d} \zeta }{\textrm {d} t} = \kappa ^4\, M_{21}(t)\, \eta . \end{equation}

Recalling that $M_{12}\sim \kappa ^2 M_{12}^{(1)}$ and $(M_{21},M_{22}) \sim \kappa ^{-2}(M_{21}^{(-1)},M_{22}^{(-1)})$ , we conclude that

(B11) \begin{equation} \zeta = \dfrac {\sqrt {2\pi }\, M_{21}^{(1)}(t_c)\,{\check H}(t_c^-)} {\sqrt {\dot {M}_{22}^{(-1)}(t_c)}} \quad \textrm {and} \quad \eta = \dfrac {\zeta\, M_{12}^{(-1)}(t)}{M_{22}^{(-1)}(t)} , \end{equation}

to an error of $O(\kappa ^2)$ , while

(B12) \begin{equation} \int _{t_c}^t\! {M}_{22}(t')\, \textrm {d} t' = \int _{t_c}^t \big [ \kappa ^{-2}\, M_{22}^{(-1)}(t') + M_{22}^{(0)}(t')\big ]\textrm {d} t' + O(\kappa ^2) \end{equation}

suffices for finding a leading-order solution for $\check H$ and $\check Z$ . As the solution for $\zeta$ is constant, the growth of $\check Z$ is equivalent to that described by (A13).

Note that $\zeta$ in (B11) matches with (B8). However, the solution for $\check H$ in (B9) and (B11) cannot match with ${\acute {H}}({\acute {t}})$ in (B8), because $M_{22}(t) \rightarrow 0$ at $t=t_c$ , so $\eta (t)$ diverges. The reason for this discrepancy is that there is a further, logarithmically small boundary layer, at a logarithmically large value of $\acute {t}$ , across which ${\check H}(t)$ must be matched (underscoring our emphasis on the limit implicit in the definition of ${\check H}(t_c^-)$ ). The matching layer occurs at $\acute {t} = \varsigma ^{-1} + \varsigma \mathring {t}$ , where $ \exp (\dot {M}_{22}^{(0)}(t_c)\,\varsigma ^{-2}/2) = \kappa ^{-2}\varsigma ^{-1}$ . Deflection and thickness around that time are given by $\acute {Z}=\exp (({1}/{2})\dot {M}_{22}^{(-1)}(t_c)\,\varsigma ^{-2})\mathring {Z}(\mathring {t})$ and $\acute {H} = \mathring {H}(\mathring {t})$ , which satisfy $\textrm {d} \mathring {H}/\textrm {d} \mathring {t} = M_{12}^{(0)}(t_c) \mathring {Z}$ , $\textrm {d} \mathring {Z}/ \textrm {d} \mathring {t} = \dot {M}_{22}^{(0)}(t_c) \mathring {Z}$ at leading order. We omit further consideration of this region, however, as it does not impact the conclusion that the second equation of(B11) eventually describes the evolution of ${\check H}(t)$ for $t \gt t_c$ .

B.5. Phase V: late times with $t \sim \log [\kappa^{-1}/(a|\varDelta|)]$

The final phase of evolution arises at relatively long times, $t \sim \log \kappa ^{-1}/(a|\varDelta |)$ . At that point, the wavelength is compressed to the scale of the layer thickness, and $\tilde {Q} = O(\kappa ^{-1})$ , indicating that $M_{22}^{(-1)}(t) = O(\kappa ^{-2})$ and $M_{12}^{(0)} = O(\kappa ^{(a+1)/a})$ . The expansion of the matrix $\boldsymbol{M}$ in (B1) then breaks down, and $\eta$ in the second equation of (B11) diverges once more. To rescue the situation, we reset time and again switch dependent variables:

(B13) \begin{equation} t = -\dfrac {\log \kappa }{a\,|\varDelta |} +\hat {t}, \quad \begin{pmatrix} {\check H} \\ {\check Z} \end{pmatrix} = \begin{pmatrix} \kappa ^{1/a}\,\hat {\eta }({\hat {t}}\,) \\ \kappa ^{-1}\, \hat {\zeta }({\hat {t}}\,) \end{pmatrix} \exp \int _{t_c}^t\! {M}_{22}(t')\, \textrm {d} t' . \end{equation}

We further set $\hat {Q}({\hat {t}}\,) = f(\hat {t}\,)^{a} \equiv Q(t)$ , $\hat {S}({\hat {t}}\,) = \sinh (\hat {Q})$ , $\hat {C}({\hat {t}}\,) = \cosh (\hat {Q})$ , and find

(B14) \begin{align} {M}_{11} &\sim \hat {M}_{11}({\hat {t}}\,) = \dfrac {\varSigma \hat {Q}}{\hat {S}+\hat {Q}}, \end{align}
(B15) \begin{align} {M}_{12} &\sim \kappa ^{-(a-1)/a}\hat {M}_{12}({\hat {t}}\,) = - \dfrac {\kappa ^{-(a-1)/a}(1-2\delta ){\mathcal G}_2(\hat {C}-1)} {2\delta (1-\delta )\hat {Q}^{1/a}(\hat {S}+\hat {Q})}, \end{align}
(B16) \begin{align} M_{21} &\sim \hat {M}_{21}({\hat {t}}\,) = \dfrac {(1-2\delta )\varSigma \hat {Q}\hat {S}} {\hat {S}^2-\hat {Q}^2}, \end{align}
(B17) \begin{align} {M}_{22} &\sim \hat {M}_{22}({\hat {t}}\,) = \dfrac {\varSigma \hat {Q}}{\hat {S}-\hat {Q}}. \end{align}

Then, again to leading order,

(B18) \begin{equation} \frac {\textrm {d} \hat {\eta }}{\textrm {d} {\hat {t}}} = \big (\hat {M}_{11}-\hat {M}_{22}\big )\hat {\eta } + \hat {M}_{12} \hat {\zeta }, \quad \frac {\textrm {d} \hat {\zeta }}{\textrm {d} {\hat {t}}} = 0, \end{equation}

and the solution matching (B11) is

(B19) \begin{align} \begin{aligned} \hat {\eta }(\hat {t})&= \hat {\zeta } \int _{-\infty }^{\hat {t}} \exp\! \left [\!- \int _{t'}^{\hat {t}} \hat {M}_{22}(t'') - \hat {M}_{11}(t'')\, \textrm {d} t''\right ] \hat {M}_{12}(t')\, \textrm {d} t' , \\ \hat {\zeta } &= \dfrac {\sqrt {2\pi } M_{21}^{(-1)}(t_c)\,{\check H}(t_c^-)} {\sqrt {\dot {M}_{22}^{(-1)}(t_c)}}. \end{aligned} \end{align}

B.6. Asymptotic form of the evolution matrix

To complete the construction of $\boldsymbol {R}(t)$ , we note that $\hat {M}_{22} \sim (6 \hat {Q}^{-2} - 3/10)|\varSigma |$ as $\hat {t} \rightarrow -\infty$ . Hence

(B20) \begin{align} E_-(\hat {t}) :={} & \int _{t_c}^{-\frac{\log (\kappa )}{a\,|\varDelta |}+\hat {t}} M_{22}(t')\,\textrm {d} t' \nonumber\\ ={} & \frac {6(a+1)}{a(3a+1)}\left [\frac {2\delta (1- \delta )|\varSigma |}{{\mathcal G}_2}\right ]^{\frac{2a}{a+1}} \kappa ^{-2} + \frac {3}{5 a} \big [\log (\kappa ) - \mathcal{H}(1-\hat {Q})\log (\hat {Q}) \big ] \nonumber\\ & {}- \frac {3}{5(a+1)}\log \left [\frac {2\delta (1-\delta )\,|\varSigma |}{{\mathcal G}_2}\right ] - \frac {6}{a\hat {Q} ^2} - \frac {12}{5(a+1)} \nonumber \\ &{} + \frac {2}{a} \int _{0}^{\hat {Q} } \left [ \frac {1}{\sinh \hat {Q}'-\hat {Q}'} - \frac {6}{\hat {Q}^{\prime 3}} + \frac {3 \mathcal{H}(1-\hat {Q}')}{10 \hat {Q}'} \right ] \textrm {d} \hat {Q}' + O(\kappa ^{(a+1)/a}), \end{align}

where $\mathcal{H}(x)$ denotes the Heaviside function. Amplification factors of $\hat {\zeta }$ and $\hat {\eta }$ can now be defined as

(B21) \begin{align} C_\zeta := & \dfrac {\sqrt {2\pi }\, M_{21}^{(-1)}(t_c){\check H}(t_c^-)}{ \sqrt {\dot {M}_{22}^{(-1)}(t_c)}} = - \dfrac {2 (1-2\delta )\delta (1-\delta )\,|\varSigma |}{{\mathcal G}_2} \sqrt {\frac {6\pi }{a+1}} {\check H}(0), \end{align}
(B22) \begin{align} C_\eta (\hat {t}) := & \int _{-\infty }^{\hat {t}} \exp\! \left [\!- \int _{t'}^{\hat {t}} \hat {M}_{22}(t'') - \hat {M}_{11}(t'')\, \textrm {d} t''\right ] \hat {M}_{12}(t')\, \textrm {d} t' \nonumber \\ = & - \frac {(1-2\delta ){\mathcal G}_2}{a \delta (1-\delta )\,|\varSigma |} \int _0^{\hat {Q}} \exp\! \left (-\int _{\hat {Q}'}^{\hat {Q}} \frac {4 \hat {S}''\, \textrm {d} \hat {Q}''}{a(\hat {S}^{\prime \prime 2} - \hat {Q}^{\prime \prime 2})}\right ) \frac {(\hat {C}'-1)\,\textrm {d} \hat {Q}'}{ \hat {Q}^{\prime (a+1)/a}(\hat {S}'+\hat {Q}')}, \end{align}

where $\hat {S}' = \sinh (\hat {Q}')$ , $\hat {S}'' = \sinh (\hat {Q}'')$ , etc. These allow the long-term evolution matrix $\boldsymbol {R}(\infty )$ to be written as

(B23) \begin{equation} \boldsymbol {R}(\infty ) = \begin{pmatrix} \kappa ^{1/a}\, C_\eta (\infty )\, C_\zeta \exp \left [E_-(\infty )\right ] & 0 \\ \kappa ^{-1} C_\zeta \exp \left [E_-(\infty )\right ] & 0 \end{pmatrix}\!, \end{equation}

reflecting the fact that any dependence on ${\check Z}(0)$ disappears at early times. Eigenvalues are $\lambda _1 = 0$ and $\lambda _2 = \kappa ^{1/a}\, C_\eta (\infty )\, C_\zeta \exp [E_-(\infty ) ]$ , with associated eigenvectors $\boldsymbol {e}_1 = (0,1)^{\mathrm{T}}$ and $\boldsymbol {e}_2 = (\kappa ^{1+1/a}\,C_\eta (\infty ),1)^{\mathrm{T}}$ .

B.7. Initially unstable modes with ${\mathcal G}_2 \lt 2\delta (1-\delta )\,|\varSigma |$

For ${\mathcal G}/\kappa ^2 \lt 2\delta (1-\delta )\,|\varSigma |$ , the initial decay of § B.1 does not occur. Instead, the same boundary layer solution (B5) still holds, but with $M_{22}^{(-1)} \gt 0$ and $\varUpsilon$ flipped in sign, corresponding to initial growth in $\check Z$ while $\check H$ remains constant. For later times $t \gg \kappa ^2$ , the solution takes the form

(B24) \begin{equation} \begin{pmatrix}{\check H}(t) \\ {\check Z}(t) \end{pmatrix} = \begin{pmatrix} \kappa ^4 \eta (t) \\ \zeta \end{pmatrix} \exp\! \left[ \int _0^t {M}_{22}(t')\, \textrm {d} t'\right ]\! , \end{equation}

where $\zeta = \varUpsilon\! {\check H}(0) + {\check Z}(0)$ remains constant throughout that later evolution, while $\eta (t)$ is still given by the second equation of (B11) when $t = O(1)$ , and by (B19) for $t = O(\log \kappa ^{-1})$ . The early-time solution $\grave {Z}$ as stated in (B5) matches with the solution (B24), while matching $\grave {H}$ again requires an additional layer as sketched at the end of § B.4.

Analogously to (B20), we define

(B25) \begin{align} E_+(\hat {t}) ={} & \left [ \frac {6}{a} - \frac {6{\mathcal G}_2}{(3a+1)\delta (1-\delta )\,|\varSigma |}\right ] \kappa ^{-2} + \frac {3}{5a}\big [\log (\kappa ) - \mathcal{H}(1-\hat {Q})\log (\hat {Q}) \big ] \nonumber \\ & {}- \frac {6{\mathcal G}_2}{5(a+1)\delta (1-\delta )\,|\varSigma |} - \frac {6}{a\hat {Q}^2} \nonumber \\ & {}+ \frac {2}{a} \int _{0}^{\hat {Q}} \left [ \frac {1}{\sinh Q'-Q'} - \frac {6}{Q^{\prime 3}} + \frac {3 \mathcal{H}(1-Q')}{10 Q'} \right ] \textrm {d} Q' + O(\kappa ^{(a+1)/a}), \end{align}

and obtain at leading order

(B26) \begin{equation} \boldsymbol {R}(\infty ) = \begin{pmatrix} \kappa ^{1+1/a}\, C_\eta (\infty ) \\ 1 \end{pmatrix} \begin{pmatrix} \varUpsilon & 1 \end{pmatrix} \exp [E_+(\infty )], \end{equation}

with eigenvalues $\lambda _1 = 0$ and $\lambda _2 = [\kappa ^{1+1/a}\,C_\eta (\infty ) \varUpsilon + 1]\exp (E_+(\infty )) \sim \exp (E_+(\infty ))$ , and associated eigenvectors $\boldsymbol {e}_1 = (1,-\varUpsilon )^{\mathrm{T}}$ , $\boldsymbol {e}_2 = (\kappa ^{1+1/a}\,C_\eta (\infty ),1)^{\mathrm{T}}$ .

Appendix C. Characteristics of the eigenvalues of $\boldsymbol{M}$ in (3.22)

With a little algebra, we find

(C1) \begin{equation} \textrm {Tr}(\boldsymbol {M}) = - \dfrac {4\delta (1-\delta )\varSigma\! Q^3+{\mathcal G} H_0(CS+Q)}{2\delta (1-\delta )Q(S^2-Q^2)} \end{equation}

and

(C2) \begin{equation} \det (\boldsymbol {M}) = \dfrac { {\mathcal G}^2 H_0^2 S^2 - 2Q^2{\mathcal G} H_0\varSigma - 4\varSigma ^2\delta (1-\delta )Q^4}{ 4\delta (1-\delta )Q^2(S^2-Q^2)} . \end{equation}

If we define $\varpi = \varSigma /({\mathcal G} H_0)$ and $\chi = 4\delta (1-\delta )$ , then

(C3) \begin{align} \textrm {Tr}(\boldsymbol {M}) = & - \dfrac {2{\mathcal G} H_0(\chi \varpi\! Q^3 + CS + Q)}{\chi\! Q(S^2-Q^2)} , \end{align}
(C4) \begin{align} \det (\boldsymbol {M}) = & \dfrac {{\mathcal G}^2H_0^2(S^2-2\varpi\! Q^2-\chi \varpi ^2 Q^4)}{\chi\! Q^2(S^2-Q^2)} . \end{align}

Hence

(C5) \begin{equation} \textrm {Tr}(\boldsymbol {M})^2 - 4\; \textrm {det}(\boldsymbol {M}) = \dfrac {4{\mathcal G}^2H_0^2}{\chi ^2} \frac {(\chi \varpi\! Q^2 S + S + QC)^2 + (1-\chi )S^2(S^2-Q^2)}{Q^2(S^2-Q^2)^2}, \end{equation}

which is positive for $Q \neq 0$ since $0 \lt \chi \lt 1$ . The eigenvalues, given by $\lambda = ( 1/2) [\textrm {Tr}(\boldsymbol {M}) \pm \sqrt {\textrm {Tr}(\boldsymbol {M})^2 - 4\; \textrm {det}(\boldsymbol {M}) }]$ , are therefore real.

We can further show that it is impossible to have two positive eigenvalues: such a situation would require $ \textrm {Tr}(\boldsymbol {M}) \gt 0$ and $ \det (\boldsymbol {M}) \gt 0$ . The former leads to

(C6) \begin{equation} \varpi \lt - \dfrac {1 + CS/Q}{\chi\! Q^2} , \end{equation}

whereas the latter demands

(C7) \begin{equation} 0 \lt S^2-2\varpi\! Q^2-\chi \varpi ^2 Q^4 = \chi \big[ S^2/\chi + 1/\chi ^2 - (1/\chi + \varpi\! Q^2)^2\big] , \end{equation}

or

(C8) \begin{equation} \dfrac {-1-\sqrt {1+\chi\! S^2}}{\chi\! Q^2} \lt \varpi \lt \dfrac {-1+\sqrt {1+\chi\! S^2}} {\chi\! Q^2}. \end{equation}

Taken together, (C6) and (C8) imply that

(C9) \begin{equation} \frac {-1-\sqrt {1+\chi\! S^2}}{\chi\! Q^2} \lt \varpi \lt \frac {-1 - \textit{CS}/Q}{\chi\! Q^2}, \end{equation}

which is satisfied by some $\varpi$ if and only if $1+\chi\! S^2 \gt C^2S^2/Q^2$ . For $0 \lt \chi \lt 1$ , that is, however, impossible, since $C^2 \gt 1 +\chi\! S^2$ and $S^2/Q^2 \gt 1$ when $Q \neq 0$ . Hence there can be at most one positive eigenvalue.

We can also derive a formula for the stability boundary and the critical value of $\varSigma$ for an instability. A zero eigenvalue corresponds to $\det (\boldsymbol {M}) =0$ , or

(C10) \begin{equation} S^2 = 2\varpi\! Q^2 + \chi \varpi ^2 Q^4. \end{equation}

For $\varpi \lt 0$ ( $\varSigma \lt 0$ ), there are two solutions to this equation provided that $|\varpi |=|\varSigma |/(H_0{\mathcal G})$ exceeds a threshold given by combining (C10) with the condition

(C11) \begin{equation} 2SC = 4\varpi\! Q + 4\chi \varpi ^2 Q^3 \end{equation}

(obtained from setting $\partial \varpi / \partial Q = 0$ , with $\varpi (Q,\chi )$ defined by (C10)). After a little algebra, we find

(C12) \begin{equation} \varSigma \lt \varSigma _* = - \frac {H_0{\mathcal G}\sinh Q_*}{2Q_*^2}(Q_*\cosh Q_* - 2 \sinh Q_*) , \end{equation}

where

(C13) \begin{equation} Q_* \cosh Q_* - \sinh Q_* = \delta (1-\delta ) \sinh Q_* (Q_*\cosh Q_* - 2 \sinh Q_*)^2 . \end{equation}

The threshold for $\varSigma /(H_0{\mathcal G})$ is plotted as a function of $\delta$ in figure 13.

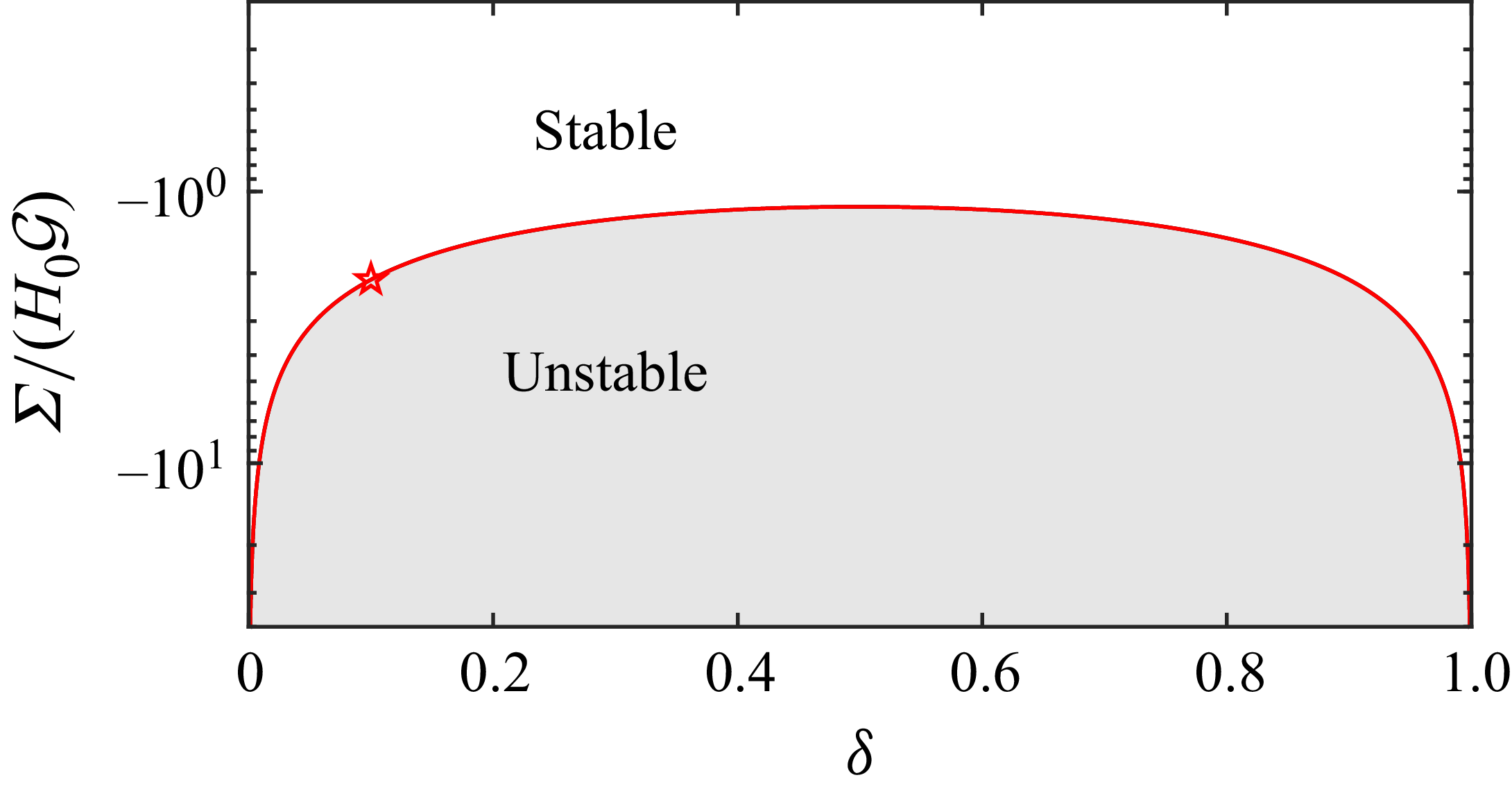

Figure 13. The threshold for $\varSigma /(H_0{\mathcal G})$ from (C12)–(C13) plotted as a function of $\delta$ . The unstable region is shaded, and the threshold for $\delta =0.1$ is indicated by the star.

References

Bassis, J.N. & Ma, Y. 2015 Evolution of basal crevasses links ice shelf stability to ocean forcing. Earth Planet. Sci. Lett. 409, 203211.10.1016/j.epsl.2014.11.003CrossRefGoogle Scholar
Benjamin, T.B. & Mullin, T. 1988 Buckling instabilities in layers of viscous liquid subjected to shearing. J. Fluid Mech. 195, 523540.10.1017/S0022112088002502CrossRefGoogle Scholar
Biot, M.A. 1957 Folding instability of a layered viscoelastic medium under compression. Proc. R. Soc. Lond. A: Math. Phys. Sci. 242 (1231), 444454.10.1098/rspa.1957.0187CrossRefGoogle Scholar
Biot, M.A. 1959 Folding of a layered viscoelastic medium derived from an exact stability theory of a continuum under initial stress. Q. Appl. Maths 17 (2), 185204.10.1090/qam/106609CrossRefGoogle Scholar
Buckmaster, J.D., Nachman, A. & Ting, L. 1975 The buckling and stretching of a viscida. J. Fluid Mech. 69 (1), 120.10.1017/S0022112075001279CrossRefGoogle Scholar
Coffey, N.B., MacAyeal, D.R., Copland, L., Mueller, D.R., Sergienko, O.V., Banwell, A.F. & Lai, C.-Y. 2022 Enigmatic surface rolls of the Ellesmere Ice Shelf. J. Glaciol. 68 (271), 867878.Google Scholar
Copland, L. & Mueller, D. (Eds) 2017 Arctic Ice Shelves and Ice Islands. Springer Polar Sciences.10.1007/978-94-024-1101-0CrossRefGoogle Scholar
Cruickshank, J.O. & Munson, B.R. 1981 Viscous fluid buckling of plane and axisymmetric jets. J. Fluid Mech. 113, 221239.10.1017/S0022112081003467CrossRefGoogle Scholar
Fink, J.H. & Fletcher, R.C. 1978 Ropy pahoehoe: surface folding of a viscous fluid. J. Volcanol. Geotherm. Res. 4 (1–2), 151170.10.1016/0377-0273(78)90034-3CrossRefGoogle Scholar
Fletcher, R.C. 1974 Wavelength selection in the folding of a single layer with power-law rheology. Am. J. Sci. 274 (9), 10291043.10.2475/ajs.274.9.1029CrossRefGoogle Scholar
Fletcher, R.C. 1977 Folding of a single viscous layer: exact infinitesimal-amplitude solution. Tectonophysics 39 (4), 593606.10.1016/0040-1951(77)90155-XCrossRefGoogle Scholar
Fletcher, R.C. 1995 Three-dimensional folding and necking of a power-law layer: are folds cylindrical, and, if so, do we understand why? Tectonophysics 247 (1–4), 6583.10.1016/0040-1951(95)00021-ECrossRefGoogle Scholar
Fletcher, R.C. & Hallet, B. 1983 Unstable extension of the lithosphere: a mechanical model for basin‐and‐range structure. J. Geophys. Res.: Solid Earth 88 (B9), 74577466.10.1029/JB088iB09p07457CrossRefGoogle Scholar
Glen, J.W. 1958 The flow law of ice. A discussion of the assumptions made in glacier theory, their experimental foundation and consequences. In Physics of the Movement of Ice – Symposium at Chamonix 1958, pp. 171183. IASH.Google Scholar
Goldberg, D., Holland, D.M. & Schoof, C. 2009 Grounding line movement and ice shelf buttressing in marine ice sheets. J. Geophys. Res. 114 (F4), F04026.Google Scholar
Griffiths, R.W. & Turner, J.S. 1988 Folding of viscous plumes impinging on a density or viscosity interface. Geophys. J. Intl 95 (2), 397419.10.1111/j.1365-246X.1988.tb00477.xCrossRefGoogle Scholar
Le Merrer, M., Quéré, D. & Clanet, C. 2012 Buckling of viscous filaments of a fluid under compression stresses. Phys. Rev. Lett. 109 (6), 064502.10.1103/PhysRevLett.109.064502CrossRefGoogle ScholarPubMed
MacAyeal, D.R. & Barcilon, V. 1988 Ice-shelf response to ice-stream discharge fluctuations: I. Unconfined ice tongues. J. Glaciol. 34 (116), 121127.10.3189/S002214300000914XCrossRefGoogle Scholar
MacAyeal, D.R., Sergienko, O.V. & Banwell, A.F. 2015 A model of viscoelastic ice-shelf flexure. J. Glaciol. 61 (228), 635645.10.3189/2015JoG14J169CrossRefGoogle Scholar
MacAyeal, D.R., Sergienko, O.V., Banwell, A.F., Macdonald, G.J., Willis, I.C. & Stevens, L.A. 2021 Treatment of ice-shelf evolution combining flow and flexure. J. Glaciol. 67 (265), 885902.10.1017/jog.2021.39CrossRefGoogle Scholar
Morland, L.W. & Shoemaker, E.M. 1982 Ice shelf balances. Cold Reg. Sci. Technol. 5 (3), 235251.10.1016/0165-232X(82)90017-9CrossRefGoogle Scholar
Morland, L.W. & Zainuddin, R. 1987 Plane and radial ice-shelf flow with prescribed temperature profile. In Dynamics of the West Antarctic Ice Sheet. Proceedings of a workshop held in Utrecht, May 6–8, 1985 (ed. C.J. van der Veen & J. Oerlemans), pp. 117140. D. Reidel.Google Scholar
Pereira, A., Larcher, A., Hachem, E. & Valette, R. 2019 Capillary, viscous, and geometrical effects on the buckling of power-law fluid filaments under compression stresses. Comput. Fluids 190, 514519.10.1016/j.compfluid.2019.06.014CrossRefGoogle Scholar
Pfingstag, G., Audoly, B. & Boudaoud, A. 2011 Linear and nonlinear stability of floating viscous sheets. J. Fluid Mech. 683, 112148.10.1017/jfm.2011.256CrossRefGoogle Scholar
Reeh, N., Christensen, E.L., Mayer, C. & Olesen, O.B. 2003 Tidal bending of glaciers: a linear viscoelastic approach. Ann. Glaciol. 37, 83–39.10.3189/172756403781815663CrossRefGoogle Scholar
Ribe, N.M. 2002 A general theory for the dynamics of thin viscous sheets. J. Fluid Mech. 457, 255283.10.1017/S0022112001007649CrossRefGoogle Scholar
Ribe, N.M., Habibi, M. & Bonn, D. 2012 Liquid rope coiling. Annu. Rev. Fluid Mech. 44, 249266.10.1146/annurev-fluid-120710-101244CrossRefGoogle Scholar
Ribe, N.M., Stutzmann, E., Ren, Y. & Van Der Hilst, R. 2007 Buckling instabilities of subducted lithosphere beneath the transition zone. Earth Planet. Sci. Lett. 254 (1–2), 173179.10.1016/j.epsl.2006.11.028CrossRefGoogle Scholar
Schmalholz, S.M. & Mancktelow, N.S. 2016 Folding and necking across the scales: a review of theoretical and experimental results and their applications. Solid Earth 7 (5), 14171465.10.5194/se-7-1417-2016CrossRefGoogle Scholar
Schoof, C. & Hewitt, I. 2013 Ice-sheet dynamics. Annu. Rev. Fluid Mech. 45 (1), 217239.10.1146/annurev-fluid-011212-140632CrossRefGoogle Scholar
Slim, A.C., Balmforth, N.J., Craster, R.V. & Miller, J.C. 2008 Surface wrinkling of a channelized flow. Proc. R. Soc. A: Math. Phys. Engng Sci. 465 (2101), 123142.10.1098/rspa.2008.0142CrossRefGoogle Scholar
Slim, A.C., Teichman, J. & Mahadevan, L. 2012 Buckling of a thin-layer Couette flow. J. Fluid Mech. 694, 528.10.1017/jfm.2011.437CrossRefGoogle Scholar
Smith, R.B. 1975 Unified theory of the onset of folding, boudinage, and mullion structure. Geol. Soc. Am. Bull. 86 (11), 16011609.10.1130/0016-7606(1975)86<1601:UTOTOO>2.0.CO;22.0.CO;2>CrossRefGoogle Scholar
Smith, R.B. 1977 Formation of folds, boudinage, and mullions in non-Newtonian materials. Geol. Soc. Am. Bull. 88 (2), 312320.10.1130/0016-7606(1977)88<312:FOFBAM>2.0.CO;22.0.CO;2>CrossRefGoogle Scholar
Taylor, G.I. 1969 Instability of jets, threads, and sheets of viscous fluid. In Applied Mechanics: Proceedings of the Twelfth International Congress of Applied Mechanics, pp. 382388. Springer.10.1007/978-3-642-85640-2_30CrossRefGoogle Scholar
Weertman, J. 1957 Deformation of floating ice shelves. J. Glaciol. 3 (21), 3842.10.3189/S0022143000024710CrossRefGoogle Scholar
White, A., Copland, L., Mueller, D., Van Wychen, W. 2015 Assessment of historical changes (1959–2012) and the causes of recent break-ups of the Petersen ice shelf, Nunavut, Canada. Ann. Glaciol. 56 (69), 6576.10.3189/2015AoG69A687CrossRefGoogle Scholar
Figure 0

Figure 1. A photograph taken of the roll patterns on the Petersen Ice Shelf at Ellesmere Island, highlighted by meltponds (courtesy of Luke Copland; see White et al.2015). The rolls have wavelength approximately 200 m (16 or so rolls appear over the 3 km span of the ice sheet), and the mean ice thickness is approximately 25 m.

Figure 1

Figure 2. A sketch of the model geometry.

Figure 2

Figure 3. Eigenvalues with ${\mathcal G}=0$: (a,b) the scaled eigenvalues $\mu M_{\varSigma 11}$ and $\mu Q^2 M_{\varSigma 22}$ plotted as functions of $Q$; (c,d) the amplification factors $\ln D_{11}(\infty ;\kappa )$ and $\kappa ^2 \ln D_{22}(\infty ;\kappa )$ defined as in (4.5), plotted against $\kappa =Q(0)$. Results for $m=1$ are shown in blue, and for $m= 1/3$ in red. The dot-dashed lines show the limits for $\kappa \to 0$ given in (4.6) or (5.2). The dashed lines in (a,b) show the limits for $Q\gg 1$ implied by (5.3).

Figure 3

Figure 4. (a) Scaled maximum eigenvalue $\lambda /|\varSigma |$ of $\boldsymbol{M}$, and (b) the ratio $|{\check Z}/{\check H}|$ for the corresponding eigenvector, as densities over the $(Q,H_0{\mathcal G}/|\varSigma |)$-plane, for $\delta =0.1$ and $m=1$. The dashed contour identifies the stability boundary. In (a), the colour map actually shows $\lambda ^{1/3}$, and the dot-dashed line shows the most unstable wavenumber. The red star shows the critical threshold for $|\varSigma |/(H_0{\mathcal G})$ for instantaneous instability (see Appendix C). In (b), the dotted line shows where $|{\check Z}|=|{\check H}|$. The arrows indicate the trajectories of the initial-value problems of figure 5(a,b) for uni-axial compression.

Figure 4

Figure 5. Numerical solutions of the Newtonian evolution equation (3.22) for varying wavenumber with $\varDelta =-1$, ${\mathcal G}=\delta =0.1$. Plotted are time series of ${\check Z}(t)$ and ${\check H}(t)$ for (a) $\kappa =0.766$ and (b) $\kappa =1/2$. The solid lines show solutions in uni-axial compression; the dashed lines are for bi-axial compression. (c–f) Solutions over a wider range of $\kappa$, displayed as density plots on the $(t,\kappa )$-plane (with (c,d) for uni-axial compression, and (e, f) for the bi-axial case). The horizontal dashed line indicates the stability boundary for instantaneous instability at $t=0$; the dotted lines indicate the solutions in (a,b). (g) Maximum eigenvalues $\nu$ of ${\boldsymbol{R}}(\infty )$ as functions of $\kappa$, estimated from the final numerical solutions at $t=200$. (h) The breakdown into components of the corresponding eigenvector.

Figure 5

Figure 6. (a) Largest eigenvalue $\nu$ and (b) the ${\check Z}(0)$-component of the corresponding (unit) eigenvector of $\boldsymbol {R}(\infty )$ as densities over the $(\kappa ,{\mathcal G}/|\varSigma |)$-plane, for $\delta =0.1$ and $\varDelta =-1$. The data are computed numerically (using the MATLAB ode15s solver) when $\kappa \gt 0.8$ or ${\mathcal G} \gt 0.0063\kappa ^{1/2}$, and using the asymptotic results in § A.3 otherwise (to avoid overflow errors). The locus of neutral amplification ($\nu = 1$) is shown by the solid line; the instantaneous stability boundary for $t=0$ (i.e. the locus for $\lambda = 0$) is shown by the dashed line. In (a), the dotted contours show the levels $\log \nu = 8^{\pm j}$ for $j=0,1,\ldots ,5$.

Figure 6

Figure 7. Time series of $\log ({\check Z}(t))$ (solid blue) and $\log (-{\check H}(t))$ (solid red) for a long-wave initial condition corresponding to the eigenvector $\boldsymbol {e}$ of $\boldsymbol{R}(\infty )$ with largest eigenvalue, for $\kappa =0.005$, ${\mathcal G}=0.001$ and $\varDelta = -1$. The dashed lines show composite asymptotic solutions based on the results in Appendix B. The time $t_c$ corresponds to the instant when the largest eigenvalue of $\boldsymbol{M}(t_c)$ crosses zero; the instantaneous wavenumber $Q(t)$ reaches unity for $t=t_\infty$.

Figure 7

Figure 8. A pair of plots similar to figure 6, but for the bi-axial case. The dot-dashed line in (a) shows the locus of neutral amplification ($\nu = 1$) in the uni-axial case.

Figure 8

Figure 9. (a,c) Scaled maximum eigenvalue of $\boldsymbol{M}/|\varSigma |$, and (b,d) the ratio $|{\check Z}/{\check H}|$ for the corresponding eigenvector, as densities over the $(Q,H_0{\mathcal G}/|\varSigma |)$-plane for (a,b) $\varDelta =-1$ (compression) and (c,d) $\varDelta =1$ (tension), with $\delta =0.1$ and $m= 1/3$. The arrows in (a,b) indicate the trajectories of the initial-value problems of figure 10(a,b) for uni-axial compression. The dashed contour identifies the stability boundary. In (a,c), the colour map actually shows $\lambda ^{1/3}$, and the dot-dashed line shows the most unstable wavenumber (which is at the lowest wavenumbers in (c)). In (b,d), the dotted line shows where $|{\check Z}|=|{\check H}|$.

Figure 9

Figure 10. A set of plots analogous to those in figure 5, but for $m=1/3$ and wavenumbers $\kappa =0.922$ and $0.66$ in (a,b).

Figure 10

Figure 11. Pair of plots similar to figure 8, but for shear-thinning fluid under bi-axial compression, $m=1/3$. The dot-dashed line in (a) shows the locus of neutral amplification ($\nu = 1$) in the uni-axial case, and the dotted contours indicate the levels $\log \nu = 4^{j}$ for $j=-8,-4,\ldots ,4$; the star shows the point $(1.573,1.447)$, which is the highest point on the neutral curve.

Figure 11

Figure 12. Net amplification factor $D_{22}(\infty ;\kappa )\equiv \nu$ for $\delta = 1/2$, with $\varDelta =-1$. The locus of neutral amplification ($\nu = 1$) is shown by the solid line; the instantaneous stability boundary for $t=0$ is shown by the dashed line. The dotted contours show the levels $\log \nu = 8^{\pm j}$ for $j=0,1,\ldots ,5$.

Figure 12

Figure 13. The threshold for $\varSigma /(H_0{\mathcal G})$ from (C12)–(C13) plotted as a function of $\delta$. The unstable region is shaded, and the threshold for $\delta =0.1$ is indicated by the star.
