1. Introduction
The discoveries of Sedna (Brown, Trujillo, and Rabinowitz, Reference Brown, Trujillo and Rabinowitz2004) and Sedna-like bodies (e.g. Trujillo and Sheppard, Reference Trujillo and Sheppard2014; Sheppard et al., Reference Sheppard, Trujillo, Tholen and Kaib2019) revealed their unusual orbital properties such as high eccentricity and inclination. In addition, the simulation work of Batygin and Brown (Reference Batygin and Brown2016a) showed that the orbits of various distant Kuiper Belt Objects (KBOs) exhibited strong clustering in both arguments of perihelion and physical space. The probability that this peculiar clustering happens by random processes is only 0.007%, which is almost impossible unless it is related to another unknown dynamical process.
While Brown (Reference Brown2017) implied that the observational biases might cause the observed clustering of distant KBOs, Brown and Batygin (Reference Brown and Batygin2019) developed a method to quantify the observational biases and concluded that the chance for the observed random clustering is only 0.2%. Finding the elusive mechanism behind the orbital clustering of KBOs has become an attractive topic because it challenges the contemporary understanding of the outer solar system. Batygin and Brown (Reference Batygin and Brown2016a) proposed that a massive and distant planet, also known as Planet Nine, can maintain the orbital alignment of those KBOs with mass
$\geq$
10M
$_{\oplus}$
and semi-major axis of 700 AU. Since this is an undiscovered planet, several names have been proposed to call it. In 1906, Percival Lowell started to search for a hypothetical planet beyond Neptune’s orbit and called it Planet XFootnote a. The next name, Planet Nine or Planet 9, was proposed after the demotion of Pluto from a planet to a dwarf planet in 2006 and has been widely used in recent studies. Lorenzo Iorio (Reference Iorio2017) proposed the name TelistoFootnote b because while the official name of the object is supposed to be changed in the future according to the classification issues, its great distance is an unchanged feature. The speculation of Planet Nine’s orbit and characteristics, such as mass and distance, was followed by various simulation works (e.g. Brown and Batygin, Reference Brown and Batygin2016; Batygin and Brown, Reference Batygin and Brown2016b; Millholland and Laughlin, Reference Millholland and Laughlin2017; Brown and Batygin, Reference Brown and Batygin2021), in which the N-body simulations and Markov Chain Monte Carlo analysis were employed to estimate parameters of Planet Nine. Furthermore, the perturbations caused by a distant point-like body on a two-body system like the Sun and Earth were analytically calculated in Lorenzo Iorio (Reference Iorio2024). Attempts to constrain the possible location of Planet Nine have been made recently through different released observational data (e.g. L. Iorio, Reference Iorio2013; Fienga et al., Reference Fienga, Laskar, Manche and Gastineau2016; Holman and Payne, Reference Holman and Payne2016; Fienga et al., Reference Fienga, Laskar, Manche and Gastineau2016) and its perturbations on other Solar System bodies (e.g. Lorenzo Iorio, Reference Iorio2017; Nabiyev et al., Reference Nabiyev, Yalim, Guliyev and Guliyev2022; Gomes et al., Reference Gomes, Murray, Gomes, Holman and Bernstein2023). In addition, the Planet Nine-inclusive model was compared to the Planet Nine-free model to assess the influence on the low-inclination, Neptune-Crossing TNOs with and without the presence of Planet Nine (Batygin et al., Reference Batygin, Morbidelli, Brown and Nesvorný2024), where the Planet Nine-free scenario was rejected at a
$\sim$
5
$\sigma$
confidence-level. An alternative explanation suggested that our solar system captured one of the primordial black holes (PBHs) with 5M
$_{\oplus}$
$\leq$
M
$_{BH}$
$\leq$
10M
$_{\oplus}$
(Scholtz and Unwin, Reference Scholtz and Unwin2020), which can explain why Trans-Neptunian Objects (TNOs) move perpendicularly to the planetary plane and why the orbits of extreme TNOs exhibit an unexpected clustering. Although the orbital clustering of KBOs was statistically demonstrated not to occur by chance, the existence of Planet Nine has been under debate so far. One previous study using an observed sample of large semi-major axis TNOs from the Outer Solar System Origins Survey (Shankman et al., Reference Shankman, Kavelaars, Bannister, Gladman, Lawler, Chen and Jakubik2017) concluded that the evidence for a super-Earth or larger planet causing the orbital clustering of those TNOs is in doubt. However, the scenario of a larger-than-dwarf-scale planet is still possible. Another study on 14 extreme TNOs discovered by the Dark Energy Survey, the Outer Solar System Origins Survey, and the survey of Sheppard and Trujillo (Napier et al., Reference Napier, Gerdes, Lin, Hamilton, Bernstein, Bernardinelli and Abbott2021) obtained a joint probability between 17% and 94% for the uniform distribution of the extreme TNOs, which is different from the value of 0.2% in Brown and Batygin (Reference Brown and Batygin2019). While the results from Napier et al. (Reference Napier, Gerdes, Lin, Hamilton, Bernstein, Bernardinelli and Abbott2021) indicated that there is no evidence for the angular clustering, they could not explicitly rule out Planet Nine with current data.
Many efforts in searching for Planet Nine have been made recently by utilising optical surveys such as Zwicky Transient Facility (ZTF, Brown and Batygin, Reference Brown and Batygin2022), Dark Energy Survey (DES, Belyakov, Bernardinelli, and Brown, Reference Belyakov, Bernardinelli and Brown2022), and Pan-STARRS1 (PS1, Brown, Holman, and Batygin, Reference Brown, Holman and Batygin2024). However, they only ruled out percentages of the Planet Nine parameters predicted by Brown and Batygin (Reference Brown and Batygin2021) without successfully constraining any Planet Nine candidates. One possible explanation for this problem is that the predicted semi-major axis of Planet Nine’s orbit is 700 AU (Batygin and Brown, Reference Batygin and Brown2016a), which is roughly 23 times larger than that of Neptune’s orbit (
$\sim$
30 AU). Such a distant location makes Planet Nine too dim to observe from Earth in optical wavelengths. When increasing the current heliocentric distance d of Planet Nine, the Sunlight reflected by Planet Nine decreases as a function of
$d^{-4}$
, while the thermal radiation in infrared wavelengths of this planet only weakens as a function of
$d^{-2}$
. As a result, Planet Nine in infrared wavelengths is expected to be much brighter than in optical wavelengths. On the other hand, when infrared light travels from the outer solar system to the Earth, it is absorbed by the Earth’s atmosphere. In this case, infrared surveys using space telescopes instead of ground-based telescopes are able to improve signals from distant, faint sources. The Backyard Worlds: Planet 9 Citizen Science ProjectFootnote c was conducted by using data from Wide-field Infrared Survey Explorer (WISE) mission. Rowan-Robinson (Reference Rowan-Robinson2021) searched for Planet Nine in Infrared Astronomical Satellite (IRAS) data and found one Planet Nine candidate with a distance of 225
$\pm$
15 AU and a mass of 3 – 5M
$_{\oplus}$
. Another far-infrared search was implemented by (Sedgwick and Serjeant, Reference Sedgwick and Serjeant2022, hereafter SS22) with a distance range of 700 – 8000 AU. Their idea was to find giant planet candidate pairs, including one IRAS detection and one AKARI detection. They found 535 potential candidate pairs after the Spectral Energy Distribution (SED) fitting. However, all of their candidates are located in the galactic cirrus region, which affects the reliability of flux measurements. Several recent studies proposed and evaluated the prospects of future planetary and deep-space missions for the Planet Nine search, including a dedicated mission to measure modifications of gravity out to 100 AU (Buscaino et al., Reference Buscaino, DeBra, Graham, Gratta and Wiser2015), the Uranus Orbiter and Probe mission (Bucko, Soyuer, and Zwick, Reference Bucko, Soyuer and Zwick2023), and the Elliptical Uranian Relativity Orbiter mission (Iorio, Girija, and Durante, Reference Iorio, Girija and Durante2023).
Similar to SS22, our objective in this study is to take advantage of the data of two far-infrared all-sky surveys, which are IRAS and AKARI, and then find candidates for the mysterious planet. However, the key difference between our work and SS22 is distinguished by the AKARI catalogues. Due to Earth’s orbital motion around the Sun, Planet Nine’s parallax is expected to shift
$\sim 10' - 15'$
every 6 months, corresponding to the heliocentric distance range of 500 – 700 AU. Therefore, it will not be observed at the same location after this period. We use AKARI sources without monthly confirmation instead of the co-added catalogue like AKARI-BSC Version 2, which was used in SS22. In other words, since the position of Planet Nine is affected by the parallax motion and the orbital motion, we are only able to detect Planet Nine at the same location over several successive scans in a day, but not after half a year. This paper is organised as follows: Section 2 presents a brief introduction to the prospect and the power of two surveys as well as the data sets we use in this work, Section 3 includes our method to estimate the expected orbital motion and flux of Planet Nine, and a set of criteria for positional and flux selections. We show our results in Section 4, discussions in Section 5 and summarise the outcomes of this research in Section 6.
2. Far-infrared all-sky surveys

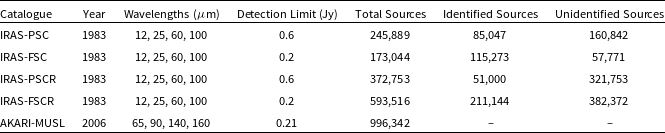

Table 1. Basic information of four IRAS catalogues and AKARI-MUSL. Total numbers of sources are available in published catalogues. Identified and unidentified sources of IRAS catalogues are classified by the number of positional associations (nid).
Although there are various predictions for the possible sky region or the orbital structure of Planet Nine in the outer solar system (e.g. Brown and Batygin, Reference Brown and Batygin2016; Batygin and Brown, Reference Batygin and Brown2016b; Millholland and Laughlin, Reference Millholland and Laughlin2017; Brown and Batygin, Reference Brown and Batygin2021), its precise location remains unconfirmed. That is the main reason we need all-sky surveys to conduct a large-area search. On the other hand, since Planet Nine could be a few hundred astronomical units away from Earth, the motion of Planet Nine in a short time scale of several months or a year is not significant enough to be detected. That means it requires at least two all-sky surveys with a sufficient epoch separation. Therefore, in this paper, we chose two all-sky surveys with a 23-year epoch separation. The characteristics of these two surveys are described below and summarised in Table 1.
2.1 IRAS
The Infrared Astronomical Satellite (IRAS, Neugebauer et al., Reference Neugebauer, Habing, Van Duinen, Aumann, Baud, Beichman, Beintema, Boggess, Clegg and De Jong1984) was launched in 1983 to carry out the all-sky survey. This mission covers four infrared wavelength bands centred at 12
$\mu$
m, 25
$\mu$
m, 60
$\mu$
m and 100
$\mu$
m. There are two main catalogues released by the IRAS team: the Point Source Catalogue (IRAS-PSC) includes over 245,000 sources, and the Faint Source Catalogue (IRAS-FSC) includes over 173,000 sources. The flux detection limit of the IRAS depends on the catalogue type and the wavelength. To be specific, at 100
$\mu$
m, both IRAS-PSC and IRAS-FSC have a detection limit of 1.0 Jy. At 60
$\mu$
m, however, the detection limit of IRAS-PSC is 0.6 Jy, whereas that of IRAS-FSC can reach 0.2 Jy.
In addition, there are also two other catalogues, including rejected sources of two main catalogues: the Point Source Catalogue Rejects (IRAS-PSCR) and the Faint Source Catalogue Rejects (IRAS-FSCR). The reasons for rejection could be the failure to achieve the minimum criterion of two-hour confirmation, or sources located in confused regions of the sky or were only detected in a single band. As a result, when we look at the co-added images of sources in these two rejected catalogues, they might not be shown as real physical sources. Despite the rejection, there is still a possibility that Planet Nine would be detected in one of these catalogues.
IRAS team matched their sources with other catalogues to make a source identification, indicated by the number of positional associations (nid). This parameter has integer values ranging from 1 to 4. Each value of nid represents a type of catalogue associated with an IRAS source, such as extragalactic catalogues (nid = 1), stellar catalogues (nid = 2), other catalogues (nid = 3), and multiple types of catalogues (nid = 4). If sources are not found in any type of catalogue listed above, nid = 0. The total numbers of identified and unidentified sources are shown in Table 1.
2.2 AKARI
Another far-infrared all-sky survey was conducted by the Japanese infrared astronomical satellite AKARI in 2006 – 2007 (Murakami et al., Reference Murakami, Baba, Barthel, Clements, Cohen, Doi and Enya2007). AKARI observed the whole sky with four far-infrared bands centered at 65
$\mu$
m (N60), 90
$\mu$
m (WIDE-S), 140
$\mu$
m (WIDE-L), and 160
$\mu$
m (N160). The AKARI-FIS Bright Source Catalogue (Version 1 and Version 2) has been published for general astronomical research. In this work, however, one of the authors (IY) has created a custom-made source list, “AKARI-FIS Monthly Unconfirmed Source List” (AKARI-MUSL), to search for Planet Nine candidates. The AKARI-MUSL is based on the same internal dataset of point-source-like signals detected in each scan during the survey used for the AKARI-BSC, but with different source-selection criteria. AKARI survey was carried out over 16 months from May 2006 to August 2007. A position of the sky was observed in a few to several successive scans (the number of scans depends on the Ecliptic latitude), then repeated a half year later.
In AKARI-BSC, a “real source” is defined as one that is detected in
$\geq$
75% of the total number of scans at the same position (e.g. 10 detections over 12 scans). In AKARI-MUSL, that condition is relaxed, and all sources detected twice or more at the same position are included regardless of how many scans pass by them (e.g. 3 detections over 12 scans). It is crucial for the Planet Nine search that the object should not be observed at the same position after half a year due to Planet Nine’s parallax motion and orbital motion (see Section 3.1 for further details). Therefore, we remove sources detected at the same position in scans separated by 6 months from the list, as those sources are probably celestial (not moving) objects. Figure 1 shows a so-called
$\log N$
–
$\log S$
plot, where S in Jy is the source flux and N is the number of objects at the flux of the most sensitive band (WIDE-S; 90
$\mu$
m). AKARI-BSC’s detection limits are estimated from this plot as 0.55 and 0.44 Jy for Version 1 and 2, respectively (Yamamura et al., Reference Yamamura, Makiuchi, Koga, Ootsubo, Yamamura, Murata and Onaka2018). Because sources in AKARI-MUSL are selected with a different (more relaxed) condition, it contains fainter sources down to
$\sim$
0.21 Jy. The total number of sources in MUSL, that are detected in WIDE-S, is 956,094. However, the list possibly includes many false detections caused by cosmic ray hits or instrumental artifacts. So we must carefully select possible Planet Nine candidates as we describe in the following sections.

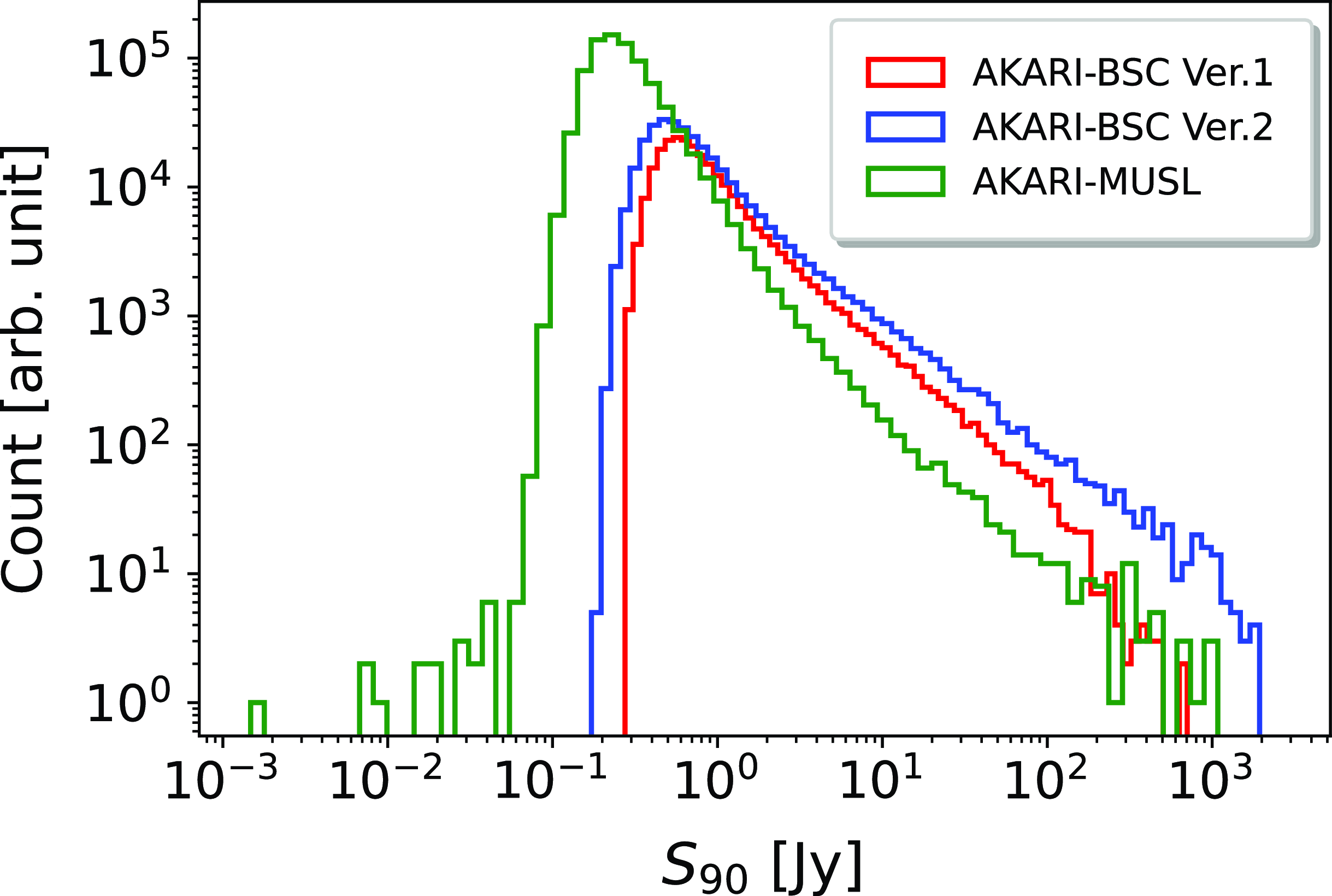

Figure 1. Comparison between log N – log S plots of three different AKARI catalogues in 90
$\mu$
m: AKARI-BSC Version 1 (red), AKARI-BSC Version 2 (blue), and AKARI-MUSL (green).
3. Methods
3.1 Expected orbital motion
Since the epochs of IRAS and AKARI are separated by 23 years, it leads to the domination of orbital motion compared to the parallax motion. We therefore need to calculate the expected orbital motion of Planet Nine over 23 years in order to constrain the possible position of an IRAS candidate in the AKARI source list. We adapted Equation (4) from Cowan, Holder, and Kaib (Reference Cowan, Holder and Kaib2016) and rewrote it for the case of a 23-year separation as shown in Equation (1).
\begin{equation} \mu_{\mathrm{orb}} = 42\ \mathrm{arcmin}\frac{\Delta T}{23\ \mathrm{year}}\left(\frac{d}{700\ \mathrm{AU}}\right)^{-3/2}, \end{equation}
where
$\mu_{\mathrm{orb}}$
is the orbital motion of Planet Nine;
$\Delta T$
is the epoch separation between two surveys; d is the current heliocentric distance of Planet Nine, which can be approximately equal to the geocentric distance.
When choosing an arbitrary distance range to search for Planet Nine, we can infer the angular separation between the IRAS detection and the AKARI detection of Planet Nine over 23 years. Note that with our assumptions, Planet Nine is treated as a slow-moving object, which only moves a few arcminutes per year. It means that Planet Nine is required to have detections at different hours on the same date (hourly confirmation), and no detection on the date of 6 months before or 6 months after. In addition to the orbital motion, Planet Nine’s parallax shifts every 6 months due to the Earth’s motion around the Sun. As a result, we expect that Planet Nine is able to be detected in the AKARI-MUSL without monthly confirmation over 23 years. The hourly confirmation is a crucial criterion to differentiate between a slow-moving object and a fast-moving object. If an object fails to have both hourly and monthly confirmations, it is most likely a fast-moving object and cannot be considered as a good Planet Nine candidate.
The expected orbital motion of Planet Nine as a function of heliocentric distance is visualised in Figure 2. We see that the orbital motion increases faster at shorter distances. Such a large orbital motion raises difficulties in our candidate pair selection, which are described in Section 3.3 and discussed in Section 5. Therefore, in this work, we focus on the distance
$\geq$
500 AU, while the search with the distance < 500 AU will be conducted separately in our follow-up study.

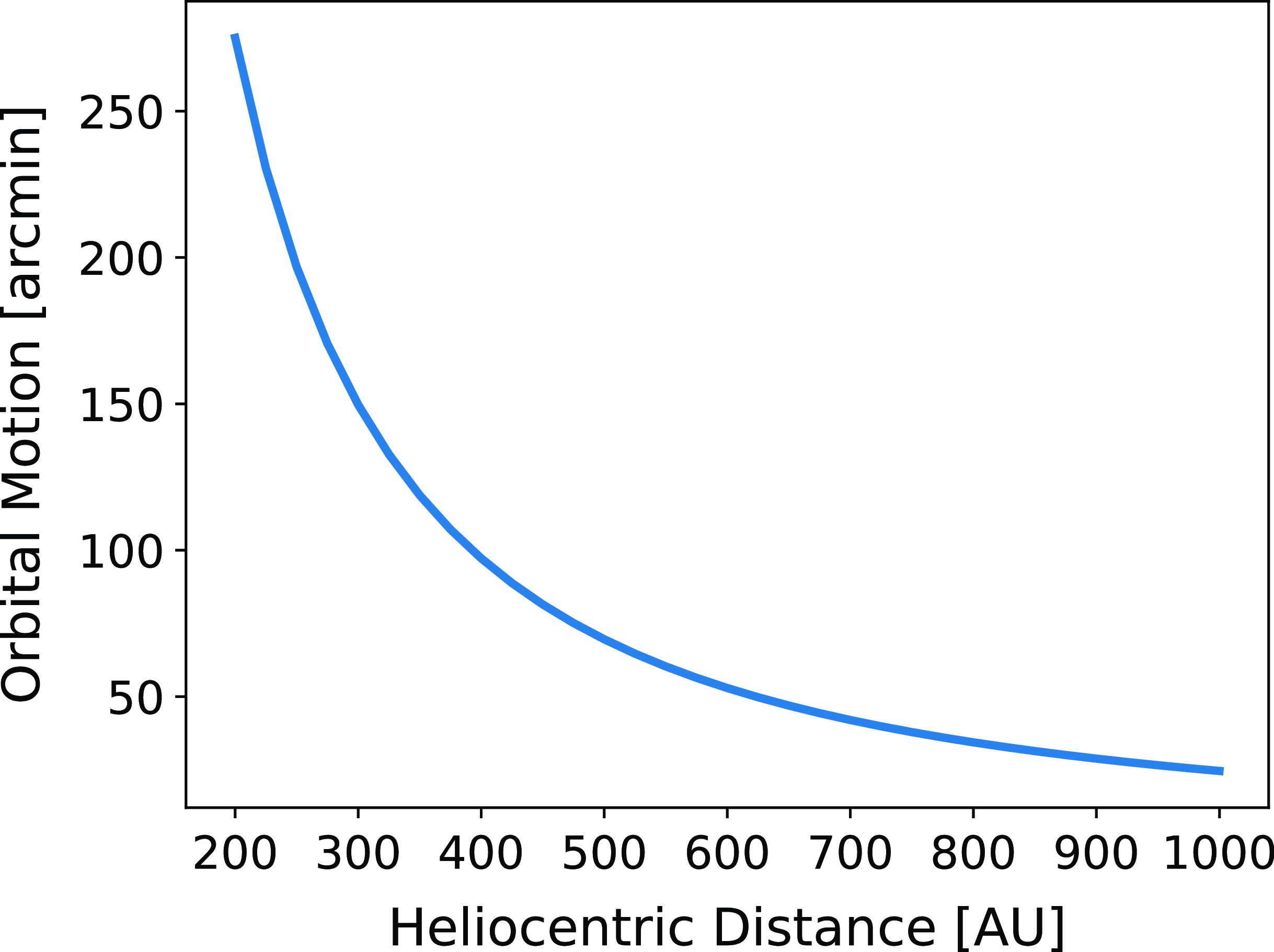

Figure 2. Expected orbital motion of Planet Nine over 23 years versus its current heliocentric distance. The orbital motion decreases exponentially as the heliocentric distance increases according to Equation (1).
3.2 Expected flux
Estimating the expected flux of Planet Nine is an important step to ensure that its flux must be above the detection limits of both IRAS and AKARI. Due to our insufficient understanding of the characteristics of Planet Nine, such as mass, density, distance, temperature, etc., we need to conduct the estimation with assumptions based on simulation results from previous works. The flux density at a certain wavelength is determined by the product of two components, which are the black-body spectral radiance at that wavelength and the solid angle as seen from the Earth. Since Planet Nine was predicted to be located distantly beyond Neptune’s orbit with an orbital eccentricity of 0.6 and a semi-major axis of 700 AU (Batygin and Brown, Reference Batygin and Brown2016a), we expect that it is an ice-giant planet like Uranus and Neptune rather than a terrestrial planet like other inner-most planets. As a result, we assume that the density of Planet Nine is 1.46 g/cm
$^{3}$
, which is approximately equal to the average of the densities of Uranus (1.27 g/cm
$^{3}$
) and Neptune (1.64 g/cm
$^{3}$
), then derive the radius of Planet Nine and the solid angle observed from the Earth in steradian (sr). Combining the predicted semi-major axis and orbital eccentricity, we can derive the perihelion and aphelion distances of Planet Nine, which are 280 AU and 1120 AU, respectively.
To calculate the spectral radiance, we assume the black-body radiation for Planet Nine. Input parameters include frequency range (THz), temperature (K), and emissivity. Note that the sum of emissivity and Bond albedo is equal to 1. Cowan, Holder, and Kaib (Reference Cowan, Holder and Kaib2016) assumed that Planet Nine has a similar Bond albedo to Uranus and Neptune, which are 0.30 and 0.29, respectively. Therefore, we adapted the value of 0.3 for our calculation. The spectral radiance (
$W\cdot m^{-2}\cdot sr^{-1}\cdot THz^{-1}$
) with such input parameters reaches the maximum value at
$\sim$
102
$\mu$
m (
$\sim$
2.94 THz). The details of the calculation can be mathematically described in Equation (2) and Equation (3). Then we do the unit conversion from
$W\cdot m^{-2}\cdot Hz^{-1}$
to Jy by using the relation 1 Jy = 10
$^{-26}$
$W\cdot m^{-2}\cdot Hz^{-1}$
.
\begin{equation} \Omega = 2\pi\left(1 - \frac{\sqrt{d^{2} - R^{2}}}{d}\right),\\[-10pt] \end{equation}
\begin{equation} S_{\lambda} = L_{\lambda} \times \Omega,\\[20pt] \end{equation}
where
$\Omega$
is the solid angle of Planet Nine observed from the Earth; d is the current heliocentric distance of Planet Nine, which can be approximately equal to the geocentric distance; R is the radius of Planet Nine;
$S_{\lambda}$
is flux density at wavelength
$\lambda$
;
$L_{\lambda}$
is spectral radiance at wavelength
$\lambda$
.

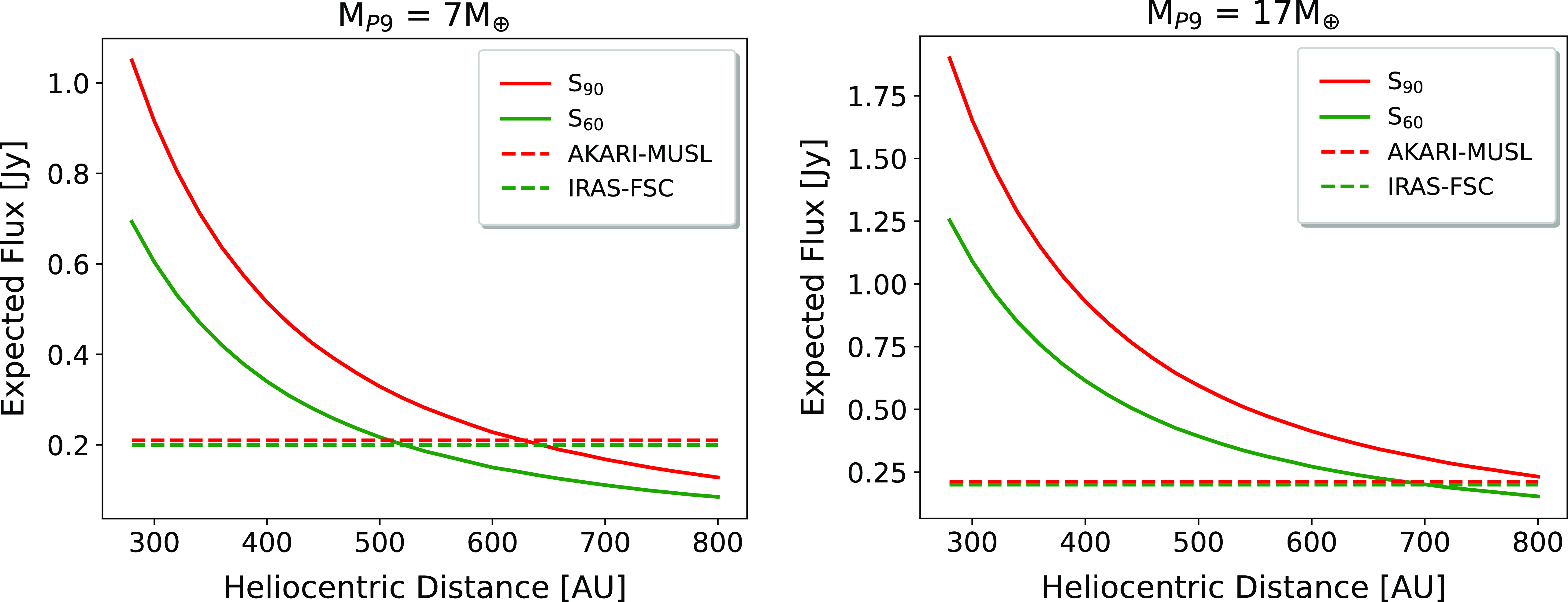

Figure 3. Expected flux of Planet Nine at 60
$\mu$
m and 90
$\mu$
m as a function of heliocentric distance (solid curves) compared to the flux detection limits of IRAS-FSC and AKARI-MUSL (dash lines), which are 0.2 Jy and 0.21 Jy, respectively. The expected flux is calculated with the lower limit (left panel) and the upper limit (right panel) of Planet Nine’s mass range.
We are searching for Planet Nine candidates whose masses are less than or equal to Neptune’s mass (
$\sim$
17
$M_{\oplus}$
) since the maximum predicted radius of Planet Nine is approximately equal to the radius of Neptune (Batygin et al., Reference Batygin, Adams, Brown and Becker2019) and its assumed density is also similar to Uranus and Neptune. To determine the lower limit of the mass range, we gradually reduce the value of Planet Nine’s mass to guarantee that the expected flux of Planet Nine is above the detection limits of two surveys. Figure 3 shows the comparison between the expected flux of Planet Nine and the detection limits of IRAS-FSC and AKARI-MUSL at their most sensitive bands. Here we choose the detection limits of IRAS-FSC because it is three times deeper than that of IRAS-PSC at 60
$\mu$
m. It is also reasonable to determine the minimum condition for Planet Nine’s detection. At the upper limit of the mass range, Planet Nine would be well-detected within the heliocentric distance range of 500 – 700 AU. However, the detectability of Planet Nine would be decreased when its mass is assumed to be lower. We notice that Planet Nine with a mass of 7
$M_{\oplus}$
is detectable in IRAS within 500 – 520 AU.

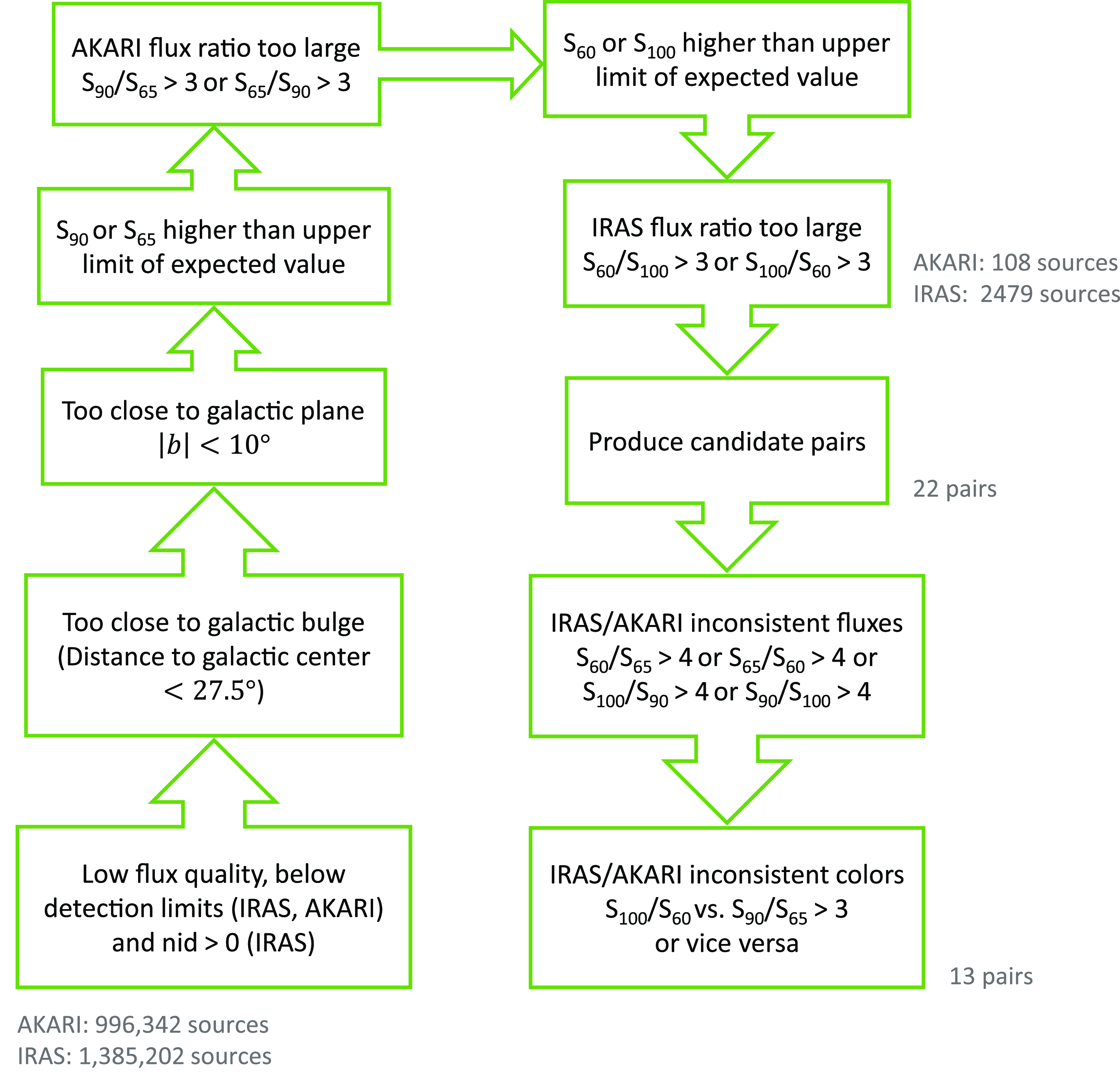

Figure 4. Flowchart of Planet Nine candidate selection process. The entire process consists of positional and flux selection criteria. Single sources or candidate pairs are excluded if they match one of the criteria.
3.3 Selection process
We aim to search for possible Planet Nine candidate pairs, including one IRAS detection and one AKARI detection. Criteria in our selection process can be divided into two categories, which are positional criteria and flux criteria. The order of those criteria presented in this study can be managed to ensure we obtain the same finalist. If sources match one of the following criteria, they are removed from the selection:
-
• IRAS or AKARI sources with low flux quality: Flux quality of sources is indicated by an integer number ranging from 1 to 3 (a value of 3 represents the highest flux quality). Sources whose flux quality value equals 1 at one of the following bands: 60, 65, 90, and 100
$\mu$
m are referred to as unreliable flux measurements or unconfirmed sources. As a result, it is necessary to remove those sources before comparing their fluxes. -
• Below detection limits and identified sources: Detection limits corresponding to each catalogue are provided in Table 1. Already known IRAS sources are defined by the number of positional associations nid = 0.
-
• Too close to Galactic plane and Galactic bulge: Sources located near the Galactic plane or the Galactic bulge could have a potential problem. For example, the brightness of the galactic cirrus may significantly affect the fluxes of those sources. Consequently, the reliability of flux measurements cannot be guaranteed. We excluded sources with low galactic latitude (
$\left|b\right|$
< 10
$^{\circ}$
) and within a radius of 27.5
$^{\circ}$
from the Galactic centre. These positional criteria come from Bernard et al. (Reference Bernard, Boulanger, Desert, Giard, Helou and Puget1994), which showed the dominance of dust emission near the low-latitude and inner galactic regions. Similarly, Figure 3 in SS22 also indicated that without the above filters, a large number of their candidates concentrate near the Galactic plane and the Galactic centre. If Planet Nine were located in these regions, we would unfortunately fail to detect it in this study. However, the most promising region predicted by the simulation (Millholland and Laughlin, Reference Millholland and Laughlin2017) is not in this direction. -
• IRAS or AKARI fluxes exceed the upper limit of the expected flux: This criterion helps to exclude sources with inappropriate fluxes to be Planet Nine in our search range. The upper limit was calculated by the flux estimation in Section 3.2 and considered as the flux of Planet Nine corresponding to the heliocentric distance of 500 AU.
-
• IRAS or AKARI flux ratios are too large: The expected range of Planet Nine’s temperature is 28 – 53 K (Cowan, Holder, and Kaib, Reference Cowan, Holder and Kaib2016). We exclude sources showing high temperatures in far-infrared wavelengths if the flux ratios of two bands in IRAS or AKARI are larger than 3, corresponding to the temperature
$\gtrsim$
100 K. To be specific,
$S_{100}/S_{60}$
> 3 or
$S_{60}/S_{100}$
> 3 in IRAS;
$S_{90}/S_{65}$
> 3 or
$S_{65}/S_{90}$
> 3 in AKARI.
In the next step, our goal is to find candidate pairs based on the expected orbital motion corresponding to the heliocentric distance range of 500 – 700 AU. In other words, for each IRAS source, we try to search for all possible AKARI sources with angular separation between 42′ and
$69.6'$
. The angular separation increases with closer heliocentric distances to Planet Nine, which means one IRAS source could pair up with more AKARI sources.
Although these IRAS – AKARI pairs meet the requirement of angular separation, there might be inconsistencies in flux or colour between IRAS and AKARI components (Sedgwick and Serjeant, Reference Sedgwick and Serjeant2022). We remove sources with flux inconsistency at two close wavelengths by a factor of more than 4Footnote d, i.e. sources with
$S_{60}/S_{65}$
> 4;
$S_{65}/S_{60}$
> 4;
$S_{90}/S_{100}$
> 4; or
$S_{100}/S_{90}$
> 4 are removed. We further require the IRAS colour (
$S_{100}/S_{60}$
) and AKARI colour (
$S_{90}/S_{65}$
) to be consistent, i.e. when the colour values differ by a factor of more than 3Footnote e, the sources are removed. The flowchart of our selection process is summarised in Figure 4.
4. Results
After excluding IRAS – AKARI pairs with strongly inconsistent colours or fluxes, we found 13 candidate pairs in total, whose IRAS sources are all from IRAS-FSC.
4.1 Image inspection
To evaluate the quality of these pairs, we implement the image inspection for both IRAS and AKARI sources. IRAS images are downloaded from Improved Reprocessing of the IRAS Survey (IRIS) Data AccessFootnote f, while AKARI images are downloaded from AKARI Far-Infrared All-Sky Survey Maps Data AccessFootnote g. The requirements for a good candidate pair include:
-
• The presence of the solid IRAS source at the given coordinate in the IRAS image.
-
• The absence of that IRAS source at the same coordinate in the AKARI image.
-
• The absence of the AKARI source at the same coordinate in the IRAS image.
-
• Both IRAS and AKARI images were not contaminated by the cirrus.
If a pair fails to satisfy one of the above conditions, it is removed from the candidate list. Only one candidate pair remains.
Figure 5 is our good candidate pair satisfying given conditions. The comparison between IRAS and AKARI images indicates that this object moved out of the IRAS coordinate over 23 years. The IRAS source pairs up with only one possible source from AKARI-MUSL. The IRAS image (left panel) was taken by co-adding multiple scans, which were carried out from 26 June 1983 to 01 September 1983Footnote h. This two-month separation corresponds to Planet Nine’s orbital motion of
$\sim\,18^{\prime\prime}$
Footnote i, which is reasonable to be detected as a single source rather than two different sources.

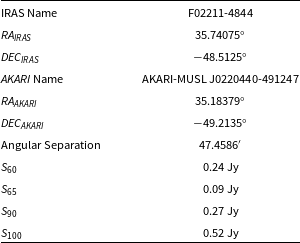

Table 2. Basic information of the good candidate pair found in this work.
We note that the AKARI source in this pair is not visible in the co-added AKARI image on the right panel in Figure 5. This is due to the characteristics of AKARI-MUSL, which include moving sources without monthly confirmation. As a result, they are sometimes not visible in the co-added images, which include scans where they are not detected. The information regarding source names, coordinates, and flux densities of our good candidate pair are summarised in Table 2. Although our candidate pair passed all selection criteria listed in Section 3.3,
$S_{65}$
is significantly fainter than
$S_{60}$
and
$S_{90}$
. The reason for this situation is that there are still confirmed sources with very low flux compared to the detection limits in the AKARI source listFootnote j. Therefore, the source is confirmed at 65
$\mu$
m, but the measured flux might be unreliable. It is essential to conduct follow-up observations to measure the flux of the target in other bands.

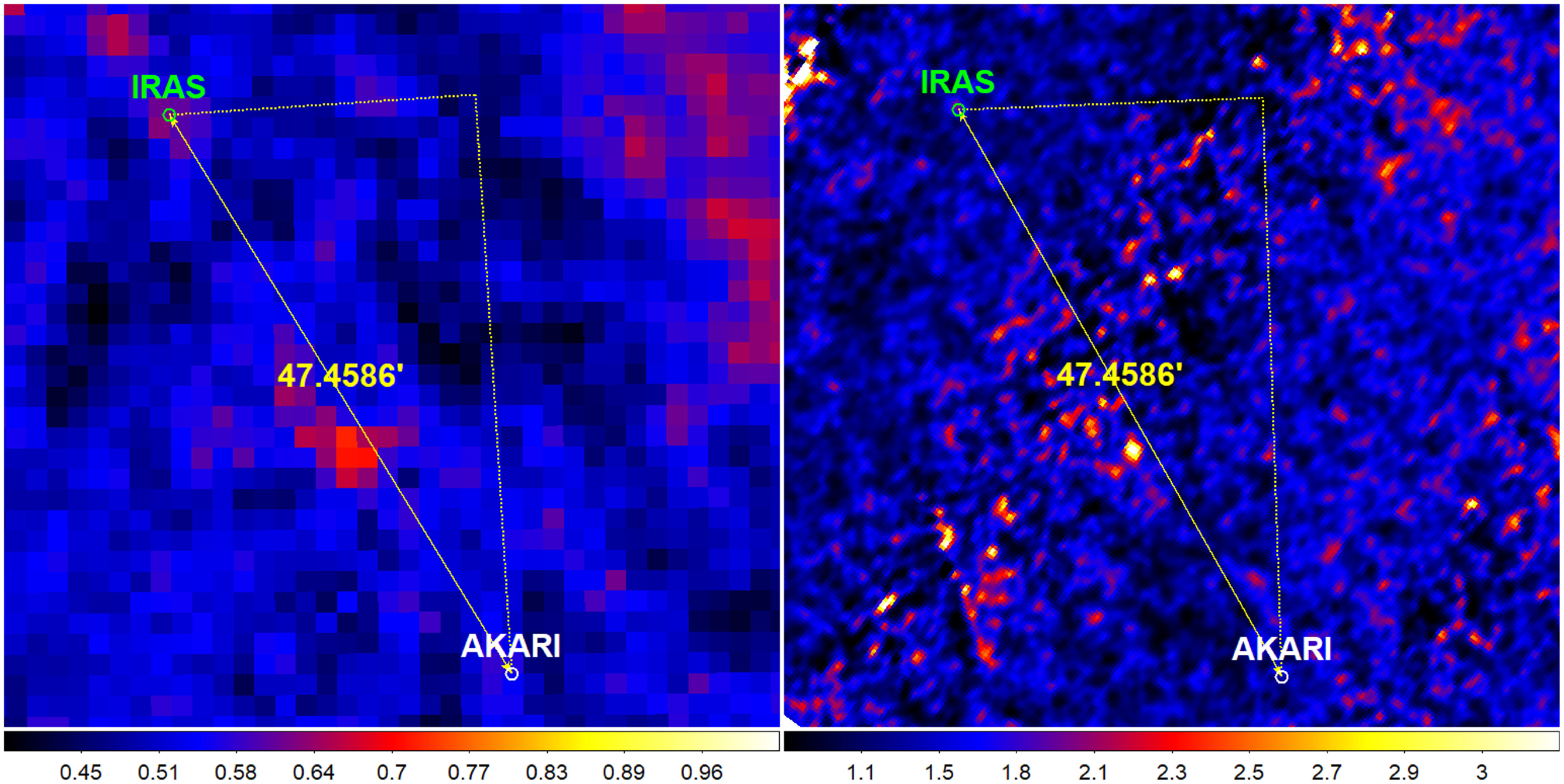

Figure 5. Comparison between IRAS (left) and AKARI (right) cutout images of our good candidate pair. The green circle indicates the location of IRAS source, while the white circle indicates the location of AKARI source. The size of each circle is
$25^{\prime\prime}$
. The yellow arrow with a number in arcminute shows the angular separation between IRAS and AKARI sources. The colour bar represents the pixel intensity in each image in the unit of MJy/sr. The AKARI source in the right panel is not visible as a real physical source due to the characteristics of AKARI-MUSL, which include moving sources without monthly confirmation.
4.2 AKARI detection probability map
We continue to determine if the good candidate is a slow-moving or fast-moving object. This task is possible for the AKARI component in each pair since we are able to check the probability of each detection of the AKARI source by using the AKARI detection probability map. Figure 6 shows the detection probability map of the AKARI component in our candidate pair. AKARI has scanned the position five times. Three were detected on 26 June 2006, and the other two were detected on 26 December 2006.

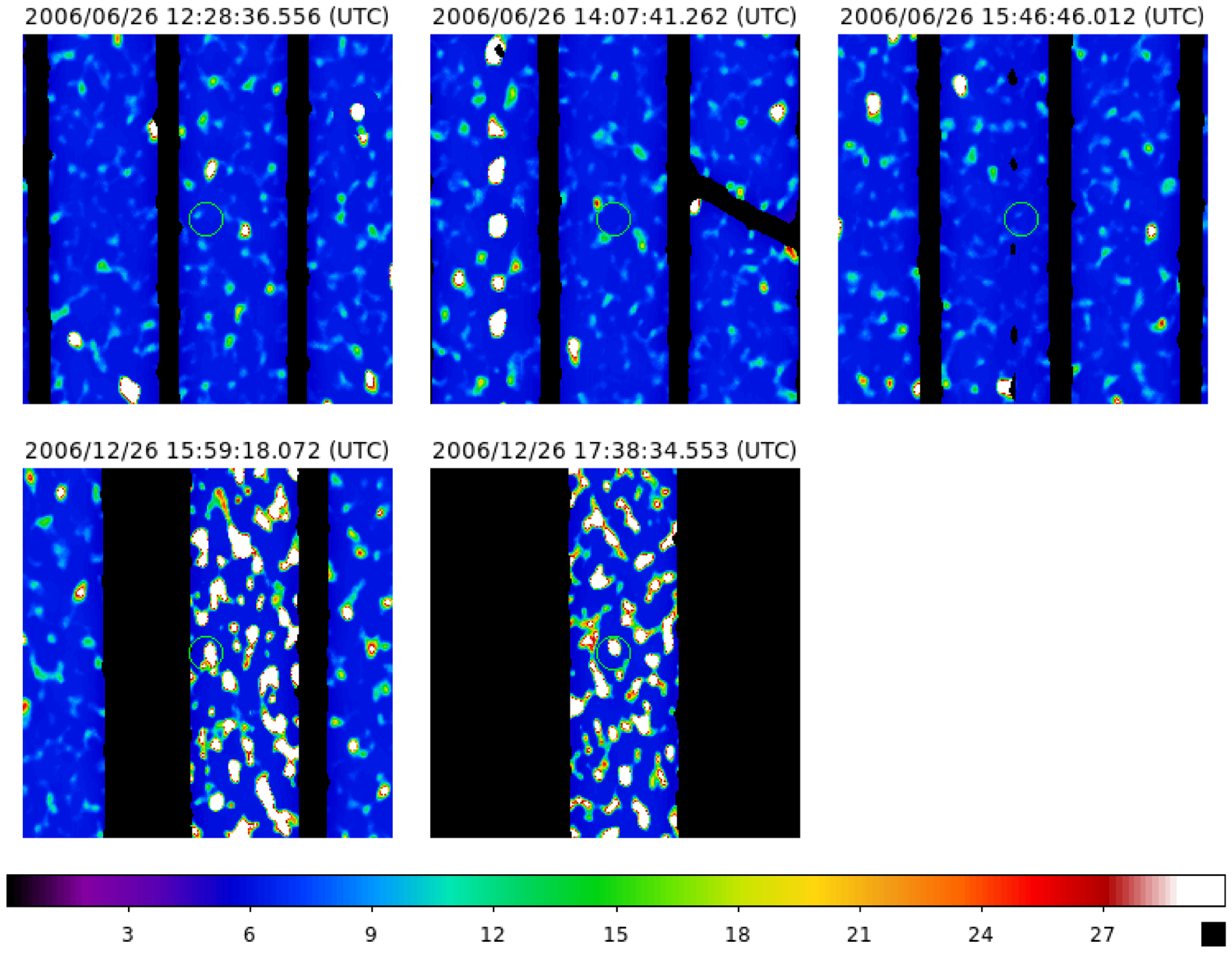

Figure 6. Detection probability map of AKARI source in our good candidate pair. Three scans in the upper row were taken on 26 June 2006, while the other two scans in the lower row were taken on 26 December 2006. The scanning time is shown on the top of each panel along with its scanning date. The size of each panel is
$30' \times 30'$
. The size of the green circles at the centre of each panel is
$80^{\prime\prime}$
. The colour bar represents the pixel intensity in an arbitrary unit. In the point source extraction, pixels with intensity
$\geq 15$
are treated as detections at the first step and sent to the confirmation process.
A slow-moving object requires detections for all successful scans on one date and no detection on the other date, which means that the AKARI source does not have monthly confirmation. To be specific, the expected angular separation of Planet Nine over 6 months at 700 AU is roughly
$55^{\prime\prime}$
, which is distinguishable and should be considered as two different detections. On the date of detection, there must be at least two detections at different times, which means that the AKARI source has hourly confirmation. An additional criterion for good detection is that the green circles are required not to reach the edge of each scan. In other words, the green circles are completely located in the blue region. In this case, there is almost no detection in the three upper panels on the same date, while we obviously see two detections after 6 months in the two lower panels. Therefore, the AKARI source in our candidate pair is most likely a slow-moving object.
5. Discussions
The finalist of our Planet Nine candidate pair strongly depends on how the characteristics of Planet Nine are defined. Indeed, if the actual mass of Planet Nine is larger than that of Neptune, Planet Nine still has a possibility to be detected in IRAS and AKARI due to its higher flux in far-infrared wavelengths. In contrast, if the actual mass of Planet Nine is not sufficient to make its flux above the detection limits of two surveys, there is no chance of finding Planet Nine in this work. Similarly, the heliocentric distance range of Planet Nine significantly affects the total number of candidate pairs found by our algorithm. For example, the angular separation between IRAS and AKARI sources after 23 years becomes larger when the lower limit of the heliocentric distance range is smaller. As a result, the pair-searching radius and the total number of our candidate pairs will be increased. In addition, our understanding of the effective temperature and the density of Planet Nine has not been completed to date, therefore, the assumptions for these parameters are inevitable and rely on the results of previous simulation works.
Obvious evidence for the dependence of Planet Nine candidates on the assumed parameters is the results reported in SS22. Their study covered the distance range from 700 AU to 8000 AU, which is further and wider than ours. Although they also searched for Planet Nine candidate pairs using IRAS and AKARI, the IRAS components in most of their candidate pairs are from IRAS-PSCR, while in our study, the IRAS components are all from IRAS-FSC. There are various explanations for the difference between the two results. First, SS22 used different assumptions and models from our work to estimate the expected flux and orbital motion of Planet Nine. Table 4 in SS22 indicates that they searched for brighter giant planets with smaller angular separation between IRAS and AKARI sources. Second, SS22 did not exclude sources below the flux detection limits of IRAS and AKARI. Again, according to Table 4 in SS22, Uranus-mass planets with a distance further than 2000 AU have
$S_{60} \leq$
0.07 Jy and
$S_{90} \leq$
0.09 Jy, which are all below the flux detection limits of IRAS and AKARI-BSC Version 2. Third, before comparing fluxes between different wavelengths or to the flux detection limits, we excluded IRAS and AKARI sources with low flux quality, while SS22 did not. This was helpful in avoiding the unreliable sources in our selection.
In comparison to the previous search for Planet Nine using IRAS data (Rowan-Robinson, Reference Rowan-Robinson2021), there are some discrepancies regarding the strategy and the outcome. First, Rowan-Robinson (Reference Rowan-Robinson2021) also searched for unidentified slow-moving objects without months confirmation, but only the IRAS survey was utilised for the Planet Nine search. Second, the outcome of their study proposed one candidate, which is in IRAS-PSCR with single hour confirmation. Interestingly, the fitted orbit indicated that their candidate has a distance of 225
$\pm$
15 AU, which is even closer than the distance range predicted in Batygin and Brown (Reference Batygin and Brown2016a). In addition, the mass range of 3 – 5M
$_{\oplus}$
is also lower than that of this work. This could be explained by the different expectations of the characteristics of Planet Nine between Rowan-Robinson (Reference Rowan-Robinson2021) and this work. To be specific, we expected that the flux ratio between 60
$\mu$
m and 100
$\mu$
m bands should be no more than 3, while that ratio is approximately 5 as shown in Table 1 of Rowan-Robinson (Reference Rowan-Robinson2021). They also concluded that their proposed candidate, if real, may not cause the orbital clustering of minor KBOs due to the difference in direction on the sky compared to Brown and Batygin (Reference Brown and Batygin2021).
Although we took advantage of the AKARI detection probability map of the AKARI source to determine whether it is a fast-moving or slow-moving object, two detections from IRAS and AKARI are not sufficient to determine the Keplerian motion of our candidate. In addition, the AKARI source is confirmed at 65
$\mu$
m, but its flux measurement might be unreliable. It is essential to figure out solutions for these issues. The follow-up observation using Dark Energy Camera (DECam) Imager mounted on the Blanco telescope with 3 deg
$^{2}$
field of viewFootnote k can offer a promising opportunity to examine the Keplerian motion of our good candidate pair. Figure 9 in Brown and Batygin (Reference Brown and Batygin2021) indicates that the predicted r-band magnitude of Planet Nine is less than 26. Such an upper limit of 26 AB mag only needs roughly one hour to reach a signal-to-noise ratio of 5 using the r-band filter of DECamFootnote l. Brown, Holman, and Batygin (Reference Brown, Holman and Batygin2024) pointed out that 9 detections are required to evaluate a linked Keplerian orbit with improved processing speed and reduce the number of false positives. The method of the follow-up analysis should be similar to this study. We can start to estimate the expected orbital motion over 18 years (from 2006 to 2024), which varies between 33′ and
$54.7'$
, corresponding to the heliocentric distance range of 500 – 700 AU. If the existence of Planet Nine can be confirmed by observations in the near future, it will improve our understanding of the history and structure of the entire solar system in early stages.
6. Summary
We searched for Planet Nine candidates in a heliocentric distance range of 500 – 700 AU and a mass range of 7 – 17M
$_{\oplus}$
by using two far-infrared all-sky surveys with a 23-year epoch difference. Planet Nine is expected to move slowly on the sky due to its great distance beyond Neptune’s orbit. Therefore, we searched for slow-moving objects that moved from an IRAS position to another AKARI position after 23 years. The expected flux of Planet Nine was estimated by assuming the black-body radiation in infrared wavelengths. The outcomes of this research are summarised as follows:
-
• After the rigorous selection including the visual image inspection, we found one good candidate pair, in which the IRAS source was not detected at the same position in the AKARI image and vice versa, with the expected angular separation of 42′ –
$69.6'$
. -
• The AKARI detection probability map indicated that the AKARI source of our candidate pair satisfied the requirements for a slow-moving object with two detections on one date and no detection on the date of 6 months before.
However, the IRAS and AKARI detections alone are not enough to decide a precise orbit. The DECam, with a large field of view, is a prospective option for the follow-up observation. It enables the possibility of detecting faint moving objects even in optical wavelengths and determining the full orbit of our candidate, since the exposure time to observe targets as faint as 26 AB mag at DECam is approximately one hour. The verification of Planet Nine’s existence via future observational studies will contribute to our understanding of the evolution and structural dynamics of the solar system.
