Highlights
What is already known?
-
• Systematically and sporadically missing data are very common in individual participant data meta-analysis (IPD-MA).
-
• Multiple imputation of missing data in IPD-MA should account for clustering and heterogeneity between studies.
-
• Multilevel imputation methods are available for continuous variables with both systematically and sporadically missing data.
What is new?
-
• We develop a new class of imputation methods for categorical variables in IPD-MA while addressing the challenge of simultaneous presence of systematically and sporadically missing data.
Potential impact for RSM readers
-
• Imputation of missing values in IPD-MA allows using full data potential which can provide additional insight for evidence synthesis.
-
• The proposed imputation methodology can directly be applied to other settings of clustered (or multilevel) data such as longitudinal studies.
1 Introduction
Quantitative evidence synthesis is an important aspect of contemporary clinical research and medical decision making. It is widely used to summarize the effectiveness of medical interventions,Reference Higgins, Thomas and Chandler 1 the accuracy of diagnostic tests,Reference Leeflang, Deeks, Takwoingi and Macaskill 2 the association of prognostic factors,Reference Riley, Moons and Snell 3 or even the performance of published prediction models.Reference Debray, Damen and Snell 4 Historically, evidence synthesis originates from the desire to summarize the results from multiple related studies, often through meta-analysis techniques that aggregate published data (e.g., estimates of relative treatment effect) into a weighted average. However, there is a growing trend toward combining patient-level data from multiple studies and performing a so-called individual participant data meta-analysis (IPD-MA).Reference Riley, Lambert and Abo-Zaid 5 , Reference Tierney, Vale and Riley 6
IPD-MA represents a new era in evidence synthesis, offering several advantages over traditional meta-analyses that are solely based on aggregate data. Most notably, the use of IPD allows for more precise tailoring of diagnostic strategies, identification of risk and prognostic factors, and personalizing risk prediction.Reference Riley, Tierney and Stewart 7 Moreover, pooling of IPD is particularly sui3 for identifying modifiers of relative treatment effectReference Riley, Debray and Fisher 8 and developing models to predict absolute outcome risk or absolute treatment effects in individual patients.Reference Belias, Rovers, Hoogland, Reitsma, Debray and IntHout 9
A key challenge in combining multiple sources of IPD is the presence of between-study heterogeneity. Briefly, this implies that studies differ in aspects such as outcome occurrence (baseline risk) or the magnitude of predictor-outcome associations. Such heterogeneity can arise from differences in participant eligibility criteria, variable and outcome definitions, measurement methods, or treatment protocols across studies. The presence of between-study heterogeneity is an important concern in any meta-analysis, as it may substantially affect the interpretation of pooled summary estimates.Reference Abo-Zaid, Guo and Deeks 10
Another common issue in meta-analysis of IPD is the presence of missing data. This situation typically occurs when variables of interest have not been measured in one or more studies (resulting in completely or systematically missing) or in some participants within studies (resulting in partially or sporadically missing). For example, in the GREAT Network study, 11 the biomarker brain natriuretic peptide (BNP) was used to explain left ventricular ejection fraction. However, BNP is a relatively recent technique which was unavailable (thus, systematically missing), in several studies within the IPD-MA of the GREAT study. While it is possible to restrict the analysis to participants with complete data, the potential loss of efficiency and validity is generally undesirable.Reference Debray, Moons, Ahmed, Koffijberg and Riley 12 Therefore, it is generally recommended to adopt multiple imputation (MI)Reference Rubin 13 methods when one or more studies are affected by missing data. Briefly, MI generates multiple versions of the original dataset(s) by replacing missing values with imputations that are based on observed data. A common approach is to use chained equations to impute each variable sequentially, conditional on the other variables.Reference Van Buuren, Brand, Groothuis-Oudshoorn and Rubin 14 , Reference White, Royston and Wood 15 This method allows for a great deal of flexibility as each variable (e.g., binary, ordinal, continuous, etc.) can be imputed using an appropriate functional form, such as logistic or probit models for binary variables (see van Buuren Reference Van Buuren 16 ). Although MI can be relatively straightforward to implement, it requires careful consideration when participants are clustered within different studies or centers. Imputation models should account for variability within and across studies; otherwise, the imputed values and their uncertainty may no longer be valid.Reference Taljaard, Donner and Klar 17 , Reference Hox, van Buuren, Jolani, Harring, Staplecton and Beretvas 18
For clustered data such as IPD, the multivariate imputation using chained equations (MICE) algorithm naturally extends to multilevel settings. This requires specifying conditional imputation models that incorporate random effects, known as multilevel or hierarchical imputation models. Although several multilevel imputation methods (MLMIs) have been proposed (for a recent overview, see Audigier et al.Reference Audigier, White and Jolani 19 ) they have at least two limitations: (i) they are primarily developed for continuous (and normally distributed) variables and (ii) they are not designed to address the combined presence of sporadically and systematically missing data.
Several multilevel imputation routines are available for continuous variables within the MICE framework. Van BuurenReference Van Buuren and Hox 20 and Yucel et al.,Reference Yucel, Zhao, Schenker and Raghunathan 21 among others, developed multilevel imputation approaches based on linear mixed-effects models to handle sporadically missing data in continuous variables. While these methods effectively account for the multilevel structure of the data, they are not designed to handle systematically missing data. Further, Resche-Rigon and WhiteReference Resche-Rigon, White, Bartlett, Peters and Thompson 22 and JolaniReference Jolani 23 developed multilevel imputation approaches that address both systematically and sporadically missing data, but these are limited to continuous variables. In addition, Resche-Rigon and WhiteReference Resche-Rigon and White 24 proposed a two-stage multilevel imputation approach for systematically and sporadically missing data in continuous variables.
For categorical data, MLMIs are scarce and primarily limited to binary variables. Within the MICE framework, Yucel et al.Reference Yucel, Zhao, Schenker and Raghunathan 21 developed a MLMIs for binary variables using the generalized linear mixed-effects models. However, this approach only addresses sporadically missing data and is not suitable for systematically missing data. Conversely, Jolani et al.Reference Jolani, Debray, Koffijberg, Van Buuren and Moons 25 proposed a general class of MLMIs for categorical variables with systematically missing data, but their method does not accommodate sporadically missing data. Motivated by the one-stage approach of Jolani et al.Reference Jolani, Debray, Koffijberg, Van Buuren and Moons 25 and two-stage approach of Resche-Rigon and White,Reference Resche-Rigon and White 24 Audigier et al.Reference Audigier, White and Jolani 19 suggested treating sporadically missing values in binary variables as systematically missing and imputing them accordingly using the one-stage or two-stage multilevel approaches, respectively.
The combined presence of systematically and sporadically missing data in categorical variables is a common challenge in IPD-MA. To date, the MICE framework still lacks principled MLMIs that address both systematically and sporadically missing data in categorical variables. To bridge this gap, we propose a new class of multilevel imputation methodologies for IPD-MA and beyond, specifically designed to address the challenges posed by both systematically and sporadically missing data in categorical variables.
This manuscript is organized as follows. Section 2 introduces an innovative multilevel imputation methodology for categorical variables by utilizing an accept–reject sampling procedure. We mainly focus on the development of MLMIs for a broad class of families, including models for binary and count variables. Section 3 evaluates the performance of the proposed methodologies through extensive simulation studies across a wide range of scenarios, including varying degrees of between-study heterogeneity. Section 4 demonstrates the implementation of the new methodologies in an IPD-MA of chronic kidney disease (CKD) patients. Section 5 concludes with a discussion and final remarks.
2 Methods
2.1 Analysis model for IPD-MA
Suppose we aim to perform an IPD-MA from n studies. Let
$y_{ij}$
denote a value of the random variable Y for subject
$j, j = 1, \ldots , n_i$
in study
$i, i = 1, \ldots , n$
. We assume the following generalized linear mixed-effects model for the IPD set:
$$ \begin{align} g\{E(Y_{ij} = y_{ij}|\textbf{x}_{ij}, \textbf{w}_{ij}; \Theta)\} = \textbf{x}_{ij}\alpha + \textbf{w}_{ij}\textbf{u}_{i}, \end{align} $$
where
$g(\cdot )$
denotes a link function,
$\textbf {x}_{ij} = (x_{ij1}, \ldots , x_{ijp})^T$
is a
$p\times 1$
vector of potential predictors of outcome
$y_{ij}$
,
$\textbf {w}_{ij}$
is typically a subset of vector
$\textbf {x}_{ij}$
,
$\alpha $
is a vector of fixed-effects parameters, and
$\textbf {u}_i = (u_{i1}, \ldots , u_{iq})^T$
is a
$q\times 1\ (q\leq p)$
vector of random effects following a multivariate normal distribution,
$\textbf {u}_i\sim N(\textbf {0}, \Omega )$
with a
$q\times q$
covariance matrix
$\Omega $
. We denote the diagonal elements of
$\Omega $
with
$\omega ^2_1, \ldots , \omega ^2_q$
and its off-diagonal elements with
$\omega _{q_1,q_2}$
,
$q_1, q_2 = 1, \ldots , q$
and
$q_1\neq q_2$
. We refer to such variances and covariances as random-effects parameters, and
$\Theta = (\alpha , \Omega )$
. Furthermore, we assume that the vectors
$(Y_{ij}, X_{ij1}, \ldots , X_{ijp})$
for all
$i,j$
are independent and identically distributed and that the vectors
$(y_{ij}, x_{ij1}, \ldots , x_{ijp})$
are their realizations.
The analysis model 2.1 encompasses a general family of distributions. For continuous outcome
$Y_{ij}$
, for instance, the link function is identity (
$g = 1$
) so we use
$$ \begin{align*}E(Y_{ij} = y_{ij}|\textbf{x}_{ij}, \textbf{w}_{ij}; \Theta) = \textbf{x}_{ij}\alpha + \textbf{w}_{ij}\textbf{u}_{i}.\end{align*} $$
For binary outcome
$Y_{ij}$
, as another example, the link function is logit (
$g(p) = log(\frac {p}{1-p})$
) and the analysis model 2.1 is represented by
$$ \begin{align*}\log\{\frac{Pr(Y_{ij} = 1|\textbf{x}_{ij}, \textbf{w}_{ij}; \Theta)}{1 - Pr(Y_{ij} = 1|\textbf{x}_{ij}, \textbf{w}_{ij}; \Theta)}\} = \textbf{x}_{ij}\alpha + \textbf{w}_{ij}\textbf{u}_{i}. \end{align*} $$
2.2 Multilevel MI in MICE
MICE is blind to the role of variables in the analysis, and each variable is imputed in turn conditional on the other variables. Let
$\textbf {Z} = [X_1, \ldots , X_p, Y]$
denote a full data matrix containing a set of explanatory variables
$X_1, \ldots , X_p$
and outcome Y, and
$\textbf {Z}_{-k} = [Z_1, \ldots , Z_{k-1}, Z_{k+1}, \ldots , Z_K]$
. Without loss of generality, we assume that each column of
$\textbf {Z}$
has some missing entries. The MICE (or fully conditional specification) approach specifies an appropriate conditional regression model for each variable (i.e., each column of
$\textbf {Z}$
) given the other variables, that is,
$$ \begin{align*} Z_1 &\sim f_1(Z_1|\textbf{Z}_{-1}, \theta_1) \\ Z_2 &\sim f_2(Z_2|\textbf{Z}_{-2}, \theta_2) \\ \vdots \\ Z_K &\sim f_K(Z_K|\textbf{Z}_{-K}, \theta_K), \end{align*} $$
where
$\theta _k, k = 1, \ldots , K,$
denotes the unknown parameters of each conditional distribution. These conditional models are the basis for approximating the posterior predictive distribution of the missing data. To account for the hierarchical data structure (i.e., individuals within studies), we apply a linear mixed-effects model for continuous variables, a logistic mixed-effects model for binary variables, a Poisson mixed-effects model for count variables, and so on. The set of specified conditional multilevel models forms a cycle, a few of which typically should be repeated successively to achieve an adequate approximation to the marginal posterior predictive distribution of the missing data. Specifically, missing values of
$Z_1$
are imputed conditional on the other variables. Subsequently, missing values of
$Z_2$
are imputed using the recent imputations of
$Z_1$
and other variables. The imputed values from the last cycle are eventually considered as one set of imputations. Replicating the whole process multiple times produces MI sets.
We throughout assume the missing data mechanism is missing at random (MAR)Reference Rubin 26 implying that the probability that any data value is missing may depend on quantities that are observed but not quantities that are missing. Therefore, the imputation model that we focus on would be appropriate under missing completely at random (MCAR) or MAR assumption.
2.3 Multilevel imputation of a single variable
Because MICE is implemented on a variable-by-variable basis, we focus on the imputation of a single (categorical) variable in this section. For subject j in study i, suppose
$Z_{K,ij}$
represents the Kth (last) incomplete variable in the data matrix
$\textbf {Z}$
. We define the following multilevel imputation model for
$Z_K$
, which is a generalized linear mixed-effects model conditional on the remaining
$K-1$
variables
$$ \begin{align} g\{E(Z_{K,ij} = z_{K,ij}|\textbf{z}_{-K,ij}; \beta, \Psi)\} = \beta_0 + \beta_1z_{1,ij} + \cdots + \beta_{K-1}z_{(K-1),ij} + b_{0i} + b_{1i}z_{1,ij}, \end{align} $$
where g is the link function and
$\textbf {z}_{-K,ij} = (z_{1,ij}, \ldots , z_{(K-1),ij})$
. For brevity, we assume a random intercept and a random slope model for
$z_1$
only in the above imputation model, so
$\textbf {b}_i = (b_{0i}, b_{1i})^T\sim N(\textbf {0}, \Psi )$
for
$i = 1, \ldots , n$
, where
$\Psi $
is a
$2\times 2$
covariance matrix containing the random-effects parameters. The fixed-effects parameters are denoted by
$(\beta _0, \beta _1, \ldots , \beta _{K-1})$
in the imputation model 2.2. Following RubinReference Rubin
13
, the formal procedure to obtain imputations for
$Z_{K}$
consists of the following steps:
-
(1) Estimating the parameters
$\Gamma = \{\beta _0, \beta _1, \ldots , \beta _{K-1}, \Psi \}$
altogether with the random effects
$\textbf {B} = (\textbf {b}_1, \ldots , \textbf {b}_n)$
in model 2.2 using the observed data. -
(2) Drawing
$\Gamma ^{*} = \{\beta _0^{*}, \beta _1^{*}, \ldots , \beta _{K-1}^{*}, \Psi ^{*}\}$
and subsequently
$\textbf {B}^{*} = (\textbf {b}^{*}_1, \ldots , \textbf {b}^{*}_n)$
from their observed-data posterior distributions. -
(3) Imputing missing values of
$Z_{K}$
from the conditional predictive distribution
$$ \begin{align*}g\{E(Z_{K,ij} = z_{K,ij}|\textbf{z}_{-K,ij}; \beta^{*}, \Psi^{*})\} = \beta^{*}_0 + \beta^{*}_1z_{1,ij} + \cdots + \beta^{*}_{K-1}z_{(K-1),ij} + b^{*}_{0i} + b^{*}_{1i}z_{1,ij}.\end{align*} $$
Although the implementation of step (1) is rather straightforward, drawing the parameters from the posterior distributions in step (2) is cumbersome as the unconditional distributions for these parameters cannot generally be obtained in closed form. Thus, Markov chain Monte Carlo methods are typically employed by combining steps (1) and (2) to estimate and obtain random draws of
$\Gamma ^{*}$
and
$\textbf {B}^{*}$
(see, among others, DrechslerReference Drechsler
27
). Such iterative algorithms are, however, unattractive within the MICE framework because a Gibbs sampler needs to be iterated within each conditional model of a cycle. Jolani et al.Reference Jolani, Debray, Koffijberg, Van Buuren and Moons
25
proposed a simplification over the full Gibbs sampler that relies on the conditional independence between
$\beta $
and
$\Psi $
and requires no iteration. In short, inference about
$\Gamma = (\beta , \Psi )$
can be separated into two conditionally independent parts assuming that the random effects
$\textbf {B} = (\textbf {b}_1, \ldots , \textbf {b}_n)$
are known. Here, standard routines for the (generalized) linear mixed-effects models (e.g., the glmer function in the R package
$\tt {lme4}$
) are used to estimate the parameters in step (1). Random draws of
$\beta $
and
$\Psi $
are then obtained independently conditional of the estimated random effects
$\textbf {B}$
from step (1) (see JolaniReference Jolani
23
for details).
This imputation methodology was originally developed by Jolani et al.Reference Jolani, Debray, Koffijberg, Van Buuren and Moons
25
for any systematically missing variable where the random effects
$\textbf {b}_i$
are drawn from the unconditional (prior) distribution
$Pr(\textbf {b}_i)$
. JolaniReference Jolani
23
further extended the proposed imputation methodology to systematically and sporadically missing continuous variables. Extensions to categorical variables with sporadically missing data are an uneasy task because the conditional posterior distribution of random effects does not have a standard form as opposed to continuous variables. To elaborate on this point, consider an incomplete variable Z. For study i with sporadically missing values, we need to make a draw from the posterior distribution
$Pr(\textbf {b}_i|z_{i})$
, which can be approximated by
$$ \begin{align} Pr(\textbf{b}_i|z_{i})\propto Pr(\textbf{b}_i)\times Pr(Z_{i} = z_{i}|\textbf{b}_i). \end{align} $$
From model 2.2, we know that
$Pr(\textbf {b}_i)\sim N(\textbf {0}, \Psi )$
. If Z is normally distributed (and thus continuous), it follows that
$Pr(\textbf {b}_i|z_{i})$
is normally distributed too, and so a random draw of
$\textbf {b}_i$
can easily be obtained conditional on
$z_{i}$
. However, it is difficult to simulate directly from this distribution if Z is categorical (e.g., binary). Therefore, we propose an accept–reject sampling method, Reference Robert and Casella
28
to draw a random value
$\textbf {b}_i^{*}$
from the posterior distribution
$Pr(\textbf {b}_i|z_{i})$
.
The accept–reject sampling method involves obtaining draws from a proposal density (which is easier to sample from) until a draw satisfies a particular condition. We choose
$Pr(\textbf {b}_i)\sim N(\textbf {0}, \Psi )$
as a proposal density, from which samples can easily be drawn. The method then requires the ratio of the target density (i.e.,
$Pr(\textbf {b}_i|z_{i})$
) to the proposal density be bounded above a constant quantity M. It is easy to show that this ratio is proportional to
$$ \begin{align*} \frac{Pr(\textbf{b}_i|z_{i})}{Pr(\textbf{b}_i)} \propto Pr(Z_{i} = z_{i}|\textbf{b}_i). \end{align*} $$
Following Robert and Casella,Reference Robert and Casella
28
the bound M can be taken to be the likelihood function in equation (2.3) evaluated at the maximum likelihood estimates. The algorithm is then completed when we sample
$\textbf {b}^{*}_i$
from the proposal density and U from the uniform distribution on (
$0,1$
). The drawn sample
$\textbf {b}^{*}_i$
is accepted if
$U\leq Pr(Z_{i} = z_{i}|\textbf {b}^{*}_i)/M$
. Otherwise, a new pair (
$\textbf {b}^{*}_i, U$
) is drawn. After completing the above steps (1) and (2), imputations are obtained in step (3) using an appropriate generalized mixed-effects model.
The proposed accept–reject method is general and can be applied to any categorical variables as long as these include the family of generalized linear mixed-effects models. Also, it should be emphasized that, for a given incomplete variable, the proposed accept–reject sampling method is required for studies with sporadically missing data. For studies with systematically missing data, the random effects
$\textbf {b}_i$
are drawn from the unconditional distribution
$Pr(\textbf {b}_i)$
(see Jolani et al.Reference Jolani, Debray, Koffijberg, Van Buuren and Moons
25
). As a showcase, we provide computational details of the proposed imputation methodology for a count variable with systematically and sporadically missing data.
Example 2.1. Multilevel imputation of a count variable
For simplicity suppose the data matrix
$\textbf {Z}$
contains three variables
$Z_1, Z_2$
, and
$Z_3$
. Further, assume that the count variable
$Z_3$
is sporadically and systematically missing in m and
$(n- m)$
studies and
$Z^{obs}_3$
and
$Z^{mis}_3$
are the observed and missing part of
$Z_3$
respectively. For
$Z_3$
, we define the following Poisson mixed-effects model as the imputation model:
$$ \begin{align*}log\{E(Z_{3,ij}|z_{-3,ij}; \beta, \Psi)\}= \beta_0 + \beta_1z_{1,ij} + \beta_2z_{2,ij} + b_{0i} + b_{1i}z_{1, ij},\end{align*} $$
where the link function is the natural logarithm, and the model parameters are defined as in model 2.2. Assuming the parameters are a priori independent (i.e.,
$Pr(\beta ,\Psi ) = Pr(\beta )Pr(\Psi )$
) and specifying the standard prior distributions
$Pr(\beta )\propto 1$
and
$\Pr (\Psi ^{-1})\propto |\Psi ^{-1}|^{-(2+1)/2}$
, the imputation procedure consists of the following steps:
-
1. Obtain the restricted maximum likelihood estimates
$\hat \beta = (\hat \beta _0, \hat \beta _1, \hat \beta _2)$
and
$\hat \Psi $
using
$Z_1, Z_2, Z^{obs}_3$
. -
2. Obtain the random effects
$\textbf {B} = (\textbf {b}_1, \ldots , \textbf {b}_m)$
, where
$\textbf {b}_i = (b_{0i}, b_{1i})^T$
and calculate
$\hat \Lambda = \sum _{i=1}^m\textbf {b}_i\textbf {b}_i^T$
. -
3. Obtain a random draw
$\beta ^{*}\sim N(\hat \beta , Var(\hat \beta ))$
. -
4. Obtain a random draw
$\Psi ^{*-1}\sim W_t(m,\hat \Lambda ^{-1})$
where W is a Wishart distribution with m degrees of freedom and a
$t\times t$
scale matrix parameter
$\Lambda $
. (here
$t=2)$
-
5. For each study i,
$i = 1, \ldots , n$
-
(a) If
$Z_3$
is sporadically missing, draw
$\textbf {b}^{*}_i$
from the developed accept–reject sampling algorithm. -
(b) If
$Z_3$
is systematically missing, draw
$\textbf {b}^{*}_i$
from
$N(\textbf {0}, \Psi ^{*})$
.
-
-
6. Impute
$Z^{mis}_3$
from the Poisson mixed-effects model
$$ \begin{align*} log\{E(Z_{3,ij}|z_{-3,ij}; \beta^{*}, \Psi^{*})\}= \beta^{*}_0 + \beta^{*}_1z_{1,ij} + \beta^{*}_2z_{2,ij} + b^{*}_{0i} + b^{*}_{1i}z_{1, ij}. \end{align*} $$
It should be noted that the scale matrix parameter
$\Lambda $
is calculated from studies for which
$Z_3$
is sporadically missing and studies with systematically missing do not contribute, and consequently this may underestimate
$\Lambda $
. Further, the above procedure can easily be modified for imputation of other types of categorical variables.
3 Simulations
A set of simulation studies was considered to assess the performance of the proposed multilevel imputation methodology by varying the between-study heterogeneity, the size of studies, the proportion of systematically missing data, the missing data mechanism, and the type of (incomplete) variables.
3.1 Simulation design
We began by generating a triple
$(X_1,X_2,Y)$
where
$X_1$
is a binary variable,
$X_2$
is a count variable, and Y is the outcome of interest (continuous or binary). Covariates
$X_1$
and
$X_2$
were generated from a joint mixed-effects model
$$ \begin{align*} \mathrm{logit}\{Pr(X_{1ij} = 1)\} &= \gamma_1 + \nu_{1i} \\ \log\{E(X_{2ij})\} &= \gamma_2 + \nu_{2i}, \end{align*} $$
where
$\gamma _1$
and
$\gamma _2$
are the fixed-effects parameters and the random-effects
$(\nu _{0i}, \nu _{1i})^{T}\sim N(\mathbf {{0}},\Lambda )$
with
$$ \begin{align*}\Lambda = \left(\begin{array}{cc} \lambda_1^2 & \lambda_{12}\\ \lambda_{12}& \lambda_2^2 \end{array}\right).\end{align*} $$
The continuous outcome variable Y was subsequently generated from the linear mixed-effects model
$$ \begin{align} Y_{ij} = \alpha_0 + \alpha_1x_{1ij} + \alpha_2x_{2ij} + u_{0i} + u_{1i}x_{1ij} + \varepsilon_{ij}, \end{align} $$
where
$\mathbf {{\alpha }} = (\alpha _0, \alpha _1, \alpha _2)^T$
represents the regression coefficients of interest (i.e., the fixed-effects parameters), the residual errors
$\varepsilon _{ij}\sim N(0, \sigma ^2)$
, and the random effects
$(u_{0i}, u_{1i})^{T}\sim N(\mathbf {{0}},\Omega )$
with
$$ \begin{align*}\Omega = \left(\begin{array}{cc} \omega_0^2 & \omega_{01}\\ \omega_{01}& \omega_1^2 \end{array}\right)\end{align*} $$
representing the random-effects parameters. For the binary outcome Y, we similarly defined the generalized linear mixed-effects model
$$ \begin{align} \mathrm{logit}\{Pr(Y_{ij} = 1)\} = \alpha_0 + \alpha_1x_{1ij} + \alpha_2x_{2ij} + u_{0i} + u_{1i}x_{1ij}, \end{align} $$
with the same assumption for
$(u_{0i}, u_{1i})$
.
The parameter values were chosen to mimic the structure of an IPD-MA investigating potential factors associated with smoking in patients with CKD. Further details on the data are provided in the Application section. We chose alcohol consumption status and the number of comorbidities (e.g., hypertension, obesity, etc.) to motivate the distribution of the binary and count variables
$x_1$
and
$x_2$
, respectively. For the outcome variable y, smoking status was used to motivate the parameters of the analysis model 3.2 (and 3.1). We considered three levels of between-study heterogeneity—weak, moderate, and strong—by varying elements of the covariance matrix
$\Omega $
. Details about the parameter values used for the simulation study are provided in the Appendix.
For each simulated dataset, we introduced systematically and sporadically missing values in variables
$x_1$
and
$x_2$
. These variables were independently systematically missing with probability
$\pi _{sys}$
under the MCAR assumption, which is more plausible in IPD settings. We considered two proportions of systematically missing data:
$\pi _{sys} = 0.10$
and
$\pi _{sys} = 0.30$
, resulting in approximately
$1\%$
and
$9\%$
joint systematically missing data in both
$x_1$
and
$x_2$
. In addition, for studies where a variable was not systematically missing, sporadically missing values were created independently for each variable under the MCAR and MAR assumptions. For the MAR scenarios, the probability that a data value is missing depended on the outcome variable (which was fully observed). Specifically, we used the following models to create sporadically missing data in
$x_1$
and
$x_2$
, respectively:
$$ \begin{align*} \mathrm{Logit\{Pr}(R_1 = 1)\} &= \delta_{01} + \delta_{11}y, \\ \mathrm{Logit\{Pr}(R_2 = 1)\} &= \delta_{02} + \delta_{12}y, \end{align*} $$
where
$R_1 = 1$
(
$R_2 = 1$
) if
$x_1$
(
$x_2$
) is observed and
$R_1 = 0$
(
$R_2 = 0$
) if
$x_1$
(
$x_2$
) is sporadically missing. Under MCAR,
$\delta _{11} = \delta _{12} = 0$
, and we fixed the proportion of sporadically missing data to
$15\%$
in each of
$x_1$
and
$x_2$
. Under MAR, we set
$\delta _{11} = 1$
and
$\delta _{12} = 0.5$
and adjusted the intercept values accordingly. For example, setting
$\delta _{01} = -0.47$
resulted in about
$15\%$
sporadically missing data in
$x_1$
when the outcome variable y was continuous.
Finally, we considered five study sizes
$n = 6, 10, 15, 20, 30$
with a fixed total sample size of 3,000 participants, resulting in 500 subjects
$(n = 6)$
, 300 subjects
$(n = 10)$
, 200 subjects
$(n = 15)$
, 150 subjects
$(n = 15)$
, and 100 subjects
$(n=30)$
per study. This led to a total of 120 simulation scenarios (2 types of outcomes
$\times $
3 levels of between-study heterogeneity
$\times $
5 study sizes
$\times $
2 proportions of systematically missing data
$\times $
2 types of missing data mechanism), each of which was replicated 1000 times.
3.2 Methods and performance criteria
The simulation study evaluates five methods: the newly developed MLMI, the two-stage MLMI (2STG),Reference Resche-Rigon and White 24 the stratified imputation method (STI), complete case analysis (CCA), and the analysis of original data before the introduction of missing values (REF). The last method (REF) serves as a reference to assess the performance of the methods.
The STI method includes a study indicator as a categorical variable to the imputation model to account for the presence of clustering and uses standard imputation routines for non-clustered data, such as predictive mean matching, to generate imputations. However, for studies with systematically missing data, the intercept cannot be unidentified in the STI imputation method. To address this, the method uses the average of the observed study-intercept terms to obtain imputations for studies with systematically missing data. The CCA method, on the other hand, excludes subjects or studies with missing values from the analysis.
For all imputation methods (MLMI, 2STG, and STI), the conditional imputation models include all available covariates. In the MLMI and 2STG methods, the imputation models additionally include a random intercept and a random slope for the outcome variable y. Each incomplete dataset was imputed five times, with 10 cycles of the MICE algorithm used to obtain each imputed dataset. Afterward, each imputed dataset was fitted to the analysis model 3.1 or 3.2, and the results were pooled using Rubin’s rule. All analyses were conducted using the R packages
$\tt {mice}$
and
$\tt {lme4}$
.
The primary parameters of interest are the fixed-effects parameters
$\mathbf {{\alpha }} = (\alpha _0, \alpha _1, \alpha _2)^T$
and the random-effects parameters
$\omega _0$
and
$\omega _1$
in model 3.1 or 3.2. For each method, we calculated the bias, root mean squared error (RMSE), model-based standard error (Model SE), empirical Monte Carlo standard error (Emp SE), and the coverage rate of the
$95\%$
confidence interval (CR).
3.3 Results
This section presents the simulation study results for the binary outcome. The findings for the continuous outcome are included in the Supplementary Material.
3.3.1 The binary outcome case
Tables 1–3 show the results for the fixed-effects and random-effects parameters with
$n = 10$
studies under MAR across the five different methods under weak, moderate, and strong between-study heterogeneity, respectively. Overall, all methods provided satisfactory estimates for the fixed-effects parameters
$(\alpha _0, \alpha _1, and\ \alpha _2)$
except for CCA where the bias for the estimate of
$\alpha _0$
was moderate. Notably, both STI and 2STG exhibited a slight bias in the estimates of
$\alpha _0$
and
$\alpha _1$
under strong between-study heterogeneity. Moreover, the CCA method had the largest RMSE, likely due to the proportion of missing data as it rose with the rate of systematically missing data. The RMSEs of the other methods were comparable.

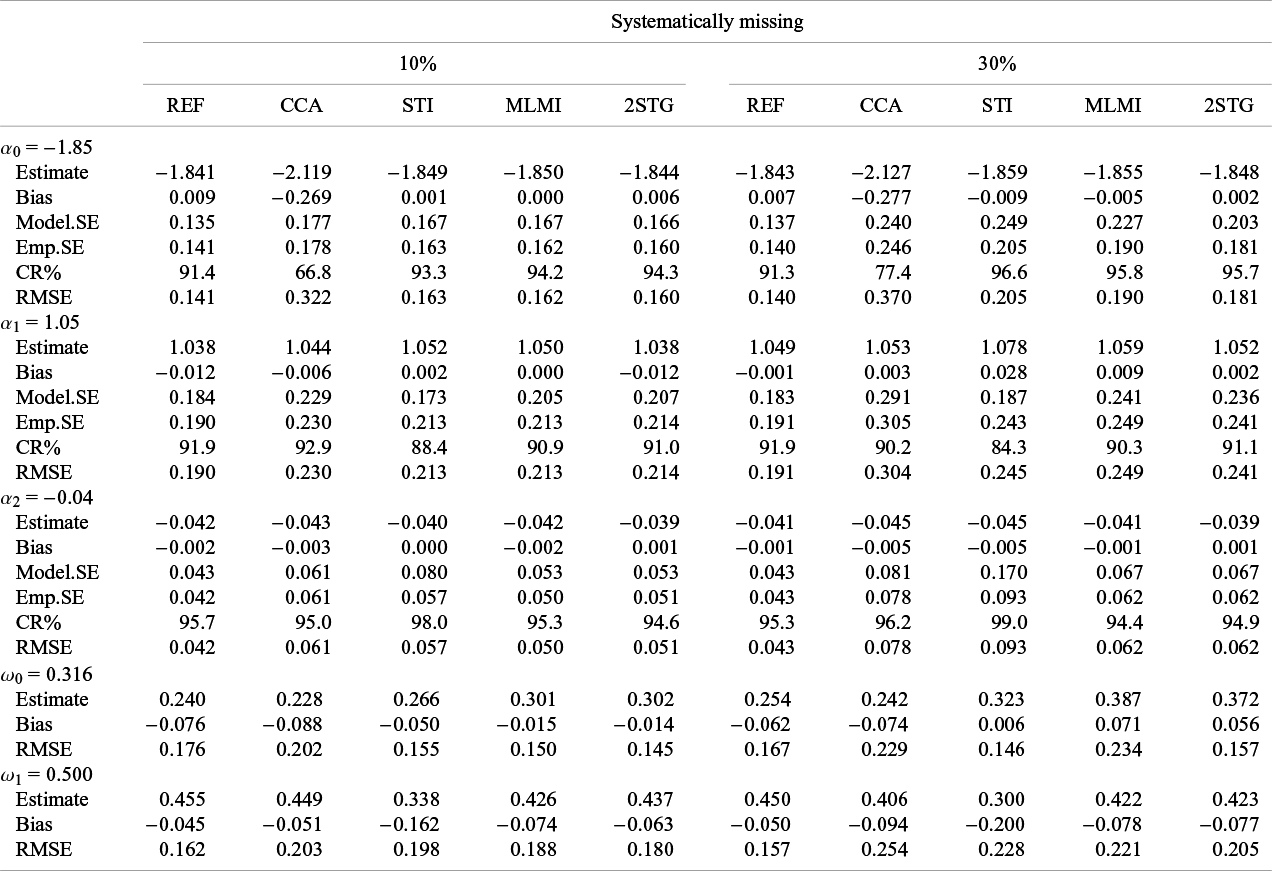

Table 1 Estimates of the fixed- and random-effects parameters in the simulation study for the binary outcome with n = 10 studies and weak between-study heterogeneity
Note: REF indicates the results that were obtained before missing data were introduced and can be viewed as a benchmark for comparing the performance of methods that are applied after missingness is introduced: complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG). The following values are given: mean of estimates (Estimate), bias (Bias), mean of standard error (Model SE), empirical standard error (Emp SE), the coverage rate of 95% confidence interval (CR), and the root of mean squared error (RMSE).

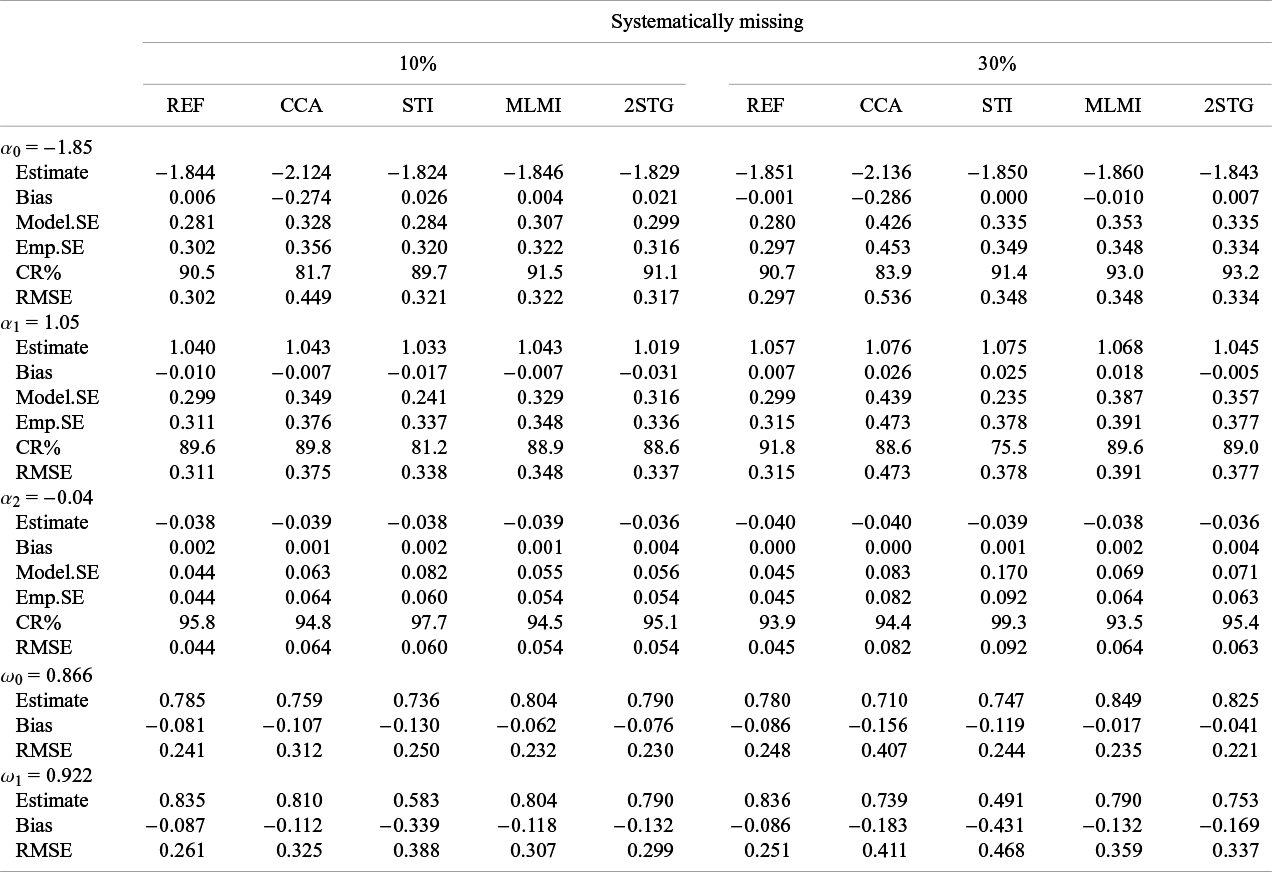

Table 2 Estimates of the fixed- and random-effects parameters in the simulation study for the binary outcome with n = 10 studies and moderate between-study heterogeneity
Note: REF indicates the results that were obtained before missing data were introduced and can be viewed as a benchmark for comparing the performance of methods that are applied after missingness is introduced: complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG). The following values are given: mean of estimates (Estimate), bias (Bias), mean of standard error (Model SE), empirical standard error (Emp SE), the coverage rate of 95% confidence interval (CR), and the root of mean squared error (RMSE).

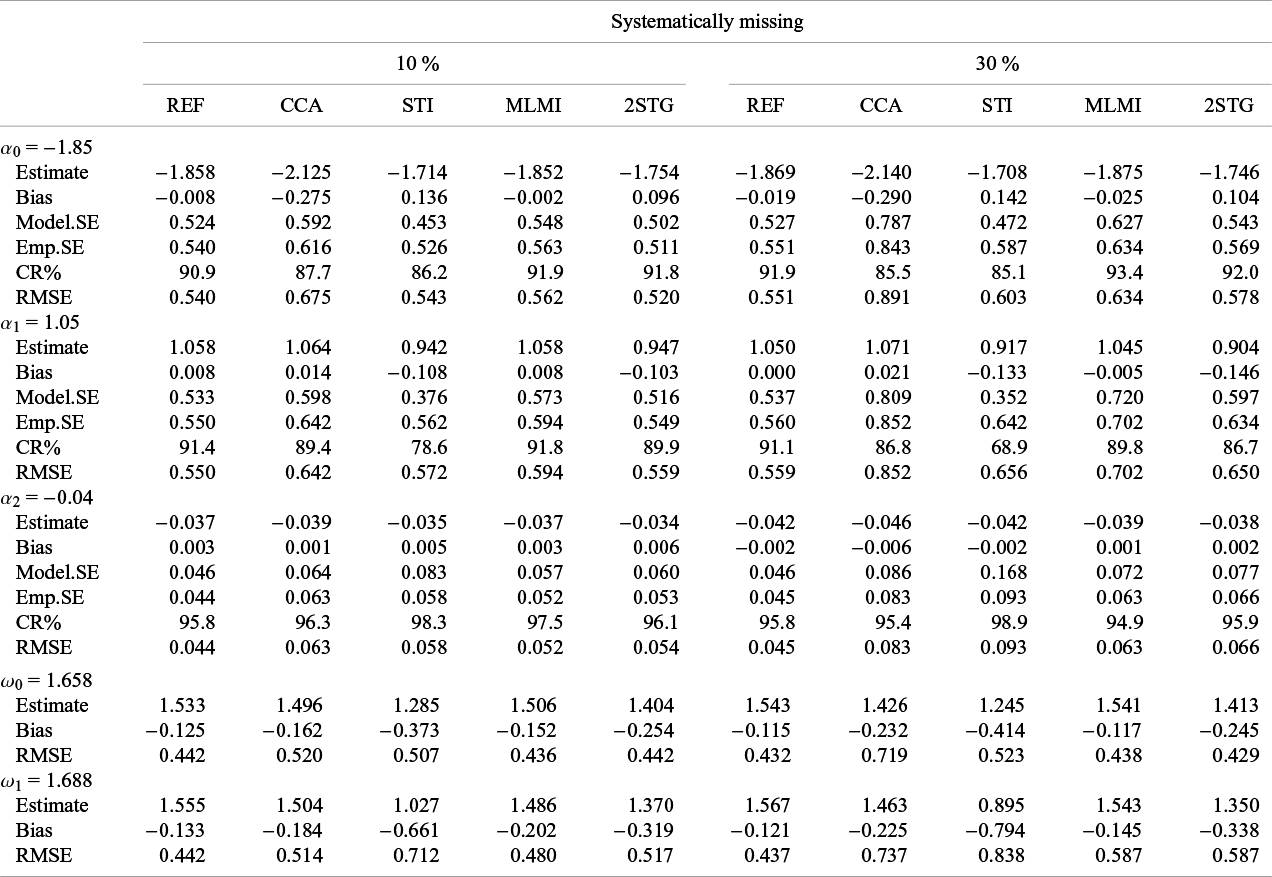

Table 3 Estimates of the fixed- and random-effects parameters in the simulation study for the binary outcome with n = 10 studies and strong between-study heterogeneity
Note: REF indicates the results that were obtained before missing data were introduced and can be viewed as a benchmark for comparing the performance of methods that are applied after missingness is introduced: complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG). The following values are given: mean of estimates (Estimate), bias (Bias), mean of standard error (Model SE), empirical standard error (Emp SE), the coverage rate of 95% confidence interval (CR), and the root of mean squared error (RMSE).
The performance of methods varied with respect to confidence interval coverage. For the coefficient
$\alpha _1$
of the binary covariate, all methods were close to the nominal level since the variance of
$\hat {\alpha _1}$
was generally underestimated, even for the reference method (REF). Nevertheless, the STI method had the lowest coverage rate, dropping below
$80\%$
under strong between-study heterogeneity. Interestingly, STI resulted in coverage rates that exceeded the nominal level for the coefficient
$\alpha _2$
. These are likely due to improper modeling of the multilevel data structure during imputation. The other methods achieved the nominal
$95\%$
level for the coefficient
$\alpha _2$
of the count variable. Despite not underestimating the variance of
$\hat {\alpha _0}$
, the CCA method led to severe undercoverage for
$\alpha _0$
.
For the random-effects parameters
$\omega _0$
and
$\omega _1$
, all methods, including the reference, yielded downwardly biased estimates, likely due to the shrinkage effect in random-effects models and the limited number of studies, and the bias increased with the degree of between-study heterogeneity. For
$\omega _0$
, the largest bias was observed with CCA under weak and moderate between-study heterogeneity, whereas it occurred with STI under strong between-study heterogeneity. For
$\omega _1$
, the largest bias was consistently observed with STI across all between-study heterogeneity scenarios. In contrast, the MLMI and 2STG methods produced estimates close to the reference method, with 2STG exhibiting a slightly larger bias under strong between-study heterogeneity. When comparing RMSE, CCA, and STI had the highest values for
$\omega _0$
, and
$\omega _1$
, respectively, followed by the MLMIs, where RMSE increased as the proportion of systematically missing data grew.
To evaluate the performance of the methods across different study sizes (
$n = 6, 10, 15, 20, 30$
), Figures 1–3 present the results for the fixed-effects parameters when the rate of systematically missing data was
$10\%$
, and the missing data mechanism was MAR (for sporadically missing data). In Figures 4 and 5, the focus is on the random-effects parameters
$\omega _0$
and
$\omega _1$
.
Figure 1 Bias of the fixed-effects estimates with 10% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).

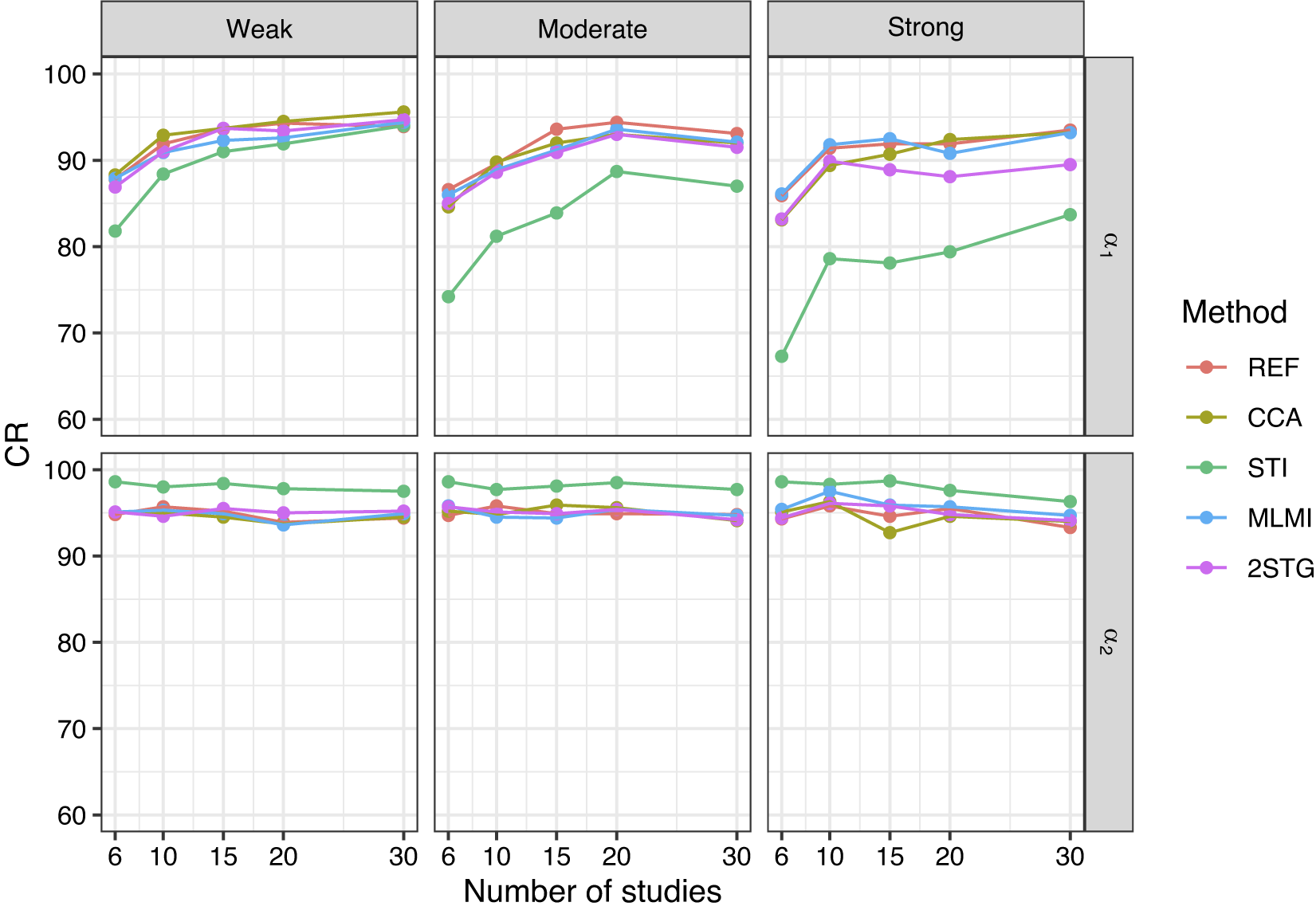

Figure 2 Coverage rate of the 95% confidence interval for the fixed-effects parameters with 10% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).

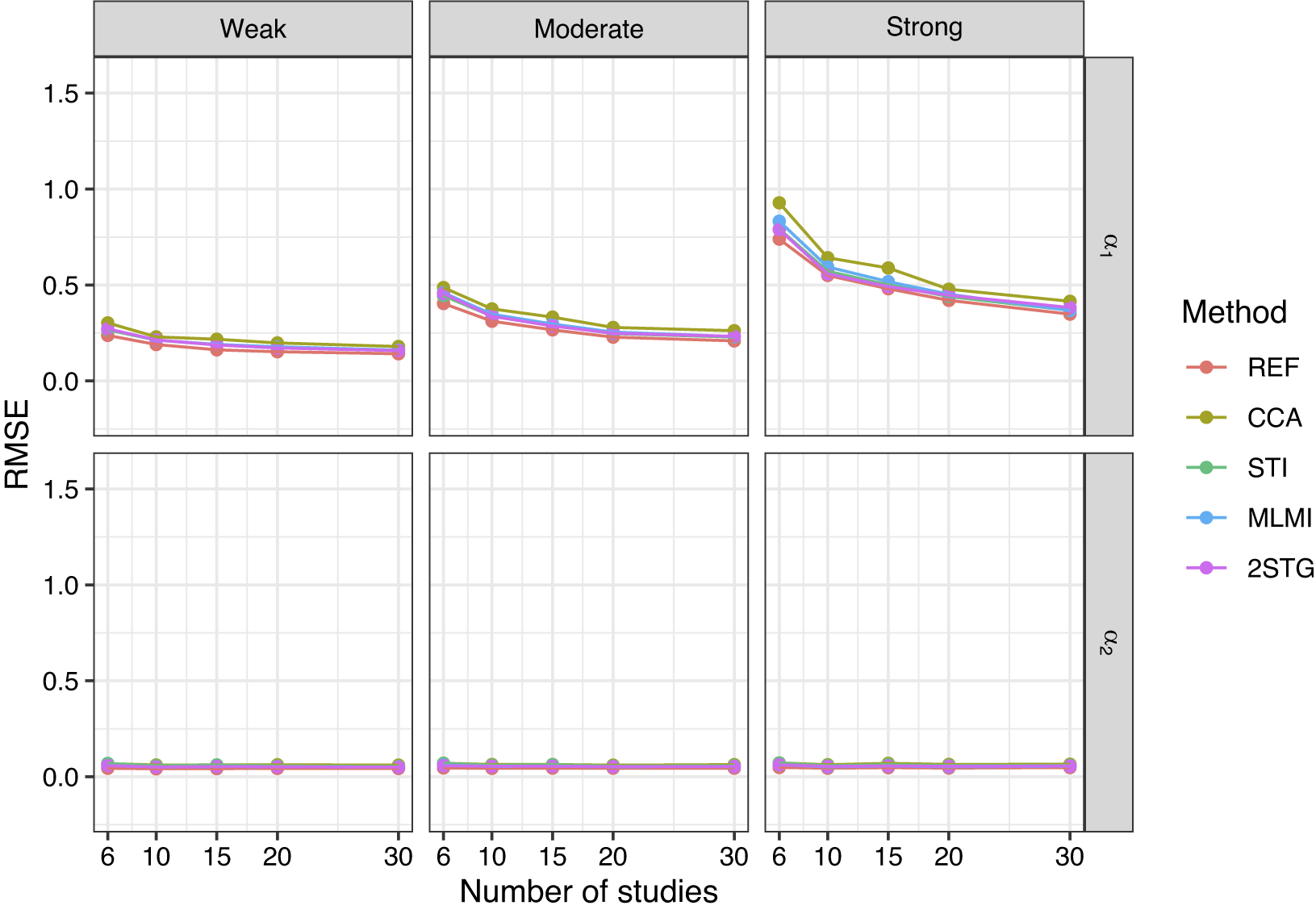

Figure 3 Root mean squared error (RMSE) of the fixed-effects estimates with 10% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).

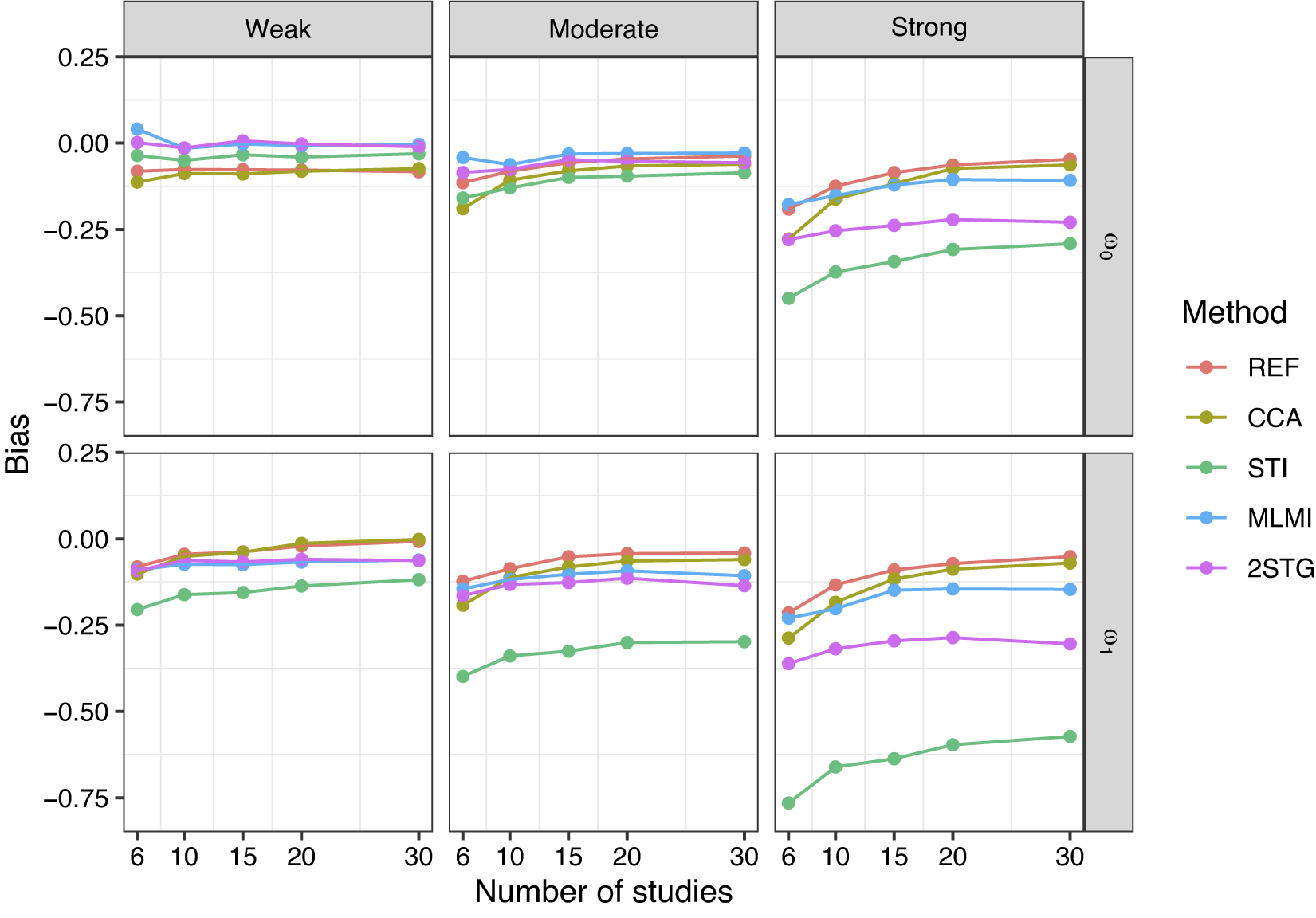

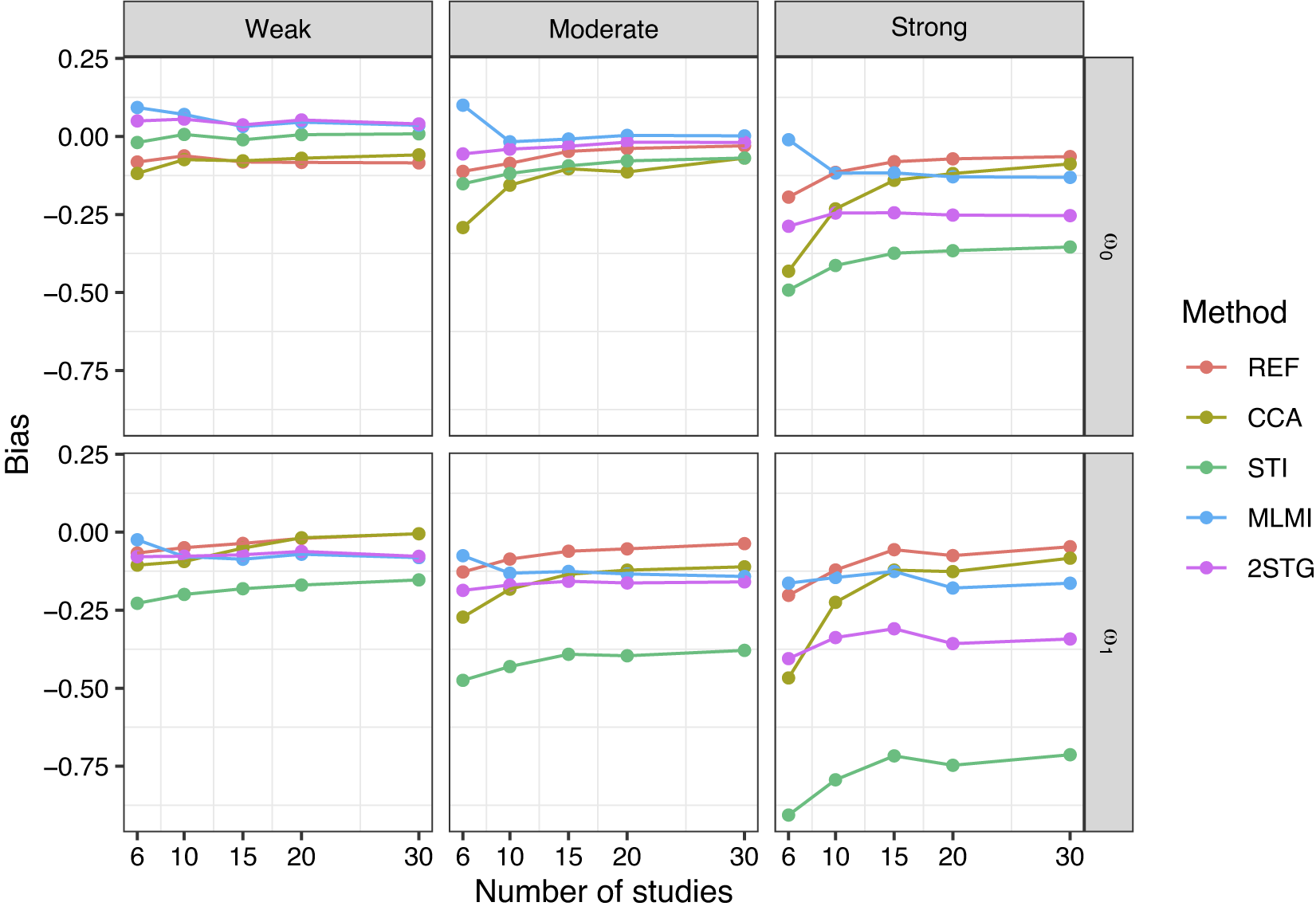

Figure 4 Bias of the random-effects estimates with 10% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).

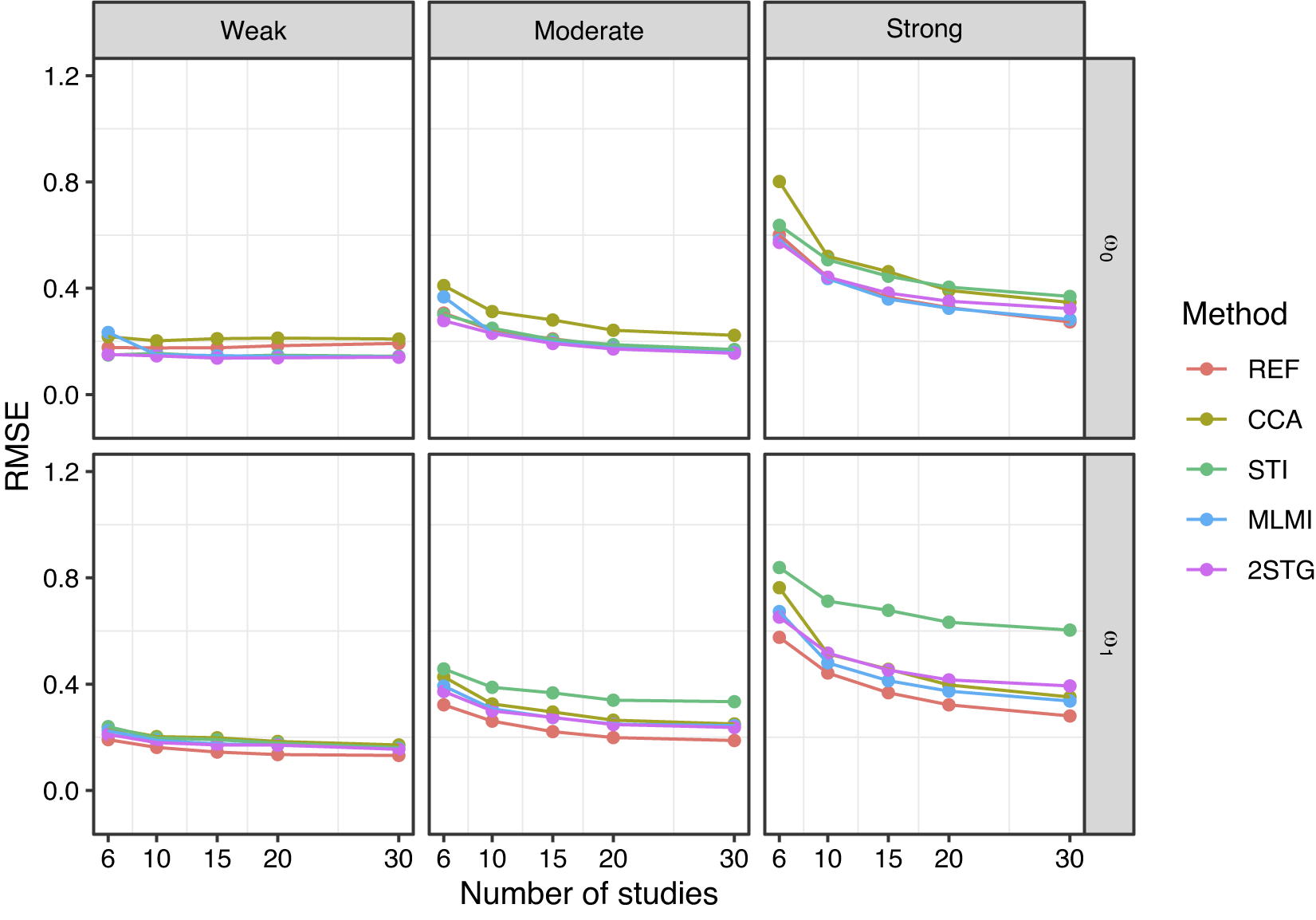

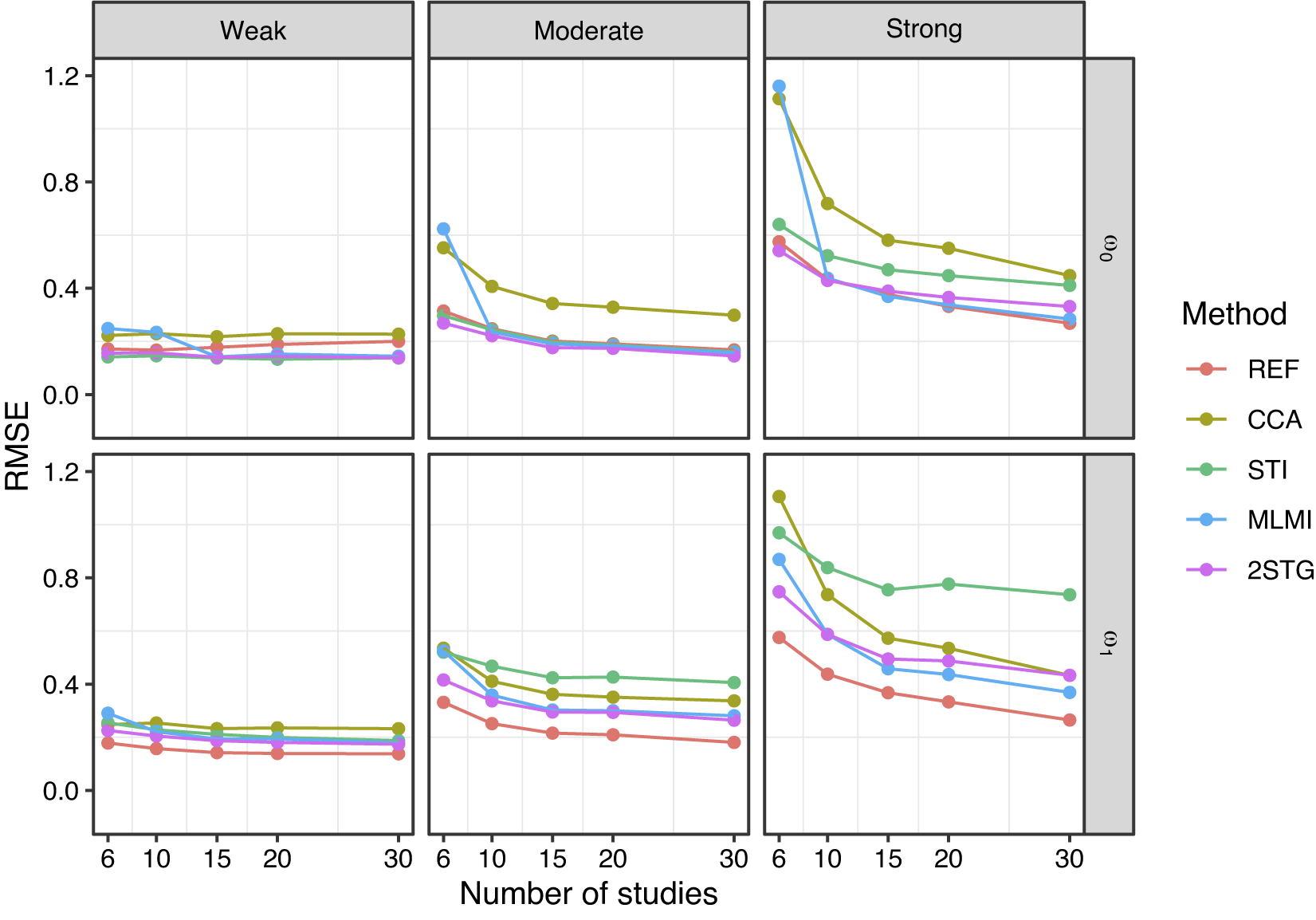

Figure 5 Root mean squared error (RMSE) of the random-effects estimates with 10% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).
Figure 1 illustrates the bias in estimates of
$\alpha _1$
and
$\alpha _2$
for the analysis model 3.2. Under weak and moderate between-study heterogeneity, all methods resulted in negligible bias for the coefficient
$\alpha _1$
of the binary covariate, except for 2STG. Surprisingly, the 2STG method tended to underestimate
$\alpha _1$
, with the bias gradually increasing as study size grew. Under strong between-study heterogeneity, both the 2STG and STI methods tended to underestimate
$\alpha _1$
across different study sizes, while the MLMI method showed only a negligible bias in this scenario. For the coefficient
$\alpha _2$
of the count covariate, on the other hand, bias remained trivial across all methods and study sizes.
Figure 2 presents the coverage rates of the
$95\%$
confidence intervals for the fixed-effects parameters
$\alpha _1$
and
$\alpha _2$
. STI exhibited significant coverage issues for the coefficient
$\alpha _1$
of the binary covariate, especially under moderate and strong between-study heterogeneity, where coverage dropped below
$85\%$
. Additionally, STI led to overcoverage for the coefficient
$\alpha _2$
of the count covariate due to inflated standard errors across different study sizes and between-study heterogeneity scenarios. Conversely, the other methods performed reasonably well, maintaining coverage rates close to the nominal
$95\%$
level (except for 2STG, which showed slightly lower coverage rates under strong between-study heterogeneity).
Figure 3 displays the RMSE of
$\alpha _1$
and
$\alpha _2$
across different methods and study sizes. As expected, CCA showed the highest error, particularly for the coefficient
$\alpha _1$
of the binary covariate with strong between-study heterogeneity. STI, 2STG, and MLMI had comparable RMSE values, though marginally higher than REF. We also noticed that RMSE of
$\hat \alpha _1$
increased with the degree of between-study heterogeneity across all methods.
Figure 4 illustrates the bias in estimating the random-effects parameters
$\omega _0$
and
$\omega _1$
. As discussed earlier, all methods exhibited marginal underestimation of random-effects parameters. Most notably, STI suffered from a large bias, particularly when estimating the random-effect parameter
$\omega _1$
or when the between-study heterogeneity was strong. The multilevel imputation methods (MIML and 2STG) produced comparable estimates of the random-effects parameters and were generally in line with the reference method under weak and moderate between-study heterogeneity. However, under strong between-study heterogeneity, 2STG exhibited a noticeable bias, followed by MLMI, though the bias from MLMI remained trivial. Finally, CCA showed the least bias across different scenarios, although it increased with smaller study sizes.
Figure 5 shows the RMSE for the estimates of random-effects parameters
$\omega _0$
and
$\omega _1$
. For all methods, RMSE generally decreased as the number of studies increased but increased with greater between-study heterogeneity. CCA and STI consistently exhibited higher RMSE for
$\omega _0$
and
$\omega _1$
, respectively. In contrast, MLMI and 2STG tended to have lower RMSE, closely aligning with the reference method.
The findings for the binary outcome with
$30\%$
systematically missing data are presented in Figures A.1–A.5 in the Appendix. Although these results generally align with those in Figures 1–5, differences in model performance are more pronounced in Figures A.1–A.5 due to the higher rate of systematically missing data. Most notably, STI exhibited a substantial decline in coverage rates for the coefficient
$\alpha _1$
of the binary covariate, while it increased sharply for the coefficients
$\alpha _2$
of the count covariate. Additionally, 2STG showed a gradual decline in coverage rates for
$\alpha _1$
under strong between-study heterogeneity (Figure A2). Lastly, CCA showed a modest increase in RMSE of
$\hat \alpha _1$
(Figure A3).
It is also worth noting that the performance of methods changed slightly when the number of studies was small (
$n = 6$
) and the rate of systematically missing data was
$30\%$
. Specifically, CCA exhibited a rapid decline in coverage rate for
$\alpha _1$
, dropping below
$80\%$
, whereas the decline was less pronounced for the other methods, including REF (Figure A2). Moreover, CCA produced downward-biased estimates for the random-effects parameters
$\omega _0$
and
$\omega _1$
, while MLMI exhibited an upward bias only for
$\omega _0$
(Figure A4). This may be due to the limited number of studies available, which could affect imputation precision for MLMI and reduce analysis accuracy for CCA.
Finally, we did not report the results for MCAR cases (for sporadically missing data), as the methods showed no substantial performance differences across scenarios.
3.3.2 The continuous outcome case
The results for the continuous outcome are presented in the Supplementary Material. Specifically, Tables S1–S3 in the Supplementary Material provide the results for the fixed-effects and random-effects parameters with
$n = 10$
studies. Figures S1–S10 in the Supplementary Material illustrate the findings for
$10\%$
and
$30\%$
systematically missing data, respectively.
Overall, the performance of the methods remained consistent with that observed in the binary case. However, CCA performed poorly. Specifically, it exhibited the largest bias for the coefficient
$\alpha _1$
of the binary covariate across most scenarios, while 2STG had the second largest bias, but only when study size was large and between-study heterogeneity was strong (Figures S1 and S6 in the Supplementary Material). The bias with the other methods was fairly trivial. Furthermore, both CCA and STI showed coverage issues for
$\alpha _1$
, whereas the other methods achieved improved coverage rates (Figures S2 and S7 in the Supplementary Material). For the coefficient
$\alpha _2$
of the count covariate, all methods performed well in terms of bias and coverage rates, similar to the binary case.
For the random-effects parameters
$\omega _0$
and
$\omega _1$
, CCA and STI showed biased estimates with CCA showing the largest bias for
$\omega _0$
and STI for
$\omega _1$
(Figures S4 and S9 in the Supplementary Material). MLMI and 2STG performed comparably, exhibiting less bias across different scenarios. Nevertheless, 2STG tended to show greater bias for
$\omega _1$
as study size and between-study heterogeneity increased.
As in the binary case, the methods showed no substantial performance differences across scenarios under the MCAR mechanism, so the results are not presented.
3.3.3 Conclusion
In summary, the findings indicate that naïve methods like CCA and STI have major drawbacks. Specifically, CCA struggles with the reduced number of studies, leading to increased errors and potentially biased estimates, and lower coverage rates, particularly when the proportion of systematically missing data increases. Similarly, the STI method showed bias and coverage issues in many scenarios due to inadequate modeling of the multilevel structure. In contrast, the multilevel imputation methods (MLMI and 2STG), which appropriately account for the multilevel structure, offer more reliable inferences, with smaller bias and confidence intervals closer to the nominal level. Nonetheless, 2STG exhibited slight underestimation in some scenarios, possibly due to treating categorical variables with sporadically missing values as systematically missing and imputing them accordingly. When the study size was small (
$n = 6$
), the performance of all methods generally declined, highlighting their limitations in settings with limited data.
4 Application
To demonstrate the approaches, we considered an IPD meta-analysis of 15 studies involving 4,774 patients with CKD stages III–V, defined by an estimated glomerular filtration rate below 60. The anonymized individual participant datasets for these studies were retrieved from the PLOS ONE website.
In this purely methodological exercise, we aimed to explore whether alcohol consumption and the number of existing health conditions such as hypertension and diabetes are associated with smoking status in this specific population. Focusing on the analysis model 3.2, we considered smoking status as the outcome y and alcohol consumption (yes vs no) and the number of comorbidities (count) as the covariates
$x_1$
and
$x_2$
, respectively. The number of comorbidities was defined as the sum of the presence of hypertension, diabetes, obesity, and cardiovascular disease. While the analysis model was restricted to these variables, the imputation models also included additional covariates—age and sex—to make the MAR assumption more plausible.Reference Seaman and White
29
Table 4 summarizes the percentage of systematically and sporadically missing data for each variable included in this case study.
Table 4 Percentage of missing data by variable and study in the empirical example
We employed four methods to investigate the strength of association and the degree of between-study heterogeneity for the covariates in model 3.2. First, we performed the CCA, excluding studies with systematically missing data and patients with sporadically missing data. This resulted in a subset of 1,615 patients across six studies.
Second, we applied the stratified MI method (STI), which accounts for heterogeneous intercepts by including study indicators in the imputation model. For STI, binary and count variables were imputed using the logreg and pmm imputation procedures in the R package
$\tt {mice}$
, respectively.
Finally, we applied the newly developed MLMI to account for heterogeneity across studies by incorporating joint random effects into the imputation models. Specifically, the imputation models for alcohol consumption (binary) and the number of comorbidities (count) included random effects on the intercept and the outcome variable smoking status, while the other covariates were treated as fixed effects. In addition, the two-stage MLMI (2STG) was included for comparison. For 2STG, the imputation models were identical to those used in MLMI.
For all imputation approaches (STI, 2STG, and MLMI), we allowed 20 iterations of the MICE algorithm to enhance convergence. Following White et al.,Reference White, Royston and Wood
15
the number of imputed datasets should be at least as large as the percentage of missing data. Since approximately
$65\%$
of the data were missing in this study, we generated 100 imputed datasets from the original data.

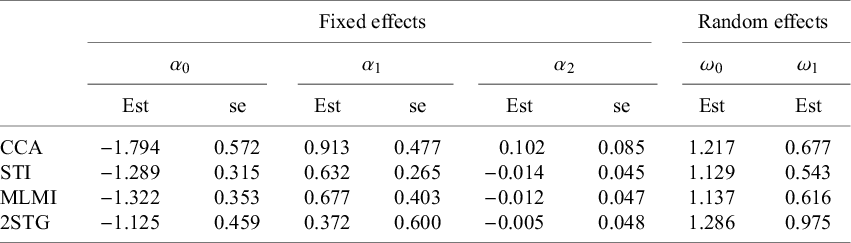

Table 5 presents the estimates of the fixed-effects coefficients, their standard errors, and the between-study heterogeneity estimates (i.e., the random-effects parameters
$\omega _0$
and
$\omega _1$
) for this case study. Overall, the results align with the findings from the simulation study.
Table 5 Estimates of the fixed- and random-effects parameters in the empirical example
Note: Methods include complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).
First, the estimates of the random-effects parameters indicate moderate between-study heterogeneity. The STI method tended to underestimate this heterogeneity, particularly for
$\omega _1$
, whereas other methods produced comparable estimates. Surprisingly, 2STG overestimated
$\omega _1$
, with its estimate increasing sharply compared to CCA and MLMI.
Next, CCA produced fixed-effects coefficient estimates that were further from the null compared to those obtained using the MI methods. This suggests that the missing data mechanism might not be completely at random. The MI methods yielded similar estimates for the fixed-effects parameters, but the estimate of the regression slope for alcohol consumption (
$\alpha _1$
) appeared to differ with 2STG compared to the other imputation methods. Although this pattern was also observed in the simulation study (middle panel of Figure A1 in the Appendix), the corresponding coefficient is not statistically significant at the
$5\%$
level, suggesting that differences in point estimates are unlikely to be meaningful.
As expected, CCA overestimated the standard errors of the fixed-effects parameters due to substantial data reduction. In contrast, the STI method underestimated these standard errors relative to the multilevel imputation approaches, likely due to improper handling of between-study heterogeneity.
In summary, the multilevel imputation methods (particularly MLMI), which properly account for between-study heterogeneity, may provide more accurate results than other alternatives.
5 Discussion
Meta-analysis of IPD should employ appropriate methodologies to deal with the simultaneous presence of systematically and sporadically missing data. Excluding incomplete studies or cases from the meta-analysis is undesirable, as full data potential is not optimally used, especially when the individual studies are too large or important to be excluded. This can lead to efficiency loss, reduced statistical power due to a smaller sample size, and potentially biased estimates.
Additionally, in the simulation study, CCA yielded conflicting results when comparing binary and continuous outcomes. Specifically, the estimates of the main parameters (
$\alpha _1$
and
$\alpha _2$
) were unbiased for the binary outcome but exhibited bias in the continuous case. This is not surprising because CCA leads to biased regression slope estimates in linear regression when missingness in a covariate depends on the outcome variable Y (i.e., the MAR mechanism). In contrast, in logistic regression with CCA, the regression slope estimates remain unbiased when missingness depends on Y due to the symmetry property of the odds ratio (see Bartlett et al.Reference Bartlett, Harel and Carpenter
30
and Carpenter and KenwardReference Carpenter and Kenward
31
).
Hence, imputation strategies become an attractive solution in meta-analysis of IPD. Naïve imputation approaches, such as stratified imputation, which do not fully account for variability within and across studies typically lead to biased parameter estimates, and hence wrong conclusions may be drawn.Reference Hox, van Buuren, Jolani, Harring, Staplecton and Beretvas 18 Multilevel (or hierarchical) imputation approaches are therefore a valuable alternative to preserve data integrity in IPD-MA and should be preferred in practice.
Building upon our previous work, we developed new multilevel imputation methodologies for clustered (or multilevel) data, which effectively handle the combined presence of systematically and sporadically missing values in dichotomous or count variables. This methodology utilizes a generalized linear mixed-effects model with random intercept terms and random slopes to complete the imputation task. The simulation and case study results demonstrate that the proposed multilevel imputation approach has desirable statistical properties in terms of bias and coverage rates and maintains appropriate levels of between-study heterogeneity. Furthermore, this methodology facilitates more complex post-imputation analyses by incorporating joint random effects during the imputation phase. Finally, the developed multilevel imputation routines are freely accessible via the popular R package
$\tt {mice}$
.
Within the MICE framework, missing values can be imputed per study, a process known as the two-stage imputation approach as opposed to the one-stage imputation approach (such as the proposed MLMI methodology) that imputes missing values within and across studies. The two-stage imputation approach does not impose any restrictions on sporadically missing data. However, it is no longer feasible to impute systematically missing data because the variable is entirely missing in certain studies, so no imputation can be generated for that variable within those studies.
Resche-Rigon and WhiteReference Resche-Rigon and White 24 proposed a variant of the two-stage imputation approach (the 2STG method in the simulation study), where a two-stage estimator is used to handle both types of missing data. Compared to our one-stage imputation approach, the two-stage imputation approachReference Resche-Rigon and White 24 is computationally faster because estimation is performed in two steps. However, in our simulations, this approach produced mildly biased estimates for categorical covariates, particularly when the between-study heterogeneity was strong. A possible explanation is that it treats categorical variables with sporadically missing data as systematically missing, leading to inaccurate imputations. In addition, this method requires large studies to minimize the small-sample bias of the maximum likelihood estimator and to avoid separability issues, particularly with binary variables. Moreover, it is prone to overfitting when there are many covariates or high rates of missing data within each study. In contrast, the one-stage imputation approach is highly relevant and useful for IPD sets even with relatively few studies, as it can prevent overfitting issues. Audigier et al.Reference Audigier, White and Jolani 19 compared broadly properties of the one-stage and two-stage imputation approaches (together with other imputation methods) through an extensive simulation study.
One limitation of the one-stage imputation approaches within the MICE framework is the compatibility issue inherited from the standard (non-hierarchical) FCS algorithm. The conditional multilevel imputation models may not be consistent with a well-defined joint multilevel model, meaning the imputation models could be generally misspecified.Reference Resche-Rigon and White 24 , Reference Kunkel and Kaizar 32 However, both papers showed via simulation studies that the impact of misspecified imputation models could be minor, particularly when the number of studies is large. Additionally, one-stage imputation approaches, such as MLMI, are computationally intensive and slow due to fitting several mixed-effects models during imputation. This is, however, less of an issue nowadays with fast processors and parallel computing options.
Multilevel imputation models often involve many random effects, which can cause convergence issues, particularly when the number of studies is limited. This can lead to inaccurate imputations, introducing bias in subsequent analyses. As suggested by Jolani et al.,Reference Jolani, Debray, Koffijberg, Van Buuren and Moons 25 simplifying the imputation model (e.g., by considering fewer or independent random effects) may help address this issue. Furthermore, in our simulation study, Rubin’s rule was applied to summarize the random-effects parameters (i.e., taking the arithmetic average of the estimated variances of the random effects from the imputed datasets). However, given the skewness of the distribution of these parameters, taking a simple mean might not be the optimal approach. Increasing the number of imputations and using the median of the estimated random parameters could be a better alternative, although further research is needed to systematically evaluate this proposal.
It is also worth mentioning that in IPD-MA, variables with systematically missing data are typically assumed to follow an MCAR or MAR mechanism. This assumption enables leveraging information from studies with observed data to impute plausible values for studies with systematically missing data. However, the possibility of an MNAR mechanism cannot be ruled out. A potential solution is to integrate the proposed multilevel imputation approach with the pattern-mixture approach and conduct a sensitivity analysis.
Although the development of the new imputation methodology was motivated by its usage in the meta-analysis of IPD, this methodology, by no means, is restricted to studies with both systematically and sporadically missing data. The proposed imputation methodology is general and can be directly applied to other hierarchical or multilevel settings, such as longitudinal studies where sporadically missing data are common.
While we focused on logistic and Poisson mixed-effects models in the current article, extending this methodology to other families of distributions, such as gamma or inverse Gaussian, would be relatively straightforward. Additionally, extending the methodology to handle other types of categorical variables (nominal and ordinal) with both systematically and sporadically missing data would be a valuable direction for future research. Another promising line of research is to broaden the methodology to handle treatment-covariate interactions (i.e., effect modifiers) in IPD-MA. Our current methodology does not account for effect modifiers during the imputation process, and addressing this challenge is not trivial. When a covariate has missing observations, its interaction with treatment will also be incomplete, complicating the imputation process.
Acknowledgements
The author is grateful to the associate editor and two reviewers for their insightful feedback that improved the quality of the article.
Author contributions
Conceptualization, data curation, formal analysis, methodology, software, validation, visualization, writing—original draft, and writing—review and editing: S.J.
Competing interest statement
The author declares that no competing interests exist.
Data availability statement
R code to reproduce the simulation results is available on GitHub (https://github.com/shahabjolani/mlmi-categorical).
Funding statement
The author declares that no specific funding has been received for this article.
Supplementary material
The supplementary material for this article can be found at https://doi.org/10.1017/rsm.2025.10017.
A Setup values for simulation study
The parameters were
$$\begin{align*}(\gamma_1, \gamma_2) = (0.4, 0)\quad \Lambda = \left(\begin{array}{cc} 0.200 & 0.005\\ 0.005& 0.200 \end{array}\right), \end{align*}$$
and
$$\begin{align*}(\alpha_0, \alpha_1, \alpha_2) = (-1.85, 1.05, -0.04). \end{align*}$$
We considered three versions of between-study heterogeneity by varying the covariance matrix
$\Omega $
:
-
• Strong between-study heterogeneity:
$\Omega = \left (\begin {array}{cc} 2.75 & -1.82\\ -1.82& 2.85 \end {array}\right )$
-
• Moderate between-study heterogeneity:
$\Omega = \left (\begin {array}{cc} 0.75 & -0.30\\ -0.30& 0.85 \end {array}\right )$
-
• Weak between-study heterogeneity:
$\Omega = \left (\begin {array}{cc} 0.100 & -0.024\\ -0.024& 0.250 \end {array}\right )$
For the continuous outcome scenarios, we set
$\sigma ^2 = 1$
.
B Simulation results for the binary outcome with 30% systematically missingness
Figures A1–A5 present the findings of binary outcome when the rate of systematically missing data was 30%.

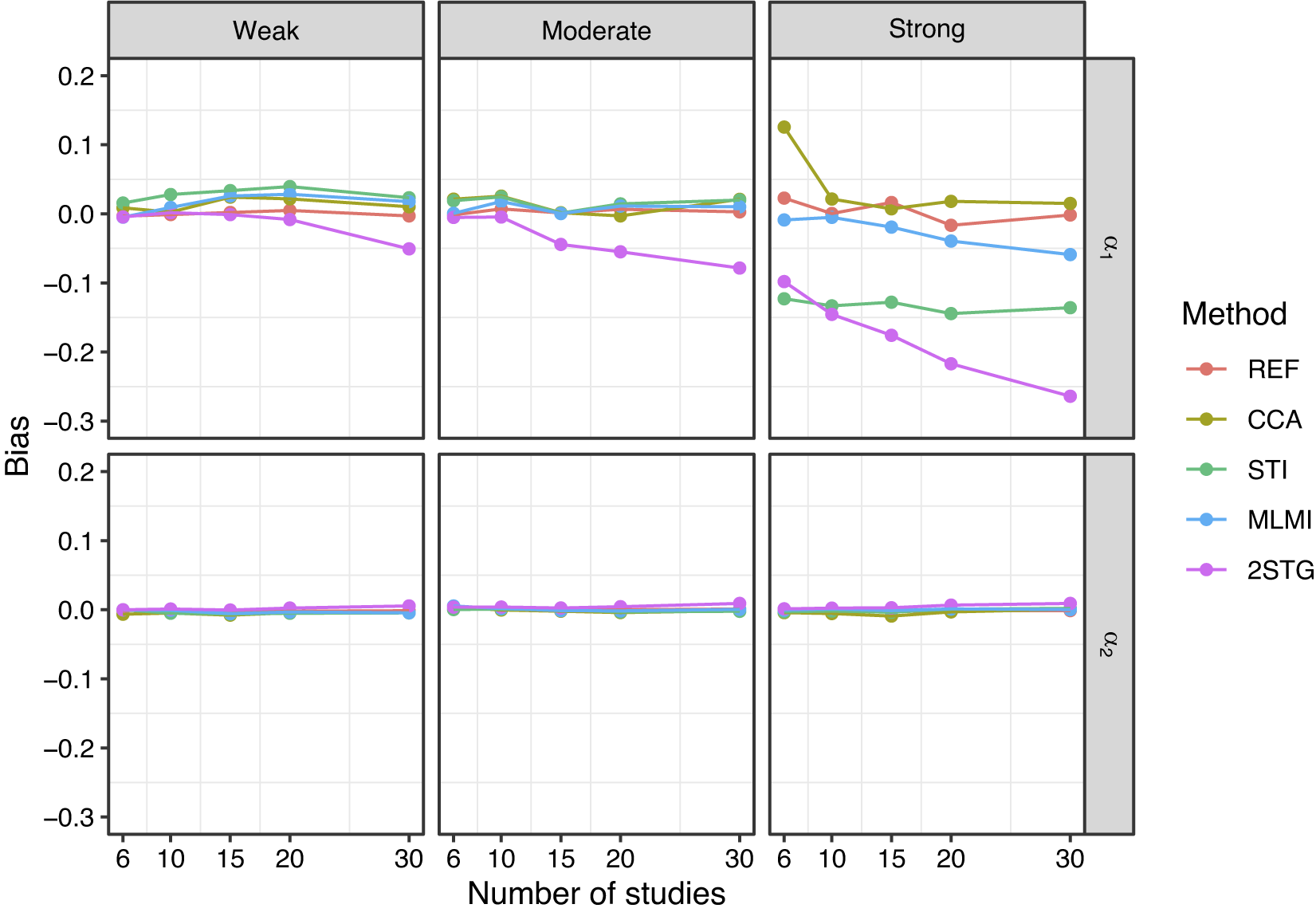

Figure A1 Bias of the fixed-effects estimates with 30% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).
Figure A2 Coverage rate of the 95% confidence interval for the fixed-effects parameters with 30% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).

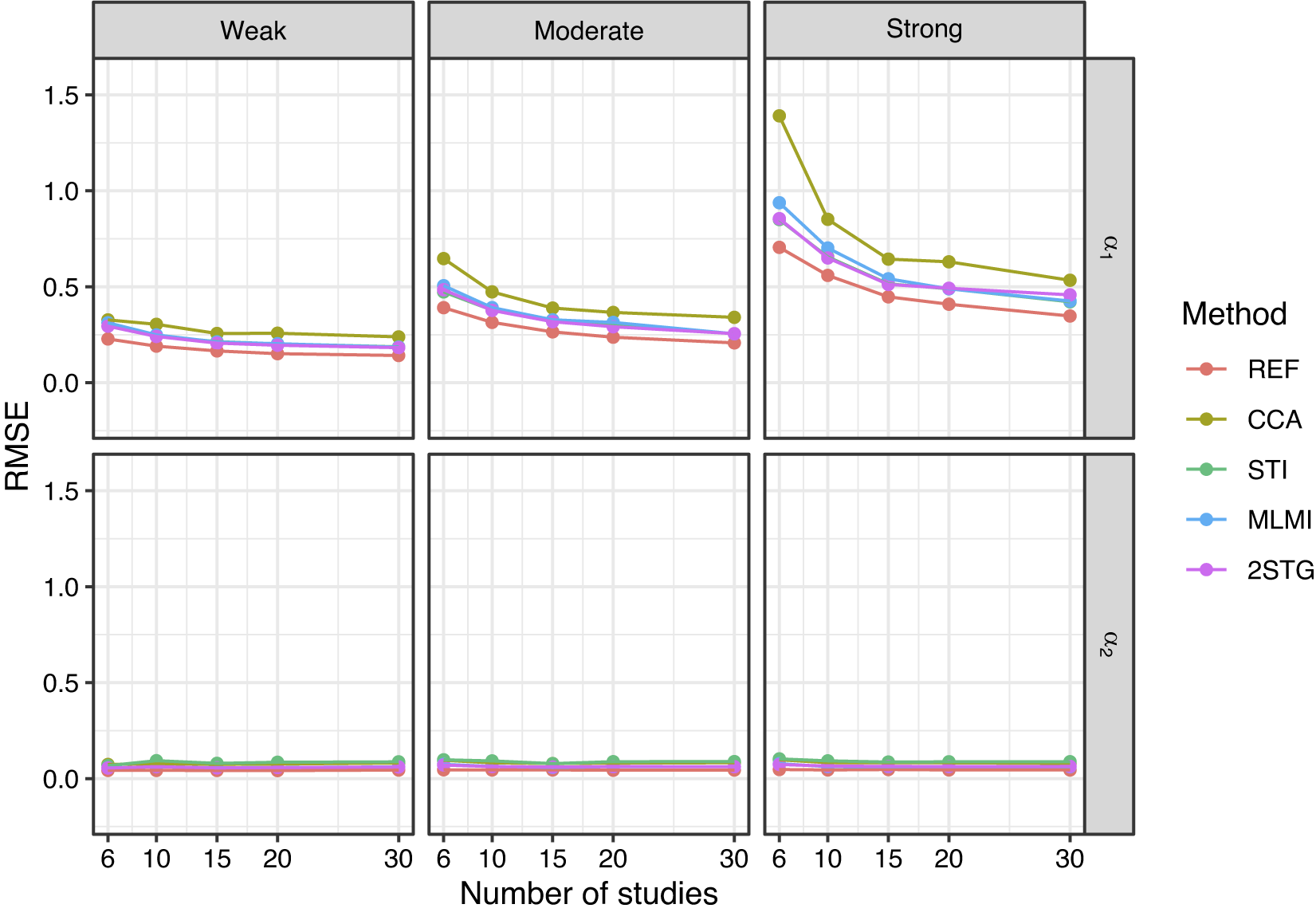

Figure A3 Root mean squared error (RMSE) of the fixed-effects estimates with 30% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).
Figure A4 Bias of the random-effects estimates with 30% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).
Figure A5 Root mean squared error (RMSE) of the random-effects estimates with 30% systematically missingness. Methods include reference (REF-before introducing missing data), complete case analysis (CCA), stratified multiple imputation (STI), multilevel multiple imputation (MLMI), and two-stage multilevel multiple imputation (2STG).
Open access
