2.1 Goals of analysis

Our goal is to identify subpopulations of children characterized by distinct mean growth trajectories of reading recognition and distinct types of heterogeneity in their growth trajectories from age 6 to 14. Applications of growth mixture modeling to reading include Kaplan (Reference Kaplan2002), Bilir et al. (Reference Bilir, Binici and Kamata2008), Boscardin et al. (Reference Boscardin, Muthén, Francis and Baker2008), Pianta et al. (Reference Pianta, Belsky, Houts and Morrison2008), Grimm et al. (Reference Grimm, Ram and Estabrook2010), and Grimm et al. (Reference Grimm, Mazza and Davoudzadeh2017).

Some of these studies focus on narrower age ranges than ours and are therefore less comparable to our study. For example, Bilir et al. (Reference Bilir, Binici and Kamata2008) considered older students in 6th–9th grade (ages 12–15), whereas Kaplan (Reference Kaplan2002) and Boscardin et al. (Reference Boscardin, Muthén, Francis and Baker2008) considered early reading development over a 1.5-year and 2-year period, respectively, starting at the end of kindergarten/beginning of first grade (about six years old).

More similar to our study, Pianta et al. (Reference Pianta, Belsky, Houts and Morrison2008) analyzed reading scores from the National Institute of Child Health and Human Development (NICHD) Study of Early Child Care and Youth Development (SECCYD) for children aged 54 months (4.5 years) in Wave 1 and followed up in first, third, and fifth grade (11 years old). Pianta et al. (Reference Pianta, Belsky, Houts and Morrison2008) fitted a two-class GMM and identified “fast readers” (30% of children) whose average trajectory grows fast initially and then decelerates and “typical readers” (70% of children) who start lower, on average, and grow approximately linearly, remaining below fast readers through 5th grade. Similar average latent trajectory curves were found by Grimm et al. (Reference Grimm, Ram and Estabrook2010) who analyzed data from the Early Childhood Longitudinal Study—Kindergarten (ECLS-K) on children from the end of Kindergarten to the end of eighth grade, but only 6% of children fell in their “early reader” class, with the remainder in the “normative” class. That paper used nonlinear (Gompertz) growth curves, whereas a subset of the same data is analyzed using classic GMMs by Grimm et al. (Reference Grimm, Mazza and Davoudzadeh2017). Their three-class solution identified a class (54% of students) whose mean trajectory starts at the lowest point among the classes at the end of Kindergarten and shows steady growth through fifth grade followed by a slight deceleration. The trajectory of the smallest class (11% of students) starts higher and is nearly parallel to that of the largest class, whereas the mid-sized class (35% of students) starts only slightly higher than the largest class and grows considerably faster initially, catching up to the smallest class by about 3rd grade.

2.2 Subjects and measures

We use data from the National Longitudinal Survey of Youth (NLSY) provided by Curran (Reference Curran1997) and previously analyzed by Curran et al. (Reference Curran, Bauer and Willoughby2004), Bollen & Curran (Reference Bollen and Curran2006), McNeish & Harring (Reference McNeish and Harring2020), and others. The sample includes one child per mother, aged between six and eight years in the first wave in 1986 and with complete data in 1986 for the variables considered by Curran (Reference Curran1997). The children were assessed every two years for four waves of data until 1992. Our analysis focuses on the scores from the reading recognition subtest of the Peabody Individual Achievement Test (PIAT). This subtest assesses word recognition and pronunciation ability which are considered essential components of reading ability. There were 405 children in Wave 1. Among them, 221 children had reading recognition scores at all four waves, and the average number of reading scores per child was 3.21.

As described by Curran (Reference Curran1997), the reading recognition score in the data is the total raw score on the reading recognition subtest of the PIAT divided by 10. According to the NLSY documentation, the interviewer showed children words to read aloud and rated the pronunciation as correct or incorrect. The same 84 items, sorted in order of increasing difficulty (e.g., item 19 is “run,” item 50 is “guerilla,” and item 84 is “apophthegm,” and the first 18 items are simply numbers and letters, like “1” and “N”), were used for all ages. Which item was first shown to the child (starting item) depended on the child’s PIAT math score. The basal item was established as the lowest item of the highest five consecutive correct responses (proceeding backward from the starting item if necessary). The ceiling item, which was also the last item administered, was the highest item of the lowest seven consecutive responses containing five incorrect responses or errors (in some years the lowest five with consecutive errors). Assuming that children would respond correctly to items lower than (and therefore easier than) the basal item and incorrectly to items higher than the ceiling item, the total raw score was calculated as the ceiling item minus the number of errors between basal and ceiling items.

2.3 Bayesian GMM

2.3.1 A GMM for the reading data

The model can be specified by introducing a categorical latent variable $w_j$ that represents which of K latent classes subject j belongs to and is sampled from a multinomial distribution with probability parameters $\{\lambda ^{(k)} \}^K_{k=1} := \{ \lambda ^{(1)},\ldots , \lambda ^{(K)}\}$ ,

$$\begin{align*}w_j\ \sim\ \text{Multinomial} \big(1, \{\lambda^{(k)} \}^K_{k=1}\big). \end{align*}$$

Then the conditional density of the response $y_{ij}$ for child j at occasion i, given class membership $w_j$ , a random intercept $r_{1j}$ , and a random slope $r_{2j}$ is

$$\begin{align*}y_{ij}|w_j \! = \! k,r_{1j},r_{2j}\ \sim\ \text{N}(\mu_{ij}^{(k)},\sigma_e^2).\end{align*}$$

The conditional mean is modeled as a function of the age $t_{ij}$ of the child (centered at six years old),

(1) $$ \begin{align} \mu_{ij}^{(k)} \ = \ \big(\beta_{1}^{(k)} + r_{1j} \big) + \big(\beta_{2}^{(k)} + r_{2j} \big) t_{ij} + \beta_{3}^{(k)} t_{ij}^2, \end{align} $$

where $\beta _{1}^{(k)}$ , $\beta _{2}^{(k)}$ , and $\beta _{3}^{(k)}$ are the mean intercept and slopes of age and age-squared for class k. The random intercept and random slope of age are assumed to have a bivariate normal distribution $(r_{1j},r_{2j})^{\prime }|w_j \! = \! k \sim \text {N} (\boldsymbol {0}, \boldsymbol {\Sigma }^{(k)})$ with class-specific covariance matrix $\boldsymbol {\Sigma }^{(k)}$ . We include a quadratic term in the conditional mean because we expect the rate of growth in reading recognition to decline as children become more proficient. However, allowing the coefficient of the quadratic term to vary between children would introduce another three variance-covariance parameters for each class and seems overly ambitious because there are at most four observations per child.

The specification so far is sufficient for maximum likelihood estimation. The Bayesian model further has a Dirichlet prior for the class probabilities, with concentration parameters $\alpha ^{(k)}$ . We set these parameters constant across classes, $\alpha ^{(1)} \! = \! \cdots \! = \! \alpha ^{(K)} \! = \! \alpha $ ,

$$\begin{align*}\{\lambda^{(k)} \}^K_{k=1}\ \sim\ \text{Dirichlet}(\alpha, \ldots, \alpha). \end{align*}$$

The concentration parameter can be roughly interpreted as adding $K\times \alpha $ subjects to the data and treating their class membership as known, with $\alpha $ individuals belonging to each class. The greater $\alpha $ , the stronger our prior belief that the class probabilities are equal. (Gelman et al. (Reference Gelman, Carlin, Stern, Dunson, Vehtari and Rubin2014, p. 536) refer to $K\times \alpha $ as the “prior sample size.”)

The class-specific random-intercept and random-slope standard deviations, $\sigma _1^{(k)}$ and $\sigma _2^{(k)}$ , each have a half-normal or half-Cauchy prior (see, e.g., Gelman, Reference Gelman2006); these are distributions with mean parameter equal to zero and standard deviation or scale parameter $\tau $ set to a value greater than zero that have been truncated on the left at zero. A small $\tau $ represents a strong belief that the standard deviation is close to zero, whereas a large $\tau $ corresponds to a vague prior. The correlation matrix of the random intercepts and slopes is assigned an LKJ (Lewandowski et al., Reference Lewandowski, Kurowicka and Joe2009) prior which is proportional to the determinant of the correlation matrix raised to the power $\eta -1$ , where $\eta $ is the shape parameter. In two dimensions with correlation $\rho ^{(k)}$ , this corresponds to $\rho ^{(k)}=2v-1$ , where v has a Beta( $\eta $ , $\eta $ ) distribution on the ( $0$ , $1$ ) interval. With a shape parameter $\eta = 2$ , this prior slightly favors correlations close to zero.

The class-specific mean intercept and slopes of time and time-squared for class k have normal priors with zero means and the following variances (written as squared standard deviations): $\beta _{1}^{(k)} \sim \text {N}(0, 10^2)$ , $\beta _{2}^{(k)} \sim \text {N}(0, 5^2)$ , and $\beta _{3}^{(k)} \sim \text {N}(0, 5^2)$ . Finally, the residual standard deviation, constant across classes, has prior $\sigma _e \sim \text {Exponential}(1)$ .

In this article, we will use different values of $\alpha $ and different priors for $\sigma _1^{(k)}$ and $\sigma _2^{(k)}$ (half-Cauchy versus half-normal and different parameters $\tau $ ) and keep all other priors as described here.

We are aware of only one other paper that applies GMMs to these data, namely McNeish & Harring (Reference McNeish and Harring2020) who use a frequentist approach. Instead of modeling reading as a function of age, they use the survey wave as their time variable even though children’s ages varied between six and eight years old in Wave 1. They also constrained the covariance matrices to be constant across classes, $\boldsymbol {\Sigma }^{(k)} = \boldsymbol {\Sigma }$ , to achieve convergence for their three-class model. Finally, they only present estimates of the mean growth trajectories and do not provide any information on within-class heterogeneity.

2.3.2 Visualizing and describing within-class heterogeneity

The model allows development trajectories to vary between children within the same class, and the nature of this variation is of scientific interest. However, in papers applying GMMs, typically only the estimated class-specific means are discussed, and variance-covariance parameters for the random effects are often not even reported (see e.g., McNeish & Harring (Reference McNeish and Harring2020) for a discussion).

Here we introduce some ways to visualize and describe the model-implied within-class heterogeneity. For notational convenience, we drop $(k)$ superscripts here, but all results refer to the parameters of a specific class. We also write expressions as if the parameters were known, acknowledging that estimates will be substituted in these expressions.

Let $\nu _T$ denote the standard deviation of the trajectories for a given class at time $t_{ij}=T$ , given by

$$\begin{align*}\nu_T \ = \ \sqrt{\sigma_1^2+2\rho\sigma_1\sigma_2T+ \sigma_2^2T^2}.\end{align*}$$

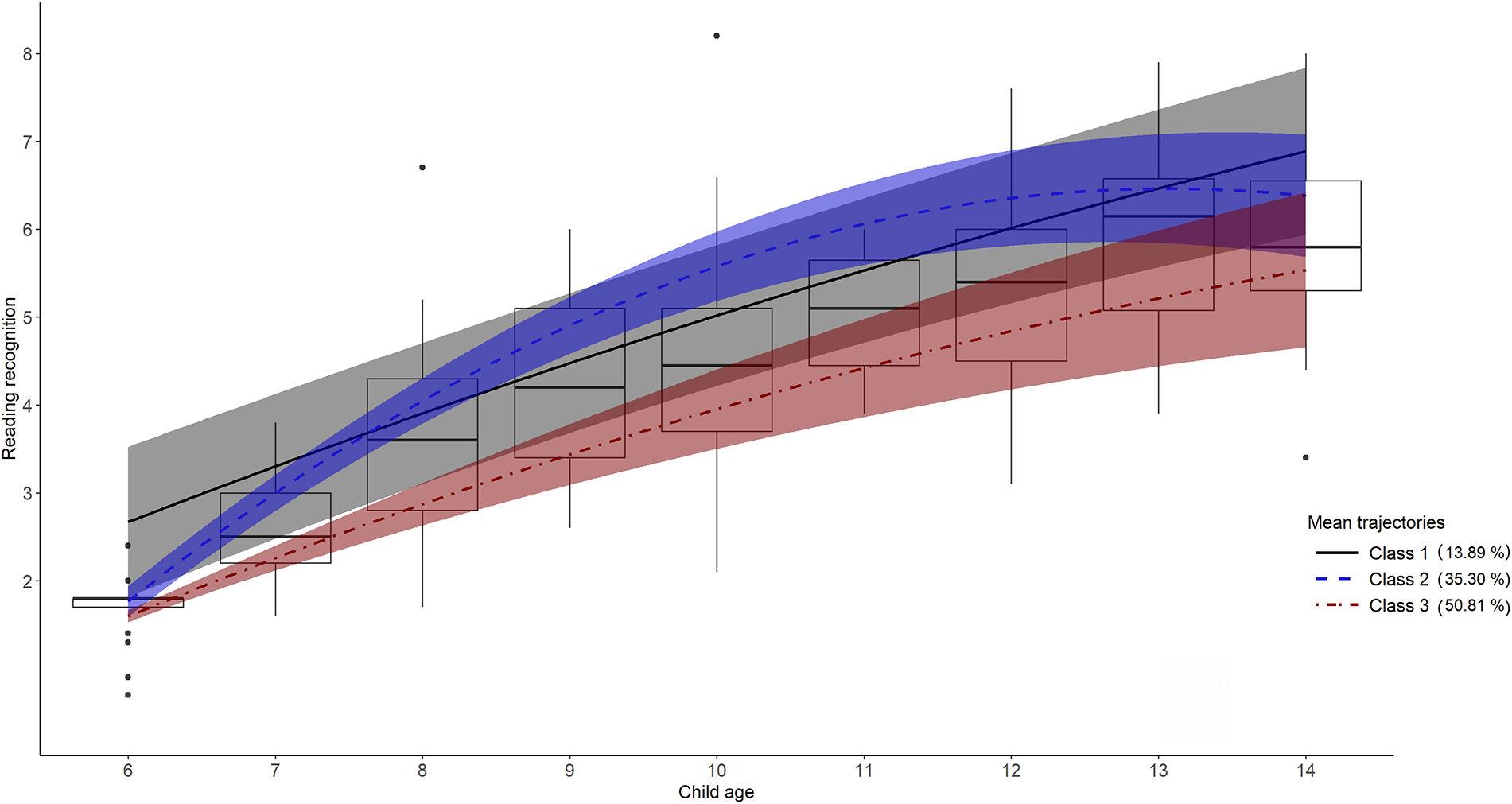

We suggest plotting the mean trajectory together with “50% mid-range” intervals of $\pm \Phi ^{-1}(0.75)\nu _T$ that are expected to contain $50\%$ of the middle trajectories at each time-point (where $\Phi ^{-1}(\cdot )$ is the inverse standard normal cumulative distribution function).

To convey how the slopes vary, we suggest making statements about the slopes for given values of the intercept. We therefore write the slope for subject j as a linear regression on the intercept for the same subject as

$$\begin{align*}r_{2j} \ = \ \frac{\sigma_2\rho}{\sigma_1} r_{1j} + u_j,\end{align*}$$

where

$$\begin{align*}u_j \ \sim \ \text{N}\!\left(0,(1-\rho^2)\sigma_2^2\right). \end{align*}$$

Assuming that $t_{ij}=0$ is a starting point of interest, we might then consider individuals who initially deviate from the class-specific mean trajectory by $r_{1j}=i_0$ and report how much such individuals would be expected to deviate from the mean trajectory at a later time of interest, $t_{ij}=T$ . The expectation of the slope for these individuals is $\sigma _2\rho \, i_0/\sigma _1$ and the expected deviation at time T is $i_0+\sigma _2\rho \, i_0\, T/\sigma _1$ . To avoid specifying an initial deviation, we suggest reporting the percentage change in deviation (conditional on initial deviation) as $100\%\times \sigma _2\rho T/\sigma _1$ .

We can also consider these deviations from the mean trajectory at times $0$ and T in standard deviation units (and possibly report the corresponding percentiles within the distributions), with initial standardized deviation given by $z_{0}=i_0/\sigma _1$ and the expected standardized deviation at time T given by $z_{Tj} = (\sigma _1 z_{0} + \sigma _2\rho z_{0}T)/\nu _T$ . Finally, we can express how likely it is that someone with initial standardized deviation $z_0$ has a positive random slope,

$$\begin{align*}\mbox{Prob}(r_{2j}>0| r_{1j}=z_{0}\sigma_1) \ = \ \Phi\left(\frac{\rho z_{0}}{\sqrt{1-\rho^2}}\right). \end{align*}$$

3.1 Bayesian versus likelihood identification

Loosely speaking, identification of parametric models concerns the existence of unique estimates of the model parameters by a given method (e.g., maximum likelihood estimation, or Bayesian estimation) for all possible data generated by the model.

Early work includes the expository article by Koopmans (Reference Koopmans1949) on identification of structural parameters in (non-Bayesian) linear simultaneous equation models. Interestingly, Koopmans & Reiersøl (Reference Koopmans and Reiersøl1950) and Reiersøl (Reference Reiersøl1950) also considered exploratory factor models, the latter in Psychometrika. The basic idea was that statistical inference regarding model parameters could be made in two steps: (1) inference from data to the reduced form parameters (e.g., variances and covariances) of the joint density of the data, and (2) inference from reduced form parameters to the structural parameters of the model representing the data-generating mechanism.

Inspired by this early work, Rothenberg (Reference Rothenberg1971) and others have derived a number of identification results for general non-Bayesian parametric models. Let $p(y;\vartheta )$ represent the likelihood of the data y in a model with fixed parameter vector $\vartheta \in {\cal A}$ . Rothenberg provides several useful definitions for likelihood identifiability, including:

• • Two parameter points $\vartheta _1$ and $\vartheta _2$ are observationally equivalent if $\forall y$ (where $\forall $ means “for all”):

  $$\begin{align*}p(y;\vartheta_1)=p(y;\vartheta_2). \end{align*}$$

• • A parameter point $\vartheta _0 \in {\cal A}$ is globally identified if there is no other $\vartheta $ in the parameter space ${\cal A}$ which is observationally equivalent. This form of identification is currently often called point identification (e.g., Lewbel, Reference Lewbel2019).

• • A parameter point $\vartheta _0$ is locally identified if there exists an open neighbourhood of $\vartheta _0$ in which there is no other $\vartheta $ in ${\cal A}$ which is observationally equivalent. In this case, there may be several observationally equivalent parameter points but they are isolated from each other. See Bechger et al. (Reference Bechger, Verhelst and Verstralen2001) on the distinction between global and local likelihood identifiability in a psychometric setting.

  For a given parameter point, local identification can in general be investigated by checking the rank of the information matrix at that point (Rothenberg, Reference Rothenberg1971). If applicable, local identification can alternatively be investigated by checking the rank of the Jacobian of the transformation from structural to reduced-form parameters (Wald, Reference Wald and Koopmans1950).

The seminal work on Bayesian identification also occurred in the setting of linear simultaneous equation models, motivated by a desire to use priors to avoid imposing exact identifying restrictions (e.g., Drèze, Reference Drèze, Fienberg and Zellner1974; Zellner, Reference Zellner1971). A general perspective on Bayesian identification problems was provided by Dawid (Reference Dawid1979) in his investigation of the notion of conditional independence in statistics. Dawid lets Bayesian nonidentifiability of certain random parameters mean that the posterior of these parameters is the same as the prior, i.e., that the data provides no information on the parameters. His argument can be summarized as follows: Let $\vartheta $ now represent a random parameter vector which can be decomposed into $\theta $ and $\phi $ , a pair of (possibly vector-valued) parameters. Then $\phi $ is not identified if $\theta $ is a sufficient parameter in the sense that

(2) $$ \begin{align} p(y|\theta,\phi) = p(y|\theta). \end{align} $$

This is because, in this case,

(3) $$ \begin{align} p(\phi|y,\theta)=\frac{p(\phi|\theta)p(y|\theta)}{p(y|\theta)}=p(\phi|\theta), \end{align} $$

so that, “once we have learned about $\theta $ from the data, we learn nothing new about $\phi $ over and above what we knew already” (Dawid, Reference Dawid1979, p. 4). Because (2) implies that any two values of $\phi $ are observationally equivalent as defined by Rothenberg and others, this form of Bayesian nonidentifiability is a special case of classical likelihood nonidentifiability, where some parameters are redundant.

Poirier (Reference Poirier1998) points out that it is useful to distinguish between conditional uninformativeness, defined in (3) and marginal uninformativeness, defined as

(4) $$ \begin{align} p(\phi|y) = p(\phi). \end{align} $$

Marginal uninformativeness follows from conditional uninformativeness if and only if $\phi $ and $\theta $ are a priori independent so that what we learn about $\theta $ from the data does not provide information on $\phi $ . Lack of independence can arise either from the conditional prior distribution $p(\phi |\theta )\neq p(\phi )$ or from $\theta $ and $\phi $ not being variation-free, i.e., their parameter space not being the product space. When $p(\phi |y) \neq p(\phi )$ , there is Bayesian learning according to Kociecki (Reference Kociecki2013). Gustafson (Reference Gustafson2005) uses the term indirect learning when $p(\phi |y) \neq p(\phi )$ and learning about $\phi $ occurs only because of learning about $\theta $ , as in (3).

As an example, Poirier (Reference Poirier1998) considers a hierarchical model where $p(y|\theta )$ defines the likelihood in stage 1, $\theta $ has a prior $p(\theta |\phi )$ in stage 2, and the hyperparameter $\phi $ has a hyperprior $p(\phi )$ in stage 3, so that the joint posterior is

(5) $$ \begin{align} p(\theta,\phi|y)\propto p(y|\theta)p(\theta|\phi) p(\phi). \end{align} $$

For example, in a variance-components model, $\theta $ would include the vector of random intercepts and $\phi $ could be the random-intercept variance. Marginalizing over the “direct parameters” or latent variables $\theta $ , the marginal posterior becomes

(6) $$ \begin{align} p(\phi|y)\propto p(y|\phi)p(\phi), \end{align} $$

where $p(y|\phi )$ is the marginal likelihood used for likelihood inference in variance-components models (not the fully marginal likelihood as used in Bayes factors). Here the data are marginally informative about $\phi $ , but they add no information on $\phi $ , given $\theta $ , because (2) holds. If the random intercepts were known, the variance $\phi $ would be estimated by their sample variance, and the data would not provide further information.

In their discussion of model complexity, Spiegelhalter et al. (Reference Spiegelhalter, Best, Carlin and van der Linde2002) distinguish between two ways of viewing a hierarchical model in terms of the parameters in focus. If $\phi $ is in focus, the hierarchical model in (5) can be reduced to a non-hierarchical model as shown in (6), and if $\theta $ is in focus, it can be reduced to an alternative non-hierarchical model,

(7) $$ \begin{align} p(\theta|y)\propto p(y|\theta)p(\theta), \end{align} $$

where $p(\theta )$ is the marginal prior, integrated over $\phi $ .

We argue that Bayesian identifiability of hierarchical models should be considered either for the parameters $\theta $ or $\phi $ by integrating over the other parameters to obtain a non-hierarchical model. Such an approach would address Swartz et al. (Reference Swartz, Haitovsky and Yang2004)’s criticism of using likelihood identifiability as the definition for Bayesian identifiability. Swartz et al. (Reference Swartz, Haitovsky and Yang2004) present a hierarchical model for which $p(y|\theta ,\phi )=p(y|\theta ,\phi ')$ does not imply that $\phi =\phi '$ . Even though “there is no practical problem with this model” in that the marginal posterior means of $\theta $ and $\phi $ depend on the data, the model is not likelihood identified based on the likelihood $p(y|\theta ,\phi )$ . This apparent contradiction is resolved by considering the marginal likelihood $p(y|\phi )$ , a natural choice because likelihood inference for the model would be based on this likelihood (see also Appendix A).

Another reason to prefer the marginal likelihood is that it represents the sampling model or data-generating mechanism of interest in most situations. For example, in a variance-components model for clustered data, repeated samples would include new clusters, and the model is meant to have good predictive performance for out-of-sample clusters. Merkle et al. (Reference Merkle, Furr and Rabe-Hesketh2019) therefore argue that information criteria such as the Deviance Information Criterion (DIC, Spiegelhalter et al., Reference Spiegelhalter, Best, Carlin and van der Linde2002) and WAIC should be based on the marginal likelihood, and Gelman et al. (Reference Gelman, Meng and Stern1996) refer to the corresponding predictive distribution as the mixed predictive distribution.

The important paper by Dawid (Reference Dawid1979) discussed above considers a special case of Bayesian non-identifiability, where some parameters are redundant given the other parameters, but does not define identifiability. In contrast, Kociecki (Reference Kociecki2013) formally defines Bayesian identifiability, and we propose using the marginal likelihood in his definition when the model is hierarchical. Starting from the concept of identifiability of the sampling model ( $p(y|\phi )$ for hierarchical models) and viewing $\phi $ as random with support ${\cal A}_{\mathrm {prior}} = \{ \phi \in {\cal A} \mid p(\phi )> 0 \}$ , Kociecki (Reference Kociecki2013) applies Bayes theorem, $p(y|\phi )=p(\phi |y)p(y)/p(\phi )$ to define:

• • A Bayesian model is globally identified at $\phi _1 \in {\cal A}_{\mathrm {prior}}$ if and only if, $\forall \phi _2\in {\cal A}_{\mathrm {prior}}$ :

  $$\begin{align*}\left(\frac{p(\phi_1|y)}{p(\phi_1)} = \frac{p(\phi_2|y)}{p(\phi_2)}, \ \forall y \right) \ \ \Longrightarrow\ \ \phi_1=\phi_2.\end{align*}$$

Likelihood identifiability and Bayesian identifiability are then equivalent if the prior has support on the full parameter space ${\cal A}$ . However, when the support is restricted, ${\cal A}_{\mathrm {prior}} \subset {\cal A}$ , there are instances where the Bayesian model may be identified even though the sampling model is not identified, for example if a prior restricts a parameter to be positive.

In the remainder of this article, we will define Bayesian identifiability as equivalent to marginal likelihood identifiability, and in the following subsections, we therefore focus on the latter, often referring to the non-Bayesian literature.

3.2 Identification in finite mixture models

Even if the models for the mixture components are globally identified, finite mixture models are not globally identified because for any parameter point $\vartheta _0$ , all parameter points that correspond to permutations of the class labels are observationally equivalent, a phenomenon referred to as labeling nonidentifiability by Redner & Walker (Reference Redner and Walker1984). Since these observationally equivalent points are not in each other’s neighborhoods, permutation invariance does not violate local identification. We assume that permutation invariance has been taken care of, for instance by labeling the classes in order of increasing class size. Generic nonidentifiability of finite mixture models refers to the existence of several observationally equivalent parameter points that do not correspond to different permutations of class labels (see Frühwirth-Schnatter, Reference Frühwirth-Schnatter2006, Section 1.3.4).

Lewbel (Reference Lewbel2019) requires local or global “point” identification to hold at all possible parameter points $\vartheta _0$ because it should hold at the true parameter values which are unknown to us. Finite mixture models are then only set identified because point identification does not hold everywhere—at some parameter points there is a set of parameters that are observationally equivalent. In our setting, for a parameter point $\vartheta _0$ with one or more class probabilities equal to zero, all parameters that differ from $\vartheta _0$ only in terms of the class-specific parameters for the classes with zero probability are observationally equivalent to $\vartheta _0$ —they are in what Lewbel (Reference Lewbel2019) calls the “identified set.” Similarly, when the parameters of two (or more) classes are identical, all parameter points for which the class-probabilities for the indistinguishable classes have the same sum are in the identified set. Both types of parameter points can be referred to as degenerate because the model reduces to a mixture with fewer mixture components. We therefore say that finite mixture models are not locally identified at degenerate parameter points.

The idea of parameters being locally nonidentified in parts of the parameter space is discussed by Andrews & Cheng (Reference Andrews and Cheng2012). They consider the situation where the parameter vector can be written as ( $\beta $ ,  $\zeta $ , $\pi $ ) and $\pi $ is identified if and only if $\beta \neq 0$ , whereas $\zeta $ is not related to the identification of $\pi $ and ( $\beta $ , $\zeta $ ) are always identified. When $\beta $ is close to zero, $\pi $ is weakly identified. A finite mixture model is clearly an example of this situation with the smallest class probability, $\lambda ^{(1)}$ , corresponding to $\beta $ , the class-specific parameters for Class 1 corresponding to $\pi $ and the remaining parameters to $\zeta $ . Another example is a confirmatory factor model with two common factors, each measured by two variables. Here, the model is identified except at parameter points with zero covariance between the factors (e.g., Kenny, Reference Kenny1979, p. 178; Skrondal & Rabe-Hesketh, Reference Skrondal and Rabe-Hesketh2004, pp. 148–149).

Another problem with a degenerate parameter point $\vartheta _0$ is that there is at least one other degenerate parameter point $\vartheta _1$ in a different part of the parameter space that is observationally equivalent, and this is another violation of global identification, similar to labeling nonidentifiability. We will call this kind of violation degenerate nonidentifiability, a term used by Kim & Lindsay (Reference Kim and Lindsay2015). This notion was previously discussed in the context of specifying more than the actual number of classes (e.g., Crawford, Reference Crawford1994; Rousseau & Mengersen, Reference Rousseau and Mengersen2011) and referred to as “nonidentifiability due to overfitting” by Crawford (Reference Crawford1994). An example of degenerate nonidentifiability given by Kim & Lindsay (Reference Kim and Lindsay2015, p. 748) and Lindsay (Reference Lindsay1995, p. 74) is a two-component mixture model that degenerates to a one-component mixture if one of the class probabilities is zero or if the component-specific parameters are equal. Hence, a one-component mixture cannot be distinguished from these different versions of a two-component mixture. For a three-component model, there are more than two ways of degenerating to a two-class model, namely one class probability is zero, the first (e.g., smaller) class of the two-class model is represented by two classes with equal class-specific parameters or the second (e.g., larger) class of the two-class model is represented by two classes with equal class-specific parameters.

3.3 Degenerate estimates and degenerate draws from the posterior

The classical treatment of identification in parametric models concerns the identification at true but unknown parameter points. However, work has also been concerned with identification at the parameter estimate, called empirical identification (see Kenny (Reference Kenny1979, pp. 49–50) and Rindskopf (Reference Rindskopf1984)). In structural equation models, empirical local identification has been assessed by checking the rank of the estimated information matrix at the maximum likelihood estimates (McDonald & Krane, Reference McDonald and Krane1977; Wiley, Reference Wiley, Goldberger and Duncan1973). In latent class models, Goodman (Reference Goodman1984) discusses local identification and local empirical identification at the maximum likelihood estimates by investigating the rank of the Jacobian of the transformation from the model parameters to the cell probabilities of the contingency table (i.e., the reduced form parameters).

Somewhat related but different from empirical identification, we will be concerned with identification at draws from the posterior during MCMC estimation. Drawing degenerate parameter vectors can lead to estimation problems. For example, when a draw of $\lambda ^{(1)}$ is zero or close to zero, the Class-1-specific parameters are only weakly identified in that region of the parameter space and will be approximately drawn from their priors. Draws of Class-1-specific parameters can then be incompatible with the data so that, locally, the posterior will strongly favor $\lambda ^{(1)}$ equal to or close to zero. This way, miniscule-class sampling becomes self-perpetuating. We refer to this phenomenon as “self-perpetuating sampling of near-degenerate parameters.”

A different problem described by Gelman et al. (Reference Gelman, Carlin, Stern, Dunson, Vehtari and Rubin2014, p. 393) can also be viewed as self-perpetuating sampling of near-degenerate parameters. They consider a hierarchical model (equivalent to a t-distribution) where the variances $V_i$ of the units have a scaled inv- $\chi ^2$ distribution with scale parameter  $\sigma $ . Parameter draws with $\sigma $ close to 0 are near-degenerate because the model degenerates to a non-hierarchical model when $\sigma =0$ . For such draws, Gelman et al. (Reference Gelman, Carlin, Stern, Dunson, Vehtari and Rubin2014, p. 295) write that “the conditional distribution [of $V_i$ given $\sigma $ ] will then cause the $V_i$ ’s to be sampled with values near zero, and then the conditional distribution of $\sigma $ will be near zero, and so on.” In other words, the behavior is self-perpetuating.

There does not appear to be a similar mechanism that would cause the other kind of degeneracy in finite mixture models to be self-perpetuating, where two or more “twinlike” classes have (nearly) identical class-specific parameters. However, when a model with K classes is specified and a degenerate version equivalent to a model with $K-1$ (or fewer) classes corresponds to a mode of the posterior, twinlike behavior may persist for many iterations. In this case, several different degeneracies can be (nearly) observationally equivalent, each corresponding to a different posterior mode. It is then possible that one chain remains near one of the modes, for instance, with two classes having (nearly) identical parameter values, while another chain remains near another mode (that is nearly observationally equivalent), with one class probability (nearly) equal to zero. If such behavior occurs, posterior means of parameters across chains will no longer be meaningful, unless appropriate reparameterization is performed before averaging. This phenomenon, due to degenerate nonidentifiability, is similar to the label switching problem, due to labeling nonidentifiability. These types of nonidentifiability are generally not a problem for maximum likelihood estimation which tends to converge to one of several observationally equivalent parameter points as long as they are in different parts of the parameter space.

4.1 Brief overview of HMC

In Markov chain Monte Carlo (MCMC), new parameter values $\theta ^t$ are sampled in iteration t conditional on current parameter values $\theta ^{t-1}$ in such a way that (1) the time series of parameter values becomes stationary after a “burn-in” or “warmup” period, and (2) the stationary distribution is the required posterior distribution, $p(\theta |y)$ . To achieve (2), the transition probabilities are such that, if the marginal posterior probability density of $\theta ^{t-1}$ (given y) is the target distribution, then the marginal density does not change and therefore the marginal density of $\theta ^t$ is also the target density.

Metropolis–Hastings algorithms proceed by generating a proposal $\theta ^{*}$ (“Proposal Step”) and deciding whether to accept the proposal, i.e., whether to set $\theta ^t=\theta ^*$ , according to a rule that ensures convergence of the distribution to the target distribution (“Acceptance Step”). In HMC (e.g., Betancourt, Reference Betancourt2018; Neal, Reference Neal, Brooks, Gelman, Jones and Meng2011), the proposals $\theta ^*$ are generated using Hamiltonian dynamics, briefly described below, with the advantage over traditional methods, such as Metropolis and Gibbs sampling (implemented in OpenBUGS, JAGS, and Mplus), that the parameter space tends to be sampled more efficiently, in terms of the number of iterations (e.g., Betancourt & Girolami, Reference Betancourt, Girolami, Upadhyay, Singh, Dey and Loganathan2015). We give a brief overview of HMC, synthesizing descriptions by Betancourt & Girolami (Reference Betancourt, Girolami, Upadhyay, Singh, Dey and Loganathan2015), Gelman et al. (Reference Gelman, Carlin, Stern, Dunson, Vehtari and Rubin2014), and the Stan Reference Manual (Stan Development Team, 2024).

4.1.1 Proposal Step

To generate the proposal $\theta ^*$ for iteration t, the current parameter values $\theta ^{t-1}$ are treated as the initial coordinates of a particle whose movements are governed by Hamiltonian dynamics, a system of differential equations whose solution describes motion, for instance of a particle in a physical system. To simplify notation, we will use $\theta $ without any superscript to denote the coordinates along the trajectory that are initially set to $\theta ^{t-1}$ and whose value after some amount of time is used as the proposal $\theta ^*$ .

To visualize the dynamics in three dimensions, we assume that the two-dimensional parameter vector $\theta $ represents coordinates on a horizontal plane, along the left-to-right and back-to-front dimensions. A possibly misshapen bowl situated above this plane contains a particle whose third coordinate, its height, is determined by the surface of the bowl. This height is given by $-\log p(\theta |y)$ , where $p(\theta |y)$ is the posterior probability density function of the parameters $\theta $ given the data y, which is the target distribution we aim to sample from. This height represents the potential energy due to gravity, i.e., the amount of energy needed to lift the particle to that height (potential energy would actually be height times mass times acceleration due to gravity). The basic idea here is that the particle will tend to fall “down” into regions of the bowl where the posterior density is greater.

The reason the particle does not fall to the bottom and stay there, which would mean that the full parameter space would not get explored, is that it also has speed and momentum. Specifically, for each model parameter (or particle coordinate on the horizontal plane), there is an auxiliary random variable that represents the momentum of the particle in the corresponding direction. The initial value of the momentum vector, denoted $\gamma ^{t-1}$ , is sampled from a multivariate normal distribution with zero means and covariance matrix M, and the corresponding density is denoted $f(\cdot )$ . As the location changes, so does the momentum, and we use $\gamma $ without a superscript to denote the evolving momentum. Due to its momentum, the particle has kinetic energy given by $-\log f(\gamma )$ . According to the laws of physics for frictionless motion, the particle follows a deterministic trajectory that conserves the total amount of energy (potential plus kinetic), $[-\log p(\theta |y)] + [-\log f(\gamma )] = -\log p(\gamma ,\theta |y)$ and hence keeps the joint posterior density $p(\gamma ,\theta |y)$ constant. As the particle loses height, it loses potential energy $-\log p(\theta |y)$ and correspondingly gains kinetic energy $-\log f(\gamma )$ and hence gains speed and momentum, allowing it to gain height again (if the surface of the bowl rises in the direction of its motion) at the expense of losing momentum. You may find it useful to play with the following animation created by Chi Feng to get a better understanding of the dynamics (as well as the no-U-turn idea described below): https://chi-feng.github.io/mcmc-demo/app.html.

In order to compute the trajectory of the particle based on differential equations (the Hamiltonian equations), the position and momentum vector of the particle are updated at time-intervals, or “steps” of size $\epsilon $ . Specifically, the increase in momentum depends on the decrease in potential energy along the trajectory, and this is approximated by treating the downward slope of the bowl (i.e., the gradient of the log posterior) as constant along the path for duration $\epsilon $ . The momentum after half the time interval $\epsilon /2$ is computed as

$$\begin{align*}\gamma \ \leftarrow \ \gamma + \frac{\epsilon}{2} \frac{d\log p(\theta|y)}{d\theta}. \end{align*}$$

Having updated the momentum, it is treated as constant from the beginning to the end of the interval to compute the next location (i.e., the parameter values) along the path. After a full time interval $\epsilon $ , the location becomes

$$\begin{align*}\theta \ \leftarrow \ \theta + \epsilon M^{-1}\gamma, \end{align*}$$

where $M^{-1}\gamma $ is the velocity (rate of change in position per time interval, or derivative of position with respect to time) and M is sometimes called a Euclidean metric or a mass matrix, the latter because momentum equals mass times velocity. The momentum at this full-step is then updated before proceeding with the next time interval. This method for computing the dynamics is called a “leapfrog integrator.”

The smaller $\epsilon $ , the more accurate the trajectory at the cost of increased computation time. Steps that are too large can result in errors due to assuming that $\gamma $ is constant and that the height $-\log p(\theta |y)$ changes linearly during the time interval $\epsilon $ . These errors can be quantified by comparing the total energy at a point on the trajectory with the initial energy. When the difference becomes pronounced, a “divergent transition” is said to occur.

4.2 No U-Turn Sampler (NUTS) and HMC parameters

If the “integration time” $\epsilon L$ is too small, the chain moves too slowly through the parameter space, and if it is too large, the particle may “loop back and retrace its steps” (Hoffman & Gelman, Reference Hoffman and Gelman2014). Hoffman and Gelman therefore proposed NUTS. Briefly, the simplest form of NUTS involves building a tree of evaluations of the trajectory. At treedepth (or tree height) j (starting with $j=0$ ), the dynamics are computed forward in time or backward in time (direction chosen randomly) for $2^j$ leapfrog steps until the next step would result in a decrease in the distance between the position of the particle and its starting point, called a “U-turn.” Then $\theta ^{*}$ and $\gamma ^{*}$ are sampled from among all points computed.

During warmup, the mass matrix M and step size $\epsilon $ are adapted (see Stan Development Team, 2024, for details). Essentially, M is an estimate of the posterior covariance matrix of $\theta $ , and the step size is adapted to achieve a target Metropolis rejection rate denoted delta in Stan, with default value 0.8. Users have the option to define the initial step size for the HMC sampler, which acts as a starting point for adapting the step size and is not necessarily the one used in the first warmup iteration (Zhang, Reference Zhang2020).

Users can set the target acceptance rate delta and a value greater than the default of 0.8 will result in smaller step sizes. While this enhances the effective sample size, it may also extend the time required per iteration (Stan Development Team, 2024). Additionally, users can specify the maximum treedepth for NUTS, which defaults to 10 in RStan (Stan Development Team, 2023).

4.3 Known challenges for HMC and Stan diagnostics

A challenge with any MCMC algorithm is ensuring that the stationary distribution was reached within the designated warmup period. A useful diagnostic procedure is to start several Markov chains with different starting values (e.g., randomly drawn). Once all these chains have reached the same stationary distribution, they should have the same properties and should “mix” in the sense that the traceplots occupy the same region. Then the total variance across the chains (the within-chain variance plus the between-chain variance) should not be greater than the pooled within-chain variance. The traditional $\widehat {R}$ diagnostic (Gelman & Rubin, Reference Gelman and Rubin1992) is therefore roughly the total variance divided by the within-chain variance. $\widehat {R}$ should be close to 1 and a value greater than 1.10 for any of the parameters is often considered a sign that the stationary distribution has not been reached. Vehtari et al. (Reference Vehtari, Gelman, Simpson, Carpenter and Bürkner2021) proposed using the maximum of the rank-normalized split- $\widehat {R}$ and the rank-normalized folded-split- $\widehat {R}$ , which we use here and simply denote as $\widehat {R}$ for short. Briefly, the rank-normalized split- $\widehat {R}$ is obtained by rank-normalizing the parameter draws so that they approximately follow a standard normal distribution and treating the first and second half of each chain as separate chains before applying the traditional formula for $\widehat {R}$ . The rank-normalized folded-split- $\widehat {R}$ is obtained by transforming parameter draws to their absolute deviation from the median and then applying the computations for the rank-normalized split- $\widehat {R}$ .

Another issue with any MCMC algorithm is that the parameter draws are not independent so that the number of iterations cannot be viewed as the sample size when estimating Monte Carlo errors for estimates of the posterior means. The effective sample size (ESS) can be estimated (see, e.g., Gelman et al., Reference Gelman, Carlin, Stern, Dunson, Vehtari and Rubin2014, Section 11.5). When the ESS is much smaller than the number of iterations, this signals that the chain is moving very slowly through the parameter space and may be encountering problems.

As mentioned in Section 4.1, a divergent transition is said to occur in HMC when the Hamiltonian (sum of kinetic and potential energy) at a point along the computed trajectory becomes too different from the initial Hamiltonian, implying that the computed trajectory has diverged from the true trajectory. The Stan Reference Manual (Section 15.5) explains that “positions along the simulated trajectory after the Hamiltonian diverges will never be selected as the next draw of the MCMC algorithm, potentially reducing HMC to a simple random walk and biasing estimates by not being able to thoroughly explore the posterior distribution.” Divergent transitions (or divergent iterations) can occur when $\epsilon M^{-1}$ is too large in some direction(s) for the linear approximations of the leapfrog integrator to hold, due to what Betancourt (Reference Betancourt2020) describes as “neighborhoods of high curvature.” Stan flags iterations for which divergent transitions occurred.

The maximum treedepth is reached when no U-turn is encountered after computing $2^j$ leapfrog steps for each treedepth j from 0 to the maximum. According to the Stan Reference Manual (Stan Development Team, 2024), a treedepth equal to the maximum may be a sign of poor adaptation of the tuning parameters (e.g., mass matrix M and step size $\epsilon $ ), may be due to targeting a very high acceptance rate delta, or may indicate a difficult posterior from which to sample.

The Stan Reference Manual states (Section 15.5): “The primary cause of divergent transitions …is highly varying posterior curvature, for which small step sizes are too inefficient in some regions and diverge in other regions. If the step size is too small, the sampler becomes inefficient and halts before making a U-turn (hits the maximum treedepth in NUTS); if the step size is too large, the Hamiltonian simulation diverges.”

Betancourt (Reference Betancourt2016) introduced the estimated Bayesian fraction of missing information (E-BFMI) to assess the efficiency of the momentum resampling at the beginning of each HMC iteration. The E-BFMI is the ratio of the variance of changes in the Hamiltonian between adjacent MCMC iterations (due to the kinetic energy changing when the momentum is resampled) to the variance of the Hamiltonian itself (due to changes in both kinetic and potential energy). Betancourt (Reference Betancourt2018) states that, empirically, values below 0.3 have been proven problematic.

4.4 Growth mixture modeling

4.4.1 Implementation in Stan

When finite mixture models are estimated by MCMC, it is common to sample the discrete latent variable $w_j$ that represents class membership along with the model parameters and any continuous random effects or latent variables. However, HMC works only with continuous parameters and the likelihood must therefore be specified marginal over the discrete latent variable. Demonstrations of how to specify such marginal likelihoods in Stan can be found in Betancourt (Reference Betancourt2017), the finite mixture model example in the Stan User’s Guide (Stan Development Team, 2021), and the tutorial by Ji et al. (Reference Ji, Amanmyradova and Rabe-Hesketh2021), as well as Appendix B.

We also marginalize over the random intercept and slope instead of treating these random effects as model parameters. This approach, although unconventional, is also employed in blavaan (Merkle & Rosseel, Reference Merkle and Rosseel2018; Merkle et al., Reference Merkle, Fitzsimmons, Uanhoro and Goodrich2021). One reason is potential computational efficiency gains due to sampling far fewer parameters (Merkle et al., Reference Merkle, Fitzsimmons, Uanhoro and Goodrich2021). Another reason is that model assessment based on predictive distributions is more meaningful if mixed posterior predictive distributions, based on marginal likelihoods, are used (Merkle et al., Reference Merkle, Furr and Rabe-Hesketh2019).

As shown in (1), the class-specific models for our GMM are linear mixed models, with a random intercept and random slope of time. Therefore, for a given class k, the marginal joint density of the responses $\boldsymbol {y}_{j}$ for a subject is multivariate normal with means $\beta _{1}^{(k)} + \beta _{2}^{(k)} t_{ij} + \beta _{3}^{(k)} t_{ij}^2$ and covariance matrix

(8) $$ \begin{align} \boldsymbol{Z}_j\boldsymbol{\Sigma}^{(k)}\boldsymbol{Z}_j^{\prime}+\sigma_e^2\boldsymbol{I}_{n_j}, \end{align} $$

where $\boldsymbol {Z}_j$ is the design matrix for the random effects with a column of $n_j$ ones for the random intercept and a column of time-points $t_{ij}$ , $i=1,\ldots ,n_j$ , for the random slopes, and $\boldsymbol {I}_{n_j}$ is a $n_j\times n_j$ identity matrix. This multivariate density can be evaluated directly as $\ell _j^{(k)}:= f(\boldsymbol {y}_j|\boldsymbol {Z}_j,w_j=k)$ instead of conditioning on the random effects as is typically done in MCMC estimation of (generalized) linear mixed models. The likelihood for the entire dataset then becomes

(9) $$ \begin{align} L=\prod_j \sum_{k} \lambda^{(k)} \ell_j^{(k)}. \end{align} $$

The priors for the model parameters are as discussed in Section 2.3.1. We used random starting values for these parameters generated by Stan. Specifically, draws are obtained from Uniform(-2,2) distributions and, if needed, transformations are applied to satisfy parameter bounds, such as the exponential to obtain non-negative standard deviations and the softmax function to obtain probabilities on a simplex.

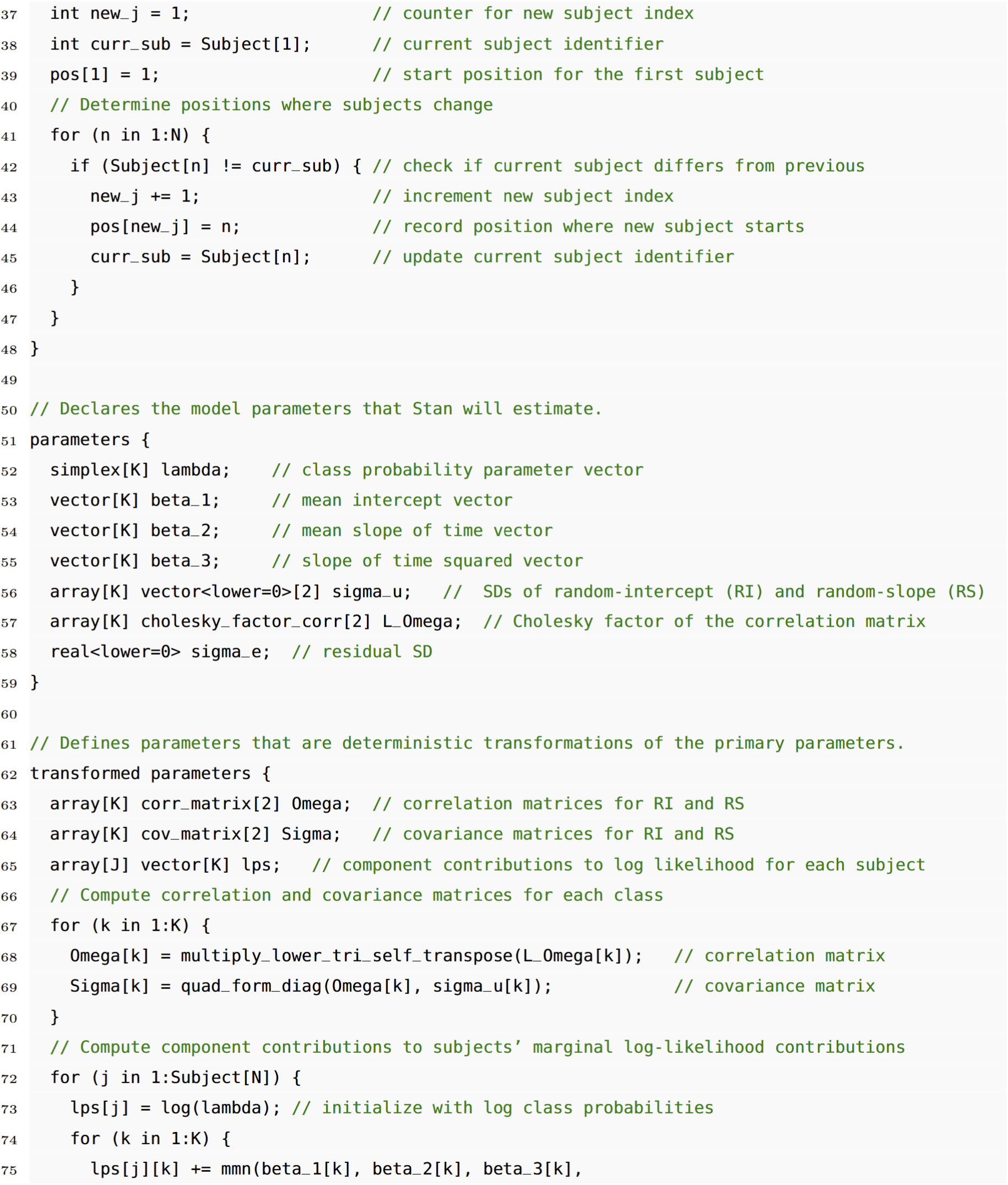

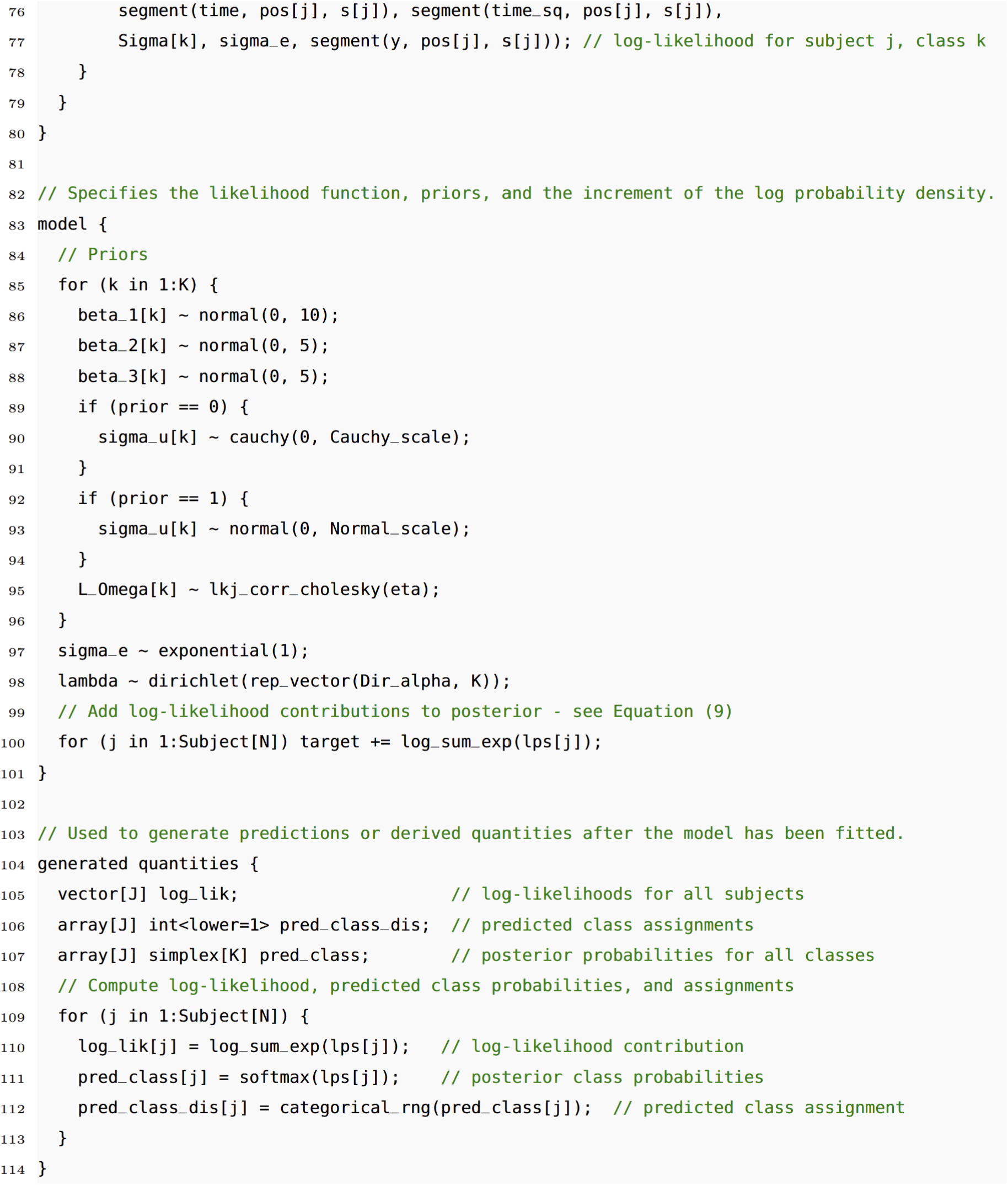

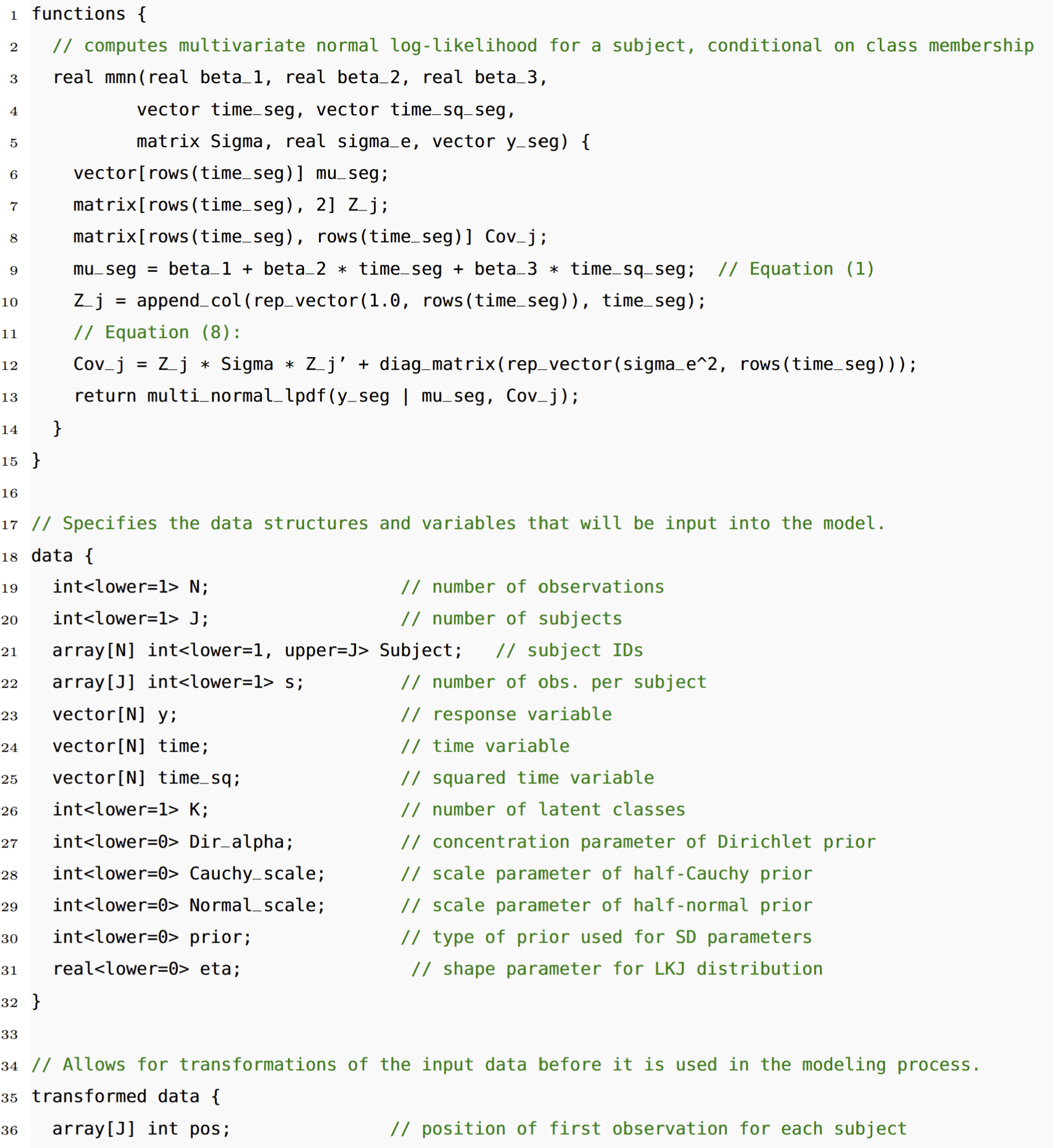

The complete Stan code for estimating our GMM is included in Appendix B.

6.1 Procedure

• Step 1: Initial Screening based on  $\widehat {R}$

  Begin by examining whether any parameter exceeds the commonly recommended threshold of 1.10 for the $\widehat {R}$ statistic. If such instances are identified, record the number of parameters exceeding this threshold and calculate the mean $\widehat {R}$ for all relevant parameters.

  However, relying solely on $\widehat {R}$ may be insufficient. Even if $\widehat {R}$ does not exceed 1.10, proceed to Steps 2–4 to detect “stuck-sequence” (Step 2), “twinlike-class” (Step 3), and “miniscule-class” (Step 4) behavior discussed in Section 5.

• Step 2: Stuck-sequence diagnostic

  To detect when parameter draws do not change for several consecutive iterations, we suggest computing the moving standard deviation for one of the parameters, such as the smallest class probability parameter $\lambda ^{(1)}$ . For a window size of $\Delta $ , the moving standard deviation of $\lambda ^{(1)}$ at iteration $t>\Delta $ is defined as

  $$\begin{align*}s_{\Delta}(t)=\sqrt{\frac{1}{\Delta-1}\sum_{r=t-\Delta+1}^{t}\! \bigg(\lambda^{(1)r} - \frac{1}{\Delta} \sum_{r=t-\Delta+1}^{t} \!\lambda^{(1)r} \bigg)^2} ,\end{align*}$$
  where $\lambda ^{(1)r}$ is the draw of $\lambda ^{(1)}$ in iteration r. If the moving standard deviation remains at zero for q consecutive windows, this means that the chain is stuck for q+ $\Delta -1$ consecutive iterations. We suggest recording the number of such stuck sequences and the lengths of these sequences.

  We provide the stuck_by_chain function that allows users to customize the window size for the moving standard deviation and the minimum length that defines a stuck sequence. This function informs users about which chains exhibit stuck sequences, how many chains are affected, where these sequences are detected, the lengths of the stuck sequences, and which chains are stuck persistently.

  Longer stuck sequences can also be detected in traceplots. In addition, we expect a high $\widehat {R}$ in situations where there are minimal changes within a chain or if a chain persistently remains stuck. This is because the contribution of such a chain to the within-chain variance in the denominator approaches zero. The limited number of distinct draws will also be reflected in a small ESS.

• Step 3: Twinlike-class diagnostic

  To detect when class-specific parameters for a pair of classes are nearly indistinguishable, we propose a distinguishability index (DI) that can be calculated for each iteration of the chain.

  If the parameters for classes k and l are identical, then the class-specific joint densities of the responses for any subject j should be the same for both classes, i.e., $\ell _j^{(k)}=\ell _j^{(l)}$ , where $\ell _j^{(k)}$ is defined in Section 4.4.1. If, additionally, $\lambda ^{(k)}=\lambda ^{(l)}$ , the posterior probabilities of belonging to classes k and l will be identical for all subjects. Our index therefore starts with the conditional posterior probability of belonging to class k, given that the individual belongs either to class k or l and under “prior ignorance” $(\lambda ^{(k)}=\lambda ^{(l)})$ ,

  $$\begin{align*}p_j^{(k,l)} = \ell_j^{(k)}/( \ell_j^{(k)} + \ell_j^{(l)}). \end{align*}$$

  To summarize how close to 0.5 these probabilities are across subjects, we use the corresponding average conditional entropy, defined as $- \frac {1}{J}\sum _j [ p_j^{(k,l)}\ln p_j^{(k,l)}+ (1-p_j^{(k,l)})\ln (1-p_j^{(k,l)})]$ , which takes the value 0 if $p_j^{(k,l)}$ equals 0 or 1 (no classification uncertainty) and the value $\ln (2)$ if $p_j^{(k,l)}=0.5$ , corresponding to $\ell _j^{(k)} = \ell _j^{(l)}$ for all subjects j (greatest classification uncertainty). We then define the DI as

  $$\begin{align*}\mbox{DI}^{(k,l)} = 100\left\{1 +\frac{1}{J\ln(2)}\sum_j \bigg[ p_j^{(k,l)}\ln p_j^{(k,l)}+ (1-p_j^{(k,l)})\ln (1-p_j^{(k,l)}) \bigg]\right\}, \end{align*}$$
  which takes the value 0 if $p_j^{(k,l)}=0.5$ for all j (indistinguishable classes) and the value 100 if $p_j^{(k,l)}$ equals 0 or 1 for all j (most distinguishable classes).

  We provide the DI function to calculate DI and the twinlike_classes function to produce traceplots of class probabilities for all classes and DI plots for all class pairs, aligned vertically for comparison. This function also returns detailed information about chains where the DI is below a certain threshold, indicating twinlike behavior.

• Step 4: Miniscule-class diagnostic

  To identify sequences of iterations in which the smallest class probability fluctuates (with small variance) near zero, we suggest inspecting the traceplot of the smallest class probability, $\lambda ^{(1)}$ , along with its moving average and moving standard deviation.

  In instances where the chain alternates between normal behavior and fluctuating-near-zero behavior, we can apply a clustering algorithm, such as K-means, to the moving averages and moving standard deviations. If the smaller centroid (both for the moving average and moving standard deviation) is close to (0,0), iterations in that class exhibit miniscule-class behavior. To be conservative in the classification, the iterations with moving average values above a given percentile (such as the top 10%) in that class can be removed. We suggest reporting the frequency of sequences of consecutive iterations with miniscule-class behavior and the durations of these sequences.

  Additionally, when miniscule-class behavior occurs for Class 1, the Class-1-specific parameters are approximately drawn from their priors and are not likely to be compatible with the data. Consequently, the posterior probability of belonging to Class 1 will be close to zero for most subjects and hence the DI, defined in Step 3, will be close to 100 when comparing Class 1 with any of the other classes. We propose using the DI as another diagnostic for minuscule-class behavior.

  Our diagnostics_graphs function can be used to assess miniscule-class behavior visually, with customization options for users’ needs. This function produces traceplots, moving average and standard deviation plots, and DI plots, aligning them vertically. Additionally, the function offers detailed warnings and information regarding the chains where miniscule-class behavior is observed.

6.2 Using the diagnostics

The diagnostic process is illustrated by applying it to sets of 20 chains of 1,000 post-warmup MCMC draws, for the NLSY data. We use different combinations of priors (D2C5, D2N500, D4N100, and D6N500) for which we expect problematic behavior to occur. No evidence of twin-like behavior was found, but we illustrate the other types of problematic behavior below.

6.2.1 Persistently stuck chains

With D2C5 priors, the moving standard deviation of $\lambda ^{(1)}$ , with a window size of $\Delta =10$ remains at zero for each entire chain (and changes by a tiny amount between chains), implying that the chains are persistently stuck, as shown in Figure 6.

Figure 6 (Color online) Persistently stuck chains for D2C5 priors.

Note: Top Panel: Traceplot of $\lambda ^{(1)},\, \lambda ^{(2)}$ , and $\lambda ^{(3)}$ Bottom Panel: Moving standard deviation of $\lambda ^{(1)}$ .

When employing the summarise_draws function in the posterior package (version 1.5.0, Bürkner et al., Reference Bürkner, Gabry, Kay and Vehtari2023; Vehtari et al., Reference Vehtari, Gelman, Simpson, Carpenter and Bürkner2021) in R, the $\widehat {R}$ values are flagged as Inf (infinite) in this case. This is due to the within-chain variance being 0 because all chains are stuck. However, the monitor function in Stan reports an $\widehat {R}$ value of 1 when all chains are persistently stuck, which is misleading. Regarding the ESS, the summarise_draws and monitor functions in Stan both provide two estimators, the bulk-ESS and the tail-ESS. Whereas the summarise_draws function reports NA for both, which indicates that the draws are constant, the monitor function in Stan incorrectly reports 1,000 for both, which is misleading.

6.2.2 Miniscule-class sequences

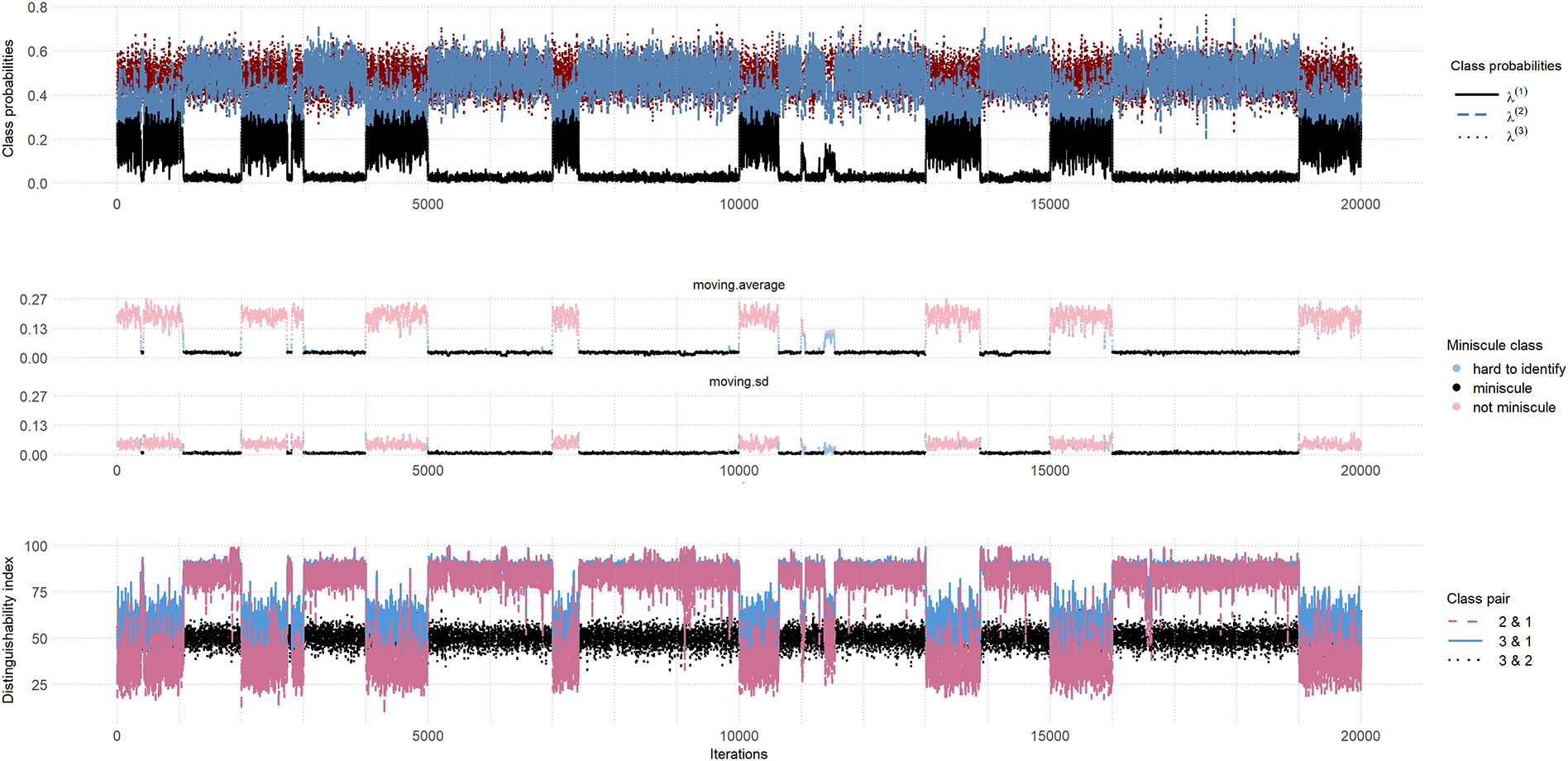

The top panel of Figure 7 is a traceplot of the latent class probabilities for all 20 chains for the D4N100 priors. Out of the 21 parameters, ten have $\widehat {R}$ values exceeding 1.10 and the mean $\widehat {R}$ for all parameters is 1.182. The stuck-sequence diagnostic identifies one stuck sequence of length 11 at iteration 16,554 (chain 17).

Figure 7 (Color online) Miniscule-class behavior for D4N100 priors.

Note: Top Panel: Traceplot of $\lambda^{(1)},\, \lambda^{(2)}$ , and $\lambda^{(3)}$ Mid Panel: Moving average and moving standard deviation of $\lambda^{(1)}$ Bottom Panel: Distinguishability index for all class pairs.

The middle panel in the figure shows the moving averages and moving standard deviations, color-coded according to the classification of the K-means algorithm, where black represents miniscule-class sequences, pink is normal behavior, and blue means not classified (largest 10% of values classified as miniscule by K-means algorithm). In total, 11,761 out of 20,000 iterations are classified as minuscule class behavior. The DI-plot in the bottom panel of Figure 7 supports this miniscule-class behavior. Specifically, when $\lambda ^{(1)}$ is near zero, $\mbox {DI}^{(2,1)}$ and $\mbox {DI}^{(3,1)}$ tend to be extremely large, typically exceeding 75 and often approaching 100. This is expected as the Class-1 trajectory parameters are drawn approximately from their priors and are therefore not likely to be compatible with the data, leading to close-to-zero posterior probability of belonging to Class 1 for most subjects.

See Appendix E of the Supplementary Material for diagnostics applied for D6N500 priors.

6.2.3 Miniscule-class chains

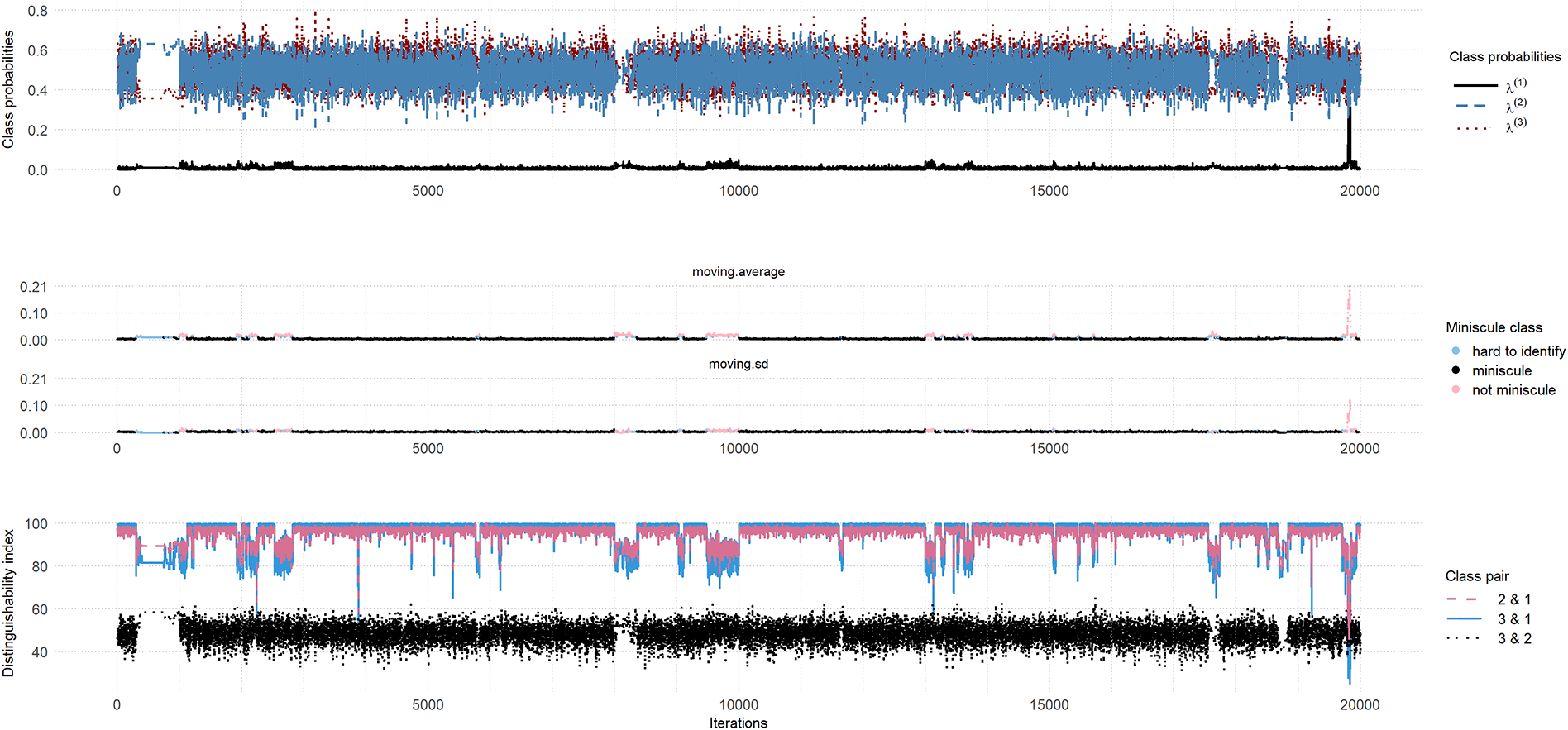

The top panel of Figure 8 shows a traceplot of the latent class probabilities for the D2N500 priors. We found that three parameters have $\widehat {R}>1.10$ and the average $\widehat {R}$ for all parameters is 1.051. Our stuck-sequence diagnostic identified 17 stuck sequences (6 in Chain 1, 2 in Chain 8, and 5 in Chain 18), all but one shorter than 40 and one in Chain 1 of length 353. The moving average and moving standard deviation plots in the middle panel of Figure 8 and the DI plot in the bottom panel of the figure suggest that miniscule-class behavior persists for entire chains and for long sequences in other chains.

Figure 8 (Color online) Miniscule-class behavior for D2N500 priors.

Note: Top Panel: Traceplot of $\lambda^{(1)},\, \lambda^{(2)}$ , and $\lambda^{(3)}$ Mid Panel: Moving average and moving standard deviation of $\lambda^{(1)}$ Bottom Panel: Distinguishability index for all class pairs.

7.1 Simulation design

We simulated a new set of four responses for each of the 405 children in the NLSY data using parameter estimates from the well-behaved three-class solution with occasion number (0,1,2,3) as time variable. By simulating data instead of using real data, we can estimate the correct model so that we know that any degenerate nonidentifiability is not due to overfitting. Moreover, simulation ensures that our findings are not driven by some feature in the data (e.g., outliers) that we are unaware of.

The parameter values used for the simulation are in Sim_design.code.R and the code for simulating the data is in SimCode.source.R, both in the Simulation_study folder of the GitHub repository. Priors and Stan parameters were varied as described below, while keeping the dataset the same to reduce variability.

The priors for $\beta _1^{(k)}$ , $\beta _2^{(k)}$ , $\beta _3^{(k)}$ , $\rho ^{(k)}$ , and $\sigma _\epsilon $ were as specified in Section 2.3.1, whereas the other priors were varied to discourage abnormal behavior to different degrees. One strategy to prevent miniscule-class and stuck-sequence behaviors is to discourage very small draws of $\lambda ^{(1)}$ . This can be accomplished by using a weakly informative Dirichlet prior with concentration parameter $\alpha $ larger than two to steer the class probabilities toward equality (1/3 here). Three values of the concentration parameter were therefore considered, $\alpha = 2, 6, 10$ .

While specifying half-Cauchy distributions for standard deviation parameters is common practice in hierarchical models, this can lead to excessively large draws, such as 1,350,770 and 25,839,500 for the D2C5 priors, when $\lambda ^{(1)}$ approaches zero. This, in turn, can cause the chain to become stuck, as observed in the persistently stuck example in Figure 6. Consequently, we recommend adopting half-normal priors for the random-intercept and random-slope standard deviations, with sufficiently large scale parameter $\tau $ to avoid being overly informative but sufficiently small $\tau $ to avoid excessively large draws of the standard deviation parameters. For the simulation study, we compared the half-Cauchy distribution with scale parameter $\tau = 5$ , denoted C5, with half-normal distributions with scale parameters $\tau = 1, 5, 50, 100$ , denoted N1, N5, N50, and N100.

The Stan step size $\epsilon $ was set to 1 (the default) and to 0.01, using the argument step_size of the $sample method for CmdStan model objects.

For each combination of the three concentration parameters $\alpha $ , five prior distributions/scale parameters $\tau $ for the standard deviation parameters and two step sizes $\epsilon $ , we ran 100 chains on the same dataset. The chains can be viewed as replicates because they are independent.

We expect problematic behavior to be less likely as $\alpha $ increases and as $\tau $ decreases, and generally less likely for a half-normal than a half-Cauchy distribution. For each value of $\alpha $ , we use the standard deviation priors in the order of “most difficult” to “least difficult”, i.e., C5, N100, N50, N5, and N1. If no problematic behavior is observed for N5, say, we do not consider the less difficult condition N1.

7.2 Simulation results

The step size specified for Stan did not appear to make any difference to the average step size used in the chains. The average step sizes used across the 100 chains for each condition ranged from 0.036 to 0.123, were sometimes larger when the small step size was specified than for the default for a given set of priors and never differed by more than 0.008 for a given set of priors. We also compared diagnostic results for small and default step sizes for each set of priors and found no systematic differences. We therefore pooled the results across step sizes, giving 200 chains per set of priors.

7.2.1 Prevalence of problematic behaviors

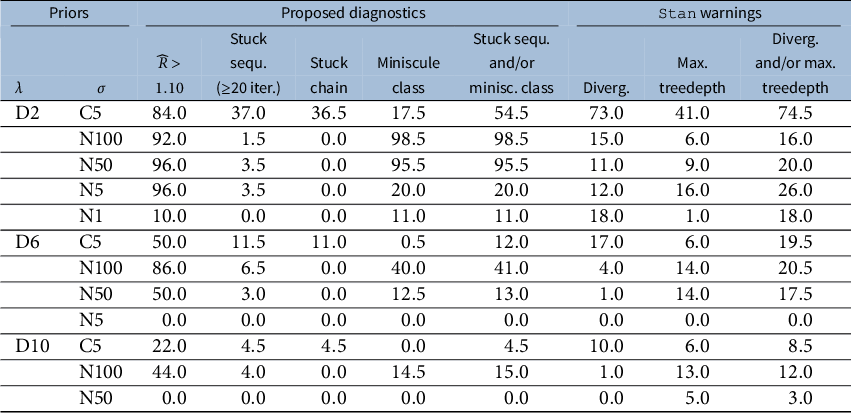

Table 3 shows the impact of different priors on the prevalence of problematic behaviors according to our diagnostics and the prevalence of Stan warnings. The first two columns of Table 3 show the combinations of priors, while the other columns present the percentage of each problematic behavior or Stan warning. Except for $\widehat {R}$ , the percentages are out of the 200 individual chains. Exact binomial 95% confidence intervals for these percentages have half-widths (approximate margins of error) of 3 percentage points when the point estimate is 5% or 95%, 6 percentage points when the point estimate is 20% or 80% and 7 percentage points when the point estimate is 50%. Since multiple chains are needed to compute the $\widehat {R}$ diagnostic and practitioners typically use 4 chains, the $\widehat {R}$ diagnostic was calculated as the proportion of fifty 4-chain batches with $\widehat {R}> 1.10$ for at least one parameter.

Table 3 Percent problematic behavior according to different diagnostics and Stan warnings for different prior combinations

Note: D2, D6, and D10 are Dirichlet ( $\alpha $ , $\alpha $ , $\alpha $ ) priors for ( $\lambda ^{(1)}$ , $\lambda ^{(2)}$ , $\lambda ^{(3)}$ ), with $\alpha $ equal to 2, 6, and 10, respectively. C5 is a half-Cauchy(5) prior and N100, N50, N5, and N1 are half-normal priors for $\sigma _1^{(k)}$ and $\sigma _2^{(k)}$ , with $\tau $ equal to 100, 50, 5, and 1, respectively. The other priors are given in Section 2.3.1.

A stuck sequence was defined as no change in $\lambda ^{(1)}$ for at least 20 consecutive iterations, i.e., a moving standard deviation with window-size 10 being 0 for at least 11 consecutive iterations. A special case of a stuck sequence is a (persistently) stuck chain that is stuck for all iterations. A chain was classified as exhibiting miniscule-class behavior if the DI was greater than 95 in at least three consecutive iterations, excluding persistently stuck chains. The seventh column shows the percentage of stuck chains and/or minuscule-class occurrences.

Regarding twinlike-class behavior, we observed that across the 200,000 iterations for each set of priors, the DI was only occasionally smaller than five. This occurred twice (0.001% of iterations) for the D6N100 priors (smallest DI is 2.17), eight times (0.004% of iterations) for the D10C5 (smallest DI is 1.51), and seven times (0.0035% of iterations) for D10N100 (smallest DI is 1.97). However, these smallest DI values only occur for a single iteration, with neighboring iterations having larger values ranging from 14.01 to 65.41. Therefore, there is no evidence for self-perpetuating twinlike-class behavior. To create a situation where twinlike-class behavior is likely to occur, we simulated data from a two-class model and deliberately overfitted the data using a three-class model. See Appendix F of the Supplementary Material for more information and a graph showing two kinds of twinlike-class behavior (Class 1 of the data-generating model being represented by twins versus Class 2 being represented by twins), each persisting for an entire chain. This is a good example of degenerate nonidentifiability.

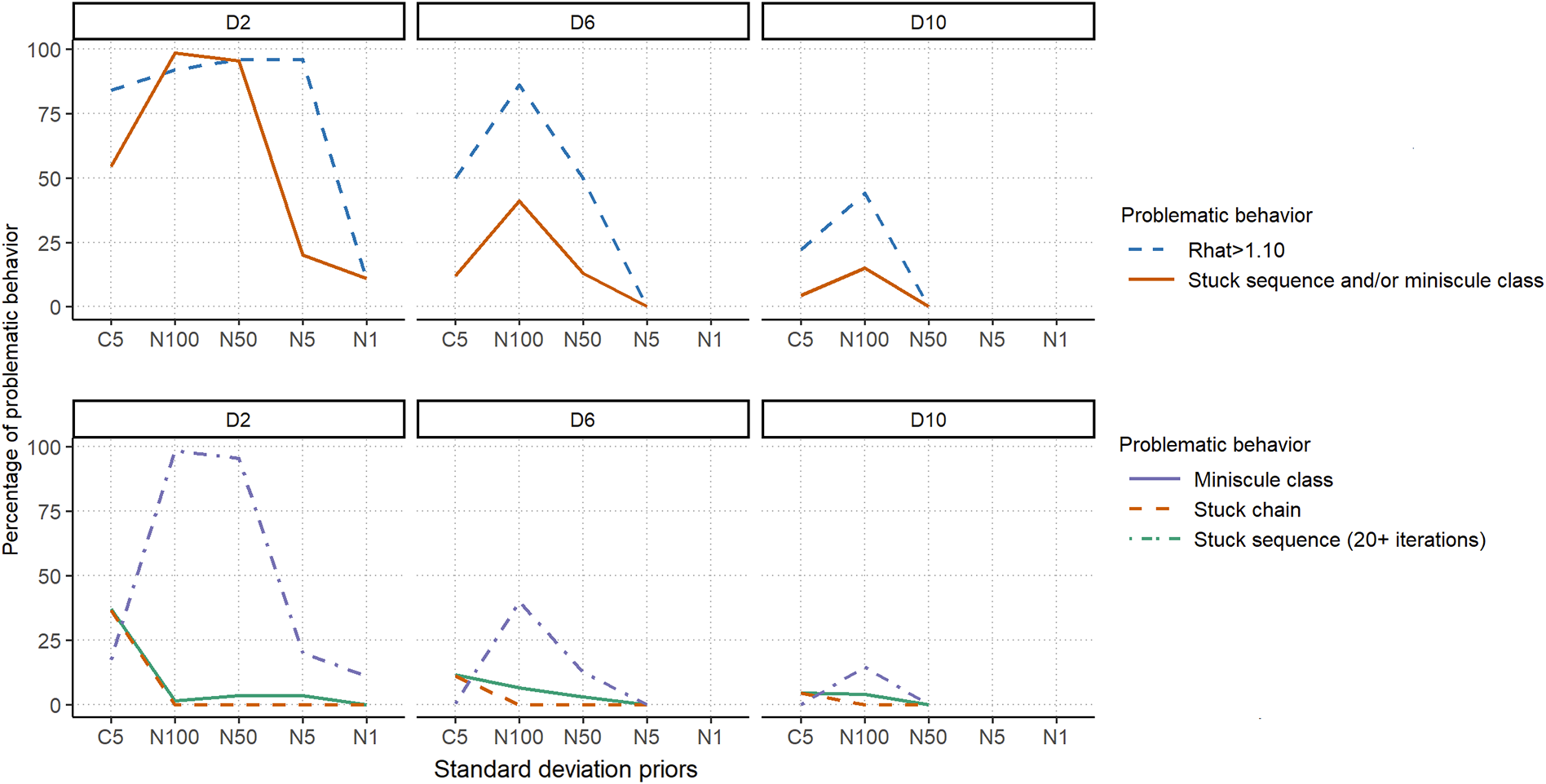

Figure 9 gives a visual representation of some of the simulation results, with standard deviation priors represented on the x-axis, Dirichlet priors in the columns, and different types of behaviors in the rows. In the top row, the dashed lines show the percentage of 4-chain batches with $\widehat {R}> 1.10$ for at least one parameter. For half-normal distributions, this problem becomes rarer as $\tau $ decreases and is more prevalent for smaller $\alpha $ values. Specifically, $\widehat {R}> 1.10$ never occurred at $\tau = 50$ for $\alpha = 10$ (D10N50) and at $\tau = 5$ for $\alpha = 6$ (D6N5), but occurred occasionally even at $\tau = 1$ for $\alpha = 2$ (D2N1). The solid lines in the top panel show the percent stuck-sequence (including stuck-chain) and/or minuscule-class behavior. Similar to large $\widehat {R}$ , this behavior becomes less frequent as $\alpha $ increases and $\tau $ decreases.

Figure 9 (Color online) Percent problematic behavior for combinations of standard deviation priors (x-axis) and Dirichlet priors (D2, D6, D10 from left to right).

Note: Top panels: percentage of 4-chain batches with $\widehat {R}>1.10$ for any parameter (dashed) and percentage of chains with stuck-sequence and/or miniscule class behavior (solid). Bottom panels: percentage of chains with miniscule class (solid), stuck chain (dashed), and stuck sequence (dot-dash).

As seen in the bottom row, persistently stuck chains (dashed lines) occur only for the half-Cauchy distribution, and this problem persists when the concentration parameter is as large as $\alpha = 10$ . Stuck-sequence (dot-dash lines) and miniscule-class (solid lines) behaviors become less likely as $\tau $ decreases for the half-normal distribution and as $\alpha $ increases.
