Unveiling the evolutionary pathways of Ochoterenella: a new species discovery and its phylogenetic implications

Published online by Cambridge University Press:  03 July 2025

Gabriel Lima Rebêlo*
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Jorge Kevin Silva Neves
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Fred Gabriel Haick
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Ronald Ferreira Jesus
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Karina Varella
Affiliation:
Laboratory of Biology and Parasitology of Reservoir Wild Mammals, Oswaldo Cruz Institute, Oswaldo Cruz Foundation, Rio de Janeiro, RJ, Brazil
Luiz Felipe Ferreira Trindade
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Leticia de Aguiar da Costa
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Fabrícia de Jesus Paiva da Fonseca Sizo
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
Arnaldo Maldonado Júnior
Affiliation:
Laboratory of Biology and Parasitology of Reservoir Wild Mammals, Oswaldo Cruz Institute, Oswaldo Cruz Foundation, Rio de Janeiro, RJ, Brazil
Carlos Eduardo Costa-Campos
Affiliation:
Laboratory of Herpetology, Department of Biological and Health Sciences, Federal University of Amapá (UNIFAP), Macapá, AP, Brazil
Francisco Tiago Vasconcelos Melo
Affiliation:
Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’, Institute of Biological Sciences, Federal University of Pará (UFPA), Belém, PA, Brazil
*
Corresponding author: Gabriel Lima Rebêlo; Email: gabriel.rebelo@icb.ufpa.br

Abstract

Ochoterenella is a large group of filarial parasites of anurans distributed throughout Central and South America. In the present study, we describe a new species of Ochoterenella parasitizing 2 frogs, Boana geographica and Boana multifasciata, from different localities in the Brazilian Amazon. The main morphological traits that differ Ochoterenella casiraghii n. sp. from its congeners are the smaller body size, a shorter cephalic plate, smaller parastomal structures, and the small, short and rounded cuticular bosses on the body of both sexes. The females have a shorter ovejector, and the number of caudal papillae distinguishes males. Pairwise sequence comparisons of the new species reveal a high level of divergence from Ochoterenella spp. Our phylogenetic analyses, based on cox1 and concatenated partial mitochondrial genes, support the monophyly of all subfamilies and genera examined herein. The new species represents the 17th in the Ochoterenella genus and a new parasite record for both anuran species. We provide the first ultrastructural description of the species in the genus and establish the phylogenetic relationships of the new species among parasites of amphibians and reptiles from the Onchocercidae.

Information

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2025. Published by Cambridge University Press.

Introduction

Ochoterenella Caballero, 1944 is a large group of filarial parasites of anurans distributed throughout Central and South America (Bain et al., Reference Bain, Mutafchiev, Junker and Schmidt-Rhaesa2013). Currently, 16 species of the genus have been reported parasitizing hosts of the families Bufonidae Gray, 1825, Craugastoridae Hedges, Duellman and Heinicke, 2008, Hylidae Rafinesque, 1815, Leptodactylidae Werner, 1896, Ranidae Rafinesque, 1814 and Strabomantidae Hedges, Duellman and Heinicke, 2008 (Esslinger, Reference Esslinger1989; Bursey et al., Reference Bursey, Goldberg and Parmelee2001; Goldberg and Bursey, Reference Goldberg and Bursey2008; Lima et al., Reference Lima, Marun, Alves and Bain2012; Oliveira et al., Reference Oliveira, Mascarenhas, Batista-Oliveira, Castro-Araújo, Ávila and Borges-Nojosa2022).

These nematodes are morphologically similar, which can often lead to confusion and mistakes in species identification (Esslinger, Reference Esslinger1986a). Additionally, the males of several Ochoterenella spp. remain unknown, and the primary morphological traits used to differentiate species are based on adult females and microfilariae (Lima et al., Reference Lima, Marun, Alves and Bain2012). Moreover, historically, the authors did not provide details of some species, for example, Ochoterenella convoluta Travassos, 1929, Ochoterenella scalaris Travassos, 1929 and Ochoterenella vellardi Travassos, 1929, in which the descriptions lack even illustrations of the species.

Comprehensive studies using morphological and molecular approaches provided new insights for identification and established phylogenetic relationships between onchocercids and their hosts (Xie et al., Reference Xie, Bain and Williams1994; Casiraghi et al., Reference Casiraghi, Anderson, Bandi, Bazzocchi and Genchi2001; Bain et al., Reference Bain, Casiraghi, Martin and Uni2008; Netherlands et al., Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020). However, at the time of those mentioned works, few genetic sequences of Ochoterenella were deposited in the genetic database (Casiraghi et al., Reference Casiraghi, Bain, Guerrero, Martin, Pocacqua, Gardner, Franceschi and Bandi2004; Ferri et al., Reference Ferri, Bain, Barbuto, Martin, Lo, Uni, Landmann, Baccei, Guerrero, Lima, Bandi, Wanji, Diagne and Casiraghi2011; Lefoulon et al., Reference Lefoulon, Bain, Bourret, Junker, Guerrero, Cañizales, Kuzmin, Satoto, Cardenas-Callirgos, Lima, Raccurt, Mutafchiev, Gavotte and Martin2015; Feldman et al., Reference Feldman, Jimenez-Rocha, Morales-Acuña, León-Bolaños and Blystone2020).

Thus, we provide a detailed morphological description of a new filarial worm parasitic in Boana geographica (Spix, 1824) and Boana multifasciata (Günther, 1859). This species is the first of its genus to be analysed by scanning electron microscopy (SEM). The present work also establishes the phylogenetic relationships of the new species among onchocercid parasites of amphibians and reptiles , based on 2 mitochondrial genes, cytochrome c oxidase 1 (cox1) and 12S rDNA.

Materials and methods

Host collection and morphological study of parasites

Host specimens were collected from 3 localities in the Amazon biome: 38 specimens of B. geographica collected in September 2020 from the ‘Beija-flor Brilho de Fogo’ Extractive Reserve, Pedra Branca do Amapari municipality (0º47′30.6″N, 51°58′42.1″W); 36 specimens of B. geographica collected between January and September 2019 from Serra do Navio municipality (0°54′8.68″N, 52°0′19.62″W), both located in Amapá state, Brazil; and 31 specimens of B. multifasciata collected between February 2022 and September 2023 from the ‘Centro Nacional de Primatas (CENP)’, Ananindeua municipality (1°22ʹ56.05″S, 48°22ʹ58.13″W), Pará state, Brazil.

The hosts were anaesthetized with sodium thiopental, measured, weighed and necropsied for helminth search (CFMV, 2013). The amphibian hosts are classified according to Frost (Reference Frost2025). Adult filarial nematodes were collected from the body cavity, washed in Petri dishes with saline solution (NaCl 0.9%), killed in heated 70% ethanol and preserved in the same solution at room temperature. For molecular analyses, 3 male specimens were kept in microtubes with 100% ethanol and stored in a freezer at −20 °C.

For morphological and morphometric analyses, the nematodes were hydrated in distilled water, cleared in 50% Amann’s Lactophenol, mounted on temporary slides and examined under an Olympus BX41 microscope (Olympus, Tokyo, Japan) coupled with a drawing tube (without zoom adjustment). The illustrations were prepared using the software CorelDRAW 2021 and processed using Adobe Photoshop Version 21.0.2 software.

We measured morphological characters according to Esslinger (Reference Esslinger1986a) and Lima et al. (Reference Lima, Marun, Alves and Bain2012). Details of the anterior-end morphology were examined in the apical view, we used 5 specimens of both sexes. For those analyses, we manually sectioned the anterior end with razor blades, mounted the apical end in temporary slides and observed en face. Microfilariae samples were extracted from the uterus near the ovijector for further analyses.

The measurements are presented as the values of the holotype followed by the mean and range for the entire type series in parentheses (reported in micrometres unless otherwise indicated) as proposed by Esslinger (Reference Esslinger1989). The prevalence and mean intensity rates followed Bush et al. (Reference Bush, Lafferty, Lotz and Shostak1997) and Reiczigel et al. (Reference Reiczigel, Marozzi, Fábián and Rózsa2019). The type specimens are deposited in the invertebrate collection of the Museu Paraense Emílio Goeldi (MPEG), Belém, Pará state, Brazil.

Five specimens of both sexes were post-fixed in 1% osmium tetroxide (OsO4), dehydrated in an increasing ethanol series and critical-point dried in carbon dioxide (CO2). The worms were mounted on metallic stubs, coated with gold-palladium and examined using an SEM Vega3 microscope (TESCAN, Brno, Czech Republic) in the Laboratory of Structural Biology at the Biological Sciences Institute, Federal University of Pará (UFPA), Brazil.

We conducted a bibliographic reference search to compile the records of Ochoterenella, using 7 electronic databases (Google, Google Scholar, PubMed, Scielo, Science Direct, Scopus and Web of Science). Species and hosts without specific diagnosis (‘gr.’, ‘af.’ and ‘sp.’) were excluded from our checklist. All records include species, host family, host species, country and locality. Additionally, a map illustrating the distribution of Ochoterenella spp. was generated using a spreadsheet and QGIS 3.28 software (Quantum, Reference Quantum2024). This compilation included published records, publicly available data and information from the present study. In the map, we represent through symbols the sex of helminths found in the samples of each species described. The 3 species (O. convoluta, O. scalaris and O. vellardi) described by Travassos (Reference Travassos1929) in Brazil did not have a specified type locality. However, the species are taxonomically valid, and we have considered registers from other localities (Supplementary Table S1).

Molecular analysis and phylogenetic study

Before conducting molecular analyses, we performed morphological studies using male specimens from each locality. For that, the anterior and posterior portions of the male specimens were cut for light microscopy observations, and the mid-body was used for DNA extraction. The hologenophore (Pleijel et al., Reference Pleijel, Jondelius, Norlinder, Nygren, Oxelman, Schander, Sundberg and Thollesson2008) was also preserved and deposited as a voucher in a helminth collection.

Genomic DNA was extracted using the NucleoSpin Tissue kit (Macherey-Nagel, Düren, Germany) according to the manufacturer’s instructions. Polymerase chain reaction (PCR) was conducted to amplify the cox1 and 12S rDNA, both partial mitochondrial genes, using specific primers and cycle conditions proposed by Casiraghi et al. (Reference Casiraghi, Anderson, Bandi, Bazzocchi and Genchi2001) and Lefoulon et al. (Reference Lefoulon, Bain, Bourret, Junker, Guerrero, Cañizales, Kuzmin, Satoto, Cardenas-Callirgos, Lima, Raccurt, Mutafchiev, Gavotte and Martin2015). The resulting amplicons were visualized on a 1.5% agarose gel using GelRed Nucleic Acid Stain (Biotium, Hayward, California, USA) on an ultraviolet light transilluminator.

PCR products were purified using the Illustra GFX PCR DNA and Gel Band kit (GE Healthcare, Chicago, Illinois, USA) according to the manufacturer’s instructions and sequenced using the BigDye Terminator v3.1 Cycle Sequencing kit (Applied Biosystems, USA). Amplicons were sequenced on Applied Biosystems™ 3730 DNA Analyser at the DNA Sequencing Platform of the Oswaldo Cruz Foundation (RPT01A/PDTIS/FIOCRUZ).

For phylogenetic analyses, the forward and reverse sequences obtained were assembled into contigs and edited for ambiguities using the Geneious 7.1.3 software (Kearse et al., Reference Kearse, Moir, Wilson, Stones-Havas, Cheung, Sturrock and Drummond2012). Two datasets were used: the first was based on the cox1 gene, and the second was a concatenated 12S rDNA and cox1 sequence. We also prepared a concatenated matrix for both genes in Geneious 7.1.3 software (Kearse et al., Reference Kearse, Moir, Wilson, Stones-Havas, Cheung, Sturrock and Drummond2012). Subsequently, all matrices were aligned and trimmed using Muscle (Edgar, Reference Edgar2004) in Geneious 7.1.3 software (Kearse et al., Reference Kearse, Moir, Wilson, Stones-Havas, Cheung, Sturrock and Drummond2012).

Substitution saturation in the matrices was assessed via the Xia test (Xia et al., Reference Xia, Xie, Salemi, Chen and Wang2003; Xia and Lemey, Reference Xia, Lemey, Lemey, Salemi and Vandamme2009). Both tests were estimated using the DAMBE 5 software package (Xia, Reference Xia2013). The stop codons were verified according to the translation frame and parameter for invertebrate mitochondrial DNA (translation frame 3, invertebrate mitochondrial table 5) using Geneious 7.1.3 software (Kearse et al., Reference Kearse, Moir, Wilson, Stones-Havas, Cheung, Sturrock and Drummond2012). We excluded from our analyses those sequences that were poorly aligned.

The genetic divergence analysis was conducted using the MEGA11 software package (Kimura, Reference Kimura1980; Tamura et al., Reference Tamura, Peterson, Peterson, Stecher, Nei and Kumar2011). We determined the best-fit evolutionary models in the resulting matrices using the Akaike information criterion in jModelTest software package (Posada, Reference Posada2008).

Phylogenetic reconstructions were performed using the maximum likelihood (ML) method in RAxML and the Bayesian inference (BI) method in MrBayes (Guindon and Gascuel, Reference Guindon and Gascuel2003; Ronquist and Huelsenbeck, Reference Ronquist and Huelsenbeck2003). Both analyses were conducted in the CIPRES Science Gateway (Miller et al., Reference Miller, Pfeiffer and Schwartz2010). In the ML analyses, only nodes with a bootstrap percentage (BP) greater than 70% were considered well-supported. In the BI, only nodes with a Bayesian posterior probability (BPP) greater than 90% were considered well-supported.

The trees were visualized and edited in the FigTree v1.3.3 software (Rambaut, Reference Rambaut2009). We used Dipetalonema robini Petit, Bain and Roussilhon, 1985 (access numbers: KP760183 and KP760329) and Onchocerca volvulus Bickel, 1982 (accession numbers: AM749285 and AF015193) as out-groups. The detailed information on onchocercids’ sequences included in the phylogenetic analyses is provided in Table 1.

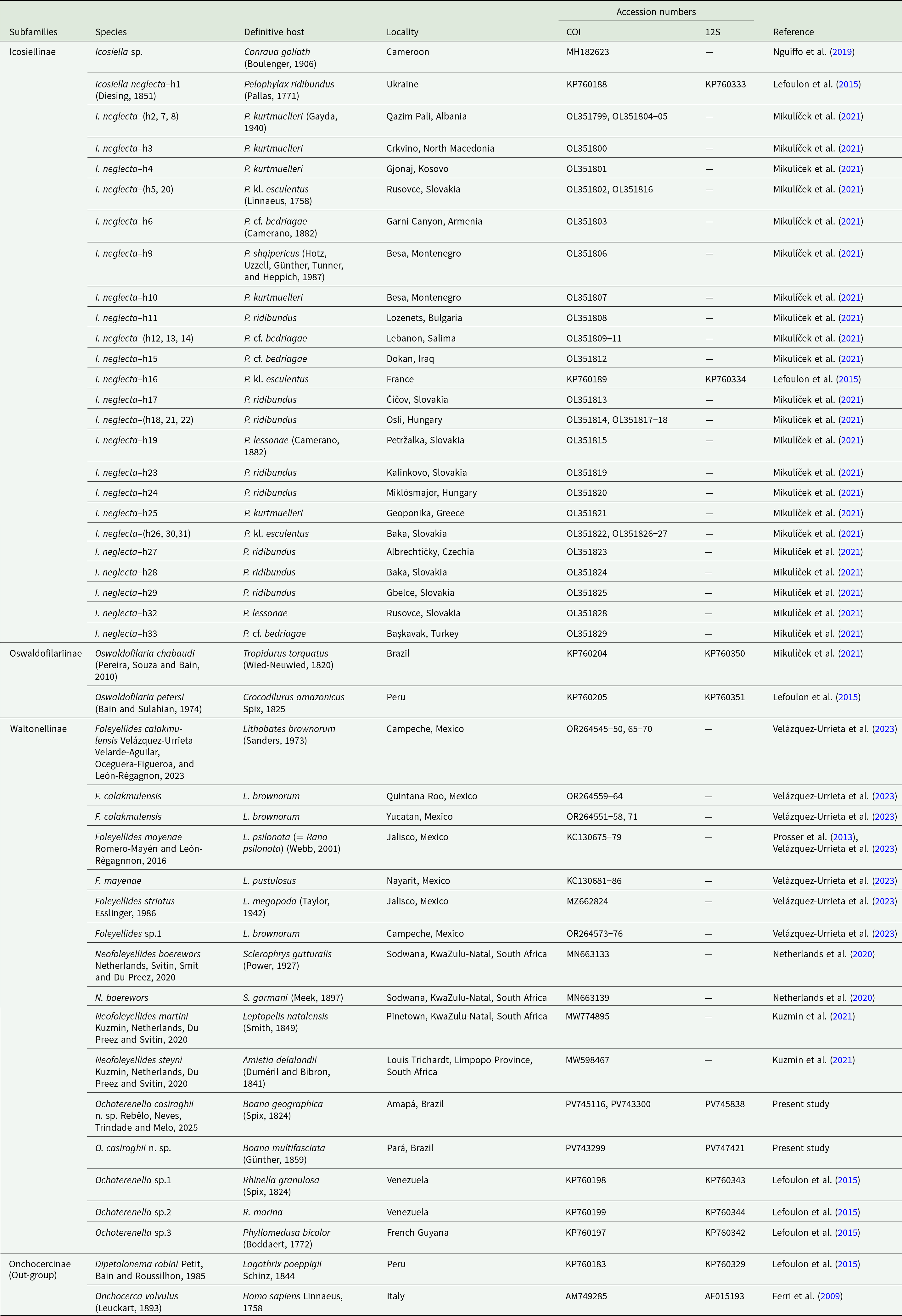

Table 1. Representatives of filarial species and subfamilies, hosts, localities, GenBank accession numbers and references used in phylogenetic analyses

Results

Systematics

Superfamily: Filarioidea Weinland, 1858

Family: Onchocercidae Leiper, 1911

Subfamily: Waltonellinae Bain and Prod’Hon, 1974

Genus: Ochoterenella Caballero, 1944

Species: Ochoterenella casiraghii n. sp. Rebêlo, Neves, Trindade and Melo, 2025

Taxonomic summary

Type host: Boana geographica (Spix, 1824) (Amphibia: Hylidae: Hylinae).

Additional host: Boana multifasciata (Günther, 1859) (Amphibia: Hylidae: Hylinae).

Type locality: ‘Beija-Flor Brilho de Fogo’ Extractive Reserve, Pedra Branca do Amapari municipality, state of Amapá, Brazil (0º47′30.6″N, 51°58′42.1″W).

Additional locality: Cancão Municipal Natural Park, Serra do Navio municipality, state of Amapá, Brazil (0°54′8.68″N, 52°0′19.62″W) and ‘Centro Nacional de Primatas (CENP)’, Ananindeua municipality, state of Pará, Brazil (1°22ʹ56.05″S, 48°22ʹ58.13″W).

Site of infection: Coelomic/body cavity.

Infection parameters: ‘Beija-Flor Brilho de Fogo’ Extractive Reserve prevalence 65.79% (25 infected hosts out of 38 analysed), mean intensity 6.4 (1–31), mean abundance 4.21 (62 males and 98 females); ‘Cancão’ Municipal Natural Park 8.33% (3 infected hosts out of 36 analysed), mean intensity 6.3 (3–10) and mean abundance 0.53 (5 males and 14 females); and ‘Centro Nacional de Primatas’ 9.67% (3 infected hosts out of 31 analysed), mean intensity 5.33 (2–10) and mean abundance 0.51 (5 males and 11 females).

Type material: Holotype, male (MPEG.NEM 000408); allotype, female (MPEG.NEM 000410); and paratypes, 9 males (MPEG.NEM 000407), 9 females MPEG.NEM 000409) and hologenophore (MPEG.NEM 000411) were deposited in the Invertebrate Collection of MPEG, Pará, Brazil.

Additional material: Cancão Municipal Natural Park vouchers for 3 males (MPEG.NEM 000412), 5 females (MPEG.NEM 000413) and hologenophore (MPEG.NEM 000414) ‘Centro Nacional de Primatas’ vouchers for 4 males (MPEG.NEM 000415), 10 females (MPEG.NEM 000416) and hologenophore (MPEG.NEM 000417) were deposited at the MPEG, Pará, Brazil.

GenBank Accession number: cox1 (PV745116, PV743299 and PV743300), and 12S rDNA (PV745838 and PV747421)

ZooBank registration:The Life Science Identifer for O. casiraghii n. sp. is urn:lsid:zoobank.org:pub:7EB50CFC-292D-4704-B5FE-489D0AAAD13C

Etymology: The specific epithet honours Dr Maurizio Casiraghi for his valuable contributions to the knowledge of filarial nematodes.

General. Body filiform, elongated, cylindrical and tapering on both extremities. Widest part posterior to oesophagus–intestinal junction (Figures 1A; 2A). Cuticle thin, caudal and lateral alae absent. Sexual dimorphism evident, females about 2 times longer than males. Cephalic extremity, rounded with flattened end (Figures 1C; 2B). Rectangular cephalic plate with 2 pairs of outer papillae and 2 pairs of internal papillae, each of them with a prominent cuticularized process; a pair of small amphids located laterally (Figures 1B, C; 2B; 3A; 4A). Oral opening circular, surrounded by a pair of small lateral and conspicuous cuticular flap-like parastomal structures (Figures 1B; 3A; 4A). Buccal capsule small and weakly cuticularized, wider than longer (Figures 1C; 2B). Oesophagus filariform divided into short muscular and longer glandular portions (Figures 1A; 2A). Nerve ring encircling muscular oesophagus at level of its posterior quarter (Figures 1A; 2A). Lateral cords present. Cuticular bosses rounded and longitudinally oriented in both sexes (Figures 1D, E, J; 2D, E; 3B, C; 4B, D, E). Microfilariae sheathed (Figure 2G).

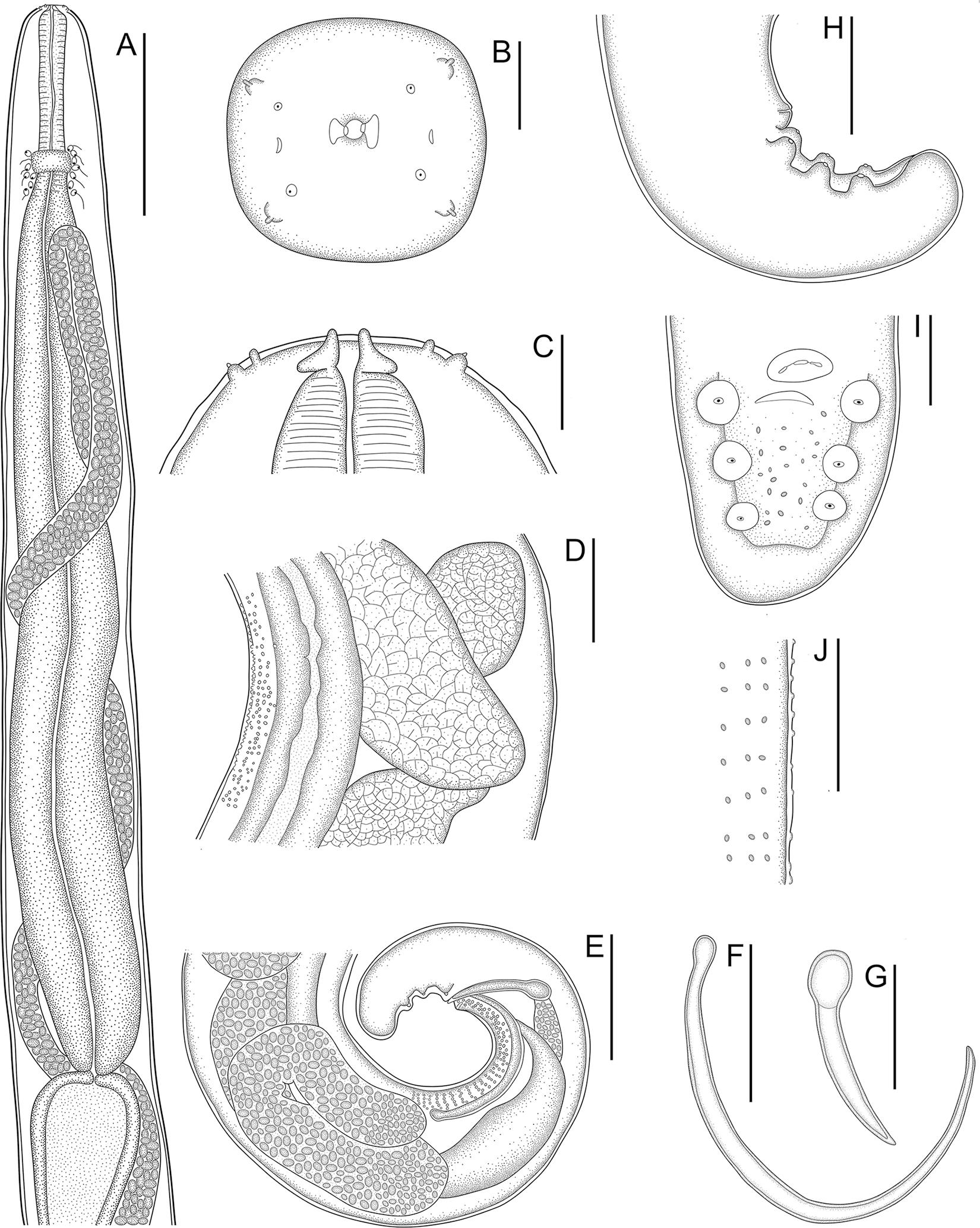

Figure 1. Line drawings of males of Ochoreterenella casiraghii n. sp. (A) Anterior end, lateral view; (B) cephalic extremity, apical view; (C) anterior extremity, lateral view; (D) bands of mid-body bosses and testis, lateral view; (E) posterior end, lateral view; (F) left spicule, lateral view; (G) right spicule, ventrolateral view; (H) caudal region, lateral view; (I) caudal region, ventral view; (J) cuticular bosses of the area rugosa, lateral view. Scale bars: A, I = 200 μm; B = 15 μm; C, D = 25 μm; E = 100 μm; F, G, H, J = 50 μm.

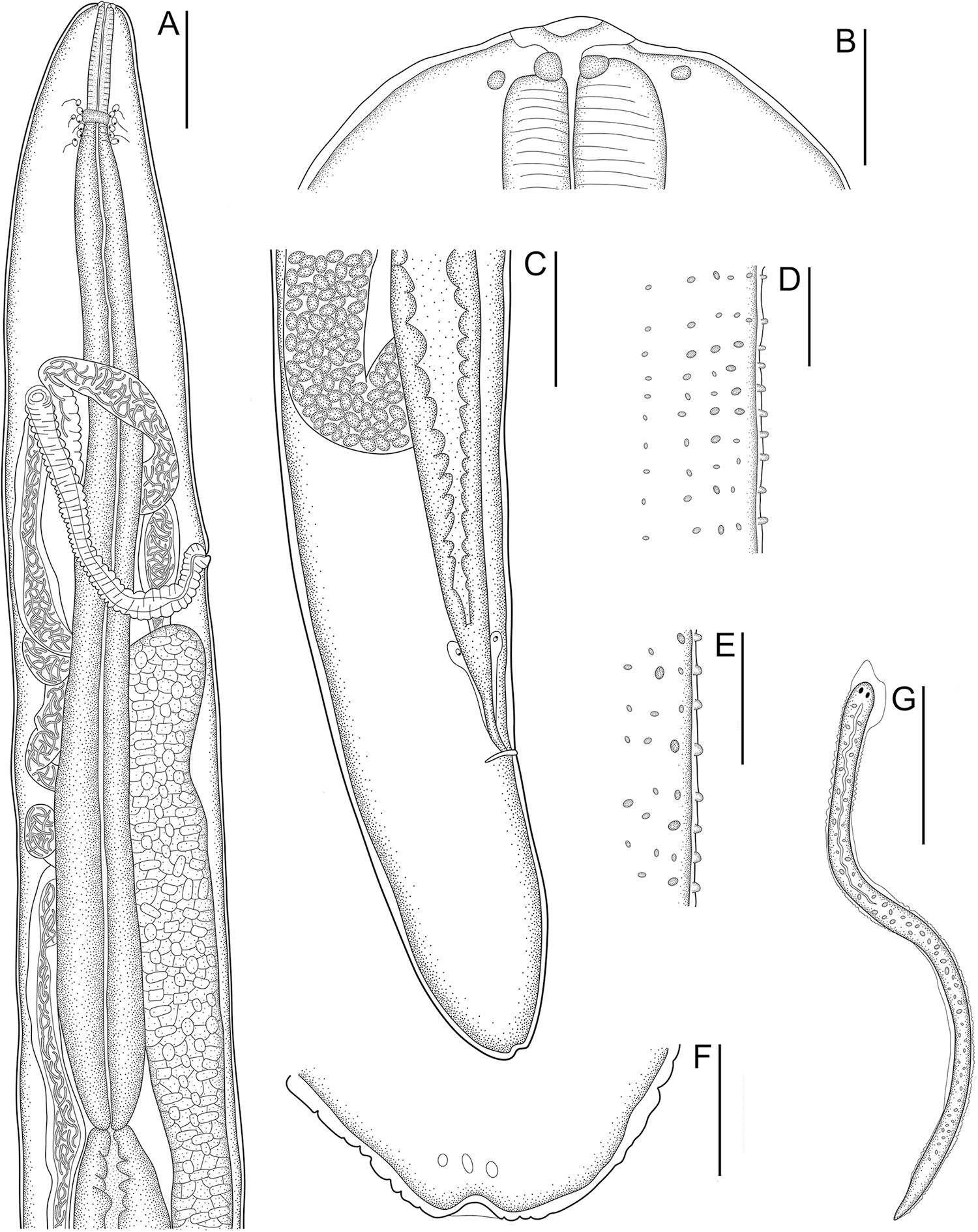

Figure 2. Line drawings of females of Ochoterenella casiraghii n. sp. (A) anterior end, lateral view; (B) cephalic extremity, lateral view; (C) posterior end, lateral view; (D) bands of mid-body bosses, lateral view; (E) cuticular bosses on the tail, lateral view; (F) detail of tail tip, lateral view; (G) microfilaria. Scale bars: A = 150 μm; B, C, D, E, G = 25 μm; F = 20 μm.

Figure 3. Scanning electron micrographs of males of Ochoterenella casiraghii n. sp. (A) Cephalic extremity, apical view (arrowheads: external papillae; asterisk: amphidial pores); (B) detail of mid-body bosses, ventral view; (C) detail of cuticular bosses of the area rugosa, ventral view; (D) caudal region, lateral view. Inset: detail of unpaired papilla. Abbreviations: cl, cloaca; unp, unpaired papilla; adcp; adcloacal papillae; poscp, postcloacal papillae; ps, parastomal structures. Scale bars: A, C = 10 μm; B, D = 20 μm; inset = 2 μm.

Males (based on holotype and 9 paratypes, all adult specimens). Total length 6.7; 7.4 (6.7–8.0) mm. Body width at nerve ring 133; 134 (112–147); width at muscular-glandular oesophagus junction 136; 137 (115–149) and at mid-body 195; 186 (168–211). Cephalic plate 34; 27 (22–34) long × 20; 18 (16–20) wide; length: width ratio 1.4; 1.5 (1.3–1.7). Parastomal structures 2.7 × 1.7. Buccal capsule 8.9; 5.8 (4.2–8.9) in diameter. Outer papillae 3.2; 2.1 (1–3.2) × 2.5; 2.3 (1–4). Oesophagus total length 1.283; 1.361 (1.258–1.464), corresponding to 19.1; 18.5 (16.5–20.2%) of body length. Muscular portion of oesophagus 235; 236 (179–264) × 32; 31 (24–40). Glandular portion of oesophagus 1.048; 1.125 (1.013–1.259) × 120; 116 (96–130). Ratio length of glandular: muscular oesophagus 4.5; 4.8 (3.9–7); ratio width of glandular: muscular oesophagus 3.8; 3.8 (2.8–5.2). Nerve ring located at 219; 215 (176–229) from anterior end; corresponding 3.3; 2.9 (2.7–3.3%) of body length. Testis single, tubular, flexing anteriorly forming loops and bending at glandular part of oesophagus (Figure 1A). Testis runs posteriorly, getting wider and reaching posterior to oesophagus–intestinal junction (Figure 1D). Ejaculatory duct narrower than testis, with a funnel-shaped proximal part (Figure 1E). Small, rounded cuticular bosses present on dorsal and ventral surfaces of the body from oesophagus to caudal region (Figures 1D, J; 3B, C); small bosses initially appear sparse and irregularly arranged, but become more organized and numerous along body, gradually forming evident transverse bands of longitudinally oriented bosses in mid-region of body measuring 1.6; 1.4 (1–1.8) in diameter, distance between bosses 6; 8 (6–13) and distance between bands 10; 11 (8–14). Area rugosa well-developed precloacal, its transverse bands consisted of small, numerous and defined bosses, longitudinally oriented measuring 1.6; 1.8 (1.6–2.6) in diameter, distance between bosses 2.1; 2.5 (1.6–3.2) and distance between bands 2.1; 3.2 (2.1–4.7) (Figures 1J; 3C). Presence of minor bosses and irregularly arranged on caudal region (Figure 1I). Caudal papillae arranged as follows: a single large precloacal plaque-shaped papilla anterior to cloacal aperture; 3 pairs of symmetrically large of sessile papillae: one adcloacal pair and 2 close postcloacal pairs (Figures 1H, I; 3D). Spicules distinctly unequal and dissimilar (Figure 1F, G). Right spicule short and robust, proximal end rounded, expanded and strongly cuticularized at insertion of retractor muscles; distal end sharply pointed and slightly curved ventrally 84; 84 (77–96) long. Left spicule longer and slender, weakly sclerotized, curved ventrally, proximal end rounded, getting gradually tubular and filamentous at distal end 184; 191 (160–242) long; spicular ratio 2.2; 2.3 (2.1–3). Posterior extremity of male, helically coiled with one to 2 turns (Figure 1E). Tail length 84; 94 (74–126); corresponding to 1.3; 1.3 (1–1.7%) of body length. Tail width at cloaca 55; 65 (53–91); length to width ratio 1.5; 1.4 (1.3–1.7).

Females (based on allotype and 9 paratypes, all gravid specimens). Total length 15.5; 13.6 (11.5–15.5) mm. Body width at nerve ring 192; 183 (155–240); at junction of muscular and glandular portions of oesophagus 163; 192 (163–240); at vulva 352; 300 (263–373); and at mid-body 373; 316 (289–373). Cephalic plate 35; 32 (25–36) long × 18; 18 (16–18) wide; ratio of length to width 1.9; 1.8 (1.6–2). Parastomal structures 3.2 × 1.7. Buccal capsule 9; 7.3 (4.7–10) in diameter. Outer papillae 2.6; 2.4 (1.6–3.7) × 3.1; 2.6 (1.6–4.2). Oesophagus total length 2.025; 1.878 (1.485–2.205), corresponding to 13.1; 13.9 (11.3–17.5%) of body length. Muscular portion of oesophagus 221; 261 (221–301) × 39; 39 (32–63). Glandular portion of oesophagus 1.808; 1.617 (1.485–1.952) × 128; 117 (101–132). Ratio length of glandular to muscular 8.2; 6 (5.4–8.2); ratio width of glandular to muscular 3; 3.1 (2.1–3.8). Nerve ring located at 213; 232 (192–280) from anterior end; corresponding to 1.4; 1.7 (1.4–2.2%) of body length. Intestine broad with wide lumen. Rectum thin, short and cuticularized (Figure 2C). Vulva prominent, transverse (Figures 2A; 4C) and located at level of glandular oesophagus at 1.040; 1.067 (888–1.227) from anterior end; corresponding to 6.7; 7.9 (6.7–9.1) of body length and 51; 57 (47–70%) of total oesophagus length. Ovejector muscular 1.101; 945 (581–1.786) long, extending anteriorly and coiled around glandular oesophagus, not reaching muscular oesophagus end (Figure 2A). Uterus containing tightly coiled microfilariae, forming numerous loops and filling the whole body, but not reaching the caudal region (Figure 2C). Cuticular bosses present on dorsal and ventral surfaces along body (Figures 2D, E; 4B, D). Bands of rounded bosses longitudinally oriented in mid-region 1.6; 1.9 (1.6–2.1) in diameter, distance between bosses 9; 11 (8–13) and distance between bands 15; 15 (11–19). On caudal region, bosses irregularly arranged, with different densities 1.6; 1.7 (1.1–2.6) in diameter. Tail rounded, tip with a small depression at posterior end 205; 341 (205–413) long; corresponding to 1.3; 2.5 (1.3–3.3%) of body length. Tail width at anus 168; 226 (168–264); length to width ratio 1.2; 1.5 (1.2–1.9). Anus on a small cuticular elevation (Figures 2C; 4D).

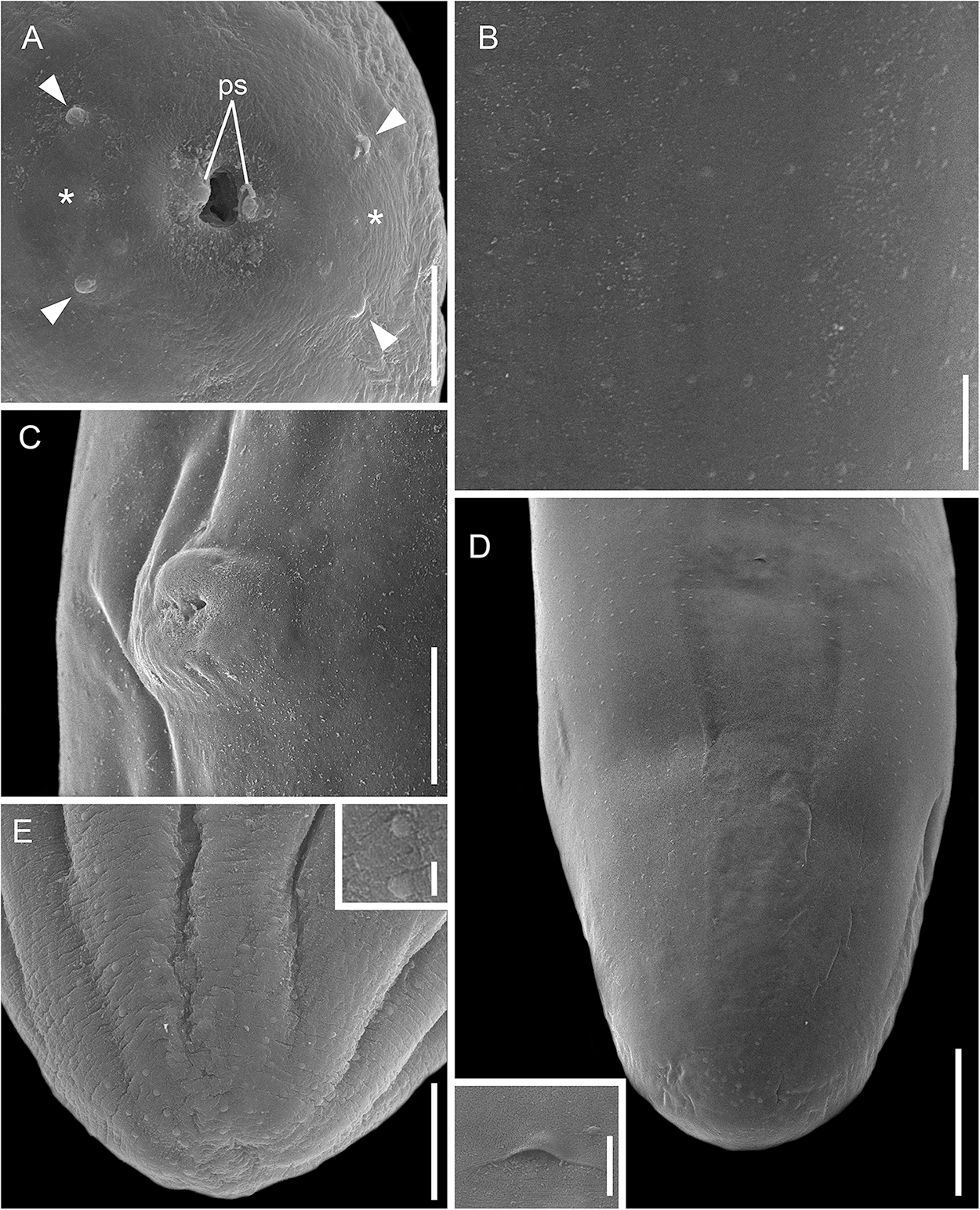

Figure 4. Scanning electron micrographs of females of Ochoterenella casiraghii n. sp. (A) Cephalic extremity, apical view (arrowheads: external papillae; asterisk: amphidial pores); (B) detail of mid-body bosses, ventral view; (C) vulva, ventrolateral view; (D) caudal region, ventral view; inset: detail of anus, ventral view; (E) detail of tail tip; inset: detail of bosses of the tail. Abbreviation: ps, parastomal structures. Scale bars: A, B = 10 μm; C, E = 20 μm; D – inset = 2 μm; E – inset: 5 μm.

Microfilariae (Figure 2G) (based on 7 specimens, all extracted from the uterus of one gravid specimen). Body cylindrical 106 (95–121) long. Maximum width 4.6 (4.2–5.2). Anterior end wider, rounded, gradually tapering to posterior end with an attenuated tail tip. Sheath present, prominent in both extremities, exceeding length of microfilaria. Cephalic hook small and difficult to distinguish from terminal expansions, imperceptible. Cephalic space short 4.6 (3.7–6.3) long, with 2 large ovoid nuclei. Refractile granules tiny, seen along entire body.

Variability: Values of body and oesophagus length varied between samples. The cuticular bosses on the body and pattern of caudal papillae did not vary among the specimens analysed. The measurements of specimens obtained from different localities are given in Table 2.

Table 2. Morphometric data of Ochoterenella casiraghii n. sp. parasite of tree frogs from different localities

All measurements are in micrometres unless otherwise indicated (

a single papillae,

b paired papillae,

* from anterior end and **type series).

Remarks

The new species was assigned to Ochoterenella based on molecular data and the following morphological traits referred by Esslinger (Reference Esslinger1986a, b) and Lima et al. (Reference Lima, Marun, Alves and Bain2012): oral opening circular surrounded by 2 cuticularized flap-like parastomal structures, distinct buccal capsule, cephalic plate with 4 pairs of articulated papillae, bands of longitudinally oriented bosses in mid-body present in both sexes, absence of lateral and caudal alae; males exhibit unequal and dissimilar spicules; females with vulva located at glandular oesophagus region and sheathed microfilariae.

According to Esslinger (Reference Esslinger1989), the species of Ochoterenella differ in the number, size and position of the cuticular bosses on females. Although males of Ochoterenella spp. are often unknown, their morphological characteristics help distinguish species, such as the shape and arrangement of cuticular bosses, the size of spicules and the pattern of caudal papillae.

The females of the new species have short mid-body bosses measuring less than 8 μm. This characteristic resembles Ochoterenella esslingeri Souza-Lima and Bain, 2012 (Brazil), described from Bokermannohyla luctuosa (Pombal and Haddad, 1993); Ochoterenella complicata Esslinger, 1989 (Colombia); Ochoterenella dufourae Bain, Kim and Petiti, 1979 (Guyana); and Ochoterenella guyanensis Bain and Prod’Hon, 1974 (Guyana), all of them were described from Rhinella marina (Linnaeus, 1758) (Bain and Prod’Hon, Reference Bain and Prod’Hon1974; Bain et al., Reference Bain, Prod’Hon and Petit1979; Esslinger, Reference Esslinger1989; Lima et al., Reference Lima, Marun, Alves and Bain2012). However, Ochoterenella casiraghii n. sp. is smaller than O. dufourae in body dimensions (11.5–15.5 mm length × 289–373 wide in O. casiraghii n. sp. vs 32–44 mm × 560 in O. dufourae), cephalic plate (25–36 × 16–18 in O. casiraghii n. sp. vs 42 × 30 in O. dufourae), individual mid-body bosses (1.6–2.1 in O. casiraghii n. sp. vs 4–7 in O. dufourae), distance between them (8–13 in O. casiraghii n. sp. vs 6–50 in O. dufourae) and distance between bands (11–19 in O. casiraghii n. sp. vs 30–80 in O. dufourae). The tail of the new species has a rounded tip (abruptly attenuated tip, nearly truncate in O. dufourae), and microfilariae exhibit a wider anterior end than mid-body (as wide as mid-body in O. dufourae), with attenuated posterior end (slightly attenuated in O. dufourae).

Ochoterenella casiraghii n. sp. can be easily distinguished from O. esslingeri by the relative position of the vulva that in the new species is at the oesophagus glandular region, while it is at the intestinal region in O. esslingeri (888–1.227 in O. casiraghii n. sp. vs 1.672–2.360 in O. esslingeri). Additionally, the presence of mid-body bosses is restricted to the posterior region in O. esslingeri. The new species is smaller than O. esslingeri in body length (11.5–15.5 mm in O. casiraghii n. sp. vs 34.5–37.7 mm in O. esslingeri), cephalic plate (25–36 × 16–18 in O. casiraghii n. sp. vs 53–58 × 30–36 in O. esslingeri), body width at vulva (263–373 in O. casiraghii n. sp. vs 470–520 in O. esslingeri) and ovijector (581–1.786 in O. casiraghii n. sp. vs 2.920 in O. esslingeri). Furthermore, Ochoterenella casiraghii n. sp. has greater values of the oesophagus length to body length ratio (11.5–15.5 mm in O. casiraghii n. sp. vs 4.8–6.5 mm in O. esslingeri) and vulva to body length ratio (6.7–9.1 in O. casiraghii n. sp. vs 3.2–4.3 in O. esslingeri).

The new species is smaller compared to O. guyanensis in body dimensions (11.5–15.5 mm × 289–373 in O. casiraghii n. sp. vs 26.0–45.0 mm × 450 in O. guyanensis), cephalic plate (25–36 × 16–18 in O. casiraghii n. sp. vs 78 × 50 in O. guyanensis), ovejector (581–1.786 in O. casiraghii n. sp. vs 2.450 in O. guyanensis) and tail length (205–413 in O. casiraghii n. sp. vs 640 in O. guyanensis). Additionally, in O. casiraghii n. sp. mid-body bosses are rounded (rectangular in O. guyanensis), individual bosses are smaller (1.6–2.1 in O. casiraghii n. sp. vs 5 in O. guyanensis), more distant between each other (8–13 in O. casiraghii n. sp. vs 4–5 in O. guyanensis) and the distance between each band is smaller (11–19 in O. casiraghii n. sp. vs 30–35 in O. guyanensis). The microfilariae in O. casiraghii n. sp. are smaller (95–121 in O. casiraghii n. sp. vs 130–190 in O. guyanensis), with a wider anterior end than mid-body (slightly attenuated in O. guyanensis) and an attenuated posterior end (rounded tip in O. guyanensis).

Although O. casiraghii n. sp. resembles O. complicata in diameter of mid-body bosses, the new species differs in their rounded shape (thin and slightly expanded in O. complicata), closest distance between bosses (8–13 in O. casiraghii n. sp. vs 18–27 in O. complicata) and bands (11–19 in O. casiraghii n. sp. vs 26–37 in O. complicata). Ochoterenella casiraghii n. sp. is smaller than O. complicata in body length, (11.5–15.5 mm in O. casiraghii n. sp. vs 27–35 mm in O. complicata), cephalic plate (25–36 × 16–18 in O. casiraghii n. sp. vs 32–50 × 19–26 in O. complicata) and parastomal structures (3.2 × 1.7 in O. casiraghii n. sp. vs 3.5–4 × 2 in O. complicata). Furthermore, the microfilariae of the new species are wider on the anterior end than on the mid-body (as wide as the mid-body in O. complicata), with an attenuated posterior end (rounded tip in O. complicata).

Until now, the male specimens are known only for the following species of Ochoterenella: O. convoluta (Molin, 1858) Esslinger, 1986, O. digiticauda Caballero, 1944, O. esslingeri, O. figueiroai Esslinger, 1988, O. guyanensis, O. oumari Bain, Kim and Petit, 1979, O. royi Bain, Kim and Petit, 1979, O. scalaris (Travassos, 1929) Esslinger, 1986 and O. vellardi (Travassos, 1929) Esslinger, 1986 (Travassos, Reference Travassos1929; Bain et al., Reference Bain, Prod’Hon and Petit1979; Esslinger, Reference Esslinger1986a, Reference Esslinger1988b; Lima et al., Reference Lima, Marun, Alves and Bain2012). However, the new species can be easily distinguished from all of them by the smallest number of postcloacal papillae in males (2 close pairs in O. casiraghii n. sp. vs 3 pairs in other species). Furthermore, the new species is smaller in body size (6.7–8.0 mm in O. casiraghii n. sp. vs ranging from 14.9 to 36 mm in the other species), cephalic plate (22–34 × 16–20 in O. casiraghii n. sp. vs ranging 34–58 × 26–37 in the other species), individual mid-body bosses (1–1.8 in O. casiraghii n. sp. vs ranging from 3 to 14 in the other species), the distance between mid-body bands (8–14 in O. casiraghii n. sp. vs ranging from 17 to 63 in the other species) and distance between area rugosa bands (2.1–4.7 in O. casiraghii n. sp. vs ranging from 14 to 50 in the other species).

Therefore, a combination of unique characteristics distinguishes the new species from its congeners: a smaller body size, a shorter cephalic plate, fewer parastomal structures, small and short individual bosses present on both sexes and the closest distance between bosses and bands. The females have a shorter ovijector, and males differ in the number and arrangement of caudal papillae: a single precloacal plaque-shaped papilla, one adcloacal pair and only 2 close postcloacal pairs.

Notes on the distribution of Ochoterenella species

Our bibliographic revision revealed that the diversity of Ochoterenella comprises 17 taxa parasitizing 31 host species across 11 countries in the Neotropical region. Of those countries, Brazil has the highest number of species (6 taxa), found infecting 20 species of anurans, followed by Mexico (6 taxa and 3 hosts), Guyana (5 taxa and 1 host), Peru (3 taxa and 6 hosts), Guatemala (3 taxa and 1 host), Costa Rica (2 taxa and 4 hosts), Colombia (1 taxon and 1 host), Ecuador (1 taxon and 1 host), Jamaica (1 taxon and 1 host), Paraguay (1 taxon and 1 host) and Venezuela (1 taxon and 1 host) (Figure 5; Supplementary Table S1).

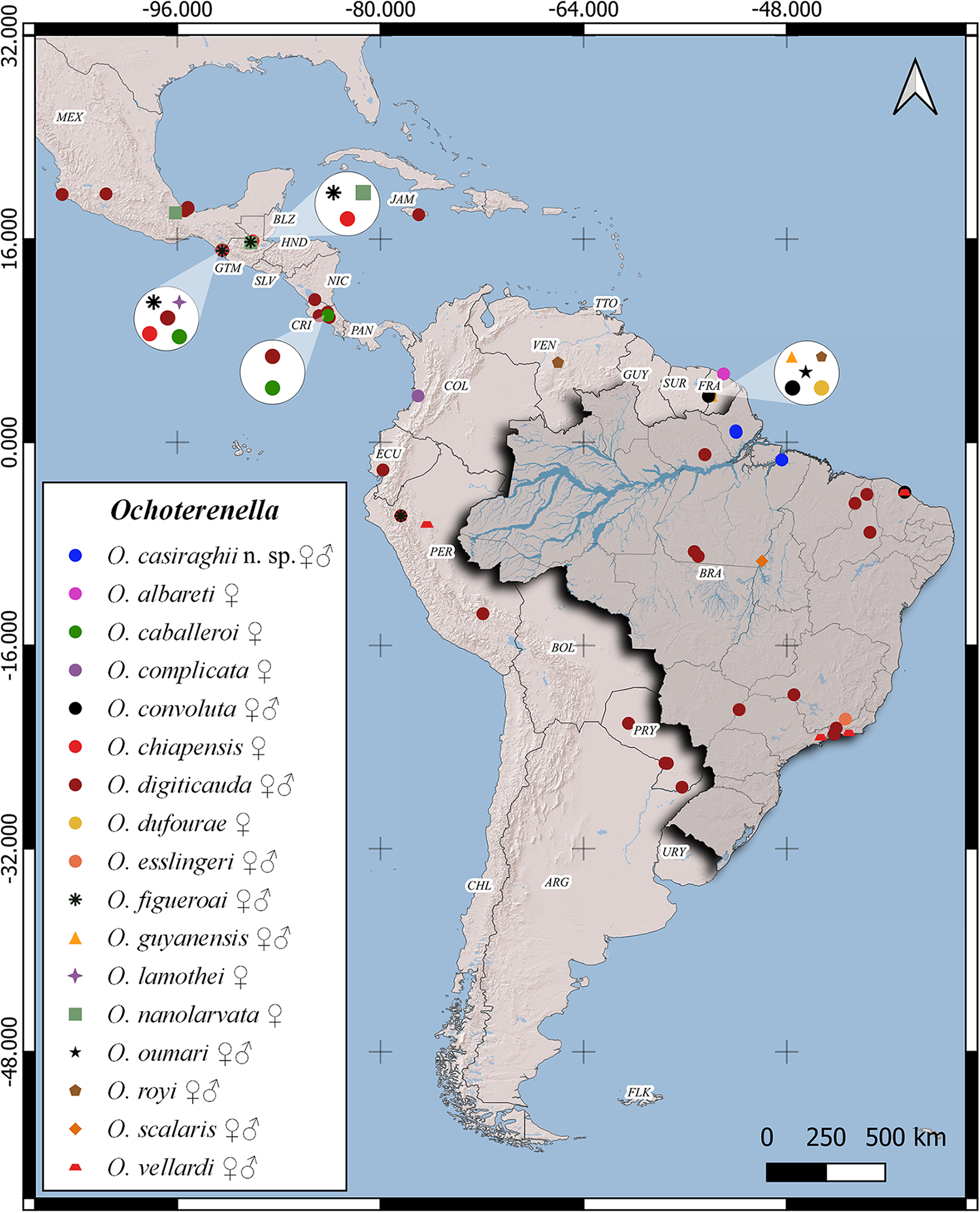

Figure 5. Ochoterenella species distribution map. Symbols: ♀ = females; ♂ = males.

A total of 6 anuran families were recorded: Bufonidae (14 taxa and 5 hosts), Hylidae (5 taxa and 13 hosts), Leptodactylidae (2 taxa and 9 hosts), Craugastoridae (1 taxon and 2 hosts), Ranidae (1 taxon and 2 hosts) and Strabomantidae (1 taxon and 1 host). The giant toad R. marina showed the most remarkable species diversity, with 14 taxa recorded. Ochoterenella digiticauda is the most common species found, parasitizing 18 hosts from 7 countries. In Brazil, O. convoluta and O. digiticauda were registered in 5 hosts. We observed that O. convoluta, O. digiticauda, O. scalaris and O. vellardi were found parasitizing a broad spectrum of host species, while the remaining Ochoterenella were recorded in a single host. Males of 7 species are unknown (O. albareti, O. caballeroi, O. chiapensis, O. complicata, O. dufourae, O. lamothei and O. nanolarvata) (Figure 5; Supplementary Table S1).

Molecular analyses and phylogenetic study

We obtained 5 sequences, 3 of which were from cox1 and 2 from 12S, from localities within the Amazon biome (Table 3). The cox1 matrix resulted in 91 taxa and 325 sites. The model indicated by the JModelTest was HKY + I + G (gamma shape parameter = 0.3070; lnL = −2521.7932). The second matrix concatenated included only 11 taxa and 923 sites. The models indicated for the cox1 and 12S rDNA gene dataset were GTR + I + G (gamma shape parameter a = 0.7240; lnL = −2071.6143) and TIM3 + G (gamma shape parameter a = 0.3410; lnL = −1328.9254), respectively. The BI results in both matrices show that the ESSs are robust for all parameters. Xia’s test provided no evidence for substitution saturation in any data matrix.

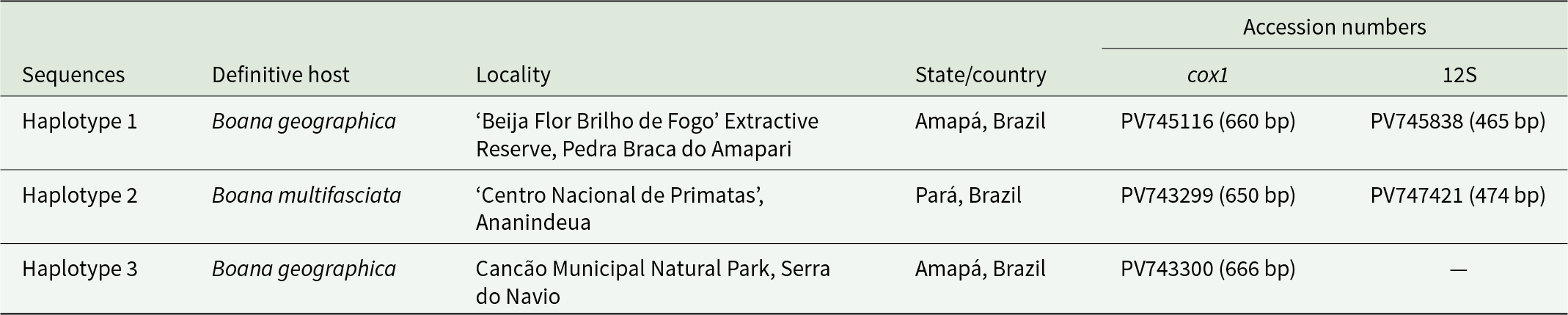

Table 3. Haplotypes obtained from the samples of the present study

The new sequences are highly divergent from Ochoterenella sp.1 (13.14% in cox1 and 9.06% in 12S rDNA), Ochoterenella sp.2 (13.58% in cox1 and 8.34% in 12S rDNA) and Ochoterenella sp.3 (13.61% in cox1; 9.72% in 12S rDNA) (Supplementary Tables S2, S3). Both phylogenies revealed 3 main supported clades, corresponding to representatives of the subfamilies Oswaldofilariinae Chabaud and Bain, 1976 (cox1: BP = 42, BPP = 96; concatenated: BP = 100, BPP = 100), Icosiellinae Chabaud and Bain, 1976 (cox1: BP = 45, BPP = 93; concatenated: BP = 100, BPP = 100) and Waltonellinae (cox1: BP = 82, BPP = 100; concatenated: BP = 100, BPP = 100). We also recovered sequences of all genera as monophyletic groups (Figures 6; 7).

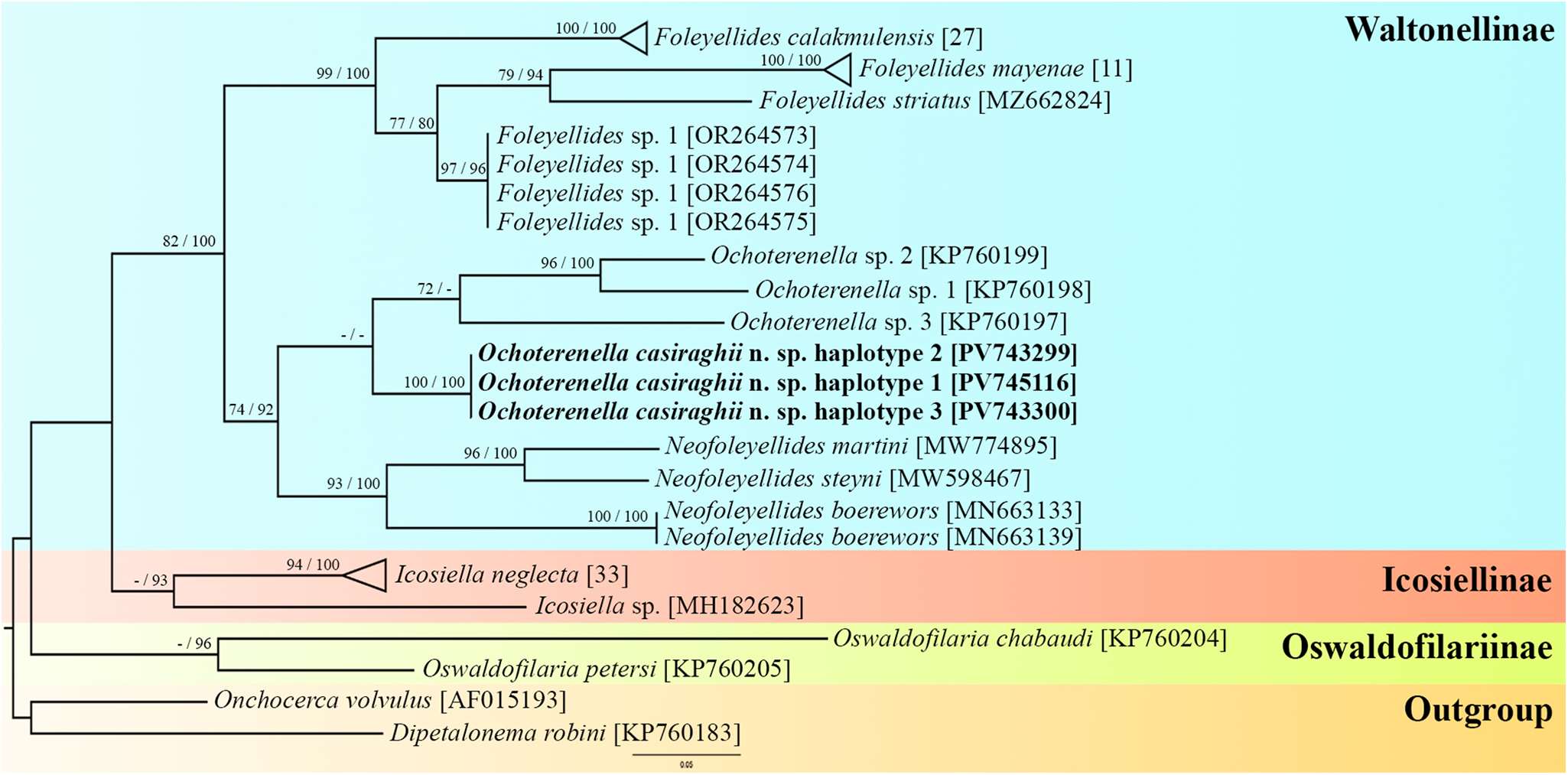

Figure 6. Phylogram of filarid parasites of amphibians and reptiles from the family Onchocercidae based on cox1 sequences using maximum likelihood (ML) and Bayesian inference (BI). Dipetalonema robini and Onchocerca volvulus represent the out-groups. GenBank accession numbers follow each taxon. Support values are above or below nodes: posterior probabilities < 90 and bootstrap < 70 are not shown or are represented by a dash. The branch-length scale bar indicates the number of substitutions per site.

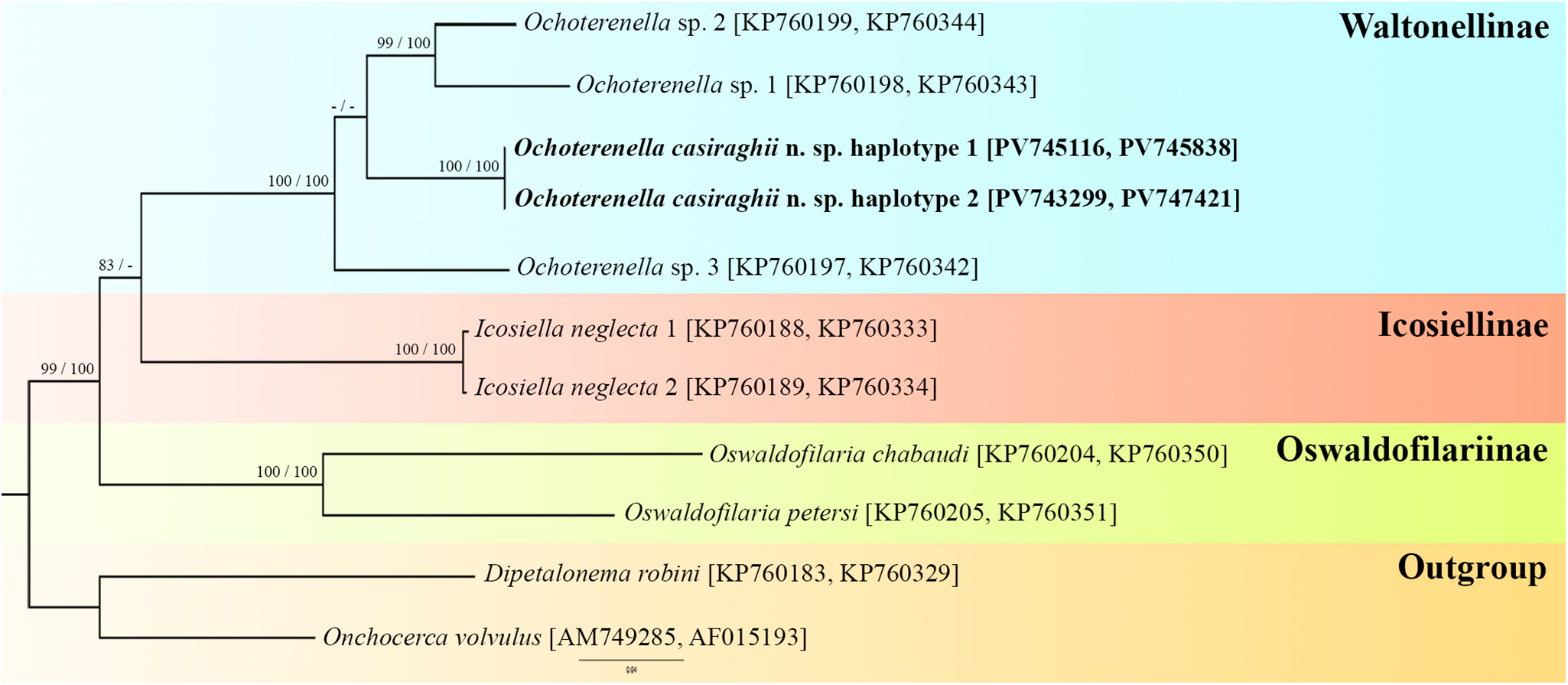

Figure 7. Phylogram of filarid parasites of amphibians and reptiles from the family Onchocercidae based on concatenated datasets of cox1 and 12S rDNA sequences using maximum likelihood (ML) and Bayesian inference (BI). Dipetalonema robini and Onchocerca volvulus represent the out-groups. GenBank accession numbers follow each taxon. Support values are above or below nodes: posterior probabilities < 90 and bootstrap < 70 are not shown or are represented by a dash. The branch-length scale bar indicates the number of substitutions per site.

Sequences of Ochoterenella sp.1 and Ochoterenella sp.2 parasite of Bufonidae hosts from Venezuela showed the closest relationships (cox1: BP = 96, BPP = 100; concatenated: BP = 99, BPP = 100), while O. casiraghii n. sp. parasite of B. geographica (Hylidae: Hylinae) from Brazil and Ochoterenella sp.3 parasite of P. bicolor (Hylidae: Phyllomedusinae) from French Guyana formed separate branches within the clade exclusively formed by Ochoterenella species (cox1: BP = 63, BPP = 69; concatenated: BP = 100, BPP = 100) (Figures 6; 7).

In the cox1 phylogenetic tree, the representatives of the Waltonellinae formed 3 major clades: Foleyellides Caballero, 1935 (BP = 99, BPP = 99), Neofoleyellides Netherlands, Svitin, Smit and Du Preez, 2020 (BP = 93, BPP = 100) and Ochoterenella (BP = 63, BPP = 69). Ochoterenella is more closely related to Neofoleyellides than Foleyellides among the other genera. The Neofoleyellides clade showed that N. martini Netherlands, Svitin, Smit and Du Preez, 2020 and N. steyni Netherlands, Svitin, Smit and Du Preez, 2020 (BP = 96, BPP = 100) are positioned closer to each other in the cladogram than N. boerewors Netherlands, Svitin, Smit and Du Preez, 2020. Our analyses placed F. calakmulesis as a well-supported clade, and a sister group to the clade of Foleyellides sp.1 + F. striatus (Ochoterena and Caballero, 1932) Caballero, 1935 + F. mayenae Romero-Mayén and León-Règagnon, 2016, all parasites of Lithobates Fitzinger, 1843 frogs from Mexico (BP = 99, BPP = 100). The subfamily Icosiellinae formed a sister clade to Waltonellinae (BP = 45, BPP = 93), while Oswaldofilariinae (BP = 42, BPP = 96) formed an independent clade of parasites exclusively of reptiles from South America (Figure 6).

The phylogenetic tree reconstructed from concatenated partial mitochondrial sequences recovered similar results to those of the cox1 phylogeny. Clades of subfamilies and genera remained the same, but Waltonellinae were represented only by Ochoterenella (BP = 95, BPP = 99). The Oswaldofilariinae subfamily is the earliest diverging lineage of the in-group analyses. In concatenated trees, most clade support values are higher than those in the cox1 phylogeny (Figure 7).

Discussion

The morphological and molecular data strongly support the independent species status of Ochoterenella parasitic in 2 hylid frogs from the Brazilian Amazon. Intraspecific variations were observed in body length and the glandular oesophagus (Table 2). Although we did not find genetic divergence among the samples, similar results were also found in I. neglecta populations that exhibited morphological variation and high genetic similarity (Kuzmin et al., Reference Kuzmin, Dmytriieva and Svitin2023).

We observed high divergence among the sequences obtained for the new species and its congeners, using the 2 most common molecular markers, cox1 and 12S rDNA (Supplementary Tables S2, S3). In the case of cox1, the values exceeded the threshold of 4.8% used to separate new filarial species (Ferri et al., Reference Ferri, Barbuto, Bain, Galimberti, Uni, Guerrero, Ferté, Bandi, Martin and Casiraghi2009, Reference Ferri, Bain, Barbuto, Martin, Lo, Uni, Landmann, Baccei, Guerrero, Lima, Bandi, Wanji, Diagne and Casiraghi2011; Kuzmin et al., Reference Kuzmin, Dmytriieva and Svitin2023). As previously suggested, both molecular markers are considered suitable for differentiating onchocercid species (Santos et al., Reference Santos, Duarte, Carvalho, Monteiro, Carvalho, Mendonça, Valente, Sheikhnejad, Waap and Gomes2022).

The cox1 gene is ideal for resolution at lower taxonomic levels, while the 12S rDNA gene is often concatenated to other mitochondrial genes to maximize the discriminatory power of the nucleotide variability (Casiraghi et al., Reference Casiraghi, Anderson, Bandi, Bazzocchi and Genchi2001, Reference Casiraghi, Bain, Guerrero, Martin, Pocacqua, Gardner, Franceschi and Bandi2004; Ferri et al., Reference Ferri, Barbuto, Bain, Galimberti, Uni, Guerrero, Ferté, Bandi, Martin and Casiraghi2009; Lefoulon et al., Reference Lefoulon, Kuzmin, Plantard, Mutafchiev, Otranto, Martin and Bain2014; Laidoudi et al., Reference Laidoudi, Lia, Mendoza-Roldan, Modrý, De Broucker, Mediannikov, Mediannikov, Davoust and Otranto2021; Mikulíček et al., Reference Mikulíček, Mešková, Cyprich, Jablonski, Papežík, Hamidi, Pekşen, Vörös and Benovics2021; Santos et al., Reference Santos, Duarte, Carvalho, Monteiro, Carvalho, Mendonça, Valente, Sheikhnejad, Waap and Gomes2022). Thus, the genetic divergence observed in our sequences compared to other sequences registered in GenBank reinforces that O. casiraghii n. is a new filarid species.

Our phylogenetic analyses of onchocercid parasites of amphibians and reptiles strongly support the monophyly of Oswaldofilariinae, Icosiellinae and Waltonellinae. Previous phylogenetic studies also recovered the clades of these subfamilies, traditionally considered ancient and that diverged before Gondwana’s break-up (Chabaud and Bain, Reference Chabaud and Bain1994; Bain, Reference Bain and Rajan2002; Bain et al., Reference Bain, Casiraghi, Martin and Uni2008; Lefoulon et al., Reference Lefoulon, Bain, Bourret, Junker, Guerrero, Cañizales, Kuzmin, Satoto, Cardenas-Callirgos, Lima, Raccurt, Mutafchiev, Gavotte and Martin2015, Reference Lefoulon, Bain, Makepeace, d’Haese, Uni, Martin and Gavotte2016; Feldman et al., Reference Feldman, Jimenez-Rocha, Morales-Acuña, León-Bolaños and Blystone2020; Mikulíček et al., Reference Mikulíček, Mešková, Cyprich, Jablonski, Papežík, Hamidi, Pekşen, Vörös and Benovics2021; Uni et al., Reference Uni, Udin, Tan, Rodrigues, Martin, Junker, Agatsuma, Low, Lim, Saijuntha, Omar, Zainuri, Fukuda, Kimura, Matsubayashi, Uga, Takaoka, Azirun and Ramli2022; Velázquez-Urrieta et al., Reference Velázquez-Urrieta, Velarde-Aguilar, Oceguera-Figueroa and León-Règagnon2023).

In contrast, Kuzmin et al. (Reference Kuzmin, Netherlands, du Preez and Svitin2021) and Netherlands et al. (Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020), who combined molecular markers, did not recover the monophyly of Waltonellinae as observed in the present study, and Icosiellinae were placed as the sister group to Oswaldofilariinae. These differences observed in the Netherlands et al. (Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020) can be explained by the smaller number of genetic regions used; usually, to infer phylogenetic trees at higher taxonomic levels (7 onchocercid subfamilies), this factor can reduce clade resolution. Furthermore, both studies used a different molecular marker (18S rDNA), which changes the number of sequences of taxa in concatenated phylogenetic trees.

Although the 3 subfamilies formed distinct lineages that were closely related, the topologies placed Oswaldofilariinae as the earliest diverging lineage, which evolved independently of the 2 other subfamilies. These findings are supported by previous molecular analyses (Lefoulon et al., Reference Lefoulon, Bain, Bourret, Junker, Guerrero, Cañizales, Kuzmin, Satoto, Cardenas-Callirgos, Lima, Raccurt, Mutafchiev, Gavotte and Martin2015, Reference Lefoulon, Bain, Makepeace, d’Haese, Uni, Martin and Gavotte2016; Feldman et al., Reference Feldman, Jimenez-Rocha, Morales-Acuña, León-Bolaños and Blystone2020; Mikulíček et al., Reference Mikulíček, Mešková, Cyprich, Jablonski, Papežík, Hamidi, Pekşen, Vörös and Benovics2021; Uni et al., Reference Uni, Udin, Tan, Rodrigues, Martin, Junker, Agatsuma, Low, Lim, Saijuntha, Omar, Zainuri, Fukuda, Kimura, Matsubayashi, Uga, Takaoka, Azirun and Ramli2022; Velázquez-Urrieta et al., Reference Velázquez-Urrieta, Velarde-Aguilar, Oceguera-Figueroa and León-Règagnon2023). Indeed, members of Oswaldofilariinae are parasites of reptiles that have several morphological plesiomorphic traits, including a long oesophagus, large buccal capsule, presence of deirids, the vulva located very far from the anterior end and the infective larvae with longitudinal cuticular body crests (Chabaud and Bain, Reference Chabaud and Bain1994; Bain et al., Reference Bain, Casiraghi, Martin and Uni2008; Pereira et al., Reference Pereira, Lima and Bain2010). Icosiellinae and Waltonellinae form closely related phylogenetic clades, which are restricted to amphibians, and their diversity is primarily a result of the Mesozoic radiations of anuran hosts (Bain and Prod’Hon, Reference Bain and Prod’Hon1974; Anderson and Bain, Reference Anderson, Bain, Anderson, Chabaud and Willmott2009; Bain et al., Reference Bain, Mutafchiev, Junker and Schmidt-Rhaesa2013).

In our study, all genera formed monophyletic groups; these results are similar to most previous morphological and molecular analyses (Esslinger, Reference Esslinger1986a, Reference Esslinger1986b; Anderson and Bain, Reference Anderson, Bain, Anderson, Chabaud and Willmott2009; Lefoulon et al., Reference Lefoulon, Bain, Bourret, Junker, Guerrero, Cañizales, Kuzmin, Satoto, Cardenas-Callirgos, Lima, Raccurt, Mutafchiev, Gavotte and Martin2015, Reference Lefoulon, Bain, Makepeace, d’Haese, Uni, Martin and Gavotte2016; Feldman et al., Reference Feldman, Jimenez-Rocha, Morales-Acuña, León-Bolaños and Blystone2020; Netherlands et al., Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020; Kuzmin et al., Reference Kuzmin, Netherlands, du Preez and Svitin2021; Mikulíček et al., Reference Mikulíček, Mešková, Cyprich, Jablonski, Papežík, Hamidi, Pekşen, Vörös and Benovics2021; Uni et al., Reference Uni, Udin, Tan, Rodrigues, Martin, Junker, Agatsuma, Low, Lim, Saijuntha, Omar, Zainuri, Fukuda, Kimura, Matsubayashi, Uga, Takaoka, Azirun and Ramli2022; Wu et al., Reference Wu, Ma, Wang, Xie, Lv, Zeng, Xu, Qin and Chang2022). Conversely, Velázquez-Urrieta et al. (Reference Velázquez-Urrieta, Velarde-Aguilar, Oceguera-Figueroa and León-Règagnon2023) found that Foleyellides rhinellae García-Prieto, Ruiz-Torres, Osorio-Sarabia and Merlo-Serna (2014) grouped within the Ochoterenella clade. We did not include this sequence (GenBank access: OR268888 and OR268889) in our comparisons because it was poorly aligned in all matrices. Moreover, our results reinforce the need for a taxonomic reassessment to determine if this species should be transferred to Ochoterenella.

Foleyellides, Neofolleyelides and Ochoterenella comprise genera that are well-supported through both morphological and molecular data; however, their evolutionary relationships remain uncertain. Our results revealed that Ochoterenella species appeared to be more closely related to Neofoleyellides. In the study by Velázquez-Urrieta et al. (Reference Velázquez-Urrieta, Velarde-Aguilar, Oceguera-Figueroa and León-Règagnon2023), Ochoterenella is placed as the sister group of Foleyellides. In contrast, Netherlands et al. (Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020) and Kuzmin et al. (Reference Kuzmin, Netherlands, du Preez and Svitin2021) show Ochoterenella and Foleyellides as separate branches, with Neofoleyellides forming a sister group to the clade composed of Icosiellinae and Oswaldofilariinae. In neither scenario, Foleyellides and Neofoleyellides were placed into a closely related clade; therefore, molecular analyses suggest that their morphological similarities evolved independently within this group of parasites. As previously suggested by Netherlands et al. (Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020), the increased sampling of other species and genera from Waltonellinae will provide a more complete overview of the phylogenetic relationships within this subfamily.

Our results indicate host and geographical associations in Ochoterenella species. The affinities amongst Ochoterenella species revealed Ochoterenella sp.1 (R. granulosa) closest to Ochoterenella sp.2 (R. marina), both parasites of Bufonidae hosts from Venezuela, while O. casiraghii n. sp. parasitic in B. geographica and B. multifasciata from Brazil and Ochoterenella sp.3 parasites of P. bicolor from French Guiana formed separate branches. Although both species are parasitic in Hylidae hosts, these anurans belong to distinct subfamilies: B. geographica and B. multifasciata in Hylinae, and P. bicolor in Phyllomedusinae. However, only additional sequences of the genus from different localities and anuran taxa will strongly support this hypothesis.

Interestingly, the relationships among Foleyellides species parasitizing anurans of the genus Lithobates resemble those found by Velázquez-Urrieta et al. (Reference Velázquez-Urrieta, Velarde-Aguilar, Oceguera-Figueroa and León-Règagnon2023). The authors did not show consistent associations in the phylogenetic tree topology related to morphological traits, geographical distribution and host species. In the Neofoleyellides, we recovered the same phylogenetic relationships among the 3 species as those reported by Kuzmin et al. (Reference Kuzmin, Netherlands, du Preez and Svitin2021), showing N. martini and N. steyni are closer than N. boerewors.

The distribution map showed that Ochoterenella species are restricted to Central and South America. In the genus, some species are found on specific hosts, whereas others, such as O. digiticauda and O. vellardi, have a wide geographic and host distribution, encompassing different hosts and countries. Certain species coexist on the same host and in the same locality, such as Chiapas, Mexico (O. caballeroi, O. chiapensis, O. digiticauda, O. figueroai and O. lamothei); Guatemala, Guatemala (O. chiapensis, O. figueroai and O. nanolarvata) and Maripasoula, French Guyana (O. dufourae, O. guyanensis, O. oumari and O. royi). The fact that some species are known only from a single record in a single host species suggests that their strict host specificity may be overestimated.

The high diversity of Ochoterenella in the giant toad, R. marina, can be attributed to its widespread geographic range and tolerance of distinct environments, as it inhabits forested areas, semideserts, disturbed habitats and areas surrounding urbanization and roadways. The high number of species with unknown males highlights the importance of new collections for morphological and molecular studies of the genus.

Our study provides the first ultrastructural analyses of the species from the Ochoterenella genus. The SEM images displayed a set of essential characteristics used to identify the genus and distinguish species. We observed details of apical structures, the cephalic plate, the external papillae, parastomal structures and amphids. In our analyses, the internal papillae were more challenging to observe, a finding that resembles that of Netherlands et al. (Reference Netherlands, Svitin, Cook, Smit, Brendonck, Vanhove and Du Preez2020) for the Neofoleyellides, reinforcing the notion that this structure has poorly developed sensilla at the parasite cuticle. However, it can be easily observed by light microscopy following conspicuous nerves.

The SEM images of the arrangement and shape of cuticular bosses were observed in different regions of both sexes. These notable characteristics are helpful for identification due to their few variations. According to Esslinger (Reference Esslinger1986a), analyses of other areas of the cuticular bosses on the body should also be considered. Therefore, the electron micrographs obtained helped the examination of these structures, mainly in species with small bosses, as observed herein. Furthermore, the SEM examination confirms the distribution of caudal papillae in males, as well as the details of the vulva and the small cuticular elevation of the anus in females.

Brazil concentrates the highest anuran species richness; however, the diversity of filarial nematodes of anurans appears to be underestimated. Our results strongly support the independent status of O. casiraghii n. sp., characterized through light microscopy, SEM and molecular data. The new taxon is the 17th species of Ochoterenella and the first species of the genus to be described using ultrastructural analyses. The phylogenetic results indicate that subfamilies and genera form monophyletic clades. The map showed different patterns of distribution; some species may occur concomitantly in specific or broad host ranges. Our results reinforce the importance of detailed morphological and molecular studies in improving our knowledge of the biodiversity, evolutionary history and ecology of this group of anuran parasites.

Supplementary material

The supplementary material for this article can be found at https://doi.org/10.1017/S0031182025100462.

Acknowledgements

We appreciate the help of PhD Edilene Oliveira da Silva and PhD Yuri Willkens from the Federal University of Pará, Belém, Brazil, with SEM analyses. We value the help of PhD Beatriz Elise de Andrade Silva and BSc Daniela da Costa Vinhas from the Oswaldo Cruz Institute, Rio de Janeiro, Brazil, with molecular analyses. We are grateful to Douglas William Trindade Lima, the students from the Laboratory of Cellular Biology and Helminthology ‘Profa. Dra. Reinalda Marisa Lanfredi’ (Federal University of Pará, Belém, Brazil) and the students from the Laboratory of Herpetology of the Federal University of Amapá (Federal University of Amapá, Macapá, Brazil). Furthermore, we thank professionals from the Chico Mendes Institute of Biodiversity Conservation for providing us permission to collect.

Author contributions

G.L.R., L.d.A.d.C. and J.K.S.N. wrote the primary draft and prepared the images. C.E.C-C., F.G.H. and F.T.V.M collected the specimens. L.F.F.T. and C.E.C-C. contributed to specimen observations and SEM analyses, and reviewed and wrote the manuscript. A.M.J., F.G.H. and K.V. performed PCR, sequencing and phylogeny. F.J.P.F.S., R.F.J. and F.T.V.M. wrote the manuscript, revised and prepared the line drawings. All authors reviewed the manuscript.

Financial support

This work was supported by Coordination for the Improvement of High Higher Education Personnel, Brazil (CAPES); Postgraduate Program in the Biology of Infectious and Parasitic Agents (PPGBAIP); University Federal of Pará (UFPA); PROPESP/UFPA; Amazon Foundation for Research and Studies Support (FAPESPA)/CNPq–PRONEM (01/2021 process number 794027/2013); Oswaldo Cruz Institute (IOC, FIOCRUZ) the Carlos Chagas Filho Foundation for Research Support in Rio de Janeiro (E-26/210.194/2019 to A.M.J.); the National Council for Scientific and Technological Development (CNPq) (grant number 431809/2018-6 Universal; grant number: 315844/2023-0 to A.M.J.); and Productivity Scholarship Grant (CNPq) to F.T.V.M. CNPq (process: 314116/2021-4) and C.E.C.-C. (process: 307697/2022-3). This study is part of the PhD. dissertation of Rebêlo, G.L. in Program in Biology of Infectious and Parasitic Agents (PPGBAIP-ICB-UFPA).

Competing interests

The authors declare there are no conflicts of interest.

Ethical standards

All applicable institutional, national and international guidelines for the care and use of animals were followed. Host specimens were collected under permits Institute for the Environment and Renewable Resources – IBAMA/ICMBio (SISBIO: No. 53527-4) and the Ethics Committee on the Use of Animals of the Federal University of Pará (CEUA/UFPA: No. 8341260821).
