2.0 Sensitivity analysis approach

To perform the sensitivity analysis, the response of the function of interest is decomposed into individual parameter contributions and their interactions. This allows to quantify the influence as well as rank the importance of each contribution. The function response of each contribution also allows to gain insight into the physics of the behaviour. The A-cut-HDMR approach is used to realise the decomposition, using ${C_L}$ and ${C_D}$ data primarily from RANS simulations. Computations are done on the 3D airframe geometry, and the aerodynamic loads on the surface are integrated to obtain ${C_L}$ and ${C_D}$ . Then the domain decomposition is driven by a set of these aerodynamic coefficients. If the adaptive process requires new points, additional CFD is computed and ${C_L}$ , ${C_D}$ values are then extracted. Since for the lowest ranked interaction the adaptive sampling of the HDMR queries too many CFD points thus leading to significantly increased computational costs, a proper orthogonal decomposition (POD)-based dd-ROM approach is adopted – in a sense substituting CFD – that allows uncovering said low ranking interactions in a computationally efficient manner.

In the following subsections a brief description is given for the A-cut HDMR and the dd-ROM methods. For a more detailed description please refer to the authors’ previous paper [Reference Jones, Nagy, Minisci and Fossati15] where the methodology was introduced for a similar aerodynamics application.

2.1 Adaptive-cut high dimensional model representation method

The A-cut-HDMR [Reference Kubicek, Minisci and Cisternino16–Reference Mehta, Kubicek, Minisci and Vasile18] is a probabilistic non-intrusive method, which is used to seek a decomposition or finite expansion of a multivariate function of interest. The general multivariate function response, $f\left( {\bf{U}} \right)$ is expressed as the sum of contributions given by each parameter and their interactions, considered as increments with respect to a central value, ${f_c}$ . Thus the A-cut HDMR decomposition can be given as:

(1) \begin{align}f\!\left( {\bf{U}} \right) = {f_c} + \mathop \sum \limits_{i = 1}^{{N_u}} {F_i}\!\left( {{U_i}} \right) + \mathop \sum \limits_{i \lt j \lt = {N_u}} {F_{i,j}}\!\left( {{U_i},{U_j}} \right) + ... + {F_{1,2,...,{N_u}}}\!\left( {{U_1},{U_2},...,{U_{{N_u}}}} \right),\end{align}

where ${N_u}$ is the number of parameters, ${F_i}$ , $i = 1, \ldots ,{N_u}$ , are the orthogonal incremental contributions of every single parameter, ${F_{i,j}},1 \lt = i \lt j \lt = {N_u}$ , are the incremental contributions of each pair of parameters and ${F_{1,2, \ldots ,{N_u}}}$ is the incremental contribution of the interaction of all the parameters.

A surrogate model representation is independently generated for each incremental contribution and only for the non-zero elements, thus greatly reducing the complexity of sampling and building the model. Moreover, the contribution of each term of the sum to the global response is quantified independently so that higher-order interactions with low or zero contribution are neglected already by analysing the lower-order terms.

The A-cut-HDMR is adaptive in terms of sampling and truncation of terms in Equation (1). The existing input distribution and shape of the underlying response are considered for the adaptive sampling leading to an efficient distribution of samples for the given parameters and their combinations. The adaptive truncation removes any interactions that contribute less to the overall response than a prescribed threshold. Iteratively decreasing this threshold uncovers higher order interaction while keeping the number of required samples low.

2.2 Proper orthogonal decomposition-based data-driven reduced order modelling for aerodynamics

To ease the computational demands without sacrificing the quantitative accuracy of the study, the lower ranked interactions – for which many more points are sampled by the adaptive process – are obtained by in essence substituting CFD with an aerodynamic reduced order modelling (ROM). The data-driven ROM adopted here is based on POD [Reference Holmes, Lumley and Berkooz19]. Already available CFD solutions are collated into a snapshot set which is used to train the ROM. Then, within this work, the ROM database is used to obtain approximate surface solutions of the aerodynamic loads (in terms of pressure and shear stress) at any point in the parameter space, corresponding to particular operating conditions.

The POD-based ROM considered in this work is a popular non-intrusive model order reduction approach where the method of snapshots approach proposed by Sirovich [Reference Sirovich20] is coupled with radial basis function (RBF) interpolation. An approximate solution or reconstruction at any ${\bf{x}}$ location in the parameter space, for the quantity of interest ${\bf{u}}$ can be obtained by a linear combination of the so-called POD modes or basis functions, so that:

(2) \begin{align}{\bf{u}}\!\left( {\bf{x}} \right) \approx {\hat{\bf u}} = \mathop \sum \limits_{i = 1}^{{N_m}} {a_i}{\phi _i}\!\left( {\bf{x}} \right)\end{align}

where ${\hat{\bf u}}$ is the approximation, ${\phi _i}$ denotes a POD mode, and ${a_i}$ is the associated coefficient, which are summed over ${N_m}$ modes. The POD modes are computed a-priori when generating the ROM database, while the coefficients are obtained using the RBF interpolation, an approach similar to that presented by Bui-Tanh et al. [Reference Bui-Thanh and Damodarany21].

The POD algorithm itself is an approach that seeks the optimal linear subspace representation of the high-order data or solution manifold. The decomposition is optimal in the sense that the error between the truncated representation and the training data is minimised under the ${L^2}$ norm [Reference Holmes, Lumley and Berkooz19]. The method of snapshots approach shows that the POD modes can be expressed as linear combination of the high-order data, i.e. the CFD snapshot set. Then the modes can be expressed by solving an eigenvalue problem for the cross-correlation matrix of the snapshots. Operating on the cross-correlation matrix provides an advantage over the classical POD algorithm by significantly reducing the computational complexity of the low order model.

3.0 Definition of aerodynamic test case

The specific ultra-high aspect ratio strut-braced wing configuration – hereafter referred to only as SBW – considered in this study has been designed by ONERA and is intended to be equivalent to the Airbus A321neo which is a typical commercial mid-range aircraft. It has an aspect ratio $AR = 19$ , and the geometry, specifically the wing and the strut are aerodynamically optimised for the design cruise conditions. A supercritical airfoil is employed on the wing, while a symmetric aerofoil is used for the strut. The optimised design of ONERA is based on the configuration presented by Méheut et al. [Reference Méheut, Arnoult, Atinault, Bennehard and François22].

The aircraft half-body geometry is initially meshed using an unstructured approach [Reference Geuzaine and Remacle23], before an appropriate boundary layer mesh is inserted using an advancing normal method [Reference Alauzet and Frazza24].

This RANS-ready mesh is considered the baseline grid. For every study featured in this paper a separate anisotropic mesh adaptation step is performed in an iterative manner [Reference Alauzet and Frazza24]. Multiple solutions – at various operating conditions – are combined for the adaptation metric, which addresses the possibly significant changes in the flow field across a given parameter space. The adaptation metric is Mach number and the level of grid convergence is assessed in terms of the variation of aerodynamic coefficients or angle-of-attack (AoA) depending on whether the study is fixed AoA or fixed ${C_L}$ respectively. This mesh adaptation strategy allows for better refinement in critical regions of the flow, primarily capturing the wake and shock waves more accurately, while avoiding the need to perform additional mesh adaptation campaigns for each queried point in the parameter space, enabling also the use of the ROM approach. Initially, a reference grid converged mesh is created by combining solutions at a range of target ${C_L}$ and design freestream conditions. This reference mesh is used for verification of the subsequent adaptation campaigns. Three levels of adaptation are performed until the mesh is considered grid converged, in the sense that the AoA and ${C_D}$ at which all target ${C_L}$ are achieved does not change between subsequent adaptation steps. Information on the baseline grid as well as a three-levels adapted mesh is presented in Table 1. A visualisation of the SBW configuration and adapted mesh is shown in Fig. 1.

Table 1. Information on baseline grid and a three-levels adapted grid

${^{\rm{a}}}$ Adapted grids generated for the subsequent sensitivity studies are coarser than the three-levels adapted mesh which is the finest grid.

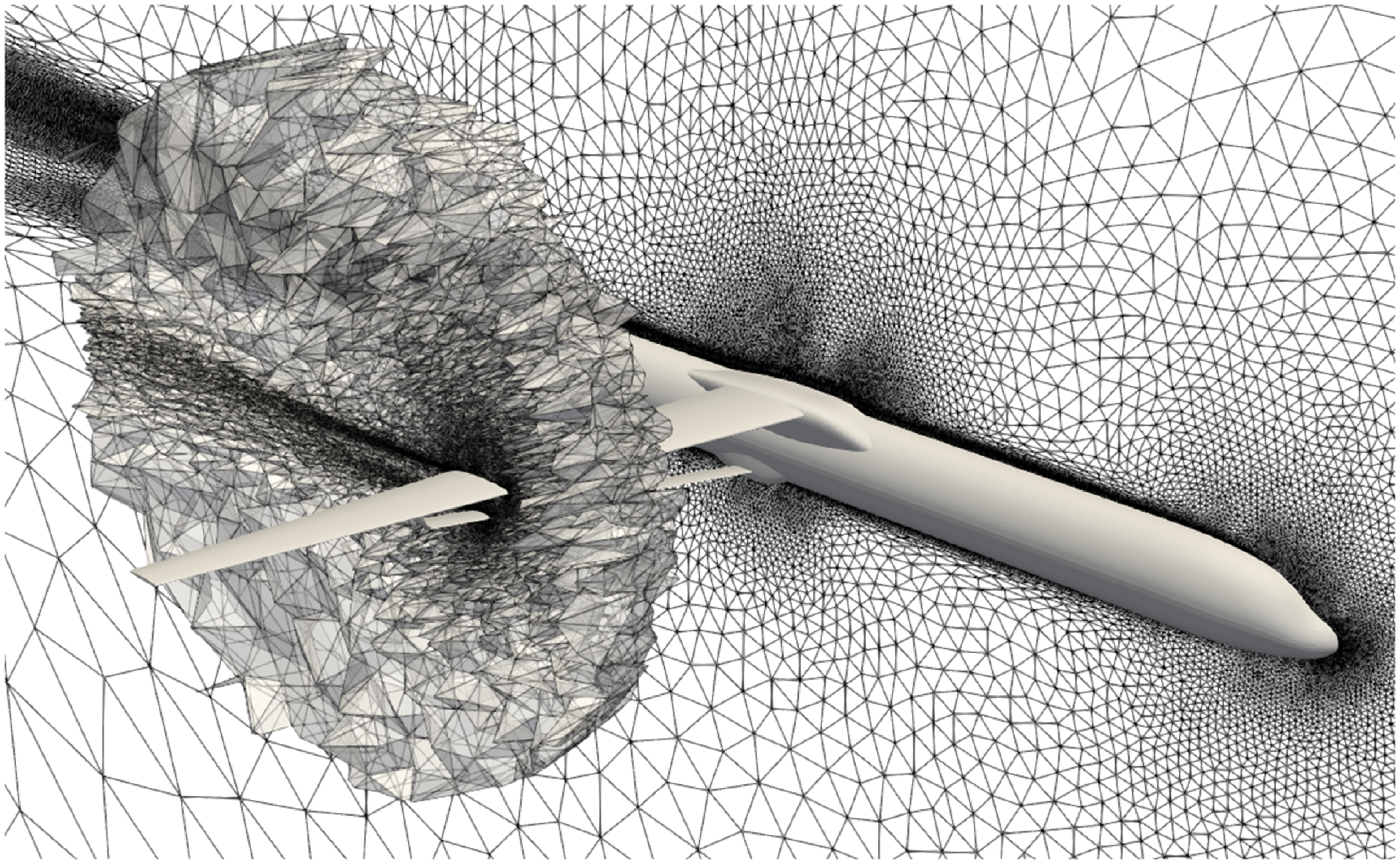

Figure 1. Visualisation of an adapted mesh, after three iterations.

A consistent numerical setup was used for the RANS simulations. A finite volume discretisation of the fully turbulent Navier-Stokes is considered: the fluxes are discretised using the second-order Jameson-Schmidt-Turkel (JST) scheme [Reference Jameson25], while turbulence is modeled using the Spalart-Allmaras (SA) model and is solved to first-order with a scalar upwind scheme. As per the boundary conditions for the body and the domain borders, adiabatic wall and far-field are considered respectively. The CFD module of the open-source code SU2 [Reference Economon, Palacios, Copeland, Lukaczyk and Alonso26] was used for all computations. The freestream quantities at the nominal (cruise) point are listed in Table 2.

Table 2. Freestream quantities at the nominal point and cruise AoA

The surface solution at the nominal point is shown in Fig. 2. The critical areas of the geometry, specifically the wing-strut junction and the root of the strut are highlighted. Due to the complex geometry there is significant acceleration in the flow in those two areas, which leads to additional transonic shocks and potential side-of-body separation at the root.

4.0 Sensitivity of strut-braced wing to operating conditions

The A-cut HDMR approach is used to decompose the overall function response of lift to three independent parameters describing operating conditions: altitude, velocity and AoA. While the decomposition is done for dimensional quantities of the aerodynamic forces, all results are presented in terms of aerodynamic coefficients, ${C_L}$ and ${C_D}$ . The interest in assessing the sensitivities is to understand the design robustness of the SBW near cruise conditions to changes in operating conditions that can be likely experienced by the aircraft in flight, e.g. due to gusts or other external factors. The parameter space is defined around a central point, which corresponds to the nominal values defined in Table 2; the bounds of the design space are presented in Table 3 and were chosen so that all solutions are steady across the parameter space.

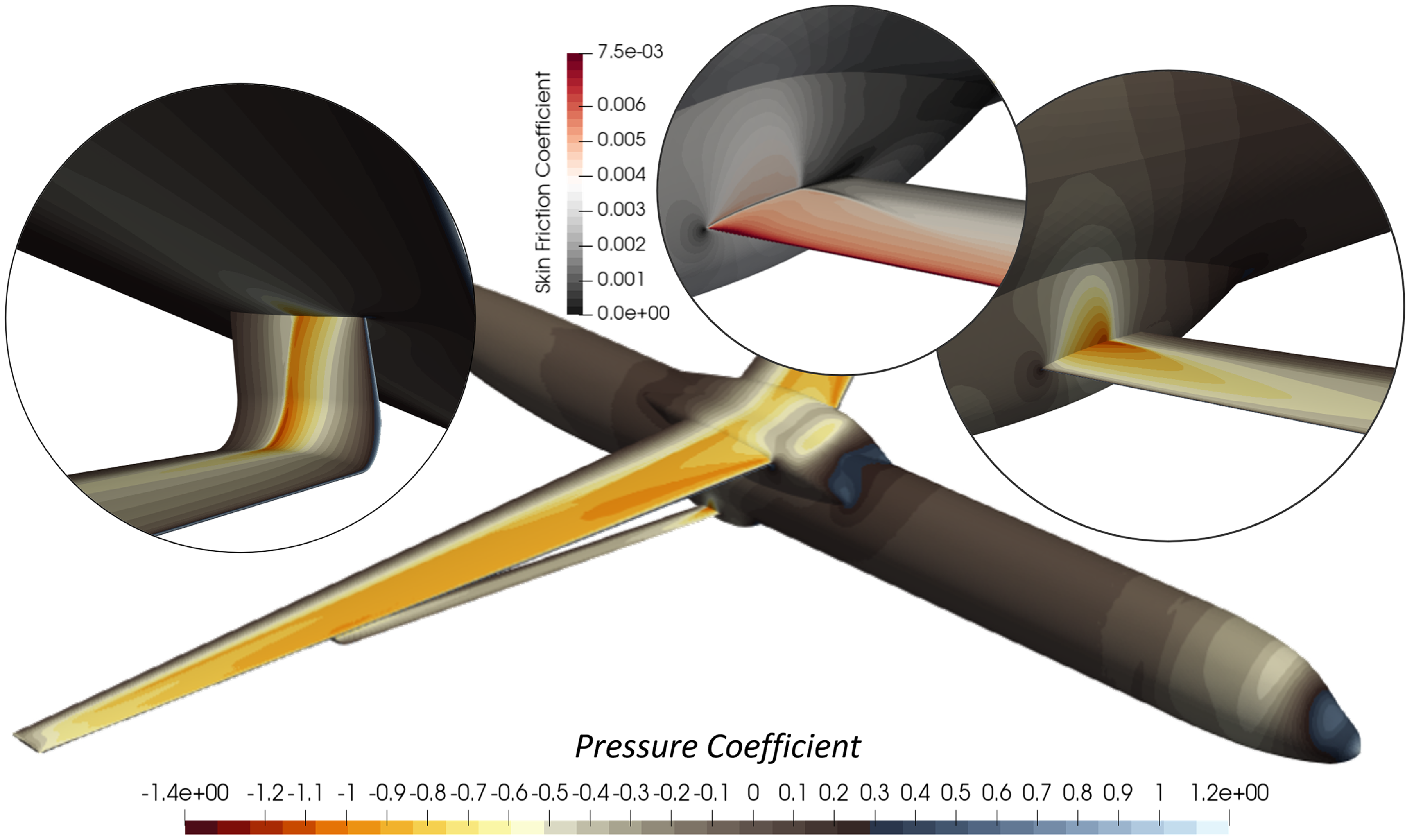

Figure 2. CFD solution of the SBW in cruise. Pressure coefficient shows the overall flow on surface, including the shock along the wing, the wing-strut junction and at the root of the strut. The skin friction coefficient indicates some separation at the root.

Table 3. Parameter space of the sensitivity study

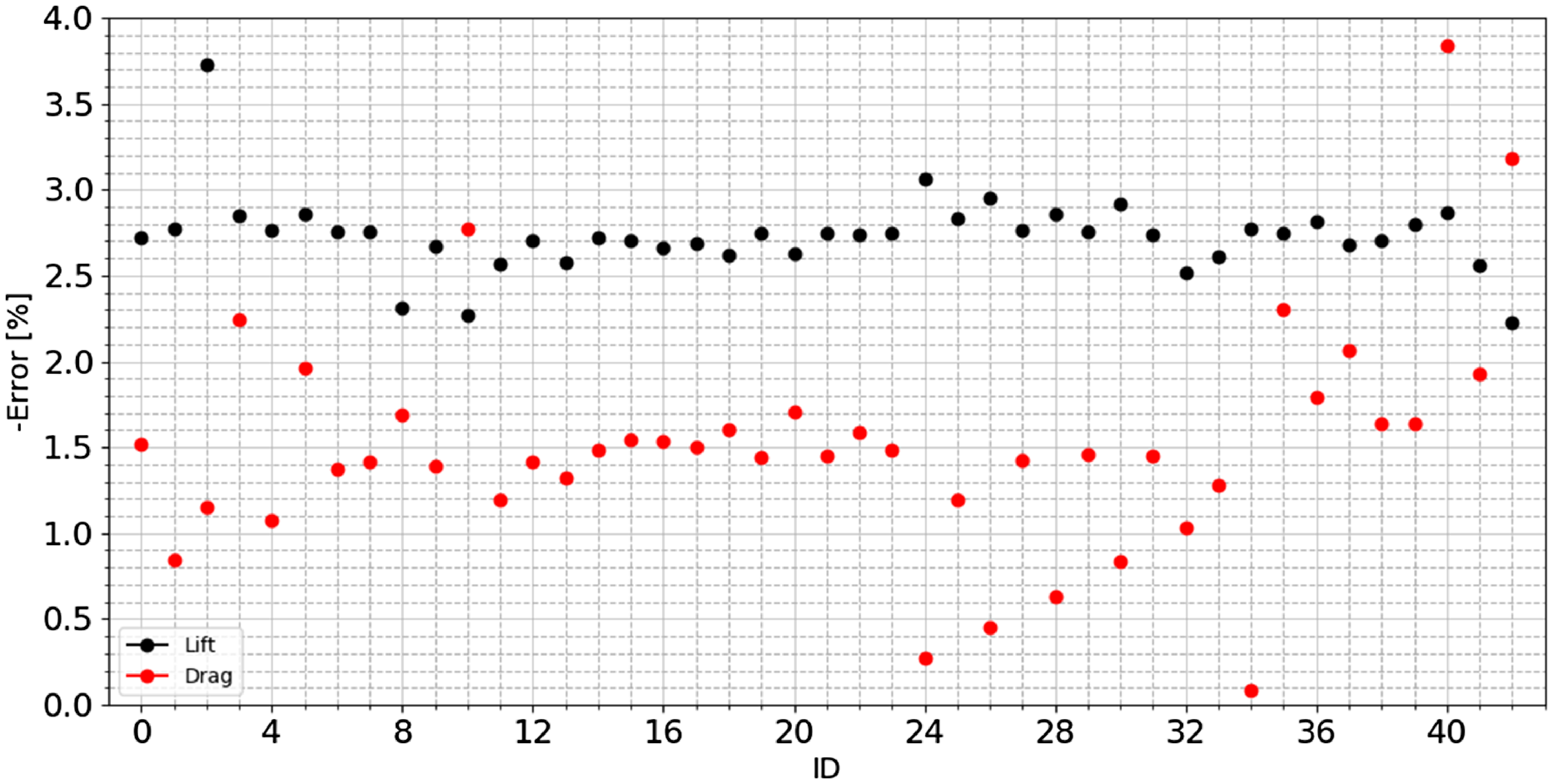

In total, 43 CFD solutions were computed in the process, with the initial design of experiments accounting for 15 solutions. The average computational cost of one CFD simulation was 4,000 core hours, run on 252 to 360 CPU cores on an HPC cluster. The adaptive sampling was stopped once the total variance of the full surrogate reached a user-defined threshold. Since not all lower ranked contributions (increment functions) were uncovered by the purely high-fidelity approach – and it would be significantly more computationally expensive to sample a sufficient number of points for evaluating all increment functions – a dd-ROM is created from the existing solutions which then allows for fast approximation of the aerodynamic coefficients for points queried by the adaptive process. This ROM database can be generated within 1 hour on 1 core and predictions of new points are computed within minutes. The ROM reconstructions are surface solutions of the aerodynamic loads, pressure and skin friction coefficient. The forces are then integrated over the surface to obtain aerodynamic coefficients. The validation of the ROM is reported in Appendix A and was done via leave-one-out cross-validation as well as a comparison of HDMR surrogates obtained with the two approaches. Detailed tables of the responses of the aerodynamic coefficients are reported in Appendix B.

4.1 Sensitivity on lift coefficient

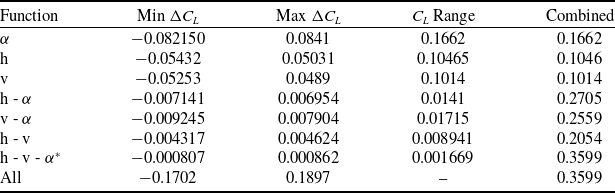

The domain decomposition for the lift was done using only CFD (HiFi approach) for all 1-factor and 2-factor contributions, while the ROM approach was used to obtain the 3-factor interaction. The 1-factor responses are shown in Fig. 3, presenting the incremental contributions and are all exhibiting a fairly linear response. Considering the whole domain a total of $\sum {\rm{\Delta }}{C_L} = 0.3599$ can be achieved by varying the operating conditions, which is approximately $56{\rm{\% }}$ of the nominal value, ${C_{L,cruise}} = 0.638$ .

The strongest parameter contributions are AoA and altitude. Thus, flying at the nominal velocity but at the lowest altitude and highest AoA the lift can be improved, while avoiding a much stronger shock wave on the wing. The surface solution is shown in Fig. 4, which also demonstrates the difference in shock wave intensity when compared with Fig. 2. With respect to cruise, the shock is stronger along the wing with a more pronounced lambda-shock-like feature near the root. However, the shock intensity near the root is largely unchanged, while the intensity decreases at the wing-strut junction.

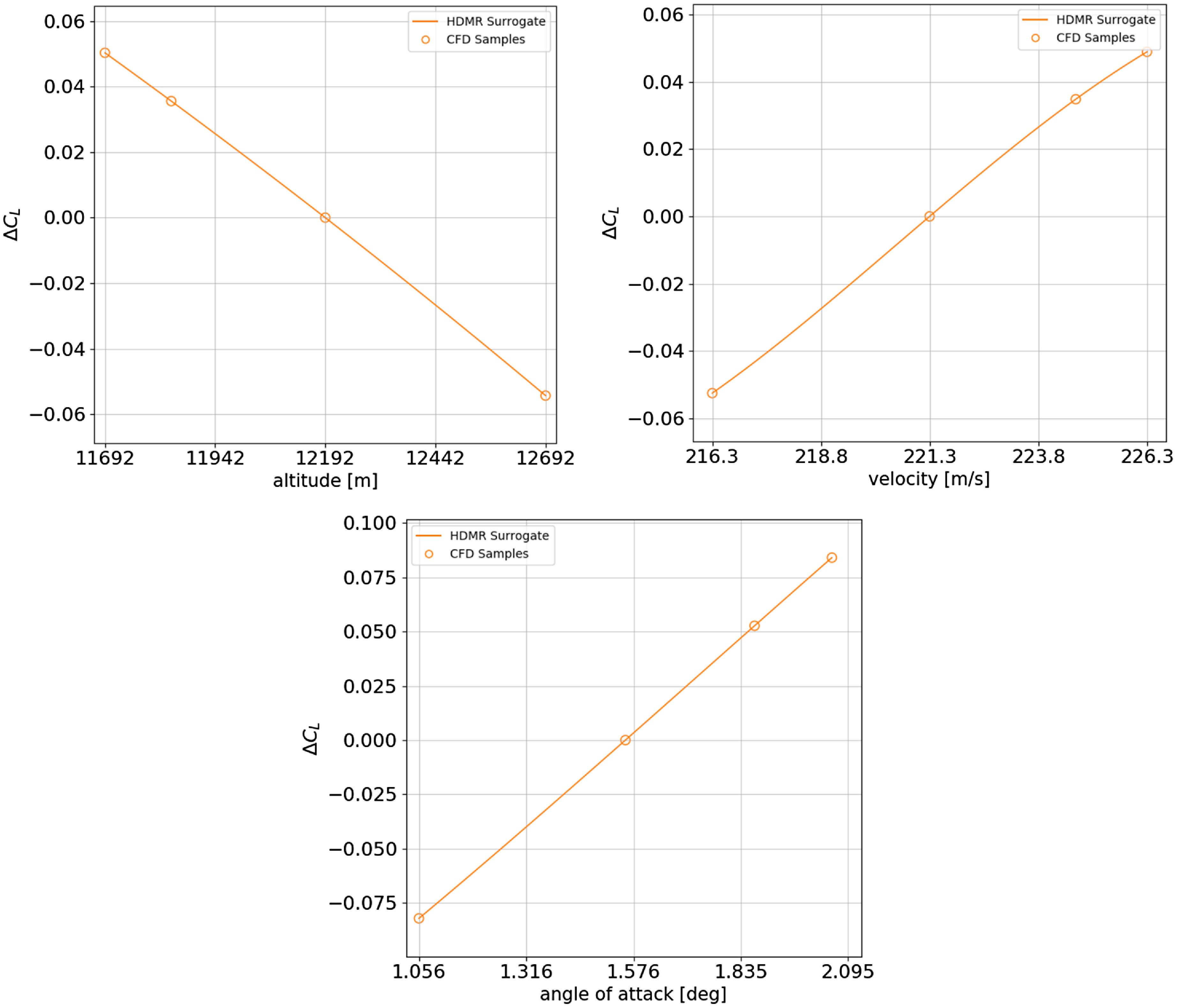

Figure 3. 1-factor contributions of altitude (left), velocity (right) and angle-of-attack (bottom) to ${C_L}$ .

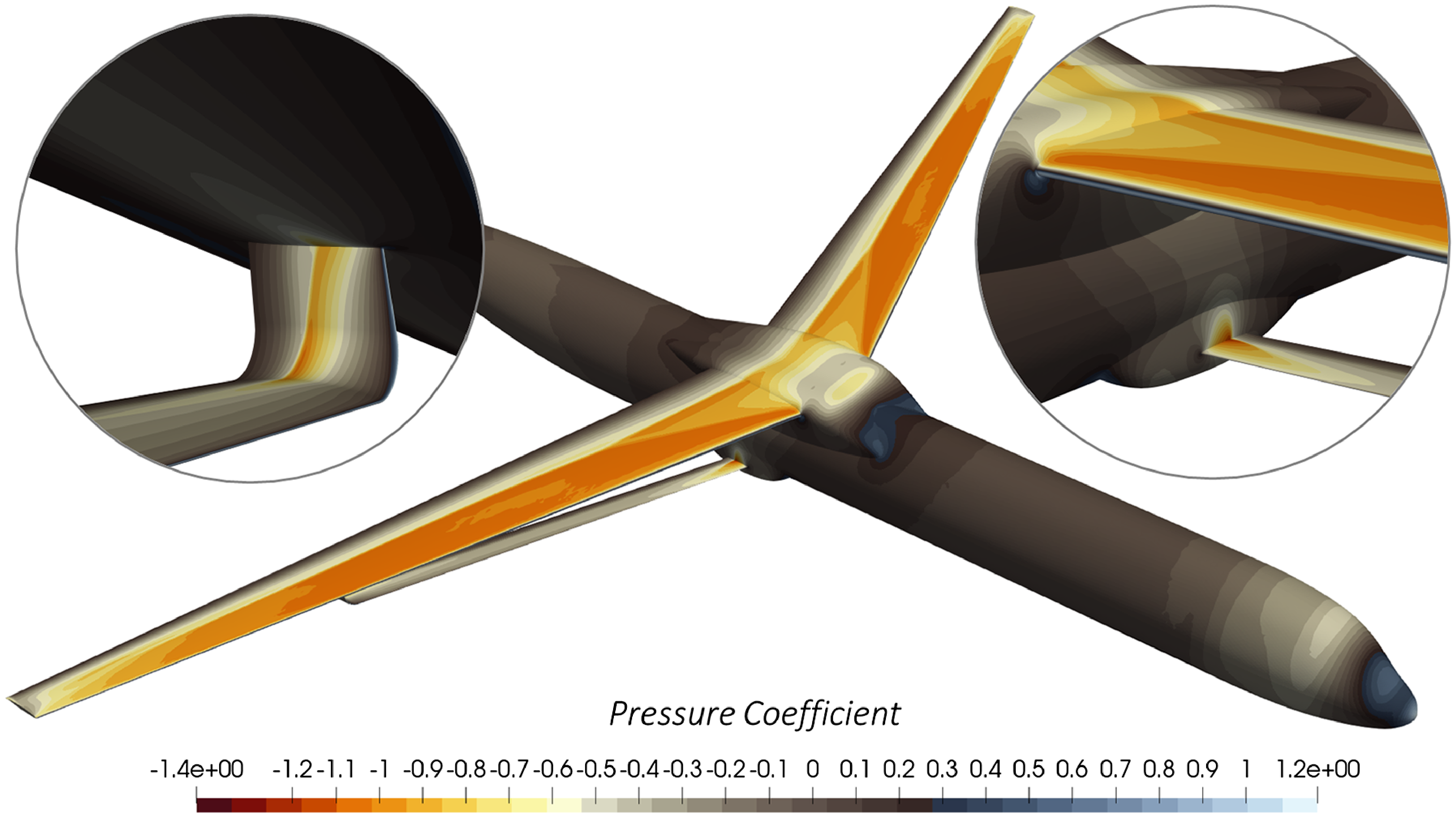

Figure 4. Pressure coefficient on the SBW surface for maximum ${C_L}$ case.

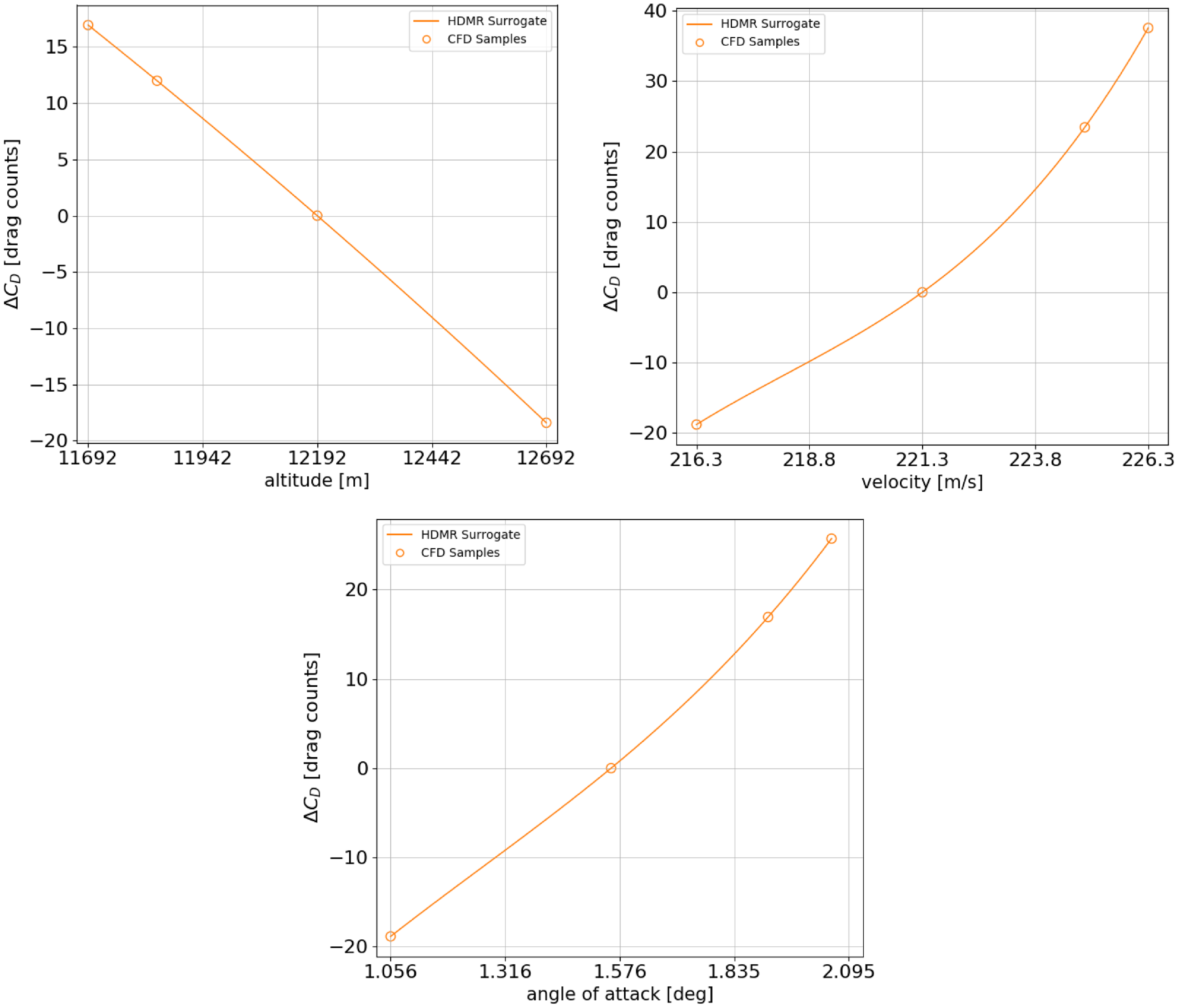

Figure 5. 1-factor contributions of altitude (left), velocity (right) and angle-of-attack (bottom) to ${C_D}$ .

4.2 Sensitivity on drag coefficient

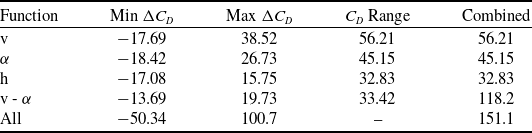

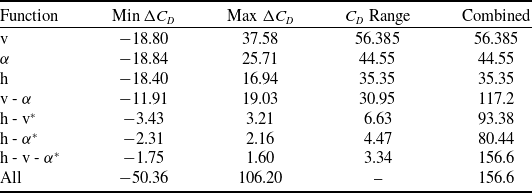

The domain decomposition for the drag was done with the HiFi approach for all 1-factor and the most important 2-factor contributions, while the ROM approach was used to obtain the rest of the interactions.

The sensitivity of ${C_D}$ is quite different to that of ${C_L}$ . Velocity is the most important parameter, followed by AoA and finally altitude. Furthermore the incremental contribution of the interaction of velocity and AoA is of a similar magnitude to the individual parameter contributions. The 1-factor contributions are shown in Fig. 5. The response is linear only in the case of altitude and shows the most non-linearity in the case of velocity. This behaviour can be associated with transonic drag rise, brought on by the onset of drag divergence, however where exactly that occurs must be investigated in more detail. Nevertheless, increasing the cruise velocity leads to rapid increase in drag, indeed when considering the complete domain, approximately two-thirds of the range comes from increases in drag. Overall approximately 65% variation is experienced by the aircraft, with $\sum {\rm{\Delta }}{C_D} = 156.56$ drag counts and the nominal value, ${C_{D,cruise}} = 239$ drag counts.

As velocity and angle-of-attack increase the shock on the wing becomes much stronger. Similarly, the shock intensity at the root of the strut and near the attachment on the strut becomes stronger. Velocity especially also influences the spanwise extension of the two shocks on the strut, overall increasing wave drag. These effects are shown in Fig. 6.

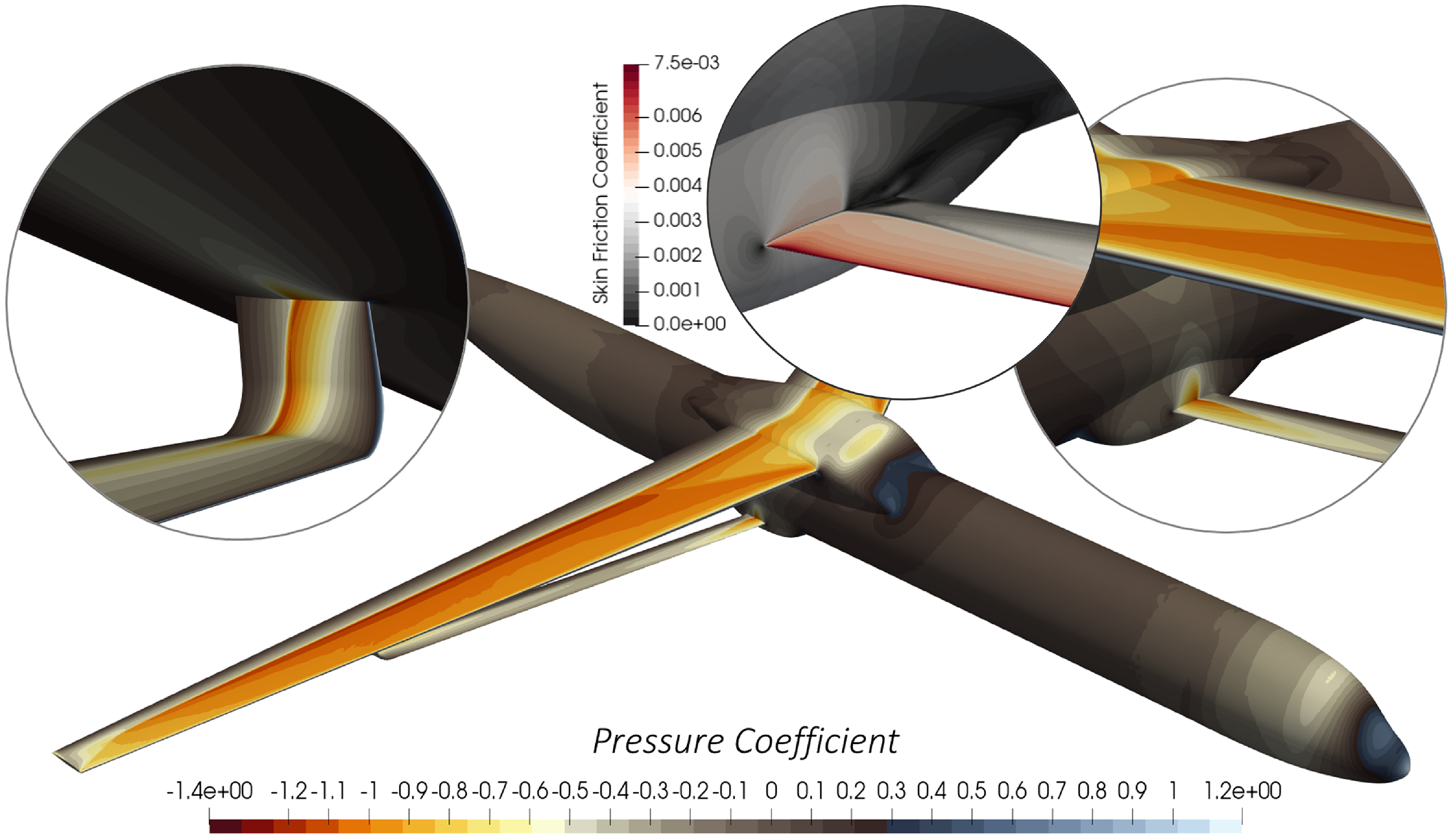

Figure 6. CFD solution of the SBW at maximum ${C_D}$ . With respect to cruise a significantly more intense shock is experienced along almost the whole span of the wing and at the wing-strut junction. There is also a substantial level of separation near the root of the strut as shown by the skin friction coefficient.

4.3 Sensitivity on lift-to-drag ratio

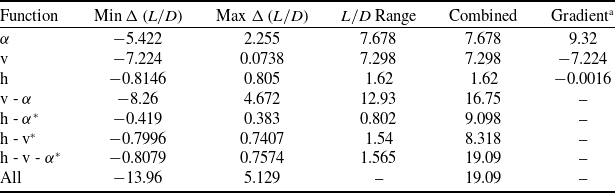

The sensitivities for $L/D$ are obtained by dividing the existing surrogates of lift and drag so that a more direct measure of the aircraft performance is obtained. To compute all contributions a combination of HiFi and ROM approach were used similarly to the lift and drag cases.

From Fig. 7 it follows that significant improvement of the aerodynamic performance cannot be achieved with respect to the design point. Sampling the maximum point of Fig. 8 and decreasing the flight altitude to the lower bounds an approximately 4.5% increase in $L/D$ is observed. Corresponding to this maximum $L/D$ case, Fig. 9 shows the surface pressure field on the aircraft with $L/D = 27.86$ . In contrast to the maximum ${C_L}$ case (e.g. Fig. 4), a slight reduction of cruise velocity leads to weaker shocks in all the critical regions of the flow, thus avoiding an increase in drag.

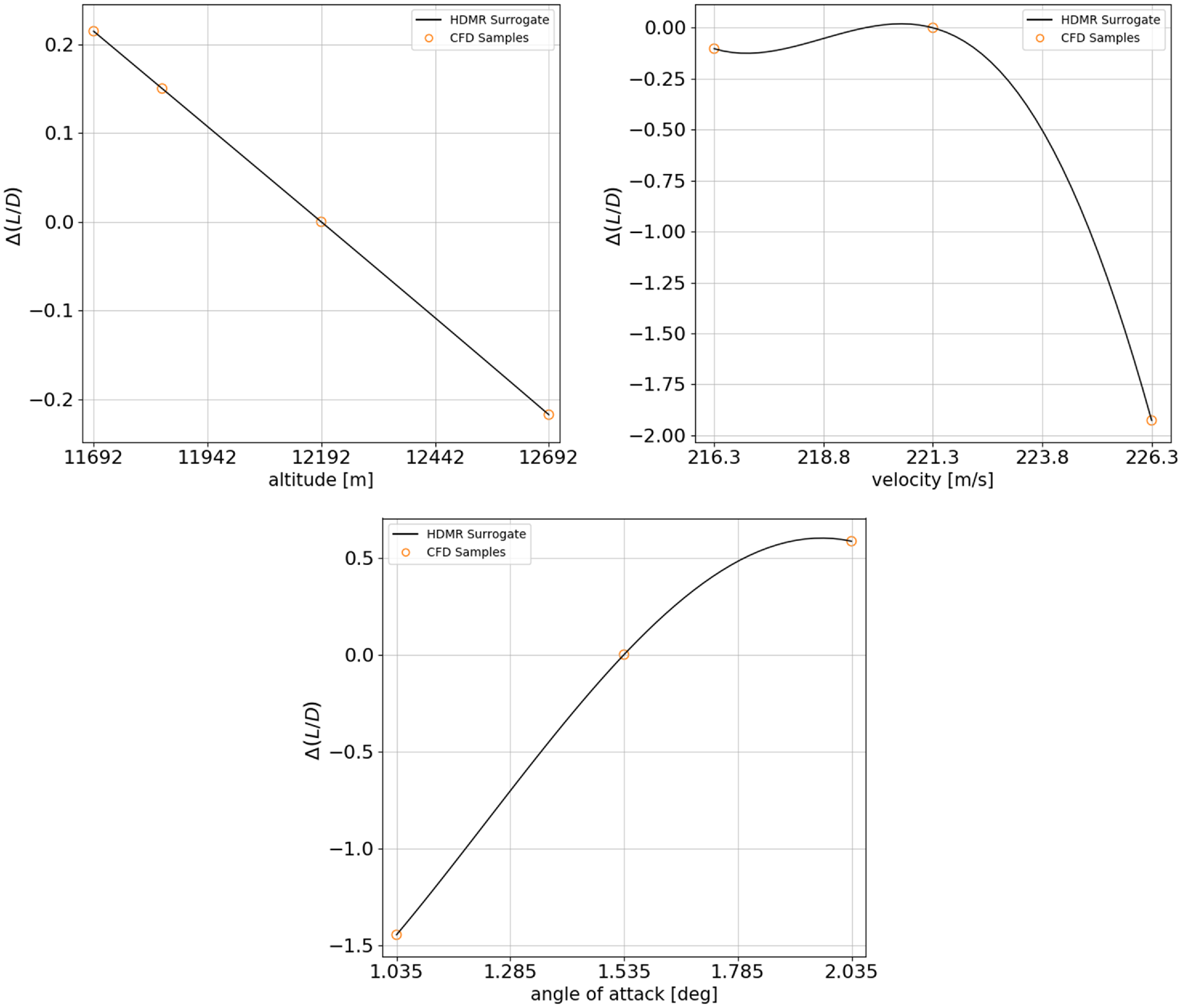

Figure 7. 1-factor contributions of altitude (left), velocity (right) and angle-of-attack (bottom) to $L/D$ .

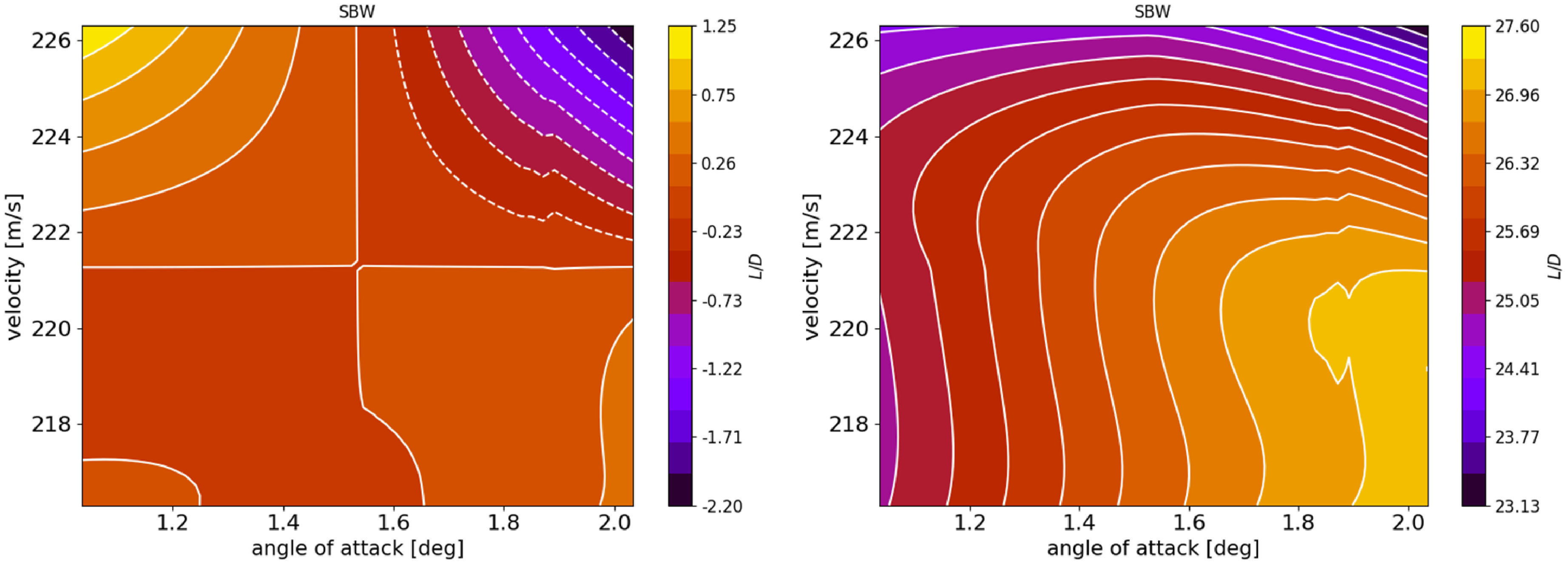

Figure 8. Two-factor interaction (left) and combined contribution (right) of velocity and angle-of-attack to $L/D$ .

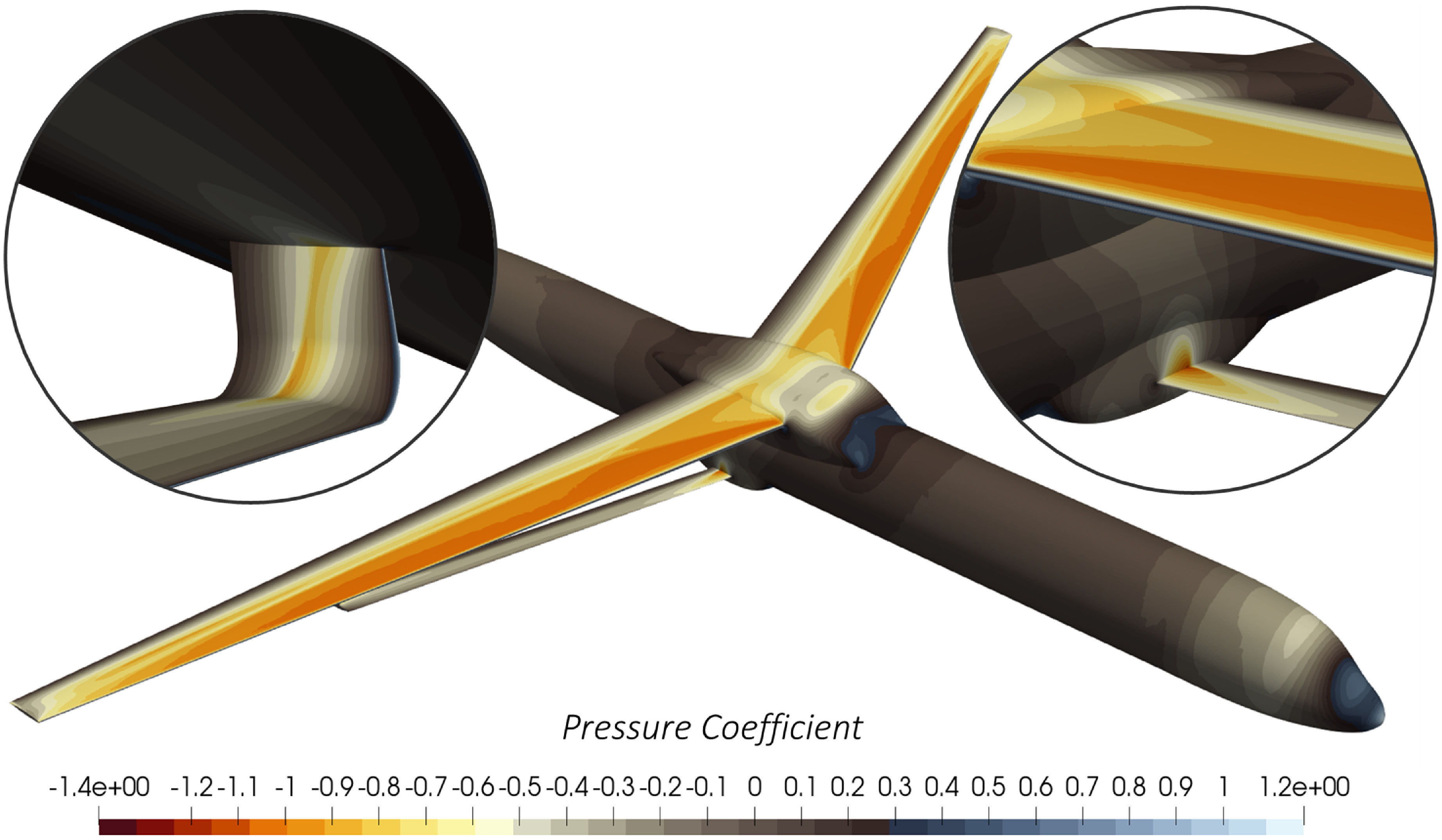

Figure 9. Pressure coefficient on the SBW surface for maximum $L/D$ case. A weaker shock is observed at the wing-strut junction which contributes to reduced drag and improved performance.

5.0 Comparative analysis with cantilever wing configuration

In an effort to quantify the influence of the strut on the overall sensitivity of the aircraft, the cantilever wing (CW) configuration is analysed with the same approach used for the SBW. Since the two configurations are otherwise identical any changes in the trends observed in the sensitivity analyses of Section 4 will be attributed to the absence of the strut. A comparison of the SBW and CW geometries as well as their adapted meshes is shown in Fig. 10.

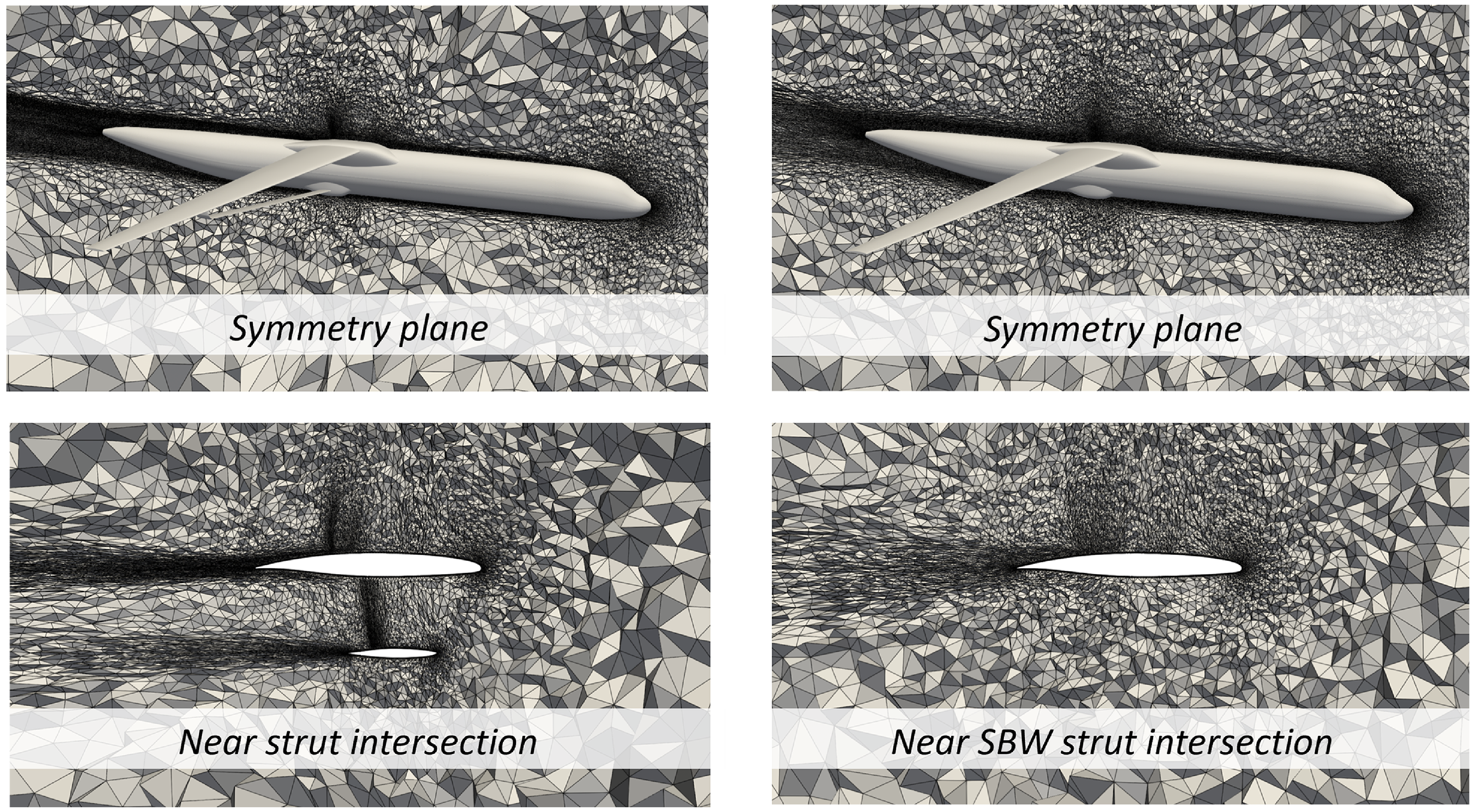

Figure 10. Adapted mesh of the SBW (left) and CW (right) at symmetry plane and near strut intersection.

To stay consistent the cruise ${C_L}$ is not adjusted to account for the removal of the strut, as a structural model with appropriate weights is not considered in this study. The total reduction in ${C_D}$ due to the absence of the strut is $18$ drag counts. Note that the wing generates more lift in the case of the CW configuration as it flies at an approximately ${0.1^ \circ }$ higher AoA to offset the absence of the strut which provides about 5% of the total lift.

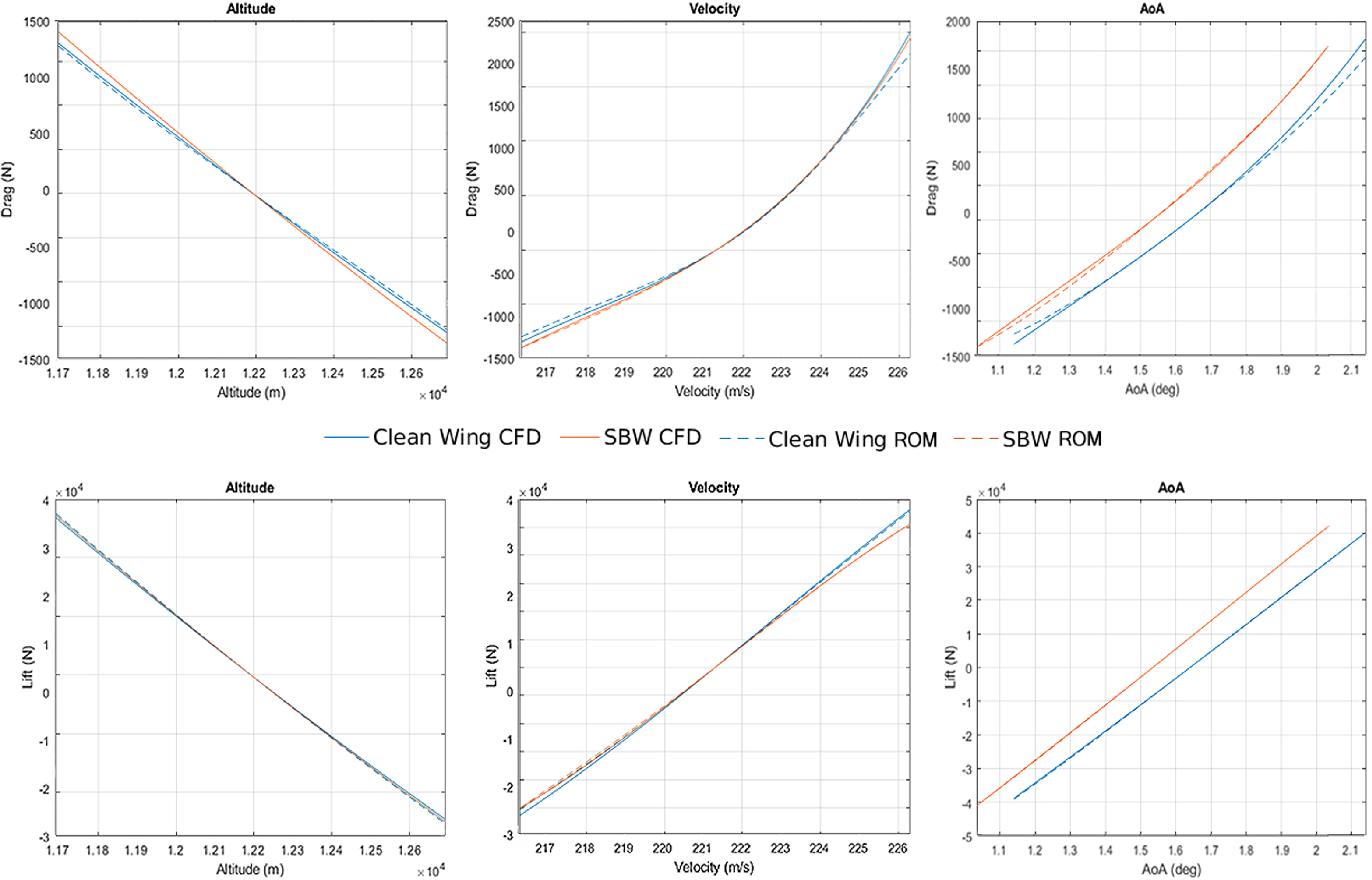

Figure 11 shows the comparison of 1-factor function responses. From this it follows that removing the strut does not affect the design robustness around cruise as the differences between CW and SBW are very small. Quantitatively the difference in total range within the parameter space is only 1.4 drag counts.

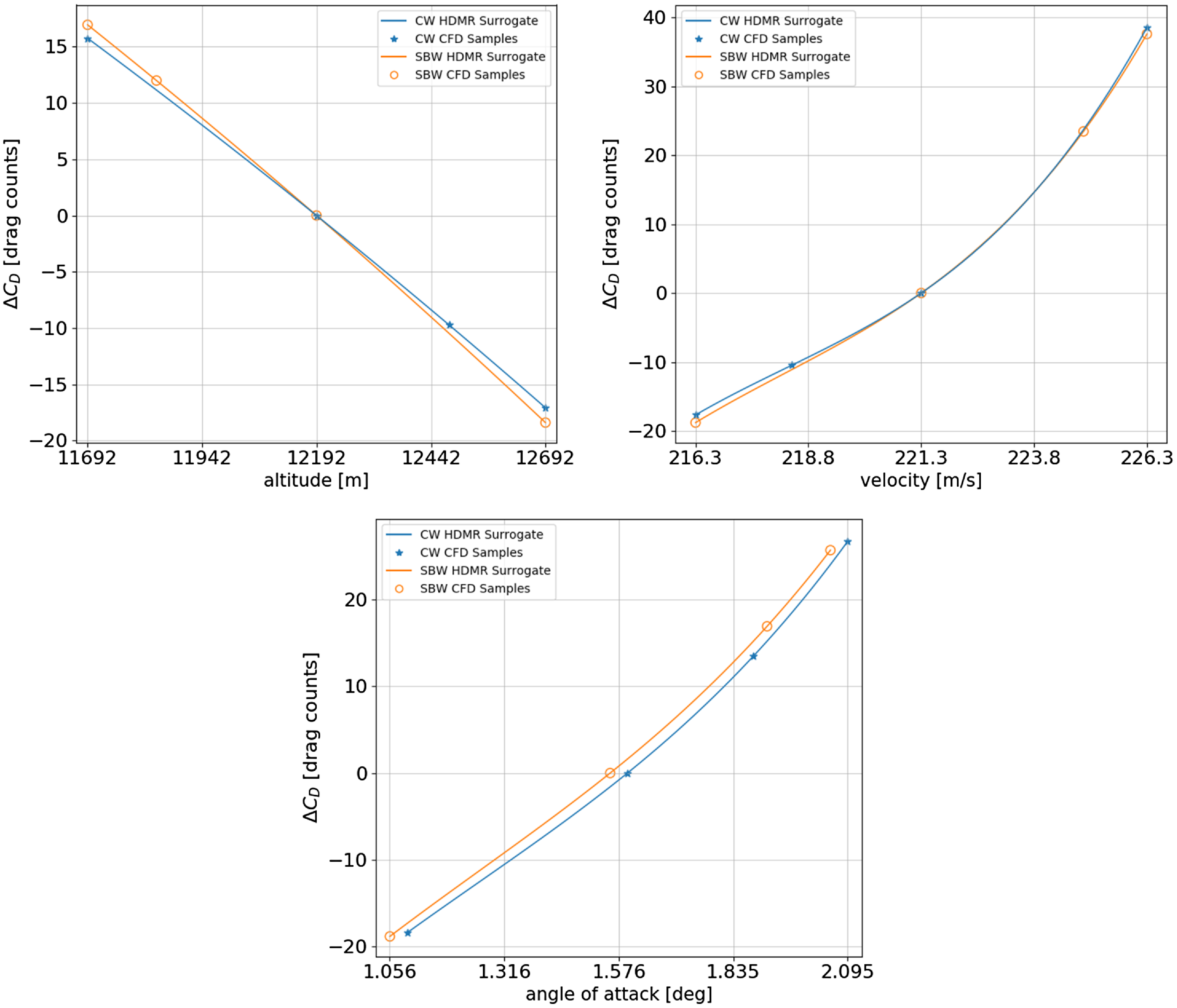

Figure 11. One-factor contributions of altitude (left), velocity (right) and angle-of-attack (bottom) to ${C_D}$ for the cantilever wing configuration.

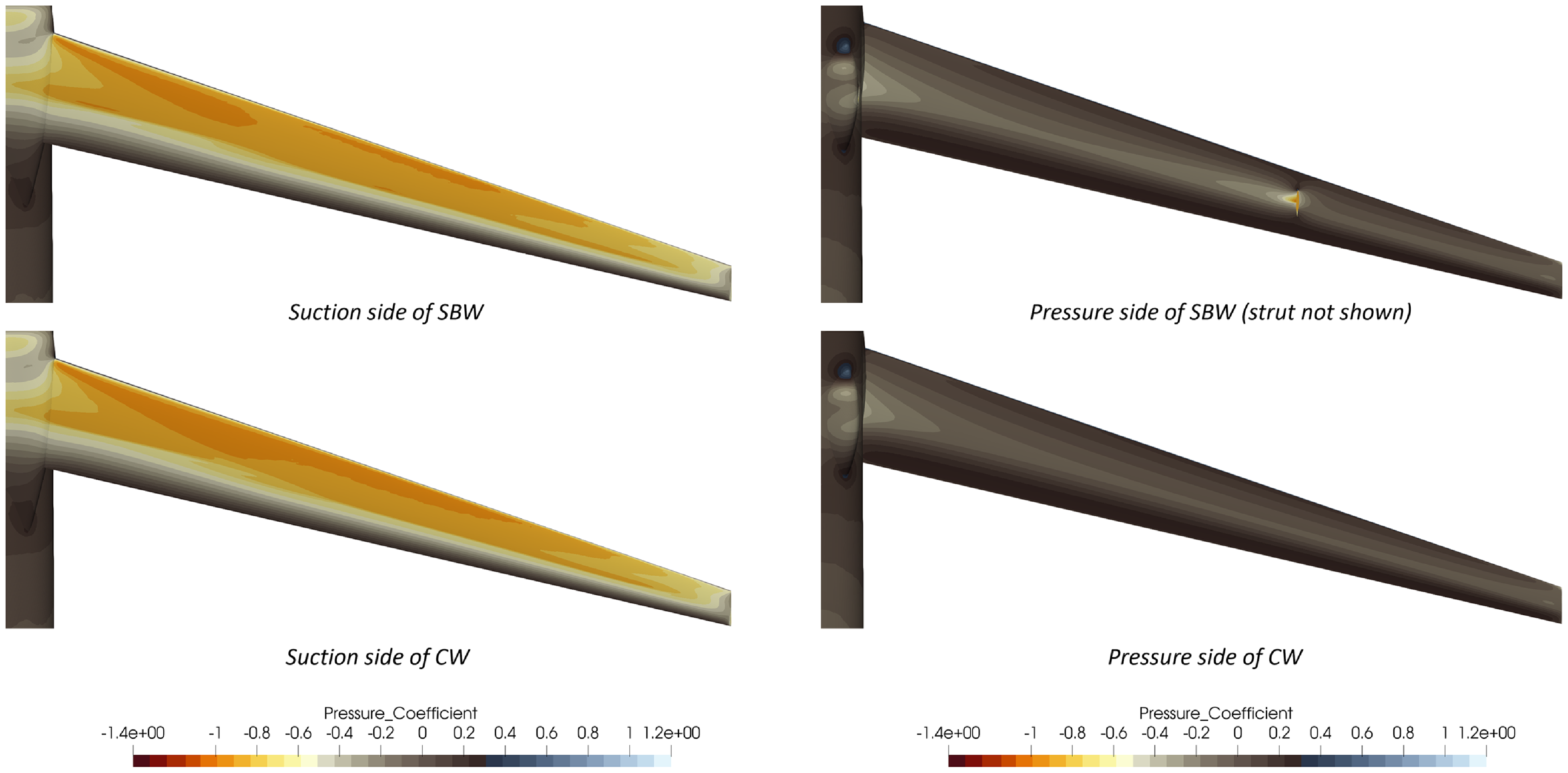

Figure 12. Comparison of pressure coefficient on the SBW and CW wing for cruise (strut not shown).

Comparing aerodynamic loads on the wing reveals further insights, supporting the results of the sensitivity analysis. Figure 12 shows a comparison of the pressure coefficient. The flow on the pressure side of the wing is influenced significantly by the strut due to the nozzle effect but only near the wing-strut junction. The effect outboard of the junction is negligible. Inboard of the strut at mid-chord the pressure is slightly lower when the strut is present, noting also the presence of a small transonic shock feature as the flow accelerates near the junction of the SBW. On the suction side much of the same flow features are present in the two cases, although on the inboard section the flow appears to accelerate more on the CW configuration, attributed to a combination of marginally higher angle-of-attack, differences in the grid and potentially affected by the absence of the strut.

6.0 Identification of buffet limits through an exploration of operating conditions

While the previous analyses assessed the impact of varying operating conditions on the aerodynamic behaviour, the wider exploration instead aims to characterise transonic effects at fixed load factors and varying freestream parameters. The load factors considered are $N = 1.0$ and $N = 1.3$ , with corresponding flight conditions of steady level cruise and an approximately ${40^ \circ }$ banking turn (or moderate turbulence) respectively. Moreover, the load factor $N = 1.3$ is commonly specified as the safety margin at which the aircraft must remain buffet free. Thus it is important to ensure that the SBW design fulfills these requirements. Assessing the transonic drag rise due to changing freestream conditions allows for further insights e.g. in terms of drag divergence, a behaviour which was indicated already from the results presented in Subsection 4.3.

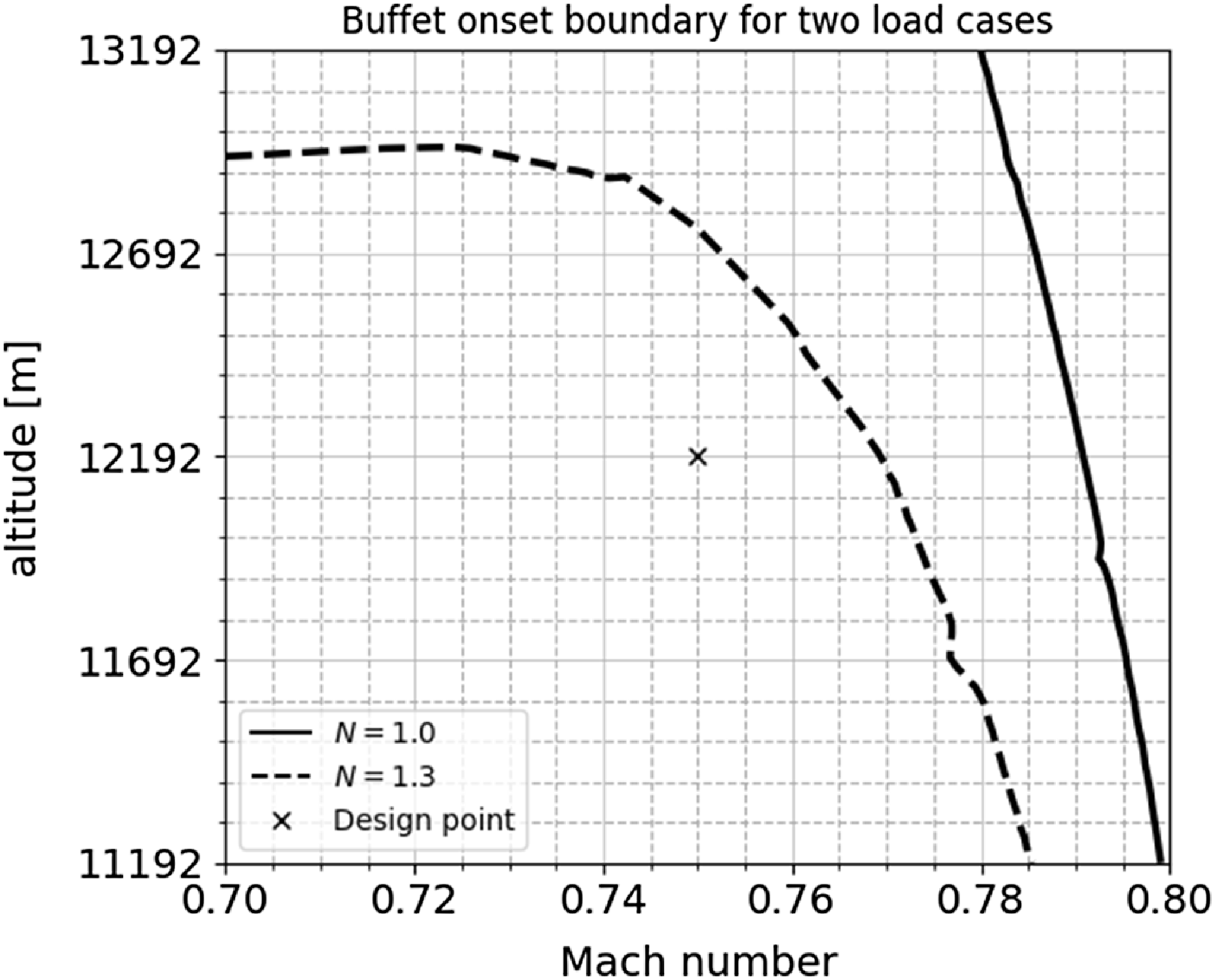

Figure 13. Buffet limits at $N = 1.0$ and $N = 1.3$ . Boundary defined at buffet onset corresponding to 6% separation on the wing.

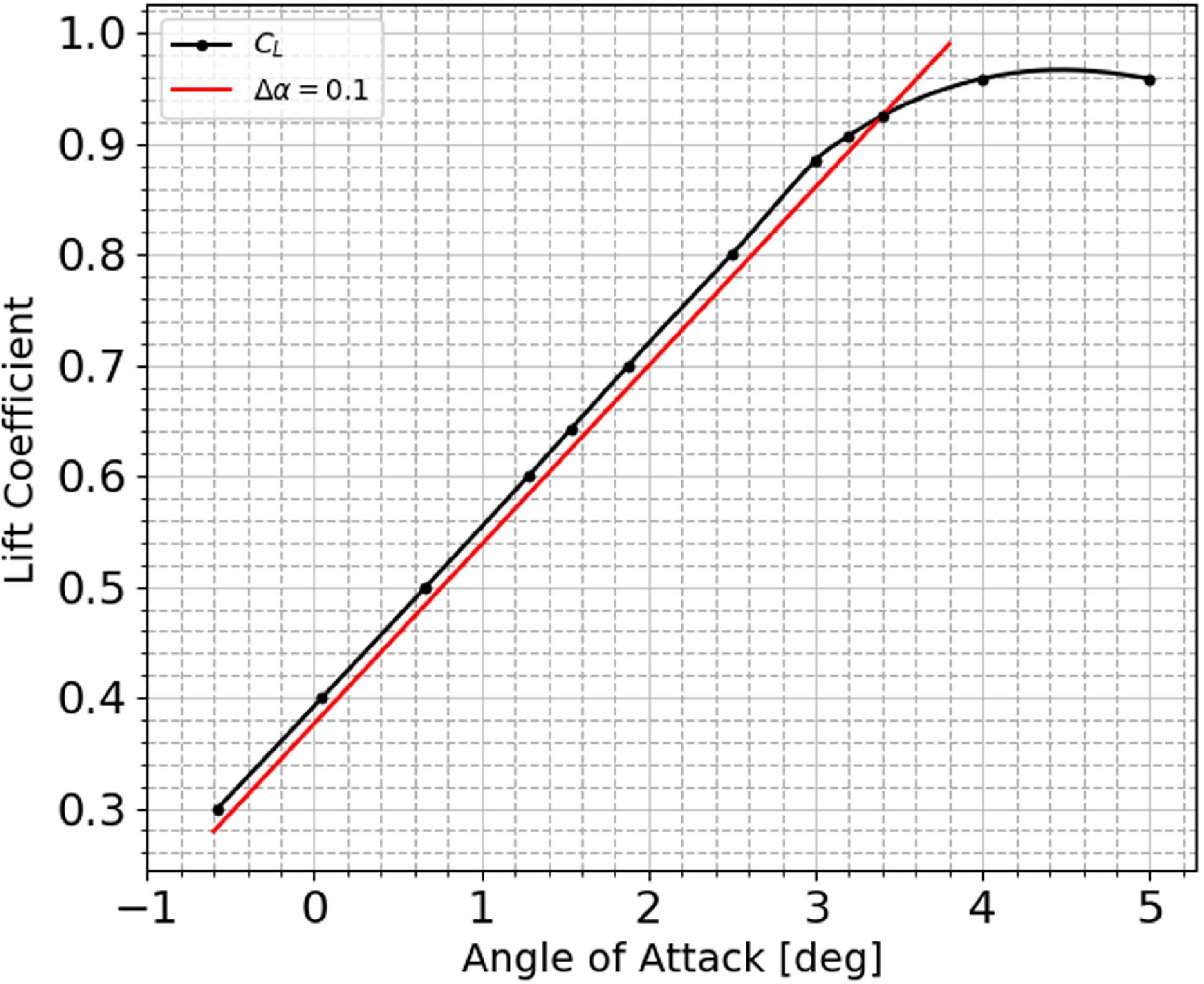

Transonic buffet is an unsteady flow phenomenon arising from shock wave – boundary layer interaction, specifically shock induced flow separation. While the physics is not fully understood, the separation is associated with a self-sustained shock oscillation. This oscillation is not only undesirable in terms of aerodynamics but can induce a detrimental structural response, hence the aforementioned safety margin, i.e. a limit on the aircraft’s flight envelope. The onset of buffet is ambiguously defined and there are various criteria predicting it from several steady solutions or by computing unsteady simulations [Reference Breitenstein27]. As the study done here aims to identify buffet onset across the whole parameter space, requiring many simulations, the approach introduced by Kenway and Martins [Reference Kenway and Martins28] is adopted. They predict buffet onset from a single steady-state solution by evaluating the amount of flow separation, by considering the sign of the streamwise component of skin friction. Their approach is verified against the standard ${\rm{\Delta }}\alpha = 0.1$ method [Reference Breitenstein27, Reference Sartor and Timme29]. The amount of backflow corresponding to buffet onset is found via this verification (see Appendix C) and is identified as $\sigma = 6.013{\rm{\% }}$ . This value is then used as the buffet onset criterion throughout the parameter space.

RANS and time-averaged unsteady RANS simulations were used to identify buffet onset and evaluate drag rise across the parameter space. Figure 13 shows the buffet limits, highlighting that for $N = 1.0$ significant changes in operating conditions are acceptable and the cruise ${C_L}$ can be achieved throughout much of the parameter space. In the case of $N = 1.3$ buffet onset is observed at approximately $M = 0.77$ at cruise altitude, indicating that at the design point the safety margins are respected. Increasing cruise altitude however is severely limiting, the aircraft cannot safely fly above 12.942km, the altitude which corresponds to the buffet ceiling. This behaviour is attributed to the rapid increase of required AoA at the lower Mach and increased altitude. Note here however that since the configuration is optimised for maximum cruise performance it was not designed with a buffet constraint in mind.

The drag rise for both load cases is shown in Fig. 14, The effects of drag divergence are clearly observed for load factor $N = 1.0$ , exhibiting similar trends to that seen in the sensitivity analysis. While the buffet margin is sufficiently far from the cruise Mach and is not limited by altitude (within the bounds of the parameter space), the rapid increase in drag for a given target lift makes increases in Mach number undesirable.

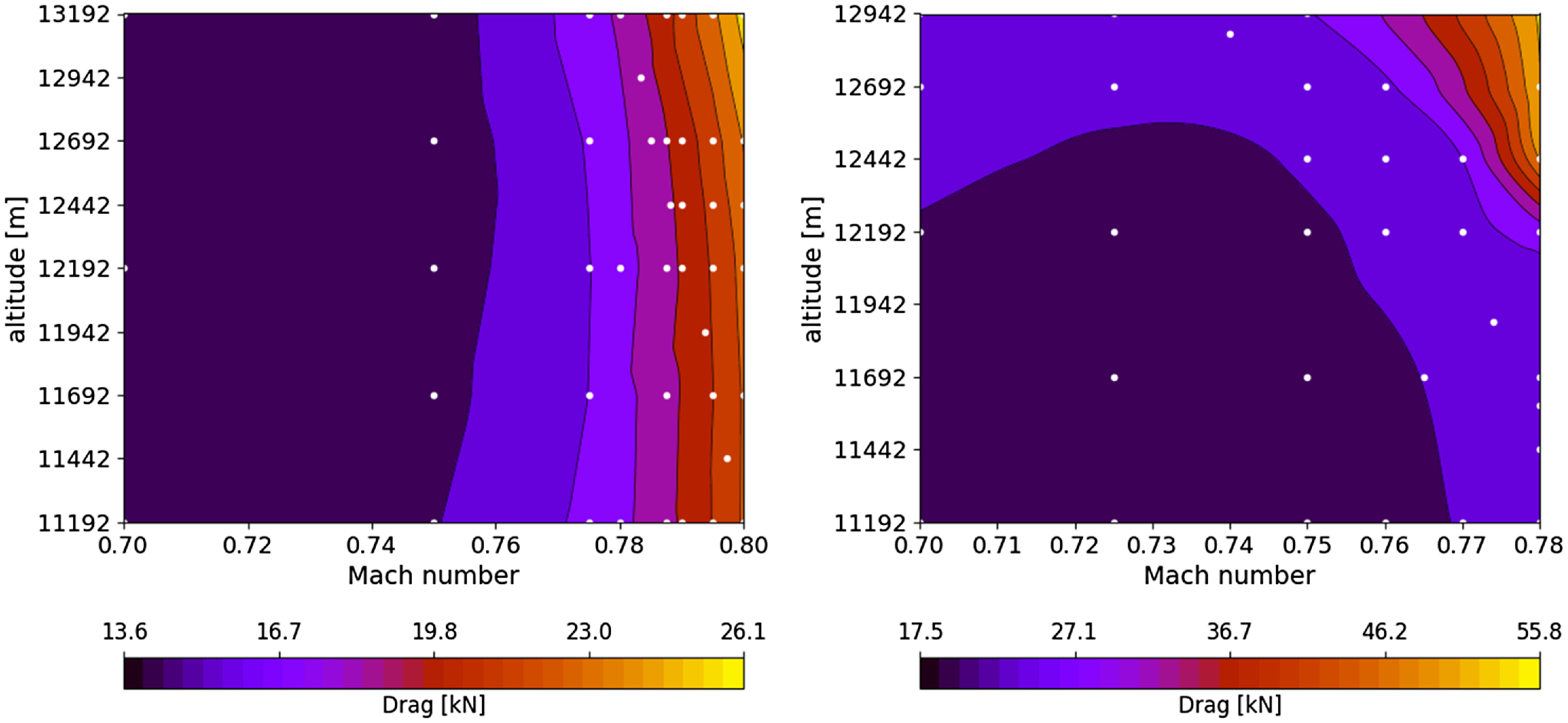

Figure 14. Drag rise at $N = 1.0$ (left) and $N = 1.3$ (right). White dots mark the CFD solutions used for the plots. Dimensional quantities shown to aid interpretation of the figures.

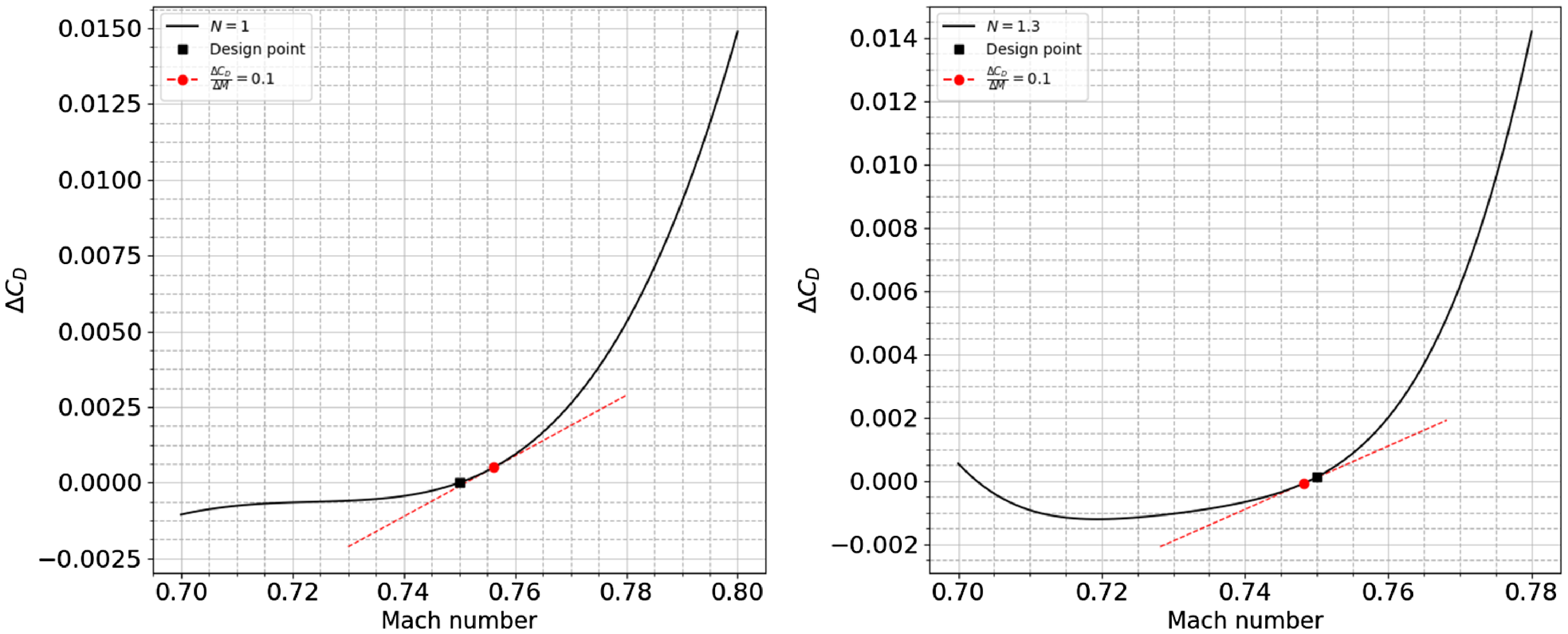

Figure 15. Drag divergence at $N = 1.0$ (left) and $N = 1.3$ (right) at cruise altitude.

Indeed, as shown in Fig. 15, the drag divergence Mach number at the cruise altitude is $M = 0.7562$ , which is not far above the cruise Mach; while in the case of $N = 1.3$ drag divergence is already observed at the cruise Mach number. Note that the drag divergence was assessed for constant lift and the criterion of ${\rm{\Delta }}{C_D}/{\rm{\Delta }}M = 0.1$ [Reference Roskam and Lan30]. For the load case $N = 1.3$ the upper bounds of the parameter space are restricted due to significant unsteadiness in some regions: the maximum altitude is only 12,942m and the maximum Mach number is 0.78. At the lower altitudes the drag increases as expected: at the lower Mach numbers drag is lowest and with increases in Mach the rate of the drag rise becomes faster. However, around cruise altitude and above, the drag minima are observed not at the lowest Mach number, with the behaviour shown also in Fig. 14. This effect is again attributed to flying at comparatively much higher AoA, which in turn means a faster rate of increase in drag.

7.0 Concluding remarks

Within this work, the aerodynamic behaviour of a given mid-range UHAR-SBW airframe is explored near cruise conditions. This is achieved by a study of the sensitivity of lift and drag as well as lift-to-drag ratio to three parameters describing operating conditions. The influence of the strut on the sensitivities is quantified by way of comparison with a cantilever wing configuration. To gain further insights, specifically into transonic effects, an additional analysis is made that characterises drag rise and drag divergence at fixed load factors. Moreover, the boundary of buffet onset is identified across the parameter space. The importance of this is highlighted as buffeting poses a limit to an aircraft’s flight envelope in terms of cruise Mach number and altitude.

When considering lift, the response of sensitivities to individual parameters is largely linear and AoA has the largest influence. To improve ${C_L}$ , decreasing altitude has a similar magnitude but slightly larger effect than increasing cruise velocity, while avoiding more intense shock waves. In the case of drag the most important parameter is velocity, whose response is non-linear, leading to rapid increase of ${C_D}$ above the central value. It is shown that this is due to drag divergence; the increase in wave drag can be inferred from the severity of shock waves when comparing the case of maximum drag with that of cruise. In terms of drag reduction, when considering individual parameters their influence is of very similar magnitude. Ultimately, however, the metric for performance is $L/D$ . Within the parameter space only a marginal improvement can be achieved with respect to the central point. Indeed, flying any higher than the design cruise velocity is detrimental to performance. Again, this is attributed to the onset of drag divergence. It is is worth noting that this configuration was specifically designed so that in cruise the aerodynamic performance is maximised, explaining why significant transonic effects suddenly appear when increasing velocity or AoA. Within the framework of the Clean Aviation programme ONERA is currently working on another SBW configuration with the aim of improved performance at higher cruise Mach numbers and lift coefficients.

Regarding the comparison with the CW configuration, it is clear that for SBW designs it is possible for the strut to have little influence on robustness of the design near cruise conditions, provided there is heavy emphasis on the aerodynamic optimisation of the strut. For the configuration assessed in this work the interference effects are minimal and have little extension beyond the region of the wing-strut junction. Another advantage of the optimised strut is that there is no shock wave extending across its span, instead the two shock waves are localised only near the root and near the junction, due to the channeling effect further accelerating the flow. Therefore, the wave drag of the strut is kept low. Note however that the strut is primarily a structural component so coupled aero-structural optimisation is critical; which may lead to less aerodynamically efficient (e.g. thicker) strut designs. Nevertheless, these results are promising for the viability of the SBW concept: as long as the aeroelastic and structural behaviour is acceptable, the aircraft can not only outperform modern conventional configurations, but its predicted gains in $L/D$ approach the optimistic estimates quoted in literature.

Finally, a wider exploration of the operating conditions at fixed load factors revealed that while the aircraft satisfies requirements in terms of buffeting, its design point is not very far removed from the boundary of the flight envelope (determined by the buffet onset). Steady level cruise can be achieved across much of the wider parameter space without an indication of buffet onset. An analysis of the drag rise shows rapid increase at Mach number beyond the design value, similarly to the results of the sensitivity analysis. The implications of all the analyses is that a slightly reduced cruise Mach number as well as flying at a lower altitude can lead to marginal gains in performance, and more importantly allow the aircraft to fly further away from the upper bounds of its flight envelope, with the additional benefit of more robustness to changes in operating conditions.
